NORDICTRACK COMMERCIAL X22I TREADMILL – NTL29221.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
97 Parts Available for NORDICTRACK COMMERCIAL X22I TREADMILL - NTL29221.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 280156 | 1 | 3/8″ X 5 1/2″ PATCH BOLT | $6.18 | ||
| 169810 | 2 | #8 X 1 1/4″ SCREW | $0.99 | |||
 | 163045 | 3 | 3/8″ STAR WASHER | $0.99 | ||
 | 130659 | 4 | #8 X 3/4″ PAN HD TEK SCRW | $0.99 | ||
 | 013322 | 5 | #8 X 3/4″ SCREW | $0.99 | ||
| 136728 | 6 | #8 X 7/16″ SCREW | $0.99 | |||
 | 013576 | 7 | #8 X 1/2″ SCREW | $0.99 | ||
| 014064 | 8 | 1/4″ STAR WASHER | $0.99 | |||
 | 013300 | 9 | #8 X 3/4″ TEK SCREW | $0.99 | ||
 | 291486 | 10 | #8 X 5/8″ SCREW | $0.99 | ||
| 013500 | 11 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
 | 183246 | 12 | 1/4″ X 1/2″ PATCH BOLT | $1.49 | ||
 | 364027 | 13 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 425557 | 14A | M8 X 32MM BOLT | $25.99 | ||
 | 014132 | 14B | FRAME PIVOT WASHER | $0.99 | ||
| 425558 | 15A | M8 X 51MM BOLT | $7.99 | |||
 | 133333 | 16 | CLIP | $0.99 | ||
| 183824 | 17 | #8 X 1/2″ GROUND SCREW | $0.99 | |||
 | 276971 | 18 | 3/8″ X 3 1/4″ SCREW | $6.49 | ||
 | 333350 | 19 | M8 NUT | $1.99 | ||
 | 295758 | 20 | MOTOR BOLT | $3.49 | ||
| 150148 | 21 | 3/8″ X 2 3/8″ BOLT | $4.49 | |||
 | 135622 | 22 | 3/8″ X 2 3/4″ SCREW | $18.99 | ||
| 014157 | 23 | #8 STAR WASHER | $0.99 | |||
| 385350 | 24 | CONSOLE BACK | $86.49 | |||
 | 152478 | 25 | 5/16″ FLAT WASHER | $0.99 | ||
 | 119425 | 26 | 3/8″ JAM NUT | $0.99 | ||
 | 100427 | 27 | 5/16″ NUT | $0.99 | ||
 | 012090 | 28 | 1/4″ NUT | $0.99 | ||
 | 198639 | 29 | BELT GUIDE | $5.99 | ||
| 376028 | 30 | WALKING PLATFORM | $178.99 | |||
 | 407374 | 31 | WALKING BELT | $167.49 | ||
| 407735 | 32 | LEFT FOOT RAIL | $179.99 | |||
| 407736 | 33 | RIGHT FOOT RAIL | $101.49 | |||
| 338270 | 34 | IDLER ROLLER | $160.99 | |||
| 350490 | 35 | BELLY PAN COVER | $43.99 | |||
| 373714 | 36 | BELLY PAN | $61.99 | |||
 | 186726 | 37 | POWER SWITCH | $22.49 | ||
| 196829 | 38 | BELLY PAN GROMMET | $2.49 | |||
 | 173169 | 39 | POWER CORD GROMMET | $0.99 | ||
| 252752 | 40 | POWER CORD | $69.99 | |||
| 132315 | 41 | CABLE TIE | $3.49 | |||
 | 376275 | 42 | DRIVE ROLLER/PULLEY | $175.49 | ||
| 428245 | 43 | RIGHT FOOT RAIL COVER ENDCAP | $22.99 | |||
| 350493 | 44 | LEFT FOOT RAIL COVER | $22.99 | |||
 | 375789 | 45 | SMALL PIVOT BUSHING | $5.49 | ||
| 330114 | 46 | BELT | $70.49 | |||
| 437492 | 47 | FRONT HOOD COVER | $76.49 | |||
| 350503 | 48 | FRONT HOOD | $71.99 | |||
 | 320295 | 49 | CUSHION CAP | $0.99 | ||
 | 319487 | 50 | SPRING | $13.99 | ||
 | 324707 | 51 | CUSHION | $8.49 | ||
 | 428800 | 52 | BASE WIRE | $67.99 | ||
| 331921 | 53 | RUBBER CUSHION | $2.49 | |||
| 373400 | 54 | LARGE PIVOT BUSHING | $6.99 | |||
| 391085 | 55 | ELECTRONICS COVER | $72.49 | |||
 | 329456 | 56 | INCLINE MOTOR TOP COVER | $13.49 | ||
 | 014149 | 57 | 5/16″ STAR WASHER | $0.99 | ||
 | 433536 | 58 | INCLINE MOTOR BOTTOM CVR | $16.99 | ||
 | 425559 | 59 | INCLINE MOTOR BUSHING | $2.99 | ||
 | 425791 | 60A | INCLINE MOTOR | $197.99 | ||

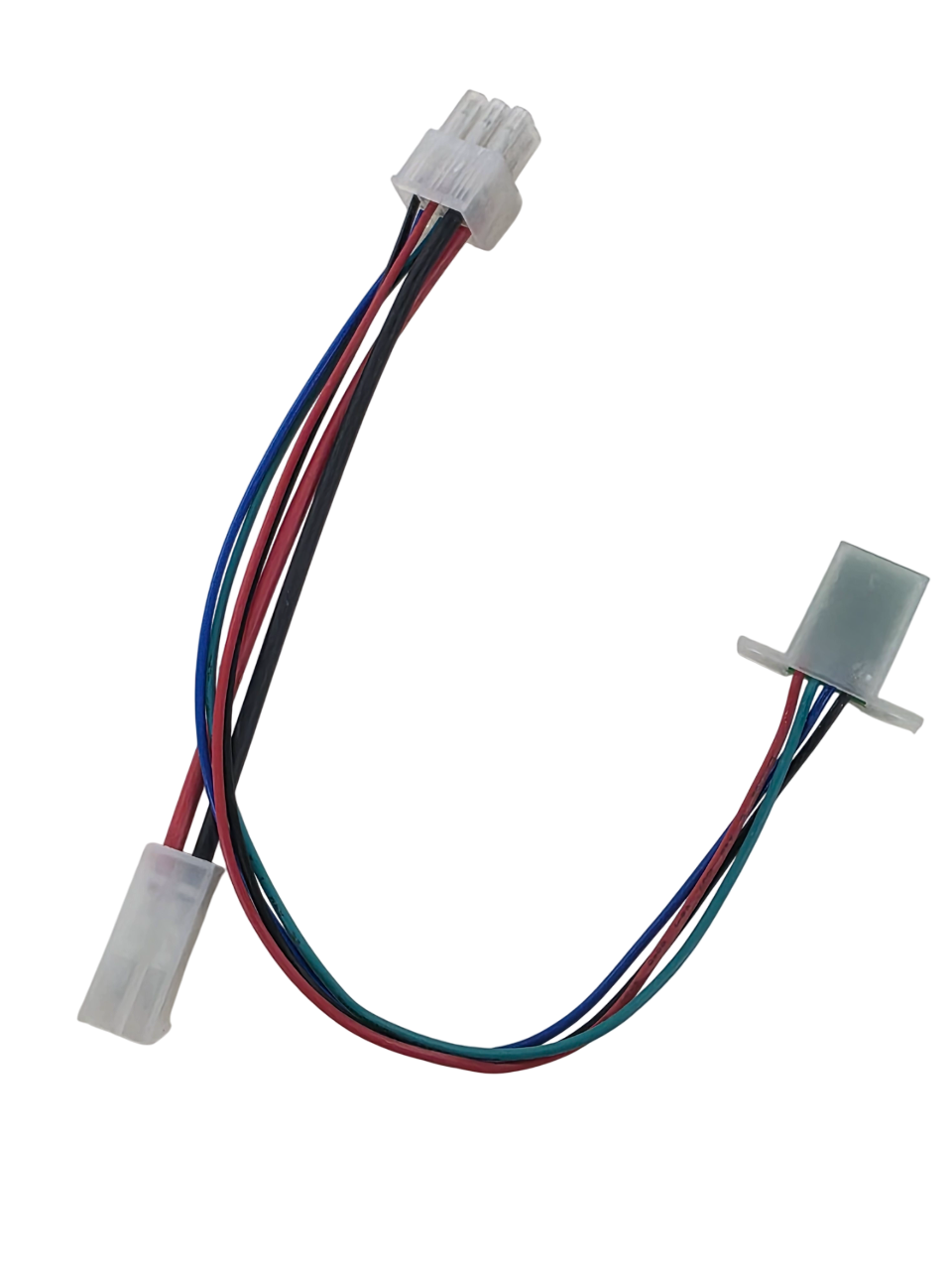

 | 426162 | 60C | INCLINE MOTOR SENSOR KIT | $38.99 | ||
| 425782 | 61 | ELECTRONICS BRACKET | $112.49 | |||
 | 448932 | 62 | Motor Control Board | $269.99 | ||
 | 442305 | 63 | RESISTOR | $104.49 | ||
| 405699 | 64 | DRIVE MOTOR | $262.49 | |||
 | 295136 | 65 | 5/16″ X 3/4″ SCREW | $3.49 | ||
| 106731 | 67 | FAN SCREW | $0.99 | |||
| 426167 | 68 | LEFT OUTSIDE UPRIGHT CVR | $61.99 | |||
| 350520 | 69 | LEFT INSIDE UPRIGHT COVER | $24.49 | |||
| 350518 | 70 | RIGHT INSIDE UPRIGHT CVR | $27.99 | |||
| 426166 | 71 | RIGHT OUTSIDE UPRIGHT CVR | $59.99 | |||
 | 273782 | 72 | WHEEL | $3.99 | ||
 | 350476 | 73 | BASE PAD | $6.49 | ||
| 456099 | 74 | BASE | $329.49 | |||
 | 428799 | 75 | UPRIGHT WIRE | $70.99 | ||
 | 129004 | 76 | ROUND GROMMET | $1.99 | ||
| 325431 | 77 | LEVELING FOOT | $23.99 | |||
 | 361917 | 78 | AXLE | $28.49 | ||
| 375781 | 79 | BASE CAP | $7.99 | |||
| 271317 | 80 | WARNING DECAL | $14.49 | |||
| 252433 | 81 | WARNING DECAL | $0.99 | |||
| 407619 | 82 | LEFT HANDRAIL | $114.99 | |||
| 387377 | 83 | UPRIGHT | $392.99 | |||
 | 215822 | 84 | CONSOLE GROUND WIRE | $5.99 | ||
| 407626 | 85 | CROSSBAR | $75.49 | |||
| 284186 | 86 | HANDRAIL CAP | $2.99 | |||
 | 013558 | 87 | 5/16″ X 1″ SCREW | $5.49 | ||
 | 347877 | 88A | KEY | $25.99 | ||
 | 263710 | 88B | KEY/CLIP | $19.99 | ||
| 407725 | 89 | RIGHT HANDRAIL TOP | $94.49 | |||
| 407724 | 90 | LEFT HANDRAIL TOP | $94.49 | |||
| 385351 | 91 | LEFT TRAY | $23.99 | |||
| 388348 | 92 | CONSOLE BASE | $134.49 | |||
| 441062 | 93A | CONSOLE (ARGON) | $806.49 | |||
| 404032 | 93C | DECAL,NORDICTRACK CONSOLE | $20.99 | |||
| 385352 | 94 | RIGHT TRAY | $23.99 | |||
| 292368 | 95 | #8 X 1″ SCREW | $1.99 | |||
| 213769 | 96 | #8 X 3/4″ HILO SCREW | $0.99 | |||
| 407622 | 97 | RIGHT HANDRAIL | $114.99 | |||
| 388350 | 98 | LEFT HANDRAIL BOTTOM | $352.99 | |||
| 388352 | 99 | RIGHT HANDRAIL BOTTOM | $375.99 | |||
 | 195690 | 100 | UPRIGHT BOLT | $5.99 | ||
| 102959 | 101 | #8 X 3/4″ MACHINE BOLT | $0.99 | |||
| 398609 | 102 | M3 X 12MM SCREW | $0.99 | |||
 | 424108 | 103 | POWER SUPPLY | $189.99 | ||
 | 428528 | 104 | INCLINE MOTOR CONTROLLER | $119.99 | ||
 | 125819 | 105 | PLASTIC STANDOFF | $3.99 | ||
| 407854 | 106 | FAN | $50.49 | |||
| 426677 | # | USER’S MANUAL | $23.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 240351 | # | CABLE TIE | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 426597 | # | LITPAC,W/HARDWARE KIT | $138.49 | |||
| 364361 | # | CHEST HEARTRATE MONITOR | $135.99 | |||
 | 219170 | # | LUBE KIT, 3 TUBE | $39.49 | ||
 | 437551 | # | HEART RATE ARM BAND | $194.99 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 439398 | # | USER’S MANUAL,SP13 | $60.99 | |||
| 045017 | # | 7/32″ WRENCH | $2.99 | |||
 | 305751 | # | 7/32″ HEX KEY | $34.99 | ||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 410314 | # | TABLET HOLDER | $117.49 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | ARC14 | # | WALL ARC FILTER | |||
| 387491 | # | HARDWARE KIT, NOTE: | $98.49 | |||
| 305750 | # | 3/16″ ALLEN WRENCH,W/HNDL | $30.99 | ||
| 152661 | TS10 | 12″ GREEN WIRE | $4.49 | |||
 | 189813 | TS17 | 6″ FILTER W/ WIRE | $23.99 | ||
 | 414703 | TS21 | 4.5″ WIRE HRNS | $13.49 | ||
 | 429538 | TS22 | 12″ WIRE HRNS | $23.49 | ||
 | 353808 | TS3 | 14″BROWN WIRE,F/F,WAS 8″ | $5.49 | ||
 | 426425 | TS7 | 62″ WIRE HRNS,INCLINE MTR | $43.49 | ||
 | 452965 | TS8 | 12″ WIRE HARNESS | $17.49 | ||
 | 426440 | TS9 | 14″ WIRE HRNS | $30.49 |
