Proform 6.0 Ce Elliptical – PFEL53911.0 / PFEL539110
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
91 Parts Available for Proform 6.0 Ce Elliptical - PFEL53911.0 / PFEL539110 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 317462 | 4 | Fitness Equipment Console | NLA | |||
| 317006 | 5 | ACCESSORY TRAY | $23.49 | |||
| 315409 | 6 | UPPER BODY LEG | NLA | |||
 | 241954 | 7 | RSISTANCE MOTOR DISK | $1.99 | ||
| 317214 | 8 | LEFT UPPER BODY ARM | $126.99 | |||
| 317215 | 9 | RIGHT UPPER BODY ARM | $126.99 | |||
| 230444 | 10 | FOAM GRIP | NLA | |||
| 246303 | 11 | SMALL UPPER BODY ARM CAP | $0.99 | |||
| 315411 | 12 | LEFT PEDAL | $102.99 | |||
| 315412 | 13 | Right Pedal | NLA | |||
| 316992 | 14 | LEFT PEDAL ARM | $140.49 | |||
| 316994 | 15 | PEDAL BRACKET | $46.99 | |||
| 317000 | 16 | FRONT UPRIGHT COVER | NLA | |||
 | 256295 | 17 | HANDLEBAR BUSHING | $4.99 | ||
 | 286527 | 18A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 18B | COVER MOUNT SCREW | $3.99 | |||
| 316998 | 19 | PIVOT COVER A | $19.49 | |||
| 317002 | 20 | FRONT LEG COVER | $46.49 | |||
| 317003 | 21 | REAR LEG COVER | $27.49 | |||
| 316999 | 22 | Pivot Cover B | NLA | |||
 | 345904 | 24 | CRANK | $61.49 | ||
| 314159 | 25 | RIGHT CRANK ARM | NLA | |||
| 317407 | 26 | Pedal Disc | $118.49 | |||
| 305948 | 27 | CRANK ARM SPACER | $16.99 | |||
 | 018030 | 29 | MEDIUM ROLLER | $19.49 | ||
| 317004 | 30 | Pedal Arm Cap | NLA | |||
 | 314745 | 31 | BOLT SET | $19.99 | ||
| 315404 | 32 | FRONT CONSOLE COVER | $64.49 | |||
 | 261150 | 33 | M8 WASHER | $2.20 | ||
| 183633 | 35 | M5 WASHER | $1.99 | |||
 | 304180 | 36 | SNAP RING | $0.99 | ||
| 317463 | 37 | SHIELD COVER | $111.99 | |||
 | 139703 | 38 | CRANK BEARING | $33.49 | ||
| 283862 | 39 | Handlebar | NLA | |||
 | 143742 | 40 | LARGE SNAP RING | $3.99 | ||
 | 113842 | 41 | MAGNET | $1.49 | ||
| 281473 | 42 | Wire Harness | NLA | |||
| 314681 | 43 | M6 WASHER, RT CRANK AXLE | $0.99 | |||
| 316995 | 44 | SDSHLD,LT,BLK | $164.99 | |||
| 316996 | 45 | SDSHLD,RT,BLK | $164.99 | |||

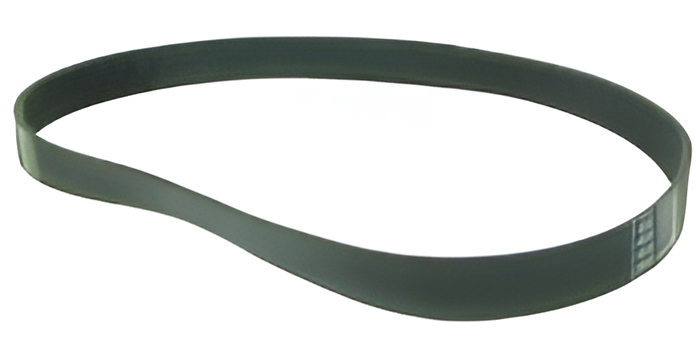

 | 306492 | 46 | DRIVE BELT | $67.49 | ||
| 317078 | 47 | LEVELING FOOT | $27.49 | |||
| 317005 | 48 | STABILIZER CAP | $16.49 | |||
| 316993 | 49 | RIGHT PEDAL ARM | $140.49 | |||
 | 317007 | 50 | WHEEL | $27.49 | ||
| 312441 | 51A | FLYWHEEL | $286.99 | |||
 | 363093 | 52 | IDLER | $116.49 | ||
| 308028 | 53 | C-MAGNET | NLA | |||
 | 308036 | 54 | RESISTANCE MOTOR | $117.99 | ||
| 279645 | 55 | MOTOR BRACKET | $12.99 | |||
 | 304734 | 56 | RESISTANCE ROD | $43.49 | ||
 | 131090 | 57 | CLAMP | $0.99 | ||
 | 186070 | 58 | REED SWITCH/WIRE | $28.99 | ||
| 310739 | 59 | M8 X 10MM SCREW | $2.99 | |||
| 281559 | 60 | KEY | $2.49 | |||
| 281558 | 61 | RT CRANK ARM NUT | $3.49 | |||
| 184363 | 62 | M6 X 16MM SCREW | $4.99 | |||
 | 251978 | 63 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
 | 284116 | 64 | FLYWHEEL AXLE | $19.99 | ||
| 281148 | 65 | M6 X 65MM HEX SCREW | $3.49 | |||
 | 281150 | 66 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
| 252110 | 67 | M6 x 9mm Screw | NLA | |||
| 281557 | 68 | CRANK ARM SCREW | NLA | |||
| 314152 | 70 | STBLZR,RR,LABBK | $113.99 | |||
| 234286 | 71 | M6 X 8MM HEX SCREW | $0.99 | |||
 | 281149 | 72 | M10 X 50MM HEX SCREW | $6.49 | ||
| 314149 | 73 | FRONT STABILIZER | $113.49 | |||
| 254769 | 74 | M6 NUT | $1.49 | |||
| 180220 | 75 | M10 X 45MM BOLT | $21.99 | |||
| 153770 | 76 | M8 X 47MM BUTTON BOLT | $14.49 | |||
 | 256446 | 77 | M8 NUT | $0.99 | ||
 | 177034 | 78 | M10 SPLIT WASHER | $1.49 | ||
| 248334 | 79 | M10 X 19MM SCREW | $5.49 | |||
| 223168 | 80 | CAM SCREW | $5.99 | |||
| 315407 | 81 | REAR CONSOLE COVER | $38.99 | |||
| 242965 | 82 | M10 x 85mm Screw | NLA | |||
| 283304 | 83 | M5 X 7MM SCREW | $3.49 | |||
| 321734 | 84 | #10 X 16MM SCREW | $3.49 | |||
 | 247329 | 85 | M8 X 18MM BOLT | $2.99 | ||
| 277369 | 86 | PULLEY | $174.49 | |||
| 276024 | 87 | M3.5 X 12MM, NOTE: | $1.49 | |||
 | 208163 | 88 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 168267 | 89 | FAN SCREW | $0.99 | ||
 | 013423 | 90 | #8 X 1/2″UPRT GRND SCREW | $0.99 | ||
 | 234235 | 92A | M4.2 X 16MM SCREW | $0.99 | ||
 | 013162 | 92B | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
| 284963 | 93A | LT PULSE GRIP ASSY W/WIRE | $68.49 | |||
| 284964 | 93B | RT PULSE GRIP ASSY W/WIRE | $68.49 | |||
| 215823 | 95 | AUDIO WIRE | $11.99 | |||
| 314155 | 96 | LEFT CRANK ARM | $141.99 | |||
| 245941 | 97 | M4 X 12MM SCREW | $1.49 |
