Proform Cardiohiit Trainer Elliptical – PFEL09915.1 / PFEL099151
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
151 Parts Available for Proform Cardiohiit Trainer Elliptical - PFEL09915.1 / PFEL099151 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 392830 | 2 | RIGHT PEDAL BASE | $205.99 | |||
| 392831 | 3 | Left Pedal Base | $193.49 | |||
| 375897 | 4 | Console Bracket | $165.49 | |||
 | 376420 | 5A | Fitness Equipment Console | $366.49 | ||
| 300691 | 5B | CONSOLE BOOKRACK | $26.49 | |||
| 363285 | 5C | M4 X 19MM SCREW | $0.99 | |||
 | 372664 | 6 | TABLET HOLDER | $96.99 | ||
| 375963 | 7 | Console Cover | NLA | |||
| 373309 | 8 | RIGHT STABILIZER | $184.49 | |||
| 373306 | 9 | Left Stabilizer | $174.49 | |||
| 379354 | 10 | RIGHT HANDLEBAR | $176.99 | |||
| 379355 | 11 | LEFT HANDLEBAR | NLA | |||
| 375970 | 12 | SHIELD COVER | $42.99 | |||
| 271688 | 13 | PULSE SENSOR | $60.99 | |||
| 376769 | 14 | LEFT HANDLEBAR ARM | $165.49 | |||
| 376768 | 15 | RIGHT HANDLEBAR ARM | $165.49 | |||
| 375889 | 16 | Magnet Bracket | NLA | |||
| 375887 | 17A | IDLER BRACKET | $26.49 | |||
| 375928 | 17B | Idler Bushing | $1.99 | |||
| 376548 | 17C | IDLER | $65.49 | |||
| 373273 | 17D | Idler Axle | $17.99 | |||
| 150731 | 17E | IDLER RETAINER RING | $0.99 | |||
| 375968 | 18 | ACCESSORY TRAY | $19.99 | |||
| 375860 | 19 | EXCHANGE AXLE | $79.99 | |||
| 375936 | 20 | MEDIUM PULLEY | $40.99 | |||

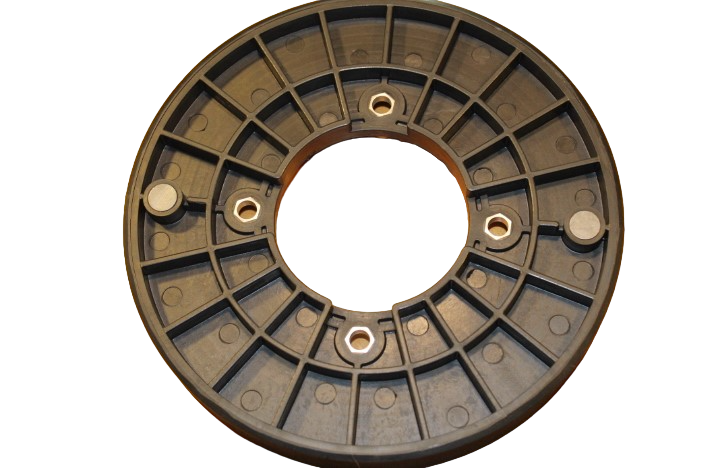

 | 375952 | 21 | Large Pulley | $69.99 | ||
| 382300 | 22A | RIGHT PEDAL PLATE | $116.49 | |||
| 375953 | 22B | RIGHT PEDAL | $151.49 | |||
| 375955 | 22C | RIGHT PEDAL INSERT | $73.49 | |||
| 375948 | 23A | Left Pedal | $151.99 | |||
 | 375950 | 23B | Left Pedal Insert | $106.99 | ||

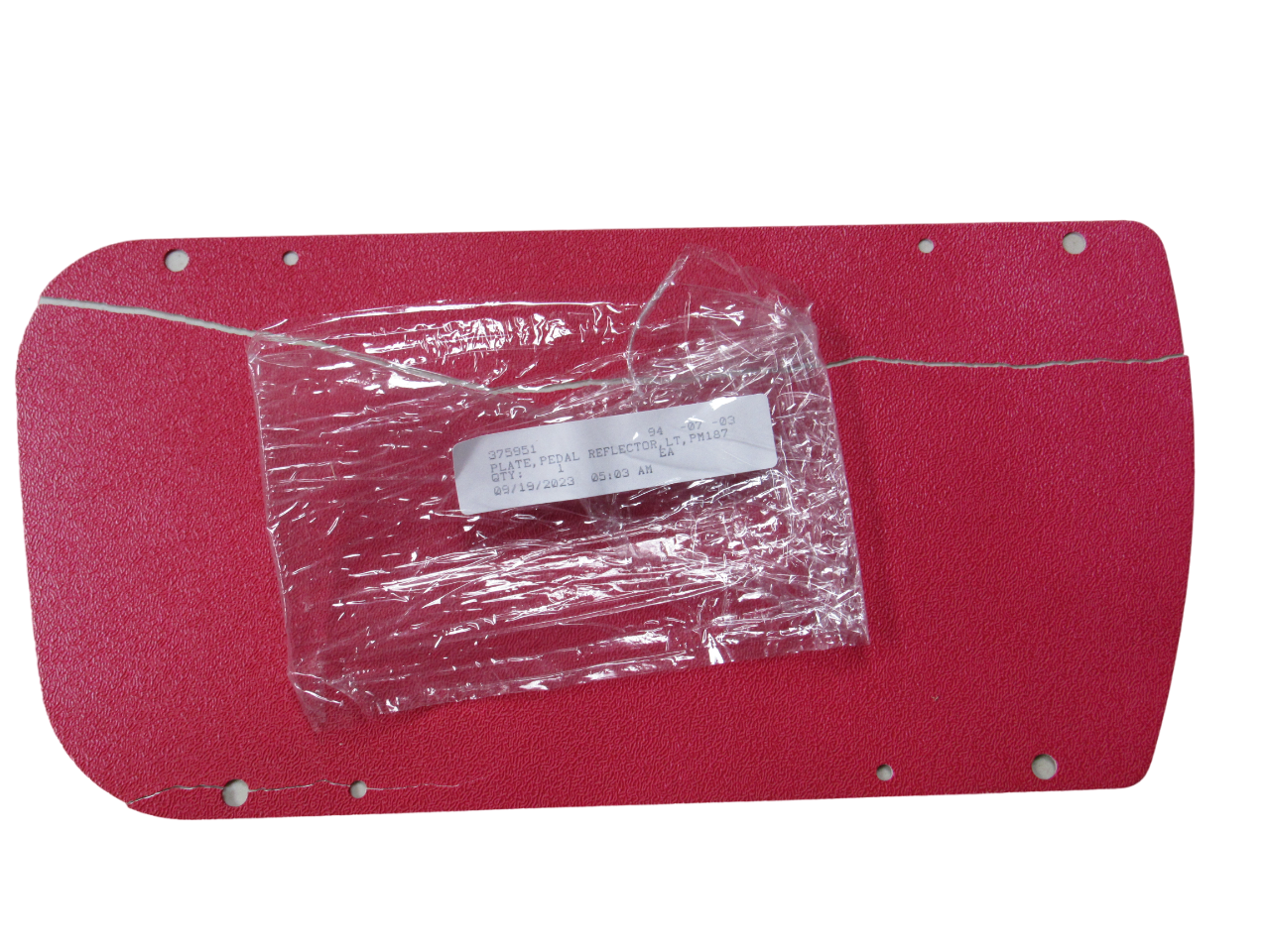

 | 375951 | 23C | Left Pedal Plate Cover (Red Pedal Reflector) | $32.49 | ||
| 376767 | 24 | RIGHT PEDAL LEG | $234.99 | |||
| 376766 | 25 | LEFT PEDAL LEG | $197.49 | |||
| 386625 | 26 | CONNECTOR ARM | $188.49 | |||
| 375866 | 27 | Disc Axle | $196.49 | |||
 | 223894 | 28 | BELT | $59.99 | ||
 | 408855 | 28 | DRIVE BELT KIT (Set of 2) | $125.99 | ||
| 375858 | 29 | CRANK ARM | $90.99 | |||
 | 375856 | 30 | CRANK | $134.49 | ||
| 376743 | 31 | BELT,V8,STD,41″L,J-SEC | NLA | |||
| 378870 | 32 | Disc for Fitness Equipment | $339.49 | |||
| 375927 | 33 | Disc Hub | $28.49 | |||
| 373268 | 34 | SPROCKET | $189.99 | |||
| 375868 | 35 | LINK ARM | $58.99 | |||
 | 241949 | 36 | RESISTANCE MOTOR | $99.99 | ||
 | 241954 | 37 | RSISTANCE MOTOR DISK | $1.99 | ||
 | 304734 | 38 | RESISTANCE ROD | $43.49 | ||
 | 303952 | 39 | HANDLE BRACKET | $4.99 | ||
 | 290160 | 40A | LOWER WIRE | $35.99 | ||
 | 214003 | 40B | POWER JACK NUT | $5.49 | ||
| 375958 | 41 | SMALL PULLEY | $55.99 | |||
 | 131090 | 42 | REED SWITCH CLIP | $0.99 | ||

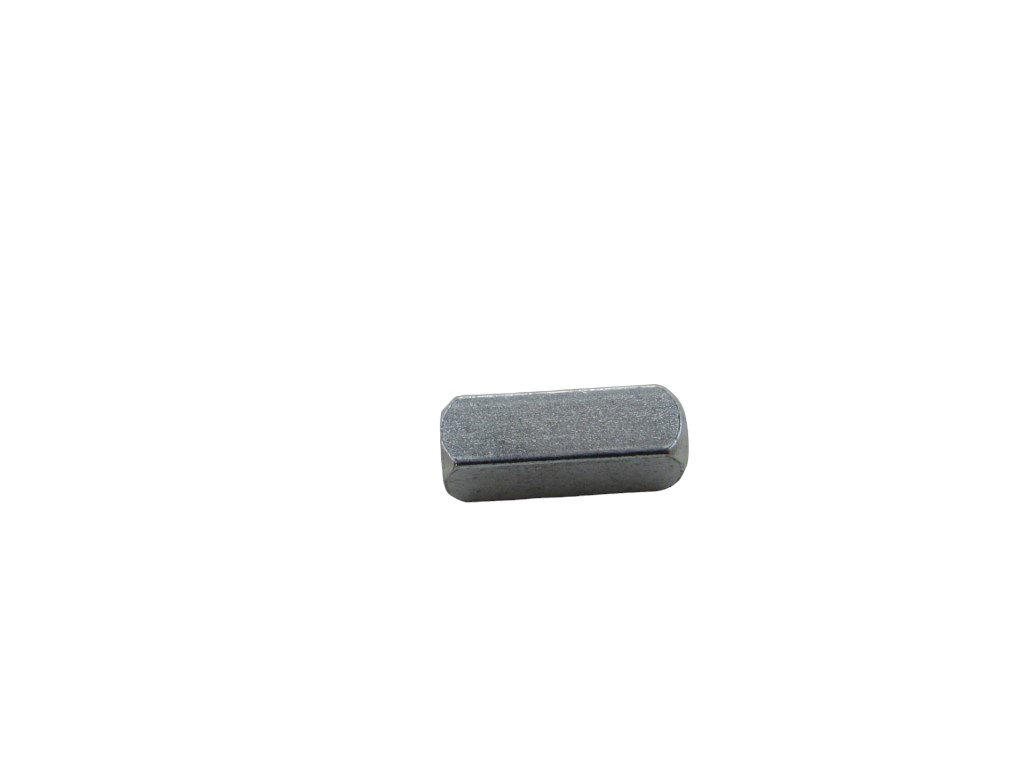

 | 375931 | 43 | KEY | $3.99 | ||
| 375962 | 44 | Magnet Cover | $43.99 | |||
| 375974 | 45 | Cover Bracket | $70.99 | |||
 | 375923 | 46 | Left Wheel Cover | $8.49 | ||
| 375975 | 47 | RIGHT MAGNET SHIELD | $35.99 | |||
| 375976 | 48 | Left Magnet Shield | $57.49 | |||
| 375961 | 49 | Disc Ring | $80.99 | |||
| 376761 | 50 | Left Shield | NLA | |||
| 376760 | 51 | RIGHT SHIELD | $308.99 | |||
| 375965 | 52 | Front Cover | $78.49 | |||
| 375966 | 53 | Rear Cover | $63.49 | |||
| 375967 | 54 | Accessory Tray Base | $24.99 | |||
| 375925 | 55 | STABILIZER CAP | $14.99 | |||
| 332578 | 56 | FOOT | $13.49 | |||
 | 375922 | 57 | REAR WHEEL | $16.99 | ||

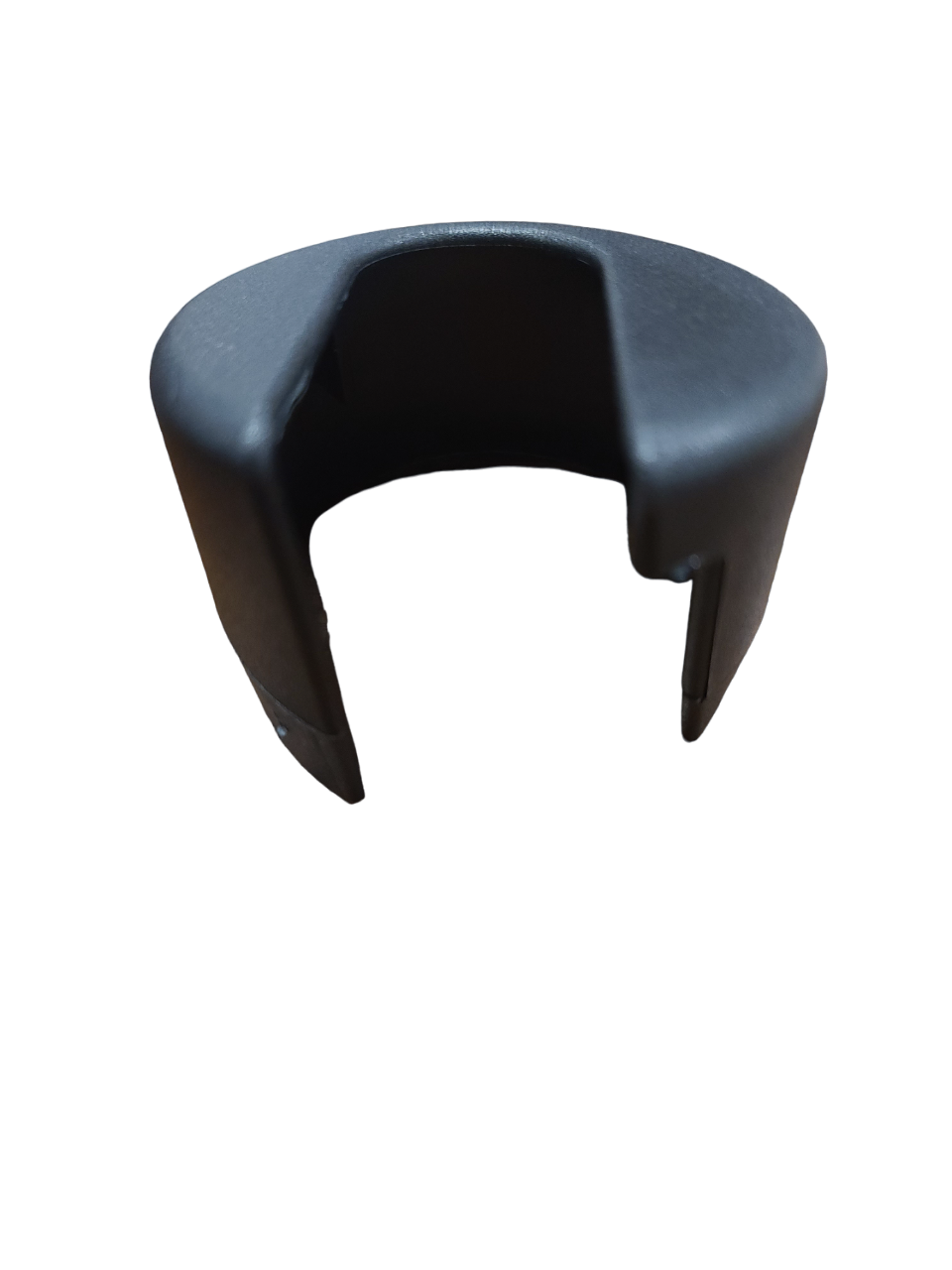

 | 375924 | 58 | RIGHT WHEEL COVER | $8.49 | ||
| 375971 | 59 | Handlebar Cap | $5.99 | |||
| 377963 | 61 | Left Rear Handlebar Cover | NLA | |||
| 377961 | 62 | Front Handlebar Cover for ProForm LT | NLA | |||
| 377962 | 63 | RT REAR HANDLEBAR CVR | $16.99 | |||
| 377960 | 64 | RT FRONT HANDLEBAR CVR | $16.99 | |||
| 375969 | 65 | FRONT PIVOT COVER | $19.99 | |||
| 376422 | 66 | REAR PIVOT COVER | $22.49 | |||
| 377964 | 67 | BOSS | $9.49 | |||
| 396274 | 68A | Lower Rear Shield Cover | $121.49 | |||
| 396209 | 68B | PULLEY COVER | $24.99 | |||
 | 237631 | 69 | LEVELING FOOT | $34.99 | ||
 | 139703 | 70 | CRANK BEARING | $33.49 | ||
| 218132 | 71 | HUB BEARING | $60.49 | |||
| 300223 | 72 | LARGE BEARING | $55.99 | |||
| 375929 | 73 | Bushing | $2.99 | |||

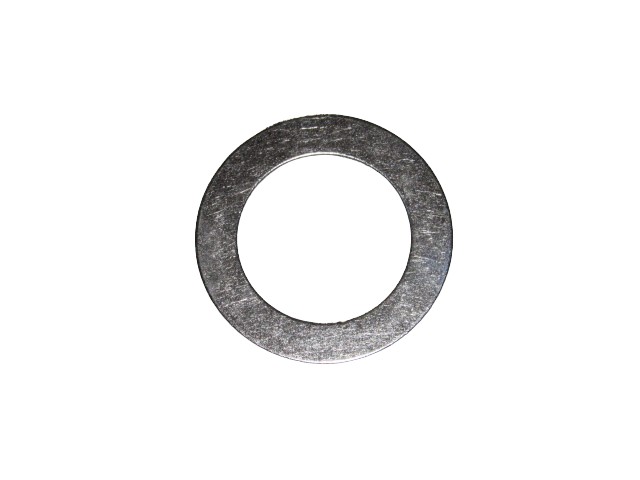

 | 259935 | 74 | THRUST WASHER | $5.99 | ||
 | 116014 | 75 | STEEL WASHER | $11.49 | ||
| 341554 | 76 | M10 Jam Nut | $1.99 | |||
| 222789 | 77 | M8 X 32MM WASHER | $3.99 | |||
 | 261150 | 78 | M8 WASHER | $2.20 | ||
| 249933 | 79 | M6 WASHER | $0.99 | |||
 | 150327 | 80 | M5 NUT | $1.99 | ||
| 375930 | 81 | M10 SHOULDER BOLT | $8.49 | |||
| 373149 | 82 | M4 x 42mm Screw | $0.99 | |||
 | 133333 | 83 | CLIP | $0.99 | ||
| 393601 | 84 | M6 x 14mm Screw | $3.99 | |||
| 332268 | 85 | M5 X 16MM BOLT | $0.99 | |||
| 172677 | 86 | M3.5 X 12MM SCREW | $0.99 | |||
| 276024 | 86 | MOTOR DISK MOUNTING SCREW | $1.49 | |||
| 351556 | 87 | M8 X 15MM ROUND HD SCREW | $26.99 | |||
| 375972 | 88 | Disc Screw | $18.99 | |||
 | 275907 | 89 | M10 LOCKNUT,CRNK ARM CLMP | $4.49 | ||
| 277730 | 90 | CRANK ARM BOLT | $8.99 | |||
| 356255 | 91 | M8 FLAT HEAD SCREW | $2.49 | |||
 | 346533 | 92 | M8 FLAT WASHER | $4.49 | ||
| 371429 | 93 | STUD | $18.99 | |||
| 195561 | 94 | M10 X 55MM BOLT | $11.49 | |||
| 360913 | 95 | M10 X 80MM SCREW | $14.49 | |||
 | 223089 | 96 | LINKARM WHEEL BKT SCRW | $6.99 | ||
 | 347975 | 97 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 209659 | 98 | M8 X 30MM BOLT | $0.99 | |||
 | 256446 | 99 | M8 NUT | $0.99 | ||
| 265605 | 100 | M8 x 23mm Screw | $9.49 | |||
| 380825 | 101 | HANDLE BRACKET SCRW,NOTE: | $2.49 | |||
| 387172 | 102 | M8 x 20mm Screw | $8.49 | |||
| 376465 | 103 | Cap Screw | $1.49 | |||
 | 378015 | 104 | M6 X 110MM SCREW | $5.49 | ||
 | 236321 | 105 | M8 X 25MM SCREW | $4.49 | ||
 | 195562 | 106 | M4 X 16MM SCREW | $1.99 | ||
| 251831 | 107 | M4 X 22MM SCREW | $1.99 | |||
| 197037 | 108 | M6 X 12MM SCREW | $0.99 | |||
| 382359 | 109 | M8 x 86mm Screw | $10.99 | |||
| 400743 | 110 | M10 x 20mm Screw | $9.49 | |||
 | 276104 | 111 | #8 X 5/8″ MACHINE SCREW | $0.99 | ||
| 227701 | 112 | M10 X 25MM SCREW | $2.49 | |||
 | 250961 | 113 | M4.2 X 19MM SCREW | $0.99 | ||
 | 213457 | 114 | M4 X 12MM SCREW | $1.99 | ||
| 376280 | 115 | Main Wire | $74.99 | |||
 | 372087 | 116 | REED SWITCH/WIRE | $23.49 | ||
| 399159 | 117 | Pulse Wire | $65.49 | |||
 | 337717 | 118 | Power Adapter | $28.99 | ||
| 375926 | 119 | Crank Cover Disc | $24.99 | |||
| 375973 | 120 | Flat Cap | $9.49 | |||
| 391858 | 120B | SLANT CAP | $24.99 | |||
 | 113842 | 121 | MAGNET | $1.49 | ||
| 380618 | 122 | SPRING | $37.99 | |||
| 383028 | 123 | Frame Spacer | $23.49 | |||
| 383029 | 124 | Disc Axle Washer | $8.99 | |||
| 386602 | 125 | SELF-ALIGNING BEARING | $50.99 | |||
 | 331026 | 126 | M8 RAMP PVT/WHEEL WASHER | $0.99 | ||
| 386993 | 127 | SNAP RING | $13.49 | |||
| 132315 | # | WIRE TIE | $3.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
 | 306510 | # | 5MM ALLEN WRENCH | $6.49 | ||
| 364361 | # | CHEST PULSE STRAP | $135.99 | |||
| 266083 | # | DECAL, WARNING | $6.49 | |||
| 386606 | # | USE’S MANUAL | $23.99 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 |
