Proform Xp 130 Elliptical – 28544.0 / 285440
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
91 Parts Available for Proform Xp 130 Elliptical - 28544.0 / 285440 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 222944 | 4 | LEG LEVER | $120.49 | |||
| 227921 | 4 | Console Bracket | NLA | Unavailable to order | ||
| 199286 | 5 | Adjustable Backrest Tube | NLA | Unavailable to order | ||
| 227914 | 7 | REAR STABILIZER | $128.99 | |||
| 199284 | 7 | SUPPORT ROD | Unavailable to order | |||
| 199281 | 8 | Front Leg | NLA | Unavailable to order | ||
| 229059 | 8 | LEFT HANDLEBAR | $60.49 | |||
| 115366 | 9 | 3/4″ RND INT ENDCAP | $0.99 | |||
| 229060 | 9 | RIGHT HANDLEBAR | $60.49 | |||
| 217862 | 10 | LONG PAD TUBE | NLA | Unavailable to order | ||
 | 186477 | 10 | ROW BAR CAP | $4.49 | ||
| 199288 | 11 | SEAT | Unavailable to order | |||
| 238169 | 11 | LEFT UPPER BODY ARM | $112.99 | |||
| 217863 | 12 | SHORT PAD TUBE | $17.99 | Unavailable to order | ||
| 238170 | 12 | RIGHT UPPER BODY ARM | $104.99 | |||
| 199287 | 13 | STABILIZER | Unavailable to order | |||
| 231166 | 13 | Left Pedal | NLA | Unavailable to order | ||
| 188201 | 14 | Plastic Bushing | $4.99 | |||
| 246449 | 14 | LEFT PEDAL LEG | $111.99 | |||
| 231167 | 15 | Right Pedal | NLA | Unavailable to order | ||
| 194414 | 15 | BUTTERFLY ARM STOP | $9.49 | |||
| 246450 | 16 | Right Pedal Leg | NLA | Unavailable to order | ||
| 014073 | 16 | WASHER | $1.49 | |||
 | 012042 | 17 | M8 LOCKNUT | $1.99 | ||
| 228263 | 17A | LT HANDLEBAR PIVOT COVER | $19.49 | |||
| 228265 | 17B | RT HANDLEBAR PIVOT COVER | $19.49 | |||
| 013074 | 18 | BASE BOLT | $8.99 | |||
| 228271 | 18 | LT FRONT HANDLEBAR COVER | $13.49 | |||
| 319738 | 19 | LT REAR HANDLEBAR COVER | $141.99 | |||
| 181862 | 19 | M10 x 120mm Bolt | NLA | Unavailable to order | ||
| 228273 | 20 | RT FRONT HANDLEBAR COVER | $13.99 | |||
| 123396 | 20 | 25MM ROUND ANGLED CAP | $2.49 | |||
| 193219 | 21 | 38mm Square Internal Endcap | NLA | Unavailable to order | ||
| 319739 | 21 | RT REAR HANDLEBAR COVER | $203.49 | |||
| 226625 | 22 | WATER BOTTLE HOLDER | $45.99 | |||
| 194421 | 22 | Square Endcap for Fitness Equipment | $2.99 | |||
 | 120733 | 24 | 25MM ROUND INNER CAP | $2.49 | ||
 | 148803 | 25 | WHEEL | $3.49 | ||
 | 014063 | 26 | 1/4″ FLAT WASHER | $0.99 | ||
 | 153280 | 26 | LEVELING FOOT | $14.49 | Unavailable to order | |
 | 190983 | 27 | LEVELING FOOT | $32.49 | ||
| 230747 | 27 | CURL POST | NLA | Unavailable to order | ||
| 228259 | 28 | LEFT SIDE SHIELD | $159.49 | |||
 | 143843 | 28 | PLASTIC BUSHING | $24.99 | ||
| 228261 | 29 | RIGHT SIDE SHIELD | $156.49 | |||
| 140208 | 29 | M6 X 16MM SCREW | $3.49 | |||
| 228080 | 30 | UPPER BODY BUSHING | $15.49 | |||
| 207050 | 30 | M6 x 38mm Screw | $3.49 | |||
| 200049 | 31 | Curl Knob | NLA | Unavailable to order | ||
 | 228286 | 31 | Pedal Leg Cover | $3.68 | ||
| 132889 | 32 | M10 X 63MM BOLT | $12.99 | |||
| 228079 | 32 | PEDAL ARM AXLE | $19.49 | |||
 | 228540 | 33 | PEDAL ARM BUSHING | $19.49 | ||
 | 014132 | 34 | 3/8″ WASHER | $0.99 | ||
| 228078 | 34 | BASE AXLE | $14.99 | |||
| 186253 | 35 | SQUARE CAP | $1.99 | |||
| 227916 | 36 | CRANK ARM | NLA | Unavailable to order | ||
| 209628 | 36 | M10 X 137mm Bolt | $24.49 | |||
| 222943 | 37 | M8 x 42mm Carriage Bolt | $6.49 | |||
| 228283 | 37 | INNER CRANK COVER | $10.99 | |||
| 139993 | 38 | 15 lb Weight | $132.99 | |||
| 228084 | 38A | CRANK HUB | $98.49 | |||
| 213937 | 39 | M8 X 42MM HEX BOLT | $5.49 | |||
| 228082 | 39A | PULLEY SPACER | $61.49 | |||
| 192185 | 40 | Outer Bar | $146.49 | |||
| 228085 | 40A | PULLEY | NLA | Unavailable to order | ||
 | 228290 | 41 | Crank Bushing Cover | NLA | Unavailable to order | |
| 192263 | 41 | Roll Pin | NLA | Unavailable to order | ||
| 192178 | 42 | LOCK COLLAR | NLA | Unavailable to order | ||
 | 228454 | 42 | CRANK BUSHING | $34.99 | ||
| 192184 | 43 | Inner Bar | $137.49 | |||
 | 228288 | 43 | Pedal Arm Sleeve | $9.99 | ||
| 139992 | 44 | 10 lb Weight | $96.49 | |||
| 263347 | 44B | RIGHT CRANK BEARING SET | NLA | Unavailable to order | ||
| 194514 | 45 | Curl Pad | NLA | Unavailable to order | ||
| 228083 | 45A | CRANK | NLA | Unavailable to order | ||
| 228605 | 46A | CRANK SPACER | $6.49 | |||
 | 143742 | 47 | SMALL SNAP RING | $3.99 | ||
| 197780 | 48 | UPPER WIRE HARNESS | $78.49 | |||
| 227504 | 49 | LOWER WIRE HARNESS | $83.49 | |||
 | 170205 | 50 | REED SWITCH/WIRE | $24.99 | ||
 | 201296 | 51 | BELT | $49.99 | ||
| 321107 | 52 | Flywheel | NLA | Unavailable to order | ||
| 228076 | 53 | “C” MAGNET | NLA | Unavailable to order | ||
| 197605 | 54 | PILLOW BLOCK | $71.49 | |||
 | 113842 | 55 | MAGNET | $1.49 | ||
| 228901 | 56 | SPRING | $2.99 | |||
| 311244 | 57 | IDLER | NLA | Unavailable to order | ||
 | 131090 | 59 | CLAMP | $0.99 | ||
| 228783 | 60 | REED SWITCH BRACKET | $3.49 | |||
| 228607 | 61 | Base Pin | NLA | Unavailable to order | ||
 | 216702 | 62 | Latch Bracket Spacer | $3.68 | ||
| 218678 | 63 | HAIRPIN | $0.99 | |||
| 228608 | 66 | PIVOT BRACKET SPACER | $4.99 | |||
| 228606 | 67 | FRAME PIN | $3.49 | |||
| 251807 | 68 | Latch Button Assembly | $27.99 | |||
 | 193223 | 70 | RESISTANCE MOTOR | $99.99 | ||
| 228284 | 71 | RESISTANCE CABLE PULLEY | $8.49 | |||
 | 158072 | 72 | Resistance Cable Set | NLA | Unavailable to order | |
| 191691 | 73 | FOAM GRIP | NLA | Unavailable to order | ||
| 228077 | 74 | PIVOT AXLE | $63.49 | |||
| 227929 | 75 | Hub Cover | NLA | Unavailable to order | ||
| 228282 | 76 | OUTER CRANK COVER | $63.49 | |||
| 195575 | 77 | M6 X 20MM BUTTON BOLT | $0.99 | |||
| 198006 | 78 | M8 X 43MM BUTTON BOLT | $5.49 | |||
 | 256446 | 79 | M8 LOCKNUT | $0.99 | ||
| 209532 | 80 | M8 X 70MM BUTTON SCREW | $7.49 | |||
 | 148710 | 81 | M10 LOCKNUT | $2.49 | ||
| 212019 | 82 | M10 X 80MM CARRIAGE BOLT | $18.99 | |||
| 218991 | 83 | M10 X 127MM BUTTON SCREW | $7.49 | |||
 | 204230 | 84 | M8 X 22MM BUTTON SCREW | $3.49 | Unavailable to order | |
| 175293 | 85 | M6 X 10MM BUTTON SCREW | $1.99 | |||
 | 283582 | 86 | 3/8″ X 1″ FLANGE SCREW | $66.99 | ||
| 228983 | 87 | HUB SCREW | $9.49 | |||
| 235321 | 88 | M8.5 LARGE WASHER | $2.49 | |||
| 208938 | 89 | M10 X 60MM BUTTON SCREW | $5.99 | |||
 | 014174 | 90 | M8 SPLIT WASHER | $1.99 | ||
| 207090 | 91 | 7.5MM SPACER | $3.99 | |||
| 200844 | 92 | FLYWHEEL WASHER | $2.49 | |||
 | 100488 | 93 | LINK SNAP RING | NLA | Unavailable to order | |
| 242105 | 94 | M6 CRANK ARM SCREW | $1.99 | |||
| 132656 | 95 | M6 X 50MM BOLT | $2.49 | Unavailable to order | ||
| 183870 | 96 | M8 X 35MM BOLT | $2.49 | |||
 | 239151 | 98 | PULLEY SCREW | $2.99 | ||
 | 116014 | 99 | SMALL SPACER | $11.49 | ||
 | 154848 | 100 | HOOD SCREW | $0.99 | ||
| 014122 | 102 | MOTOR WASHER | $0.99 | |||
 | 144985 | 103 | M4 X 16MM SCREW | $0.99 | ||
 | 013576 | 104 | CROWN SCREW | $0.99 | ||
 | 121204 | 105 | #8 X 1 1/4″ SCREW | $0.99 | ||
| 238636 | 106 | M8 X 31mm Shoulder Screw | NLA | Unavailable to order | ||
| 209251 | 107 | M4 X 12MM RND HEAD SCREW | $0.99 | |||
| 254875 | 108 | M4 X 45MM SCREW | $1.99 | |||
 | 204489 | 109 | LARGE WAVE WASHER | $0.99 | ||

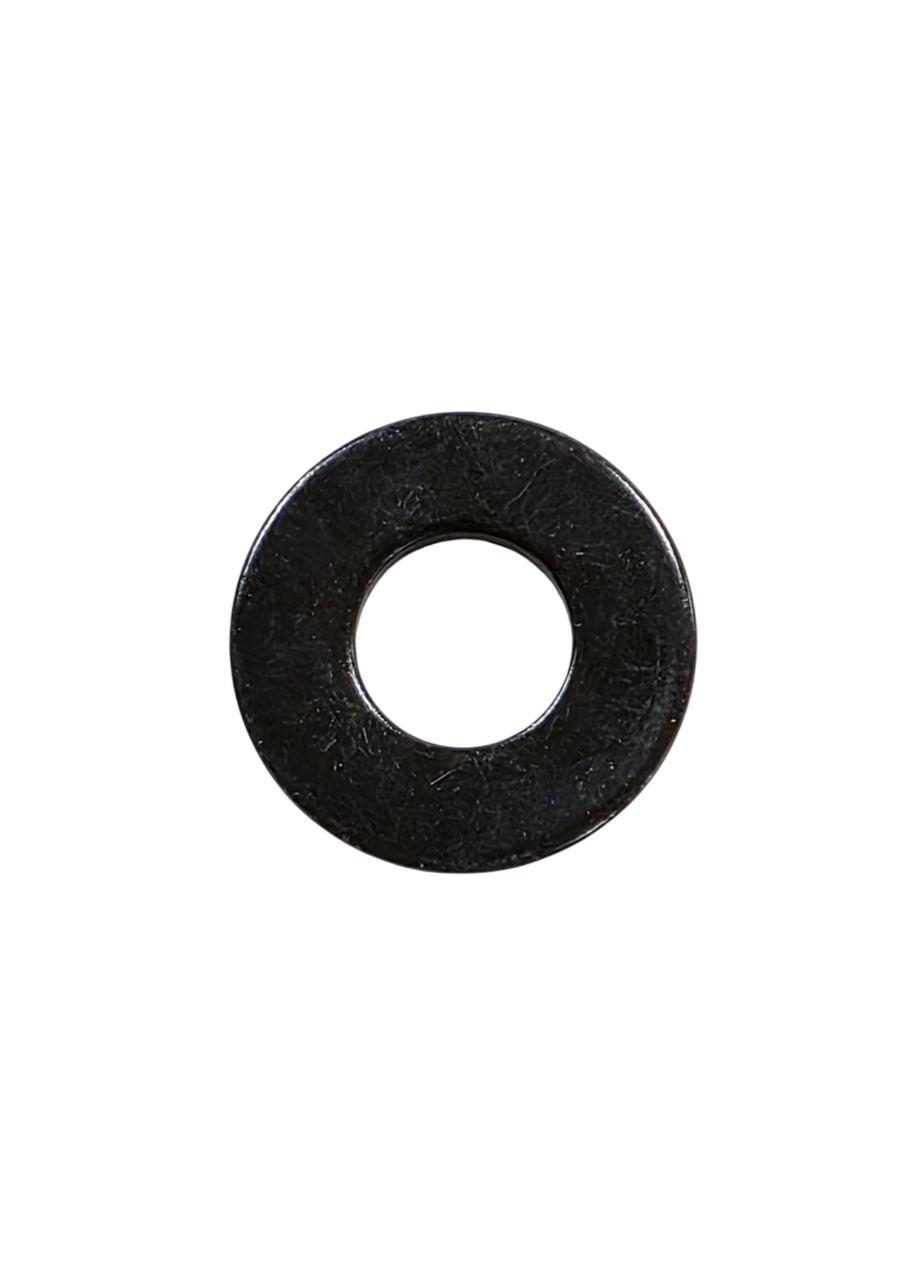

 | 224113 | 110 | M8 X 18MM WASHER | $2.49 | ||
 | 213148 | 111 | 22MM X 16MM WAVE WASHER | $6.49 | ||
| 237536 | 112 | Star Washer | NLA | Unavailable to order | ||
| 012111 | 114 | M6 NUT | $1.49 | |||
| 236829 | 115 | M8 X 23MM SHOULDER SCREW | $4.99 |
