PROFORM ENDURANCE 520 E ELLIPTICAL – PFEL55916.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
71 Parts Available for PROFORM ENDURANCE 520 E ELLIPTICAL - PFEL55916.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 331296 | 2 | REAR STABILIZER | $138.99 | |||
| 374496 | 3 | RAMP | $187.99 | |||
| 385538 | 4 | UPRIGHT | $114.49 | Unavailable to order | ||
 | 250961 | 5 | M4 X 19MM SCREW | $0.99 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 184369 | 9 | M4 X 16MM SCREW | $0.99 | ||
| 385555 | 10 | RAMP COVER | $138.99 | |||
 | 376040 | 11 | LEFT LATCH HANDLE | $24.99 | ||
 | 376039 | 12 | RIGHT LATCH HANDLE | $49.99 | ||
| 316731 | 14 | LATCH BRACKET | $5.49 | |||
| 385554 | 15 | REAR STABILIZER COVER | $78.49 | |||
 | 371314 | 16A | TRACK | $39.99 | ||
| 317273 | 16B | TRACK FOAM TAPE | $13.49 | |||
| 316805 | 17 | LATCH PIN | $40.99 | |||
 | 386166 | 18 | CRANK | $162.99 | Unavailable to order | |
| 277369 | 19 | PULLEY | $174.49 | |||
| 386662 | 20 | CRANK ARM | $182.99 | |||
 | 208320 | 21 | M4 X 10MM ROUND HEAD SCRW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
 | 157600 | 23 | BASE PAD | $1.99 | ||

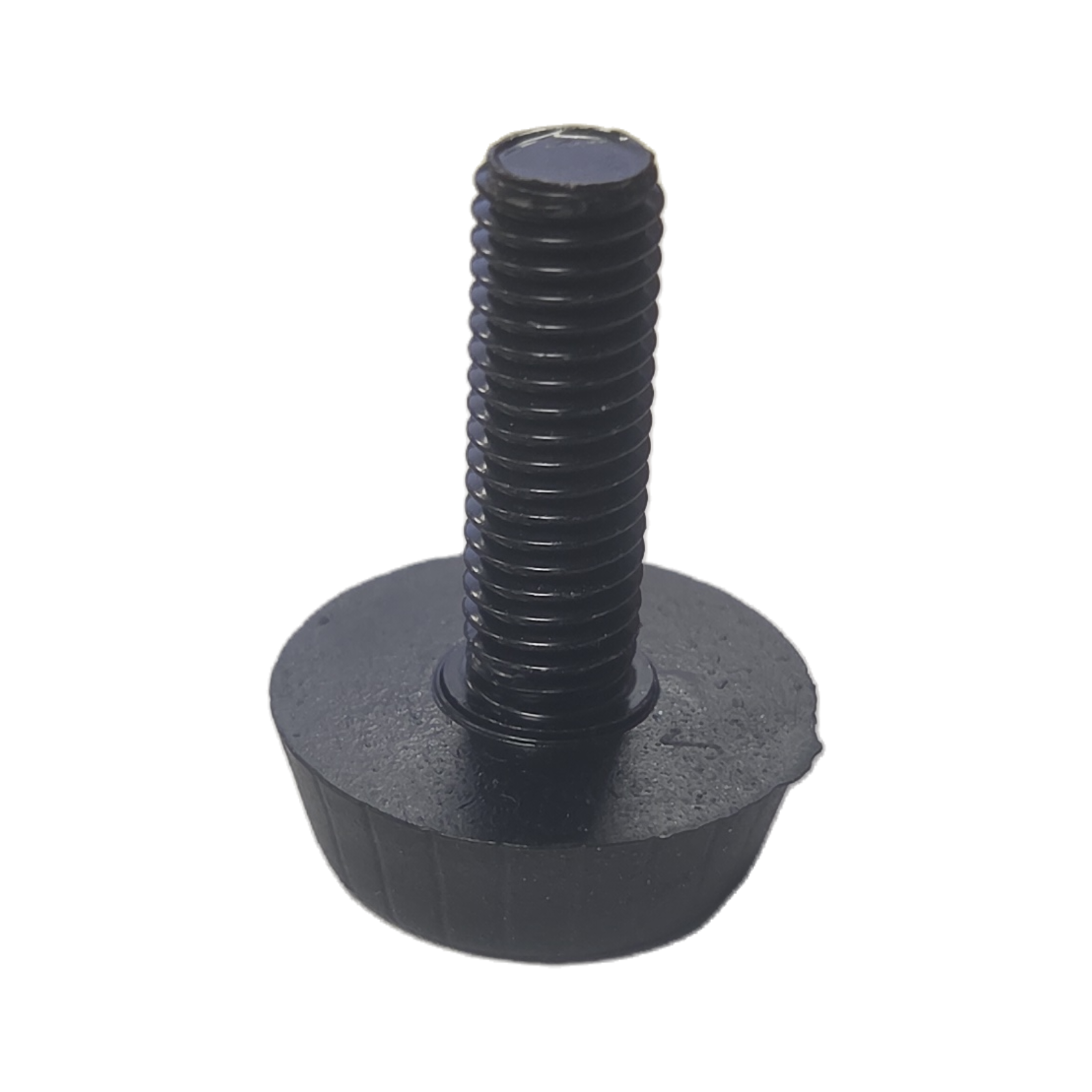

 | 386630 | 24 | SMALL LEVELING FOOT | $19.99 | ||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 275907 | 26A | M10 LOCKNUT, CRANK | $4.49 | ||
 | 148710 | 26B | M10 LOCKNUT | $2.49 | ||
| 248342 | 27 | M10 WASHER | $1.99 | |||
 | 362822 | 28A | EDDY MECHANISM | $185.99 | ||
 | 321678 | 28B | RESISTANCE CABLE | $46.49 | ||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||
| 248334 | 31 | M10 X 19MM PATCH SCREW | $5.49 | |||
| 235322 | 32 | M5 WASHER | $2.49 | |||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | WHEEL | $24.99 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | RAMP BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 131090 | 39 | REED SWITCH CLAMP | $0.99 | ||
 | 295804 | 40 | PEDAL ARM BEARING | $66.99 | ||
 | 362905 | 41 | SMALL SNAP RING | $1.49 | ||
| 338320 | 42 | SLEEVE | $2.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 385173 | 44 | LEFT PEDAL ARM | $173.49 | |||
| 379975 | 45 | LEFT ROLLER ARM | $150.49 | |||
| 420318 | 46 | LEFT UPPER BODY LEG | $187.49 | |||
| 328851 | 47 | LEFT UPPER BODY ARM | $65.49 | Unavailable to order | ||
| 322142 | 48 | CUSHION SPRING | $11.99 | |||
 | 237616 | 50 | SMALL FRAME BUSHING | $4.99 | ||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 348190 | 52 | PEDAL ARM REAR CAP | $6.49 | |||
 | 384941 | 53 | AXLE COVER | $9.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | PEDAL ARM BEARING ASSY | $43.49 | ||
| 385176 | 58 | RIGHT PEDAL ARM | $173.49 | |||
| 379970 | 59 | RIGHT ROLLER ARM | $150.49 | |||
| 420313 | 60 | RIGHT UPPER BODY LEG | $187.49 | |||
| 328849 | 61 | RIGHT UPPER BODY ARM | $65.49 | |||
 | 299478 | 62 | HANDGRIP | $57.49 | ||
| 324444 | 63 | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
 | 384800 | 64 | PEDAL ARM AXLE | $43.49 | ||
| 384834 | 65 | RIGHT ARM FRONT COVER | $53.49 | |||
| 384828 | 66 | RIGHT ARM REAR COVER | $48.99 | |||
| 384816 | 67 | LEFT ARM FRONT COVER | $51.99 | |||
| 384822 | 68 | LEFT ARM REAR COVER | $46.49 | |||
 | 335837 | 69 | RT UPR BODY LEG OUTER CVR | $43.99 | ||
 | 335834 | 70 | LT UPR BODY LEG OUTER CVR | $43.99 | ||
| 335815 | 71 | DISC | $87.49 | |||
| 335835 | 72 | LT UPR BODY LEG INNER CVR | $43.99 | |||
| 385365 | 75 | SHIELD COVER | $122.99 | |||
 | 337964 | 76 | LEFT PEDAL ARM SIDE CAP | $10.99 | Unavailable to order | |
 | 133333 | 77 | CAP CLIP | $0.99 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 385137 | 79 | FRONT CONSOLE COVER | $29.99 | |||
| 385136 | 80 | REAR CONSOLE COVER | $54.49 | |||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 383382 | 82A | M8 X 13MM SCREW | $0.99 | ||
 | 191032 | 82B | M8 X 13MM SCREW | $1.99 | ||
| 335836 | 83 | RT UPR BODY LEG INNER CVR | $43.99 | |||
| 316836 | 84 | RAMP AXLE | $54.99 | |||
| 331242 | 85 | RECTANGLE GROMMET | $6.49 | |||
| 310999 | 86 | M10 X 58MM HEX BOLT | $8.49 | |||
 | 337965 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | ||
 | 281150 | 88 | IDLER PIVOT SCREW | $4.49 | ||
 | 208163 | 89 | IDLER SCREW | $1.99 | ||
 | 340140 | 90 | M6 X 26MM WASHER | $1.49 | ||
 | 281149 | 91 | DRIVE BELT ADJUST SCREW | $6.49 | ||
 | 232289 | 92 | M10 X 25MM BUTTON SCREW | $28.49 | ||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 012152 | 94 | #8 NUT | $0.99 | |||
 | 206321 | 95A | M8 X 19MM SCREW, NOTE | $3.49 | ||
 | 223089 | 95B | M8 X 15MM BUTTON SCREW | $6.99 | ||
 | 251830 | 96 | M8 X 38MM HEX SCREW | $4.49 | ||
 | 281801 | 97 | M8 X 22MM WASHER | $7.49 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
| 306635 | 99 | PLASTIC SPACER | $3.49 | |||
 | 231284 | 100 | BRND,BALL,DECK PIVOT | $31.99 | ||
 | 013162 | 101A | #8 X 1/2″ TEK SCREW | $0.99 | ||
 | 194878 | 101B | M4 X 20MM SELF-TAP SCREW | $2.99 | ||
 | 195562 | 101C | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102A | M8 LOCKNUT | $1.99 | ||
 | 256446 | 102B | M8 NYLON LOCKNUT | $0.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW | $3.49 | ||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | COVER INSERT | $2.49 | ||
| 303479 | 106B | SNAP MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
 | 174108 | 108 | M6 X 13MM SCREW | $5.99 | ||
| 208938 | 109 | M10 X 60MM BUTTON SCREW | $5.99 | |||
| 382847 | 110 | UPPER WIRE | $39.49 | |||
 | 290160 | 111A | POWER RECEPTACLE/WIRE | $35.99 | ||
 | 214003 | 111B | POWER JACK NUT | $5.49 | ||
 | 313568 | 112 | M4X19MM RSW CLAMP SCREW | $0.99 | ||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 322839 | 114 | M4 X 40MM SCREW | $1.49 | ||
| 172496 | 115 | HANDRAIL SCREW | $2.99 | |||
 | 335816 | 117 | FRONT UPRIGHT COVER | $73.99 | ||
| 320382 | 118 | SHIELD COVER CAP | $40.99 | |||
 | 337717 | 119 | Power Adapter | |||
 | 384942 | 120 | M8 X 20MM FLAT HEAD SCREW | $6.49 | ||
 | 372664 | 121 | TABLET HOLDER | $96.99 | Unavailable to order | |
| 317272 | 122 | PIN SPRING | $3.49 | |||
 | 384931 | 123 | SMALL ARM BEARING | $43.99 | ||
 | 224606 | 124 | M4 X 25MM SCREW | $0.99 | ||
| 384801 | 125 | BEARING SPACER | $24.99 | |||
 | 223812 | 127 | M8 X 28MM WASHER | $1.99 | ||
 | 337966 | 128 | ROLLER ARM COVER | $5.49 | ||
| EXIF12 | # | IFIT WIRI ACCESSORY KIT | Contact for Pricing | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 399157 | # | PULSE WIRE | $59.99 | |||
 | 014033 | # | M6 WASHER | $1.49 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 132315 | # | WIRE TIE | $3.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 300789 | # | DECAL, GENERAL WARNING | $22.49 | |||
 | 248349 | # | CRANK PVT CAP WSHR | $6.49 | ||
| 116926 | # | 8″ CABLE TIE | $0.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 388769 | # | USER’S MANUAL, SPANISH | $22.49 | |||
| 234276 | # | M4 X 12MM GROUND SCREW | $0.99 |
