Proform 510 Ex Elliptical – PFEL05911.3 / PFEL059113

Pro-Form

Proform 510 Ex Elliptical – PFEL05911.3 / PFEL059113

Brand:

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here


139 Parts Available for Proform 510 Ex Elliptical - PFEL05911.3 / PFEL059113 ↓

ImagePart #Diagram #TitlePriceDetails
3236283Front Stabilizer $128.99
3191424Fitness Equipment ConsoleContact for Pricing
3236244REAR STABILIZER $149.99
3493455UPRIGHT $189.49
3187835BACKREST FRAME $102.49
3157306RIGHT UPPER BODY LEG $109.99
3188056BACKREST $115.49
3152847LEFT UPPER BODY LEG $111.49
3187877SEAT FRAME $79.49
3188068SEAT $94.99
3165578RIGHT UPPER BODY ARM $97.99
3241549CARRIAGE RAIL $102.99
3165569Left Upper Body Arm $97.99
31814910PULSE SENSOR $54.99
31526610HANDLEBAR $113.99
32837211CONSOLE PLATE $49.49
31533311CONSOLE COVERContact for Pricing
31527612PEDAL ARM $176.49
31880812SHIELD COVER $25.49
22067513SMALL BUMPER $5.99
32836613HANDLEBAR $78.99
31575114RIGHT PEDAL $149.49
ADJUSTMENT KNOB24461514ADJUSTMENT KNOB $26.49Unavailable to order
31575215LEFT PEDAL $149.49
31880315STABILIZER SHIELD $70.49
31880416CARRIAGE CAP $6.49
31655316DISC COVER $49.49
31531217Disc Cover $72.49
19171417FOAM GRIP $12.99
24884918DOME CAP $5.99
31532618RIGHT SHIELD $143.49
24365419CONSOLE FRAME CAP $2.99
31532719LEFT SHIELD $143.49
32601520Top ShieldContact for Pricing
19631920BACKREST FRAME CAP $2.99
31533021RIGHT FRAME COVER $95.99
HANDRAIL TUBE CAP1216422132MM ROUND INT ENDCAP $1.49
31532922Left Frame CoverNLAUnavailable to order
26095122PULSE WIRE $27.49
32601423TOP COVER $85.99
31531624REAR UPRIGHT COVER $117.99
24579424FOOT $3.49
31531725FRONT UPRIGHT COVER $66.99
25514926M8 X 35MM PATCH SCREW $3.49
31531526ACCESSORY TRAY $68.49
31611827RIGHT INNER LEG COVER $40.99
25681527SHIELD CLIP $0.99
31611928RIGHT OUTER LEG COVER $35.49
M4 X 12MM SCREW21345729M4 X 12MM SCREW, NOTE: $1.99
31532029RIGHT REAR LEG COVER $39.49
20707330M10 X 35MM BOLT $3.99
31531830RIGHT FRONT LEG COVER $50.99
32468131REAR STABILIZER $108.99
31532131LEFT REAR LEG COVER $39.49
31531932LEFT FRONT LEG COVER $73.49
32467732FRONT STABILIZER $59.49
32601333Fitness Equipment Console $289.99
34174733Stabilizer CapContact for Pricing
15075734M5 X 16MM FLAT HEAD SCREW $3.49
GRIP29947835GRIP $57.49

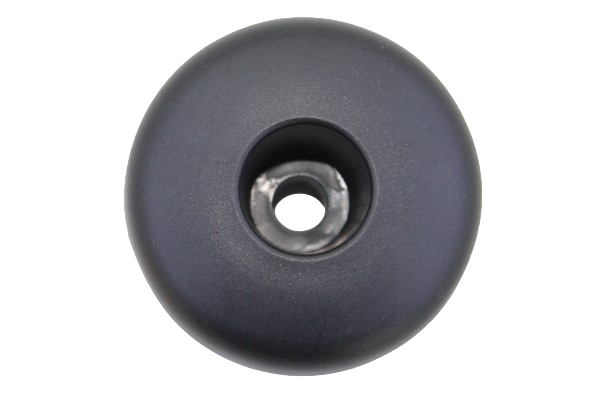

31700735WHEEL $27.49
24400036RIGHT PEDAL/STRAP $82.99
32314436WHEEL $49.49
31574937REAR STABILIZER UPPER CVR $25.99
24399837LEFT PEDAL/STRAP $82.99
30803738DRIVE BELT $71.99
31914438RIGHT SHIELD $106.49
31655139CRANK ARM $118.49
31914539LEFT SHIELD $106.49
24606640M8-1.25 Flange Hex NutNLAUnavailable to order
22898340M8 SHOULDER SCREW $9.49
M8 FLANGE NUT01210540M8 FLANGE NUT $3.49
31353241LEVELING FOOTContact for Pricing
25197841M10 X 41MM SCREW $12.99
31612142Latch BracketContact for Pricing
26377342M6 x 38mm ScrewContact for Pricing
29998343ADJUSTMENT BRACKET $120.49
32827543CRANK/PULLEY $152.99
30923744Adjustment PinNLAUnavailable to order
29556045CRANK HARDWARE ASSEMBLY $54.99
31647045ADJUSTMENT KNOB $30.49
31532546KNOB CAP $24.99
31530847PIVOT ARM BUSHING $76.49
31530648UPRIGHT AXLEContact for Pricing
31815448RESISTANCE MECHANISMNLAUnavailable to order
31532249LEFT INNER LEG COVER $43.99
31532350LEFT OUTER LEG COVER $49.49
31881550IDLER $42.99
31655551RIGHT PIVOT ARM $97.99
19322351RESISTANCE MOTOR $99.99
31655452LEFT PIVOT ARM $97.99
18125052RESISTANCE CABLE $39.99
22362153SPRING $15.99
32205653Main WireContact for Pricing
24081954M10 X 80MM SCREW $14.99
31575054REAR STABILIZER LOWER CVR $25.99
M8 X 20MM SCREW24993055M8 X 17MM FLAT HEAD SCRW $2.99
31574755RIGHT WHEEL TOP COVER $19.99
31574556LEFT WHEEL TOP COVER $21.49
18412656AM4 X 16MM SCREW $0.99
M4 X 16MM SCREW19556256BM4 X 16MM PAN HEAD SCREW $1.99
29315957UPRIGHT BUSHING $17.49
M8 NYLON LOCKNUT01204257M8 NYLON LOCKNUT $1.99
23889958M8 X 48MM BUTTON SCREW $5.99
31574858RIGHT WHEEL LOWER COVER $19.99
32426159M4 X 16MM MACHINE SCREW $7.49
21582359AUDIO WIRE $11.99
31425860UPRIGHT WIRE $68.99
23436660M4 X 8MM SCREW $1.49
31244161FLYWHEEL $286.99
27605162M4 X 16MM FLAT HD SCRW $0.99
24725963FRAME AXLE $54.49
24725864FRAME BUSHING $13.49
32207364M8 X 120MM BOLT $8.49
28525665LATCH BRACKET AXLE $17.49
LATCH BRACKET SPRING24727566LATCH BRACKET SPRING $7.49
29387167Latch ButtonContact for Pricing
Button Frame24965568Button FrameContact for Pricing
18607069REED SWITCH/WIRE $28.99
13109070REED SWITCH CLIP $0.99
22808471CRANK HUB $98.49
28520972CRANK $91.99
28521973CRANK SPACER $24.99
25433574PulleyNLAUnavailable to order
11384275MAGNET $1.49
13970376SMALL BEARING / FOLDING FRAME BEARING $29.98
36309377IDLER $116.49
30803678RESISTANCE MOTOR $117.99
RESISTANCE ARM30473479RESISTANCE ARM $32.99
RESISTANCE DISC24195480RESISTANCE DISC $1.99
27964582MOTOR BRACKET $12.99
30802883C-MAGNETContact for Pricing
28411684FLYWHEEL AXLE $19.99
28114985M10 X 50MM HEX SCREW $6.49
21777986M8 X 28MM SCREW $4.49
14374287SNAP RING $3.99
28114888C-MAGNET BOLT $3.49
M4 X 12MM FLANGE SCREW16826789CONSOLE FAN SCREW $0.99
28330490M5 X 7MM SCREW $3.49
M3.5 X 12MM SCREW, NOTE27602491M3.5 X 12MM SCREW $1.49
25476992M6 NUT $1.49
#8 X 5/8" SCREW14498593A#8 X 5/8″ SCREW $0.99
BELLYPAN SCREW01316293BWIRE TRACK SCREW $0.99
01342395GROUND SCREW $0.99
M6 WASHER01403396M6 WASHER $1.49
M6 X 20MM HEX SCREW20816397M6 X 20MM HEX SCREW $1.99
23428698M6 X 8MM HEX SCREW $0.99
28115099M6 X 20MM SHLDR SCRW,NOTE $4.49
256377100M10 X 120MM SCREW $13.49
240351101CABLE TIE $0.99
M8 X 16MM SCREW237612102M8 X 16MM SCERW $1.49
315746103LEFT WHEEL LOWER COVER $19.49
212500104M8 X45MM BOLT $5.49
256446105M8 NUT $0.99
313530106LONG PEDAL ARM AXLE $19.49
M10 X 25MM SCREW232289107M10 X 25MM SCREW $28.49
208916107M10 x 25mm ScrewContact for Pricing
216385108M10 WASHER $1.99
297184109FRAME WIRE $85.49
M6 X 12MM SCREW262341111M6 X 12MM SCREW $3.49
183633112REAR FOOT WASHER $1.99
309233113ADJUSTMENT BRACKET COVER $19.99
315281114PEDAL PLATE $98.49
SHORT PEDAL ARM AXLE315744115SHORT PEDAL ARM AXLE $14.99
247274116LARGE BUMPER $5.99
143426117UPRIGHT BUSHING $8.99
16MM WAVE WASHER28720211816MM WAVE WASHER $1.99
PEDAL ARM BUSHING247255119PEDAL ARM BUSHING $29.99
303479120ASCREW, COVER MOUNT $3.99
286527120BFOOT RAIL SNAP $2.49
309240121ADJUSTMENT PAD $9.49
2726301223/8″ X 1/2″ FLANGE SCREW $3.99
261944123M8 X 50MM SCREW $6.99
M4 X 42MM SCREW322839124M4 X 40MM SCREW $1.49
316448125RECEPTACLE/WIRE $40.99
M8 X 23MM X 1.5MM WASHER250868126M8 X 23.5MM X 1MM WASHER $3.49
248370127M4 X 16MM RND HEAD SCREW $4.49
252795128M10 SPLIT WASHER $0.99
M5 NUT150327129M5 NUT $1.99
SNAP RING304180130SMALL SNAP RING $0.99
M8 SPLIT WASHER014174131M8 SPLIT WASHER $1.99
292368132#8 X 1″ SCREW $1.99
141510133FRAME ENDCAPContact for Pricing
229541134LARGE SNAP RING $2.99
271999135ARIGHT PULSE WIRE $7.49
272000135BLEFT PULSE WIRE $7.49
248512136OPTIONAL TRANSFORMER / POWER ADAPTER $18.99
316558#CNSL REPROGRAMMING MODULE $197.49
GREASE PACKET104838#GREASE PACKET $8.49
324932#USER’S MANUAL $9.99
258870#DECAL, GENERAL WARNING $3.49
146119#FLOOR MAT $79.99
316454#DECAL, STRIDE ADJUST $9.49
116566#15.5″ CABLE TIE, 50 LB $0.99
016057#8″ PLASTIC TIE $2.99
116926#RELEASABLE TIE $0.99
EXIF12#IFIT-WIFI ACCESSORY KITNLAUnavailable to order
331242#UPRIGHT GROMMET $6.49
297256#6MM ALLEN WRENCH $13.49
297255#5MM ALLEN WRENCH $7.49
166909#SITE WARNING DECAL $2.49
140069#SNAP RING PLIERS $12.99
301390#DOUBLE TREE FASTENER $0.99
