Proform 400 Zle Elliptical – PFEVEL74910.0 / PFEVEL749100
149 Parts Available for Proform 400 Zle Elliptical - PFEVEL74910.0 / PFEVEL749100 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 295136 | 1 | 5/16″ X 3/4″ SCREW | $3.49 | ||
 | 349213 | 4 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
| 305102 | 4 | Fitness Equipment Console | $239.99 | |||
| 280935 | 5 | WATER BOTTLE HOLDER | $27.99 | |||
 | 013322 | 5A | #8 X 3/4″ TAP SCREW | $0.99 | ||
 | 013607 | 5B | M5 X 25MM SELF-TAP SCREW | $0.99 | ||
| 304050 | 6 | UPPER BODY LEG | $81.99 | |||
 | 155153 | 6 | M5 X 19MM SCREW | $0.99 | ||
 | 241954 | 7 | RESISTANCE DISC | $1.99 | ||
| 305106 | 8 | Left Upper Body Arm | NLA | Unavailable to order | ||
 | 014149 | 8 | 5/16″ STAR WASHER | $0.99 | ||
 | 100427 | 9 | 5/16″ NUT | $0.99 | ||
| 305107 | 9 | RIGHT UPPER BODY ARM | Unavailable to order | |||
 | 013300 | 10 | #8 X 3/4″ SCREW | $0.99 | ||
| 230444 | 10 | FOAM GRIP | Contact for Pricing | |||
 | 013576 | 11 | M4 X 10MM SELF-TAP SCREW | $0.99 | ||
 | 224839 | 11 | PULSE GRIP CAP | $1.99 | ||
 | 364027 | 12 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
| 283856 | 12 | LEFT PEDAL | $120.99 | |||
 | 186819 | 13 | #8X1/2″ WASHER HEAD SCREW | $0.99 | ||
| 283858 | 13 | RIGHT PEDAL | Contact for Pricing | |||
 | 346519 | 14 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
| 305108 | 14 | Left Pedal Arm | NLA | Unavailable to order | ||
| 283662 | 15 | Pedal Bracket | NLA | Unavailable to order | ||
| 159986 | 15 | 3/8″ X 2″ HEX BOLT | $6.49 | |||
 | 337718 | 16 | TV Remote Control | Contact for Pricing | ||
| 285408 | 16 | FRONT UPRIGHT COVER | $47.49 | |||
 | 256295 | 17 | HANDLEBAR BUSHING (138574) | $4.99 | ||
| 128263 | 17 | LONG CONSOLE SCREW | $0.99 | |||
| 136728 | 18 | #8 BELT GUIDE SCREW | $0.99 | |||
| 285412 | 18 | DISC COVER | $55.99 | |||
| 285406 | 19 | PIVOT COVER A | $15.49 | |||
 | 295758 | 19 | 5/16″ MOTOR BOLT | $3.49 | ||
| 289510 | 20 | RAMP | $196.99 | |||
 | 298484 | 20 | 5/16″ BOLT,FLASH TM11-200 | $2.49 | ||
| 228465 | 21 | 1/4″ X 1 3/4″ SCREW | $2.49 | |||
| 305113 | 21 | Ramp Cover | $124.99 | |||
 | 149072 | 22 | 3/8″ X 1.75″ SCREW | $3.99 | ||
| 285407 | 22 | PIVOT COVER B | $15.99 | |||
| 281011 | 24 | CRANK ASSEMBLY | NLA | Unavailable to order | ||
| 281017 | 25 | CRANK ARM | Contact for Pricing | |||
| 308629 | 25 | Fan Grill Tray | NLA | Unavailable to order | ||
| 285505 | 26 | Left Pedal Disc | NLA | Unavailable to order | ||
 | 328210 | 26 | 1/2″ X 2″ BOLT | $7.99 | ||
 | 298474 | 27 | RUBBER CUSHION | $1.99 | ||
| 285411 | 27 | RIGHT PEDAL DISC | $128.99 | |||
| 351833 | 28 | 3/8″ X 1″ Bolt | Contact for Pricing | |||
| 272391 | 28A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 28B | LEFT PULSE WIRE | $17.49 | |||
 | 018030 | 29 | PEDAL ARM BEARING | $19.49 | ||
| 175284 | 29 | FAN SCREW | $0.99 | |||

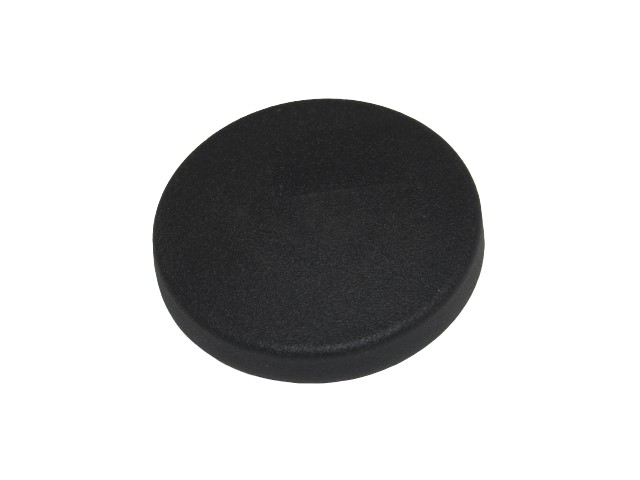

 | 280950 | 30 | PEDAL ARM CAP | Contact for Pricing | ||
| 014064 | 30 | 1/4″ STAR WASHER | $0.99 | |||
| 284978 | 31 | RAMP AXLE | $62.99 | |||
 | 152478 | 31 | FLAT WASHER | $0.99 | ||
| 304705 | 32 | Console Cover | $61.49 | |||
| 144528 | 32A | M4 X 10MM SCREW | $0.99 | |||
| 013509 | 32B | #6 X 3/8″ SCREW | $0.99 | |||
 | 261150 | 33 | M8 X 25MM WASHER | $2.20 | ||
 | 183246 | 33A | 1/4″ X 1/2″ SCREW | $1.49 | ||
| 269381 | 33B | 1/4″ X 5/8″ SCREW | $1.99 | |||
| 279644 | 34 | ADJUSTMENT LOCK | $1.49 | |||
 | 100553 | 34 | 1/2″ JAM LOCK NUT | $1.49 | ||
 | 119425 | 35 | 3/8″ NYLON JAM NUT | $0.99 | ||
 | 133333 | 36 | HOOD CLIP | $0.99 | ||
 | 324707 | 37 | CUSHION | $8.49 | ||
| 280929 | 37 | TOP SHIELD COVER | $25.49 | |||
| 305284 | 38 | Latch Warning Decal | Contact for Pricing | |||
 | 139703 | 38 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
| 362730 | 39 | WALKING PLATFORM | $185.49 | |||
| 304757 | 39 | Handlebar | $99.49 | |||
 | 352010 | 40 | WALKING BELT | $178.99 | ||
 | 143742 | 40 | SNAP RING | $3.99 | ||
| 356252 | 41 | Left Foot Rail | NLA | Unavailable to order | ||
 | 113842 | 41 | SENSOR MAGNET | $1.49 | ||
| 281473 | 42 | Wire Harness | NLA | Unavailable to order | ||
| 356251 | 42 | RIGHT FOOT RAIL | $95.99 | |||
| 183633 | 43 | M5 WASHER | $1.99 | |||
 | 198639 | 43 | BELT GUIDE | $5.99 | ||
| 352013 | 44 | LEFT FRAME COVER | $81.49 | |||
| 305104 | 44 | Left Shield | NLA | Unavailable to order | ||
| 305103 | 45 | RIGHT SHIELD | Unavailable to order | |||
 | 222902 | 45 | MAG,CUST,.39X.15″ | Contact for Pricing | ||
 | 234542 | 46 | Drive Belt | Contact for Pricing | ||
 | 131090 | 46 | CLAMP | $0.99 | ||
 | 165798 | 47 | REED SWITCH | $19.49 | ||
 | 399610 | 48 | CONTROLLER | $185.99 | ||
| 014157 | 49 | #8 STAR WASHER | $0.99 | |||
| 361845 | 50 | CONTROLLER BRACKET | $26.99 | |||
| 352011 | 51 | DRIVE ROLLER/PULLEY | $148.49 | |||
| 240351 | 53 | WIRE TIE | $0.99 | |||
| 328330 | 54 | Part # 328330 | Contact for Pricing | |||
 | 311589 | 55 | MOTOR BELT | $53.49 | ||
 | 388199 | 56 | STORAGE LATCH | $119.49 | ||
| 352073 | 57 | RIGHT FRAME COVER | $62.99 | |||
 | 348118 | 58 | REAR FOOT | $27.99 | ||
 | 223662 | 59 | IDLER ROLLER | $165.99 | ||
| 351700 | 60 | Left Rear Cap | NLA | Unavailable to order | ||
 | 358780 | 61 | RIGHT REAR CAP | $24.99 | ||
| 352006 | 62 | MOTOR HOOD | $125.99 | |||
 | 376677 | 63 | FIXKIT,NOISE W/SPACER | $19.49 | ||
| 351475 | 65 | Incline Frame | Contact for Pricing | |||
 | 114078 | 67 | INCLINE MOTOR SPACER | $2.49 | ||
| 230979 | 68 | HOOD POST | $5.49 | |||
 | 031229 | 69 | POWER CORD | $39.99 | ||
 | 186726 | 71 | POWER SWITCH | $22.49 | ||
| 351693 | 72 | BELLY PAN | $99.99 | |||
 | 351952 | 73 | LEFT HANDRAIL TOP COVER | $18.99 | ||
| 357773 | 74 | HANDRAIL | $54.49 | |||
 | 351951 | 75 | LEFT HANDRAIL BOTTOM | $16.99 | ||
| 351467 | 76 | UPRIGHT CROSSBAR | $98.49 | |||
| 104794 | 77 | 25MM X 40MM INT ENDCAP | $1.99 | |||
| 348854 | 78 | UPRIGHT COAXIAL CABLE | $74.49 | |||
| 351686 | 79 | TRAY | $55.49 | |||
| 351955 | 80 | Pulse Crossbar | Contact for Pricing | |||
 | 351954 | 81 | RIGHT HANDRAIL TOP COVER | $18.99 | ||
 | 351953 | 82 | RIGHT HANDRAIL BOTTOM | $16.49 | ||
| 352052 | 83 | UPRIGHT WIRE | $113.99 | |||
| 252433 | 85 | CAUTION DECAL | $0.99 | |||
 | 173169 | 86 | GROMMET | $0.99 | ||
 | 347760 | 87 | FRONT WHEEL | $6.99 | ||
| 351823 | 88 | Wheel Spacer | NLA | Unavailable to order | ||
| 352005 | 89 | LEFT UPRIGHT COVER | $52.49 | |||
| 352004 | 90 | RIGHT UPRIGHT COVER | $52.49 | |||
| 364543 | 91 | Right Extension Leg | NLA | Unavailable to order | ||
 | 139090 | 92 | WHEEL | $2.99 | ||
| 364544 | 93 | LEFT EXTENSION LEG | $71.99 | |||
| 351787 | 94 | LEFT TRAY | $11.99 | |||
 | 188015 | 95 | FAN | $46.49 | ||
| 366378 | 96A | Fitness Equipment Console | $571.99 | |||
| 306013 | 96C | 30″WIRE HRNS,FAN | $24.49 | |||
| 321485 | 96D | 30-Inch Console Extension Wire | NLA | Unavailable to order | ||
| 351791 | 97 | Left Speaker Cover | NLA | Unavailable to order | ||
| 351790 | 98 | LEFT SPEAKER GRILL | $54.99 | |||
| 353429 | 99 | SPEAKER | $39.49 | |||
| 351786 | 100 | Console Base | NLA | Unavailable to order | ||
| 351788 | 101 | RIGHT TRAY | Contact for Pricing | |||
| 351789 | 102 | RIGHT SPEAKER GRILL | $54.99 | |||
| 351792 | 103 | RIGHT SPEAKER COVER | $14.49 | |||
 | 347877 | 104 | KEY | $25.99 | ||
| 186253 | 105 | 25MM SQUARE INT ENDCAP | $1.99 | |||
| 351462 | 106 | CONSOLE FRAME | $123.99 | |||
| 132315 | 107 | CABLE CLAMP TIE | $3.49 | |||
| 315183 | 108 | CHEST PULSE STRAP | $12.49 | |||
| 349317 | 109 | HEART RATE MONITOR | $130.99 | |||
 | 013235 | 110 | PLATFORM SCREW | $6.99 | ||
 | 121576 | 111 | 1/4″ LOCK NUT | $2.49 | ||
| 351689 | 112 | ADJUSTMENT HANDLE | $71.49 | |||
| 351691 | 113 | HANDLE CAP | $6.99 | |||
| 329452 | 114 | CUSHION BUSHING | $11.49 | |||
| 370562 | 115 | CUSHION ROD BRACKET | $54.49 | |||
| 351453 | 116 | CUSHION ROD | $125.99 | |||
| 329503 | 117 | CUSHION WHEEL | $10.99 | |||
 | 320295 | 118 | CUSHION CAP | $0.99 | ||
 | 319487 | 119 | SPRING | $13.99 | ||
 | 351698 | 120 | LEFT REAR CAP | $7.99 | ||

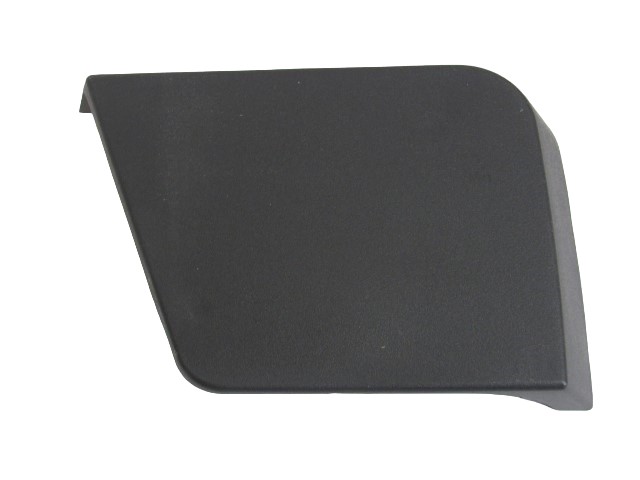

 | 351699 | 121 | Right Rear Cap | Contact for Pricing | ||
| 355174 | 122 | FOOT RAIL PLATE | $2.49 | |||
| 355175 | 123 | FOOT RAIL CLIP | $2.49 | |||
| 329505 | 124 | CUSHION WHEEL STOP | $5.99 | |||
 | 282411 | 125 | FAN | $161.99 | ||
| 351824 | 126 | TRAY FAN COVER | $27.99 | |||
| 361659 | 127 | POWER SUPPLY | $105.49 | |||
 | 125819 | 128 | PLASTIC STAND-OFF | $3.99 | ||
| 321395 | 129 | Power Supply Plate | NLA | Unavailable to order | ||
| 251429 | 130 | M4 X 12MM SCREW | $0.99 | |||
| 356713 | 131 | TV BRACKET | $113.99 | Unavailable to order | ||
| 342379 | 132 | UPPER TV BRACKET COVER | $27.49 | |||
 | 324666 | 133 | Part # 324666 | Contact for Pricing | ||
| 330877 | 134 | TV COVER | $7.99 | |||
| 342458 | 135 | LOWER TV BRACKET COVER | $25.49 |
