NORDICTRACK T 6.5 SI TREADMILL - NTL17919.6

NORDICTRACK T 6.5 SI TREADMILL – NTL17919.6

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

122 Parts Available for NORDICTRACK T 6.5 SI TREADMILL - NTL17919.6 ↓

Part #	Diagram #	Title	Price
144985	1	#8 X 5/8″ SCREW	$0.99
013322	2	#8 X 3/4″ SCREW	$0.99
427816	3	GROUND SCREW	$0.99
183246	4	1/4″ X 1/2″ SCREW	$1.49
014088	5	#10 STAR WASHER	$1.49
374137	6	BASE	$185.99
341768	7	3/8″ X 2 1/4″ SCREW	$8.99
264255	8	5/16″ X 3/4″ SCREW	$1.99
013549	9	LOWER SIDESHIELD SCREW	$0.99
186819	10	#8X1/2″ WSHR HD SCREW	$0.99
014149	11	5/16″ STAR WASHER	$0.99
146427	12	#8 X 1″ TEK SCREW	$0.99
163045	13	3/8″ STAR WASHER	$0.99
013576	14	#8 X 1/2″ SCREW	$0.99
364027	15	1/4″ X 2 1/2″ SCREW	$2.99
346519	16	3/8″ X 1 1/2″ BOLT	$3.99
381122	17	3/8″ X 1 3/8″ BOLT	$2.99
298484	18	5/16″X1 3/4″ SHLDR BOLT	$2.49
136728	19	#8 X 7/16″ SCREW	$0.99
295756	20	1/4″ MOTOR SCRW,NOTE: OM	$0.99
315068	21	3/8″ PIN	$7.99
372033	22	3/8″ X 1 1/8″ SCREW	$5.49
306291	23	PULSE CROSSBAR	$150.99
014157	24	#8 STAR WASHER	$0.99
173169	25	POWER CORD GROMMET	$0.99
388201	26	STORAGE LATCH	$133.49
349421	27	RIGHT TRAY	$85.49
174797	28	UPRIGHT BOLT	$4.49
179767	29	3/8″X1 3/4″ HEX HEAD BOLT	$61.49
152478	30	5/16″ FLAT WASHER	$0.99
349213	31	5/16″ X 2 1/4″ BOLT	$4.49
114078	32	INCLINE MOTOR SPACER	$2.49
119425	33	3/8″ JAM NUT	$0.99
100427	34	5/16″ NUT	$0.99
121576	35	1/4″ NUT	$2.49
349420	36	LEFT TRAY	$85.49
291486	37	#8 X 5/8″ SCREW	$0.99
372591	38	ROWER WHEEL	$7.49
369377	39	ISOLATOR	$38.49
348118	40	REAR FOOT	$27.99
347756	41	LATCH CROSSBAR	$54.49
389738	42	LEFT FOOT RAIL	$105.49
413303	43	LATCH WARNING DECAL	$3.99
350123	44	WALKING PLATFORM	$214.99

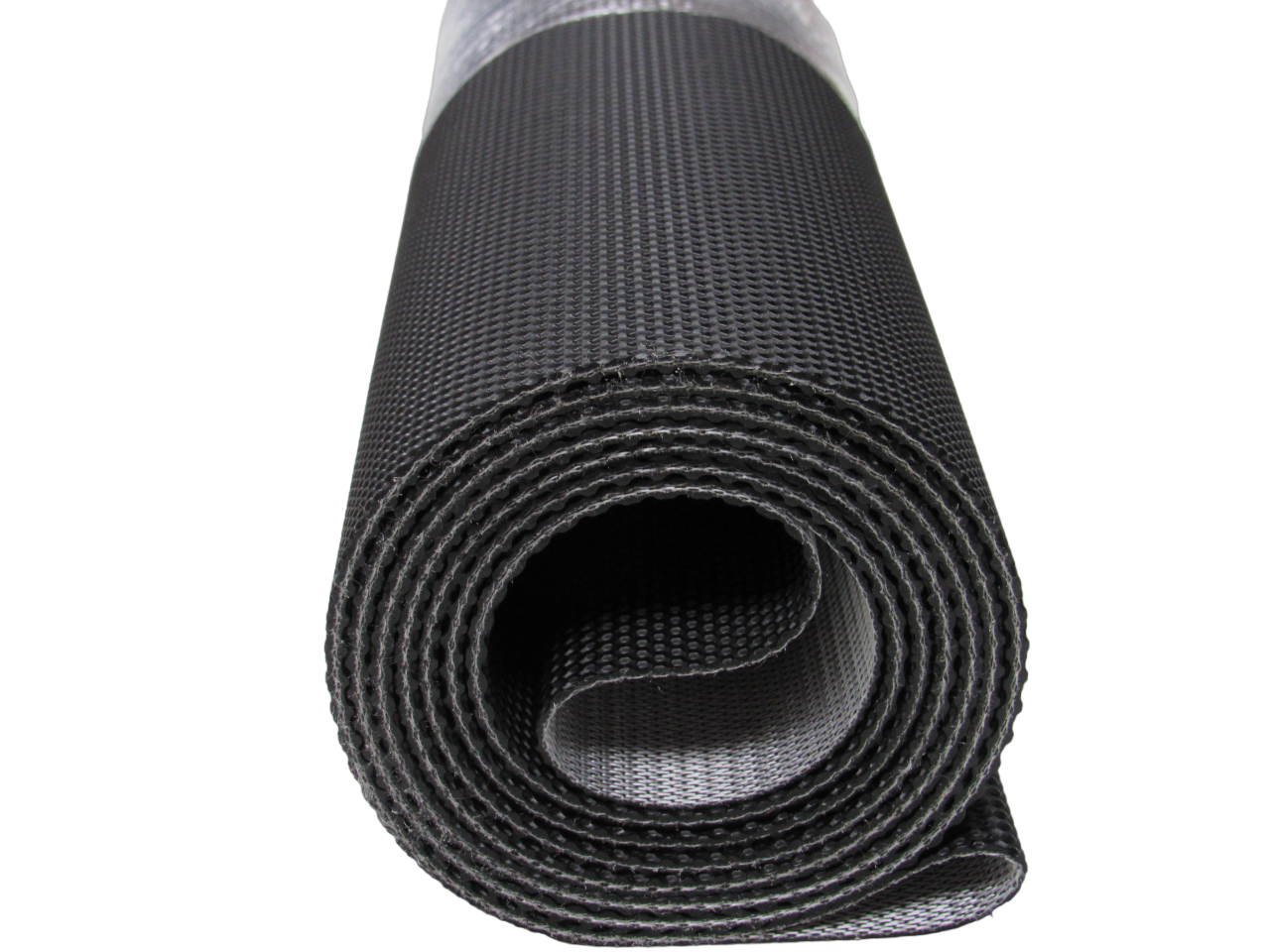

430280	45	WALKING BELT	$165.49
198639	46	BELT GUIDE	$5.99
393579	47	RIGHT REAR FOOT	$26.49
240351	48	CABLE TIE	$0.99
399308	49	DRIVE ROLLER/PULLEY	$154.49
372701	50	RIGHT INNER BASE COVER	$47.49
372092	51	3/8″ PLASTIC BUSHING	$4.99
102973	52	3/8″ THRUST WASHER	$0.99
265234	53A	1/4″ X 1 1/4″ SCREW	$1.99
372094	53B	9/32″ PLASTIC BUSHING	$4.99
405626	54	DRIVE MOTOR	$238.99
399309	55	MOTOR BELT	$38.99
430832	57	LEFT REAR FOOT	$129.99
215822	58	CONSOLE GROUND WIRE	$5.99
298474	59	RUBBER CUSHION	$1.99
389739	60	RIGHT FOOT RAIL	$105.49
311588	61	IDLER ROLLER	$114.99
181980	62	3/8″ X 1 1/2″ SCREW	$3.49
181979	63	3/8″ X 1 1/4″ BOLT	$3.49
349551	64	CONSOLE BASE	$122.49
349574	65	MOTOR HOOD	$159.99
404181	66	HOOD ACCENT	$59.99
372093	67	1/2″ PLASTIC WASHER	$4.99
133333	68	CLIP	$0.99
406066	69A	INCLINE MOTOR	NLA
406602	69B	INCLINE MOTOR SENSOR KIT	$46.99
372381	70	INCLINE FRAME	$139.49
343447	71	FRAME SPACER	$6.49
414810	72	MOTOR CONTROLLER	$181.99
365328	73	CONTROLLER CLAMP	$15.49
315047	74	ELECTRONICS BRACKET	$2.49
186726	75	POWER SWITCH	$22.49
031229	76	POWER CORD	$39.99
227199	77	GROMMET	$2.49
347853	78	BELLY PAN	$120.98
349105	79	HANDRAIL GRIP	$53.99
434830	80A	CONSOLE (ARGON)	NLA
434830R	80C	REFURBISHED CNSL (ARGON)	NLA
450785	80D	TABLET ONLY	$399.99
409841	81	UPRIGHT WIRE	$81.99
372704	82	LEFT BASE COVER	$51.49
372703	83	RIGHT BASE COVER	$26.99
404217	84	RIGHT HANDRAIL	$127.49
404216	85	LEFT HANDRAIL	$127.49
132315	86	WIRE TIE	$3.49
348511	87	HANDRAIL CAP	$26.49
263710	88	KEY/CLIP	$19.99
377014	89	LEFT UPRIGHT	$127.49
377017	90	RIGHT UPRIGHT	$127.49
252433	91	CAUTION DECAL	$0.99
243797	92	CONSOLE CLAMP	$0.99
256446	93	M8 LOCKNUT	$0.99
250549	94	M8 X 102MM BOLT	$5.49
234288	95	M8 X 20MM BOLT	$1.49
234325	96	M8.4 STAR WASHER	$1.49
012105	97	M8 FLANGE NUT	$3.49
398979	98	DRIVE MOTOR BRACKET	$97.99
306823	99	Console Frame	$53.49
372702	100	LEFT INNER BASE COVER	$47.49
307032	101	BASE PAD	$3.99
428729	#	HARDWARE KIT,NOTE:	NLA
356520	#	ACCESSORY KIT	$62.49
116566	#	15.5″ CABLE TIE	$0.99
215823	#	AUDIO WIRE	$11.99
016057	#	8″ CABLE TIE	$2.99
116926	#	RELEASABLE WIRE TIE	$0.99
ARC14	#	WALL ARC FILTER	~~$42.99~~ $39.99
219170	#	3 TUBE LUBE KIT	$39.49
128457	#	3/16-7/32″ ALLEN WRENCH	$25.49
EXIF12	#	IFIT WIRI ACCESSORY KIT	NLA
364361	#	CHEST HEART RATE MONITOR	$135.99
146119	#	FLOOR MAT	$79.99
434832	#	LITPAC, NOTE:	$70.99
219168	#	1 TUBE LUBE KIT	$18.99
236006	#	DECAL, SURGE WARN,ENG/SPN	$3.99
203982	TS3	10″ FILTER W/WIRE	$27.49
198081	TS4	6″ BLUE WIRE, M/F	$3.99
126146	TS5	4″ BLUE WIRE,F/F	$3.49
102634	TS6	CNTRLR GRND WIRE	$3.49
406322	TS9	12″ INCLINE MOTOR WIRE	$21.49
