NORDICTRACK FREESTRIDE X16 ELLIPTICAL – NTEL71625.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
201 Parts Available for NORDICTRACK FREESTRIDE X16 ELLIPTICAL - NTEL71625.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 397703 | 1 | BASE | $499.00 | |||
| 397715 | 3 | STABILIZER | $186.99 | |||
| 455480 | 4 | UPRIGHT | $349.99 | |||
| 455299 | 5 | CONSOLE MOUNT | $109.99 | |||
| 397748 | 6 | BRACE | $86.99 | |||
 | 398644 | 7 | CONTROL BRACKET | $12.99 | ||
 | 412766 | 8 | CONTROLLER | $194.99 | ||
 | 432335 | 9 | CROWN FASTENER | $1.99 | ||
| 362412 | 10 | M5 X 16MM FLAT HEAD SCREW | $1.49 | |||
| 455431 | 11 | LEFT CONTROL GRIP/WIRE | $62.99 | |||
| 429459 | 12 | HB,LWR,ARPS,LT,W/BSHGS | $204.49 | |||
| 455481 | 13 | RIGHT PIVOT LEG | $146.49 | |||
| 1002083 | 14A | LEFT PEDAL ARM | $193.49 | |||
| 455479 | 15A | RIGHT PEDAL ARM | $182.99 | |||
 | 407021 | 15B | FELT PAD | $8.49 | ||
| 398646 | 16 | LEFT HANDLEBAR | $70.99 | |||
 | 398381 | 18 | BELT CLAMP | $47.49 | ||

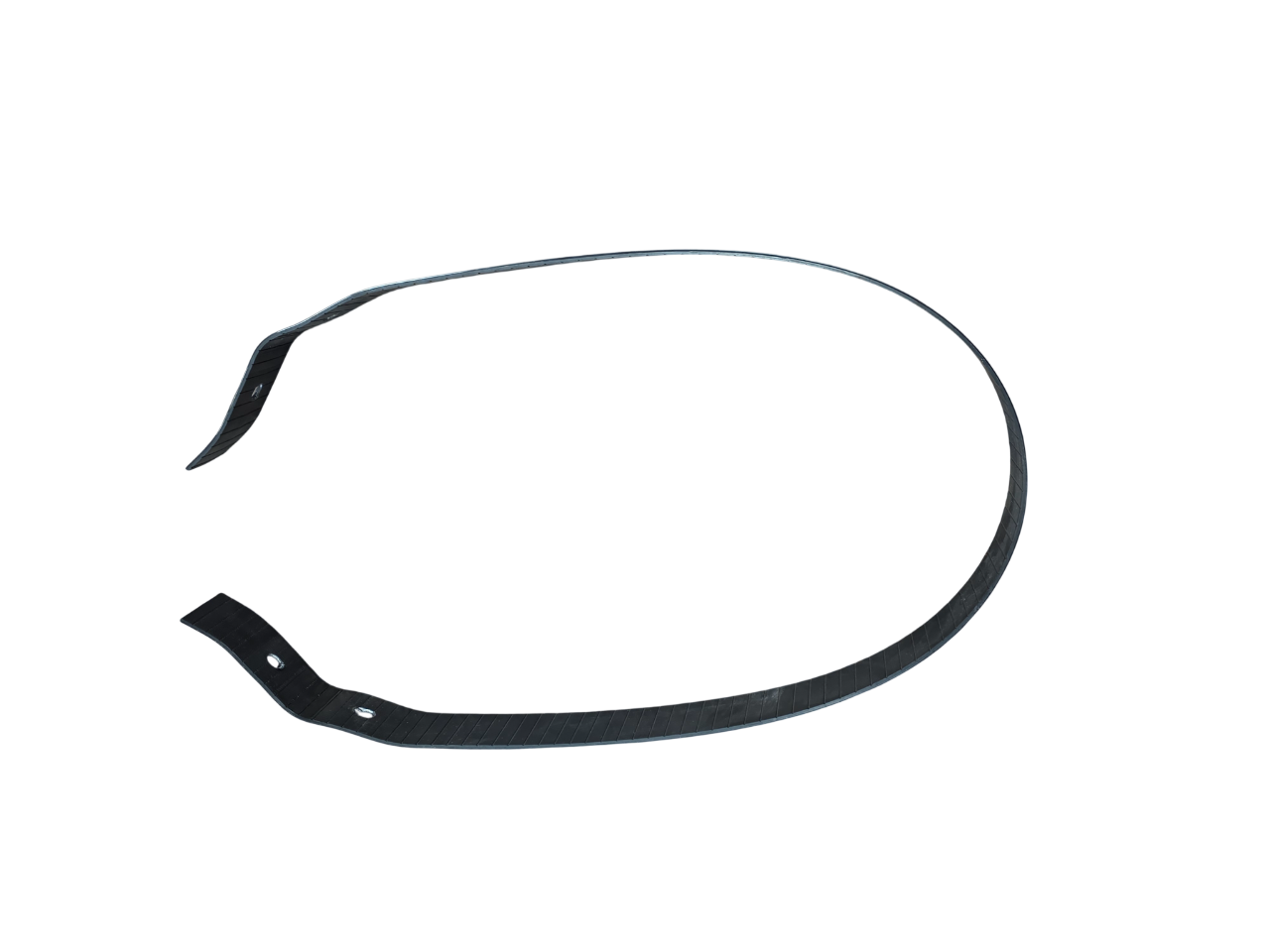

 | 1000870 | 19 | GLIDE BELT | $144.99 | Unavailable to order | |
 | 357125 | 20 | WEDGE | $9.99 | ||
 | 398533 | 21 | STRAP | $70.99 | ||
 | 398385 | 22 | STRAP BRACKET | $10.99 | ||
 | 378926 | 23 | STRAP CLAMP | $26.99 | ||
 | 398377 | 24 | LEFT REAR BELT COVER | $15.99 | ||
 | 398376 | 25 | RIGHT REAR BELT COVER | $52.49 | ||
 | 398379 | 26 | LEFT FRONT BELT COVER | $12.99 | ||
 | 398378 | 27 | RIGHT FRONT BELT COVER | $15.99 | ||
 | 384487 | 28 | LEFT PEDAL | $178.49 | ||
 | 384488 | 29 | RIGHT PEDAL | $178.49 | ||
 | 348389 | 30 | AXLE COVER | $14.99 | ||
| 224545 | 31 | M8 WASHER | $6.49 | |||
| 403801 | 32 | LEG BEARING | $69.49 | |||
 | 373941 | 33 | LEG SPACER | $40.99 | ||
 | 384029 | 34 | LEFT ARM COVER | $9.49 | ||
 | 397778 | 35 | LEFT SHIELD COVER | $24.99 | ||
 | 397777 | 36 | RIGHT SHIELD COVER | $24.99 | ||
 | 397762 | 37 | PIVOT COVER A | $13.99 | ||
 | 397761 | 38 | PIVOT COVER B | $13.99 | ||
 | 384034 | 39 | LEFT REAR LEG COVER | $24.99 | ||
 | 384038 | 40 | UPPER BODY ARM COVER | $26.99 | ||
 | 384036 | 41 | LEFT FRONT LEG COVER | $27.49 | ||
| 384028 | 42 | RIGHT ARM COVER | $9.49 | |||
 | 397780 | 43 | LEFT FRONT SHIELD COVER | $16.99 | ||
 | 384035 | 44 | RIGHT REAR LEG COVER | $24.99 | ||
 | 384037 | 45 | RIGHT LEG COVER A | $24.99 | ||
| 390825 | 46 | PIVOT BUSHING | $22.49 | |||
 | 397779 | 47 | RIGHT FRONT SHIELD COVER | $16.99 | ||

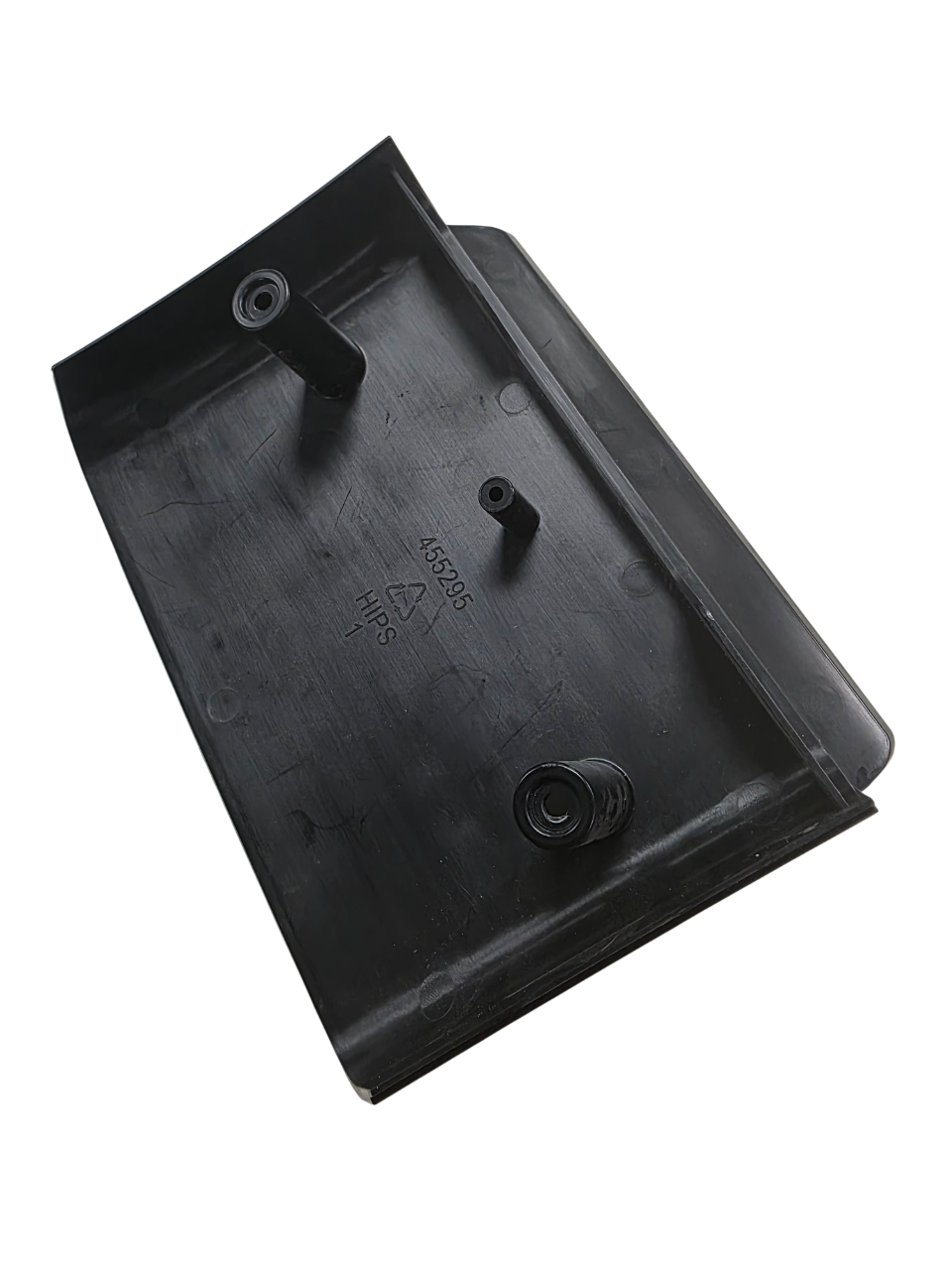

 | 455295 | 48 | LARGE MOUNT COVER | $15.49 | ||

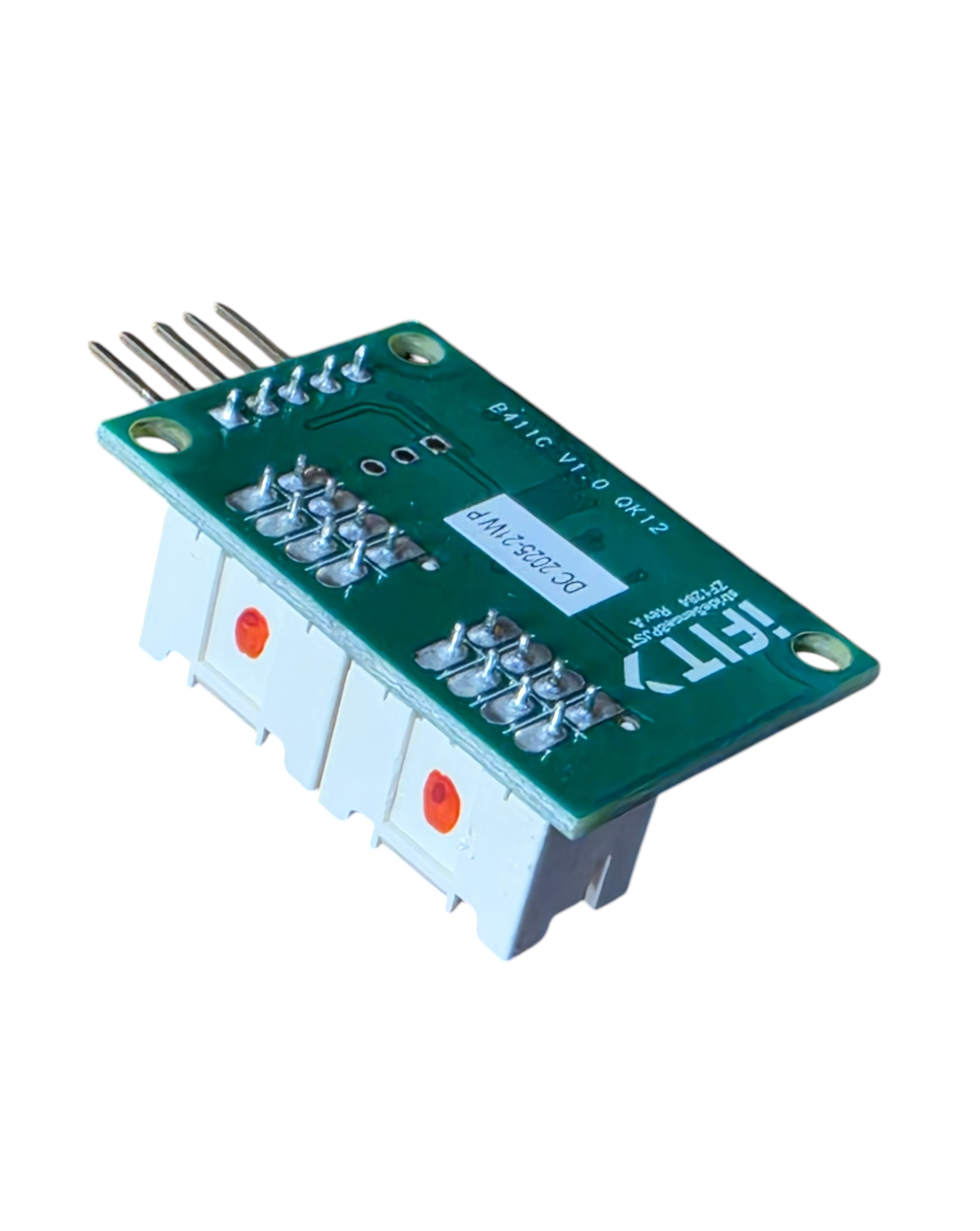

 | 453094 | 49 | ACCELEROMETER SENSOR | $100.99 | ||
| 455433 | 50 | RIGHT CONTROL GRIP/WIRE | $62.99 | |||

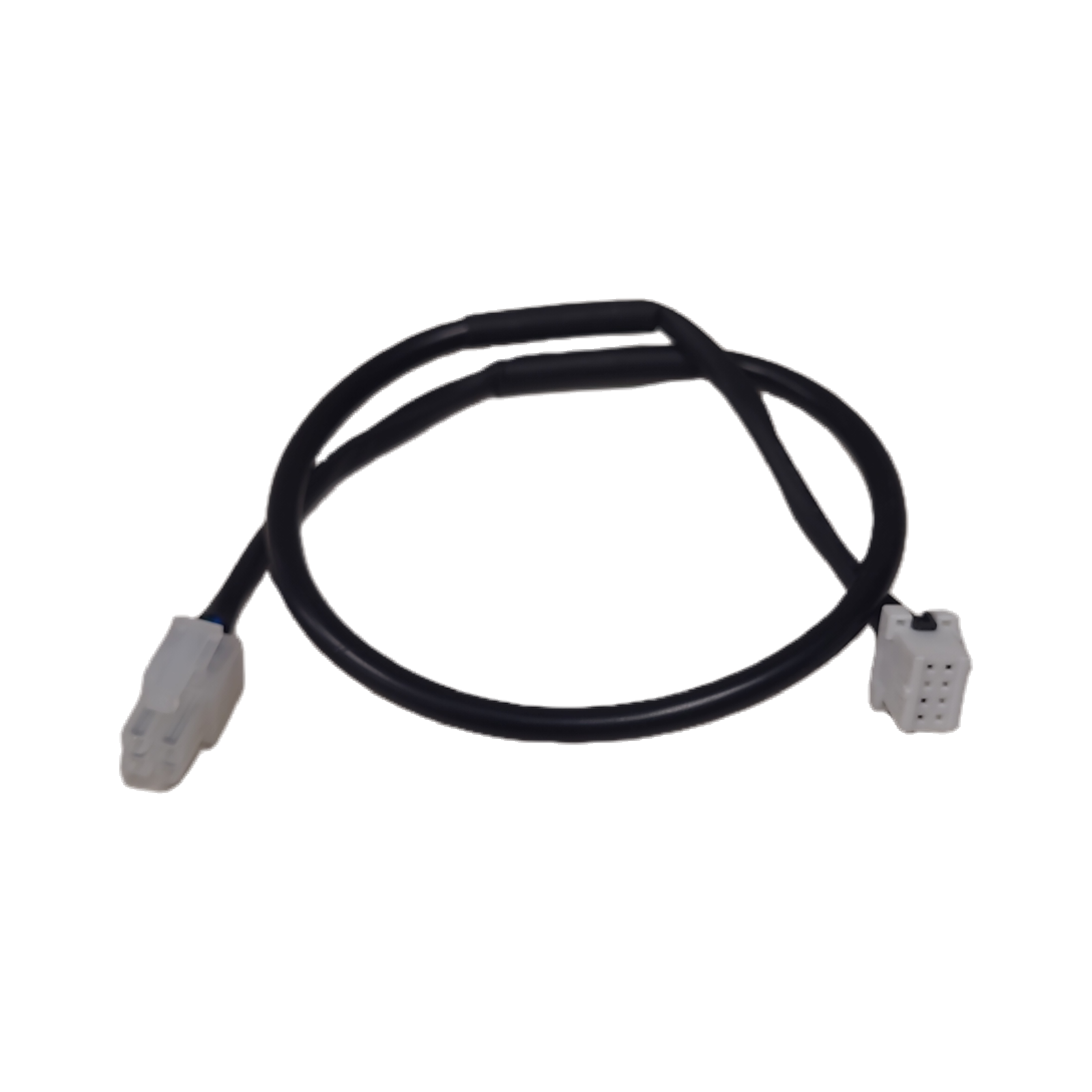

 | 452907 | 51 | 17″ WIRE | $14.49 | ||
 | 452908 | 52 | 41″ WIRE | $21.49 | ||
| 384026 | 53 | WHEEL | $14.49 | |||
| 398375 | 54 | FOOT | $12.99 | |||
 | 411084 | 55 | REED SWITCH/WIRE | $25.49 | ||
 | 363953 | 56 | REED SWITCH CLAMP/SCREW | $2.49 | ||

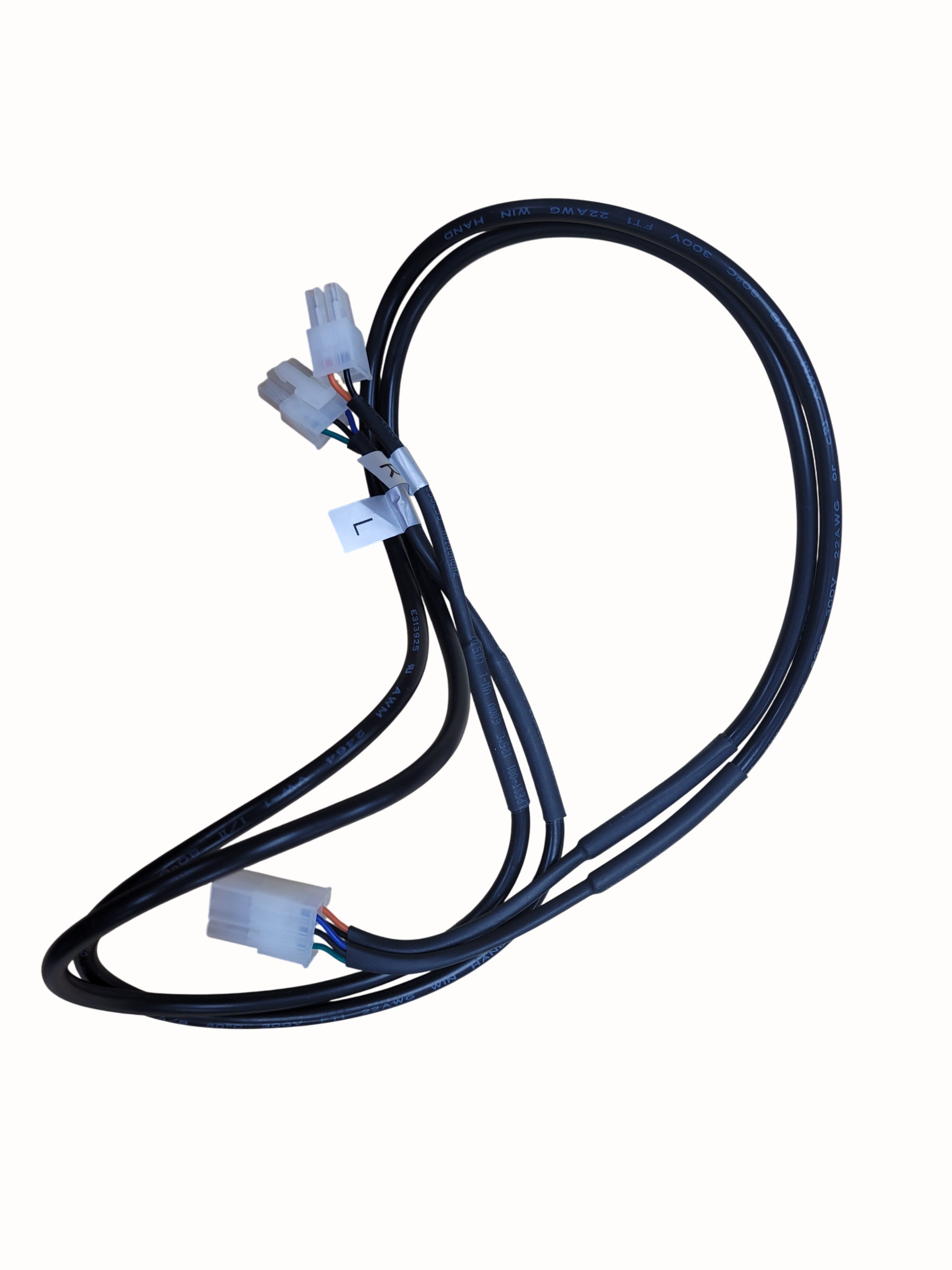

 | 452912 | 57 | CONTROL EXTENSION WIRE | $28.49 | ||

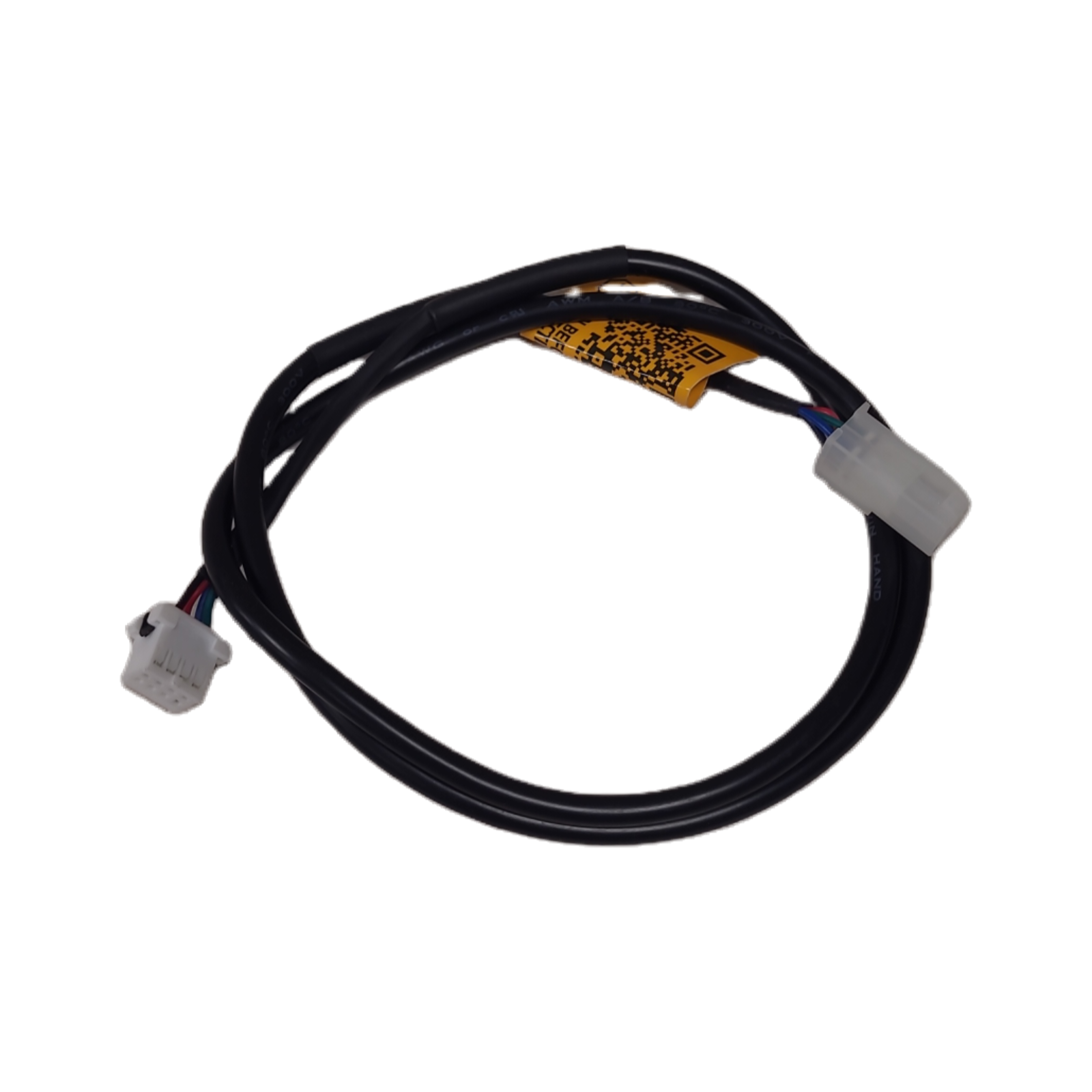

 | 452909 | 58 | 32″ WIRE | $19.49 | ||
 | 342275 | 59 | POWER CORD | $49.99 | ||
 | 237631 | 60 | LEVELING FOOT | $34.99 | ||
| 421562 | 61 | BELT,DRIVE,ARPS,SET | $118.49 | |||
 | 428048 | 62 | LEFT INNER DISC | $61.99 | ||
 | 383985 | 63 | CRANK | $192.99 | ||
| 397783 | 64 | FLYWHEEL | $160.49 | |||
| 381378 | 65 | LOWER PULLEY | $79.49 | |||
| 381379 | 66 | UPPER PULLEY | $79.49 | |||
| 400124 | 67 | CRANK PULLEY BRACKET | $139.99 | |||
| 383989 | 68 | LEFT CRANK CLAMP | $129.49 | |||
| 383995 | 69 | UPPER PULLEY BRACKET | $126.49 | |||
| 440349 | 70 | IDLER BRACKET | $117.99 | |||
 | 397132 | 71 | IDLER ADJUSTMENT BOLT | $21.99 | ||
 | 412545 | 72A | LIFT MOTOR (439537) | $219.99 | ||
 | 406602 | 72B | INCLINE MOTOR SENSOR KIT | $46.99 | ||
 | 397763 | 73 | POWER COVER | $6.99 | ||
| 340741 | 74 | LOWER LIFT AXLE | $13.99 | |||
 | 398019 | 75 | MAGNET BRACKET | $124.99 | ||
 | 411461 | 76 | RESISTANCE MOTOR | $99.99 | ||
 | 304734 | 77 | RESISTANCE ARM | $32.99 | ||
 | 241954 | 78 | RESISTANCE DISC | $1.99 | ||
 | 303952 | 79 | RESISTANCE BRACKET | $4.99 | ||
| 400123 | 80 | CRANK WASHER | $5.49 | |||
| 343252 | 81 | FRAME BEARING | $100.99 | |||
| 384023 | 82 | THIN FRAME SPACER | $19.99 | |||
| 384024 | 83 | THICK FRAME SPACER | $24.99 | |||
| 357132 | 84 | RIGHT WELD SPACER | $7.99 | |||
| 374083 | 85 | LEFT WELD SPACER | $16.49 | |||
| 384125 | 86 | CLAMP SPACER | $4.99 | |||
 | 375983 | 87 | FLEX SPACER | $43.49 | ||
| 251313 | 88 | CRANK BEARING | $53.49 | |||
| 403991 | 89 | ROLLER | $108.99 | |||
 | 357203 | 90 | CRANK COVER | $8.49 | ||
| 397135 | 91 | UPPER LIFT AXLE | $14.99 | |||
| 382348 | 92 | SMALL PULLEY | $43.99 | |||
| 400117 | 93 | IDLER FLEX SPACER | $12.99 | |||
| 407057 | 94 | IDLER BEARING | $65.99 | |||
| 317332 | 95 | LIFT MOTOR BUSHING | $3.99 | |||

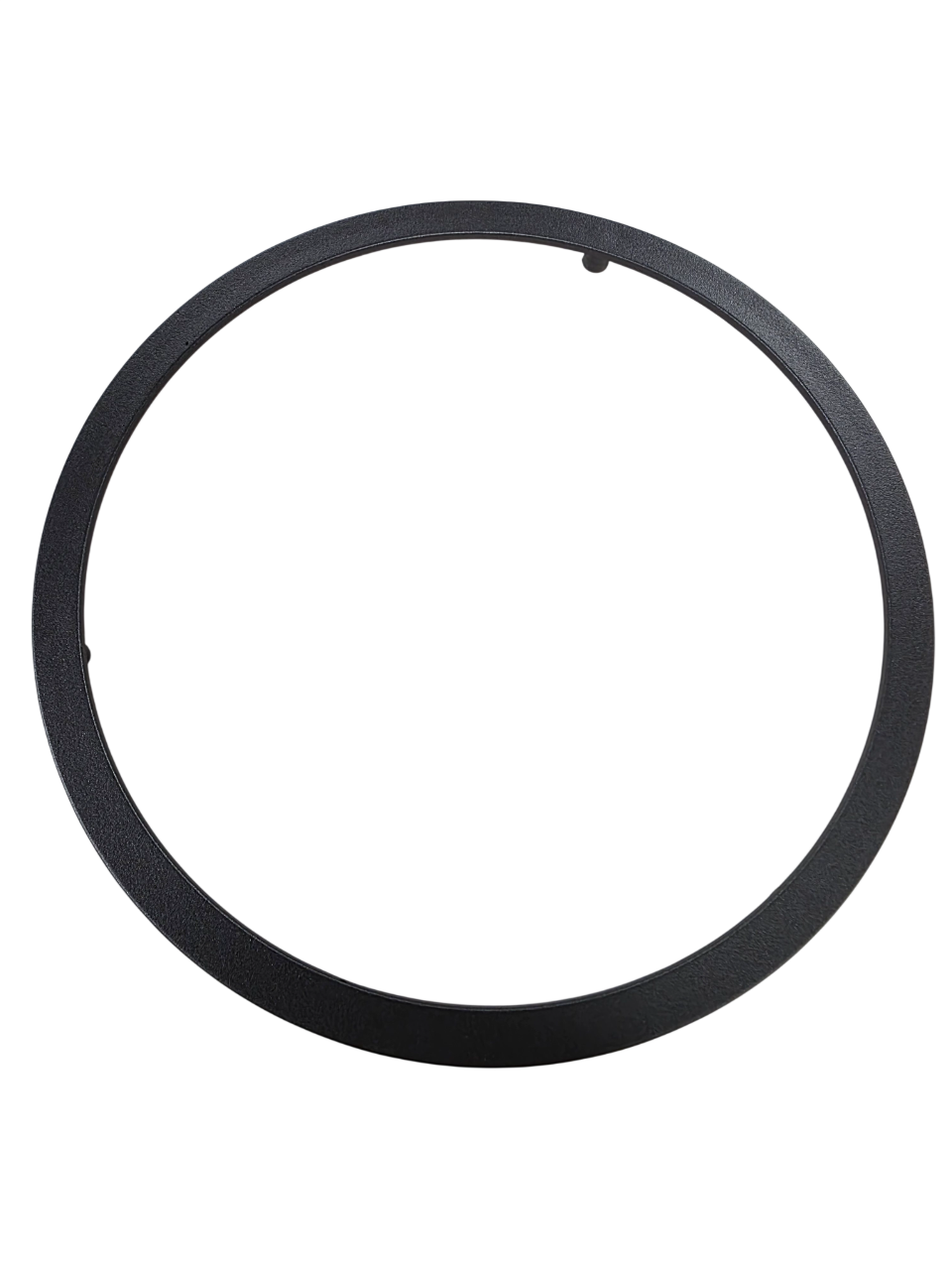

 | 455330 | 96 | ACCENT RING | $15.99 | ||
 | 455329 | 97 | SHIELD DISC | $40.99 | ||
 | 397771 | 98 | LEFT OUTER SHIELD | $129.99 | ||
 | 397772 | 99 | LEFT INNER SHIELD | $94.99 | ||
 | 455482 | 100 | RIGHT OUTER SHIELD | $63.49 | ||
 | 455483 | 101 | RIGHT INNER SHIELD | $63.49 | ||
| 455333 | 102 | LEFT OUTER COVER | $28.99 | |||
| 455339 | 103 | LEFT INNER COVER | $28.99 | |||
 | 455331 | 104 | RIGHT OUTER COVER | $28.99 | ||
| 455332 | 105 | RIGHT INNER COVER | $28.99 | |||
 | 384054 | 106 | DISC CAP | $3.49 | ||
 | 384053 | 107 | RIGHT INNER DISC | $46.49 | ||
 | 397776 | 108 | LEFT SLOT COVER | $13.49 | ||
 | 397775 | 109 | RIGHT SLOT COVER | $13.49 | ||
 | 397774 | 110 | ACCESS COVER | $24.99 | ||
 | 397792 | 111 | ACCESSORY TRAY | $39.49 | ||
 | 397788 | 112 | UPPER UPRIGHT COVER | $64.49 | ||
| 428046 | 113 | MAGNET | $72.99 | |||
 | 397790 | 114 | LEFT UPRIGHT COVER | $17.49 | ||
 | 397791 | 115 | RIGHT UPRIGHT COVER | $17.49 | ||
 | 397789 | 116 | LOWER UPRIGHT COVER | $52.99 | ||
| 171398 | 117 | M10 X 35MM HEX SCREW | $5.99 | |||
 | 380972 | 118 | M6 X 20MM SCREW | $6.49 | ||
| 455763 | 119 | M10 X 42MM BOLT | $10.99 | |||
| 225420 | 120 | M10 X 95MM BOLT, GRADE 8 | $24.49 | |||
 | 373258 | 121 | M10 X 20MM SCREW | $5.49 | ||
 | 347975 | 122 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 455338 | 123 | M10 X 35MM SCREW | $1.99 | |||
 | 275977 | 124 | M10 X 45MM SCREW | $7.99 | ||
| 398027 | 125 | M10 X 60MM SCREW | $17.99 | |||
| 398026 | 126 | M10 X 35MM SCREW | $9.49 | |||
| 221103 | 127 | M10 X 100MM BOLT | $17.49 | |||
| 373259 | 128 | M8 X 20MM SCREW | $3.99 | |||
| 373267 | 129 | M6 X 12MM CAP SCREW | $0.99 | |||
| 246606 | 130 | M10 X 70MM SCREW | $15.49 | |||
 | 125819 | 131 | PLASTIC STANDOFF | $3.99 | ||
| 281156 | 132 | M10 X 65MM SCREW | $8.49 | |||
 | 148710 | 133 | NUT, M10 LOCK | $2.49 | ||
| 276048 | 134 | M8 X 12MM HEX SCREW | $0.99 | |||
| 254691 | 135 | M6 X 12MM SCREW | $3.49 | |||
 | 150327 | 136 | M5 LOCKNUT | $1.99 | ||
| 422005 | 137 | M10 WASHER | $2.99 | |||
| 225400 | 138 | M6 X 12MM SCREW | $1.49 | |||
| 342081 | 139 | M6 WASHER | $1.99 | |||
 | 133333 | 140 | HOOD CLIP | $0.99 | ||
 | 195562 | 143 | M4 X 16MM SCREW | $1.99 | ||
 | 178353 | 144 | M2.5 X 7MM SCREW | $0.99 | ||
| 184126 | 145 | M4 X 15MM SCREW | $0.99 | |||
| 348369 | 146 | M3 X 10MM SCREW | $0.99 | |||
 | 213457 | 147 | M4 X 12MM ROUND HEAD SCRW | $1.99 | ||
 | 208320 | 148 | M4 X 10MM SCREW | $0.99 | ||
 | 333350 | 149 | M8 NUT | $1.99 | ||
 | 215822 | 150 | GROUND WIRE | $5.99 | ||
 | 264511 | 151 | POWER SWITCH | $32.99 | ||
 | 313668 | 152 | POWER CORD GROMMET | $9.49 | ||
 | 411122 | 153 | 100″ WIRE HARNESS | $5.99 | ||
| 167082 | 154 | C-RING (17MM) | $0.99 | |||
 | 370011 | 155 | SMALL SNAP RING | $0.99 | ||
| 234276 | 156 | DUST COVER SCREW | $0.99 | |||
 | 346571 | 157 | M6 X 12MM FLAT HEAD SCREW | $1.49 | ||
| 356911 | 158 | M12 X 55MM HEX BOLT | $20.99 | |||
| 288962 | 159 | M12 LOCKNUT | $8.49 | |||
 | 197404 | 160 | M5 WASHER | $1.99 | ||
 | 291494 | 161 | 5/16″ FLANGE SCREW | $17.49 | ||
| 388484 | 162 | M8 X 19MM WASHER | $0.99 | |||
| 383355 | 163 | CRANK SPACER | $9.49 | |||
| 193108 | 164 | M8 WASHER | $7.99 | |||
 | 013110 | 165 | M5 X 10MM SCREW | $0.99 | ||
| 400503 | 166 | IDLER SPACER | $9.49 | |||
| 453038 | 167 | M6 X 20MM SHOULDER SCREW | $3.49 | |||
 | 197037 | 168 | M6 X 12MM SCREW | $0.99 | ||
| 455279 | 169 | CONSOLE BRACKET | $98.99 | |||
 | 453915 | 170 | LARGE SADDLE BRACKET | $72.99 | ||
 | 431889 | 171 | INNER PIVOT BUSHING | $47.49 | ||
 | 434037 | 172 | BRACKET MOUNT | $46.49 | ||
 | 391488 | 173 | M6 X 25MM CAP SCREW,NOTE | $2.49 | ||

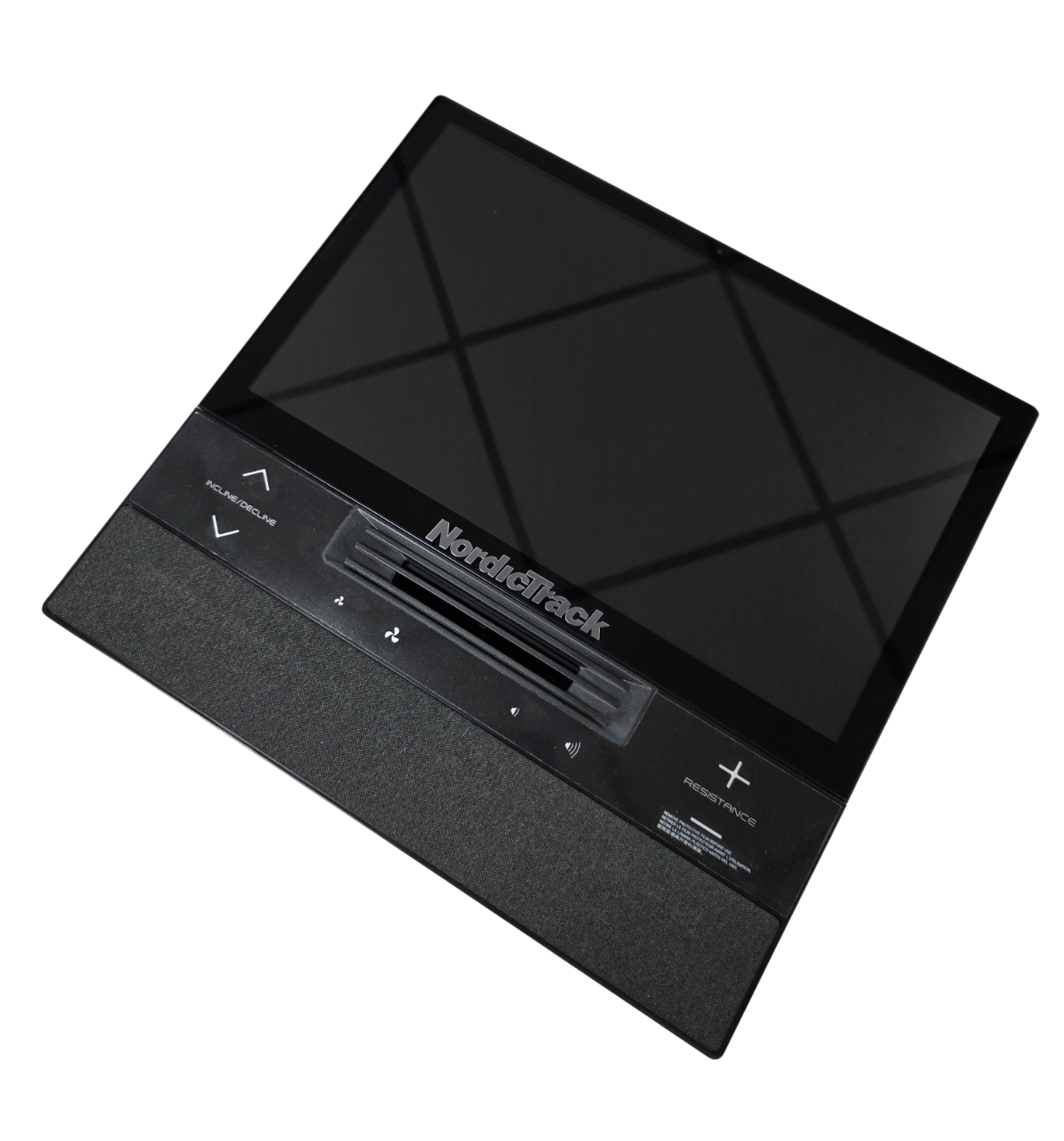

 | 455187 | 174 | CONSOLE | $619.99 | ||
 | 455294 | 175 | UPPER CONSOLE COVER | $13.49 | ||

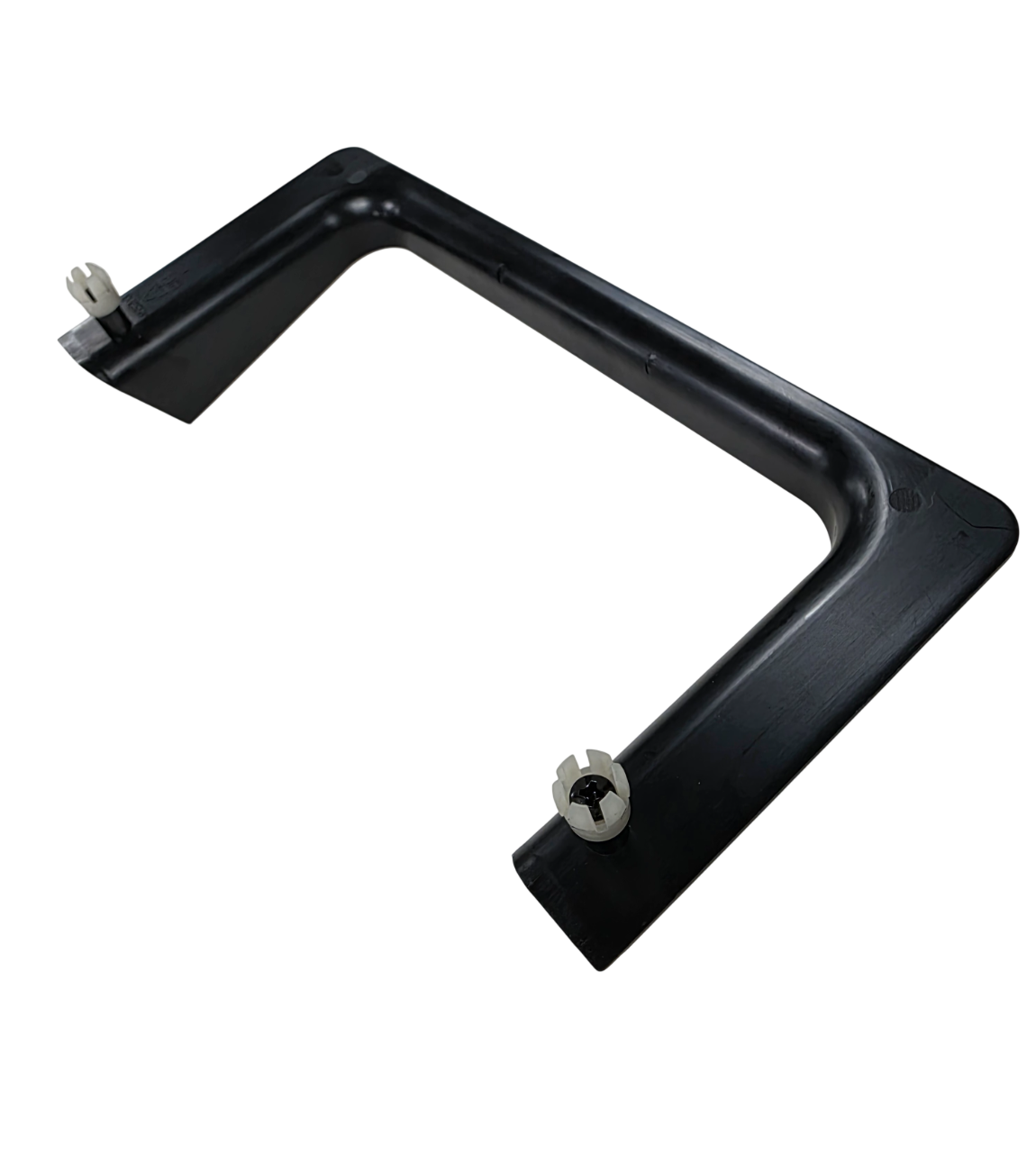

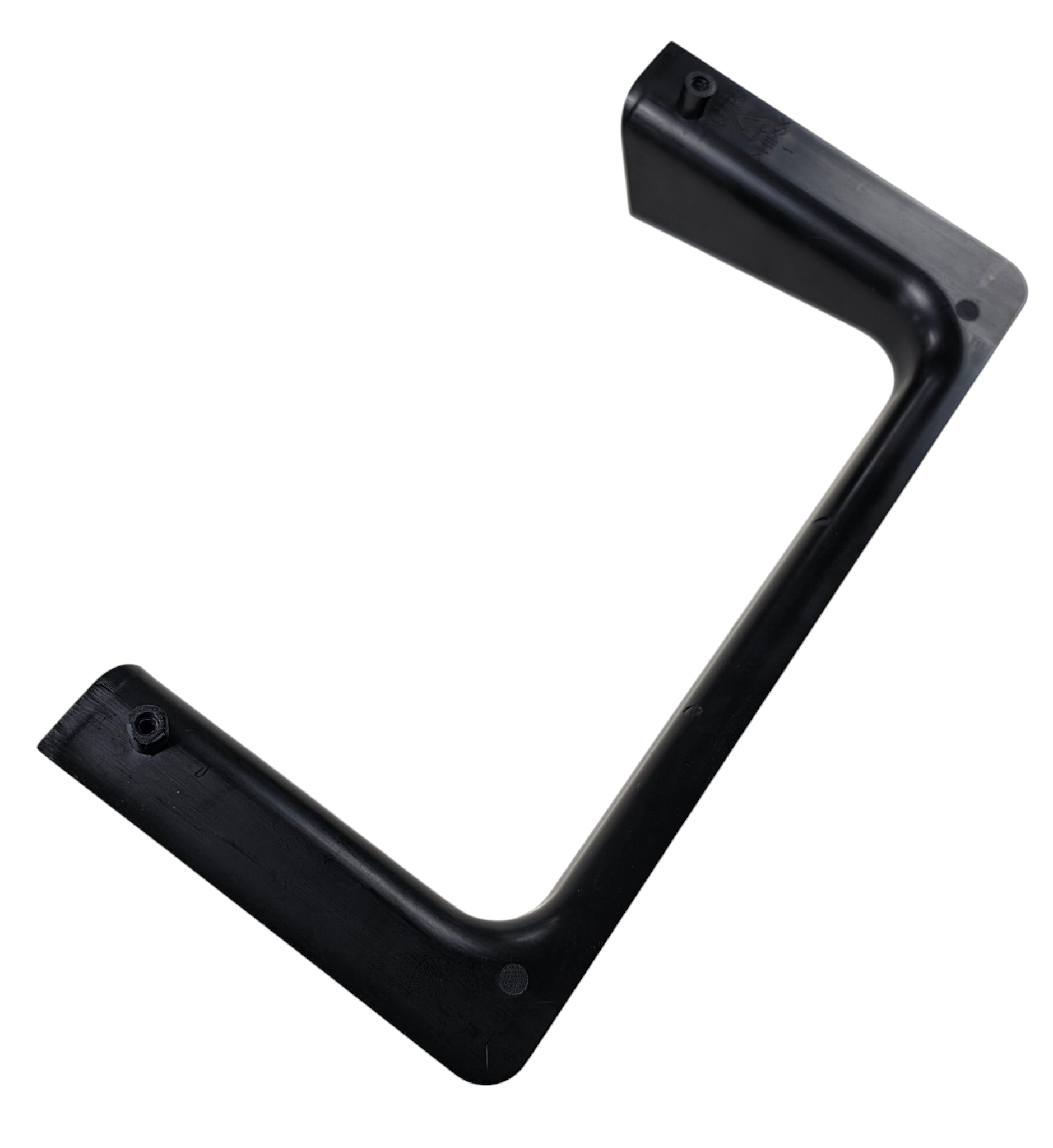

 | 455293 | 176 | LOWER CONSOLE COVER | $9.49 | ||
 | 234926 | 177 | POWER INLET BOLT | $2.99 | ||

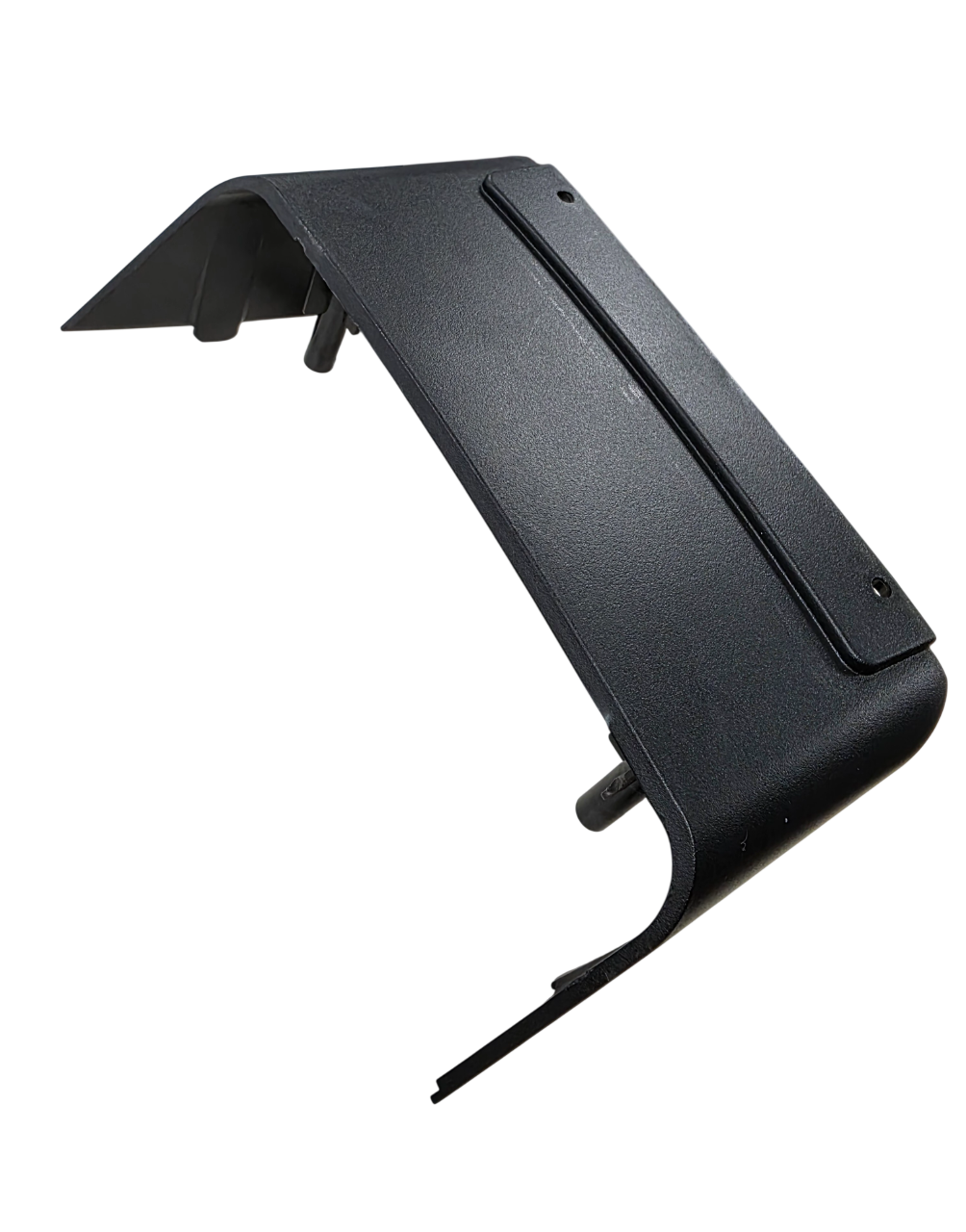

 | 455296 | 178 | SMALL MOUNT COVER | $13.49 | ||
| 455351 | # | HARDWARE KIT,NOTE: | $120.49 | |||
| 450417 | # | 16MM COMBO WRENCH | $64.99 | |||
| 116566 | # | CABLE TIE | $0.99 | |||
| 455349 | # | LITPAC,NOTE: | $164.49 | |||
| 016057 | # | PLASTIC TIE | $2.99 | |||
| 455475 | # | TOOL KIT NOTE: | $163.49 | |||
| 1001442 | # | USER’S MANUAL, SP13 | $60.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 450575 | # | 6MM ALLEN WRENCH, T-HNDL | $92.99 | |||
| 450574 | # | 5MM ALLEN WRENCH,T-HNDL | $64.99 | |||
| 450416 | # | #2 PHILLIPS SCREW DRIVER | $76.99 | |||
 | 437551 | # | ARM HEART RATE MONITOR | $194.99 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 411544 | # | WIFI REPEATER | $62.99 | |||
| 307060 | # | DECAL, GENERAL WARNING | $4.99 | |||
| 450422 | # | 13MM COMBO WRENCH | $63.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
 | 104838 | # | LUBE, GREASE | $8.49 | ||
| 452910 | TA13 | 39″ WIRE HARNESS,LT | $14.99 | |||

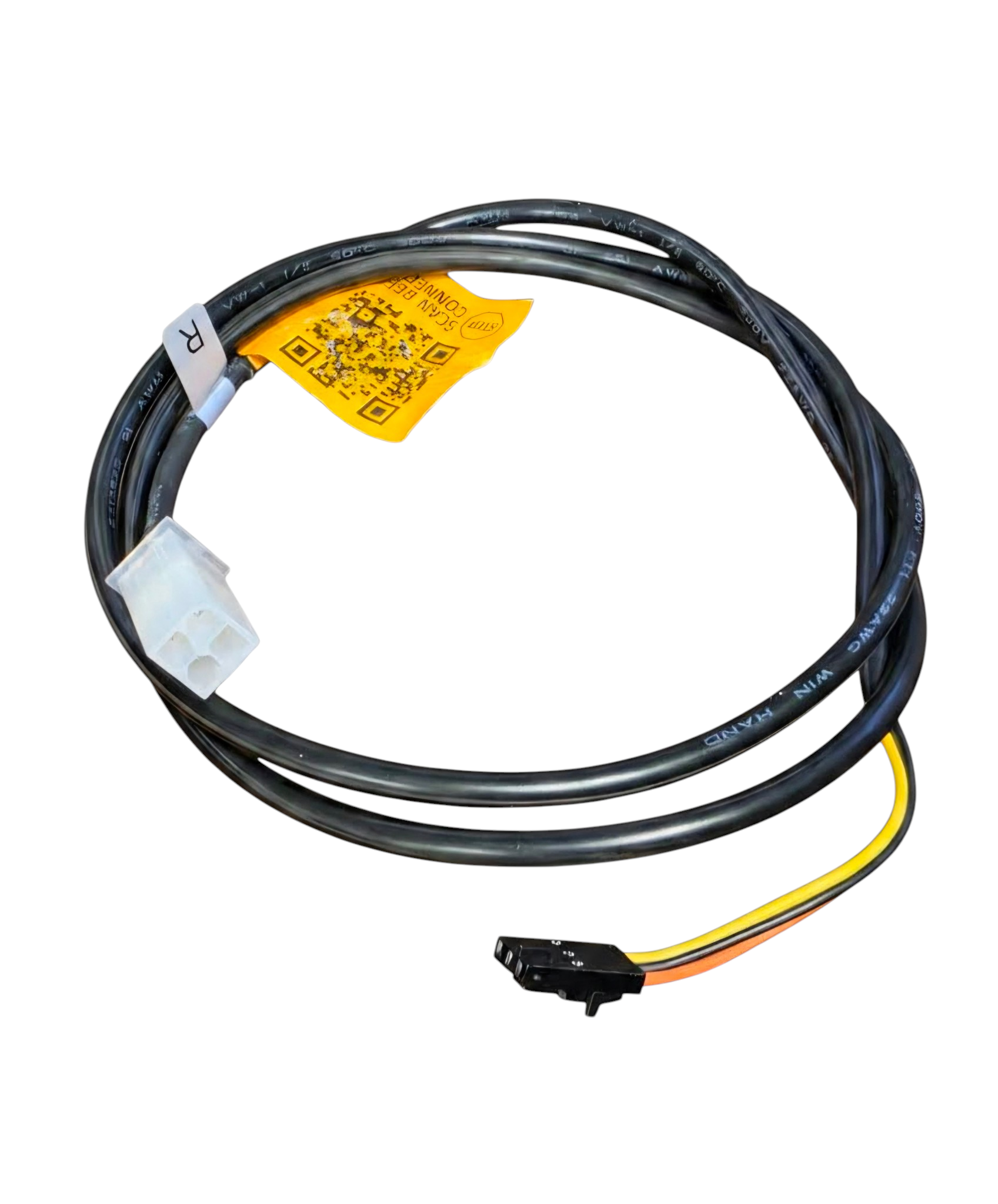

 | 452911 | TA14 | 39″ WIRE HARNESS,RT | $14.99 | ||
 | 411229 | TA21 | 20″ WIRE HARNESS | $25.99 | ||
 | 398010 | TA4 | 53″ WIRE HARNESS | $27.99 | ||
 | 214773 | TA5 | CONTROLLER GROUND WIRE | $2.99 | ||
 | 398746 | TA6 | 18″ GREEN WIRE,R/R | $12.49 | ||
 | 398014 | TA7 | 22″ WIRE HARNESS | $27.99 |
