NORDICTRACK AIRGLIDE 7I ELLIPTICAL – NTEL79823.3
184 Parts Available for NORDICTRACK AIRGLIDE 7I ELLIPTICAL - NTEL79823.3 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 393826 | 3 | ACCESS COVER | $59.49 | |||
 | 250961 | 5 | M4 X 19MM SCREW | $0.99 | ||
| 448943 | 7 | CONSOLE | $440.99 | |||
| 406048 | 9 | CRANK BEARING SLEEVE | $29.99 | |||
| 444019 | 12 | LEFT MOTOR COVER | $25.99 | |||
| 444020 | 13 | RIGHT MOTOR COVER | $26.49 | |||
| 306636 | 14 | LIFT MOTOR SPACER | $3.49 | |||
| 443947 | 16 | TRACK | $28.49 | |||
 | 264511 | 17 | POWER SWITCH | $32.99 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 428356 | 20 | CRANK ARM | $192.49 | |||
| 393287 | 22 | IDLER | $120.99 | |||
 | 157600 | 23 | BASE PAD | $1.99 | ||
| 273032 | 24 | SMALL LEVELING FOOT | $17.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 148710 | 26A | M10 LOCKNUT | $2.49 | ||
 | 275907 | 26B | CRANK ARM M10 LOCKNUT | $4.49 | ||
| 317332 | 27 | LIFT MOTOR BUSHING | $3.99 | |||
| 364320 | 28A | EDDY MECHANISM | $372.99 | |||
| 352967 | 28B | TCD CABLE | $39.49 | |||
 | 348200 | 30 | STABILIZER CAP | $17.49 | ||
 | 416364 | 32 | ROLLER ARM BEARING SLEEVE | $18.49 | ||
 | 237631 | 33 | LEVELING FOOT | $34.99 | ||
 | 148803 | 34 | WHEEL | $3.49 | ||
 | 014033 | 36 | M6 LARGE WASHER | $1.49 | ||
| 393306 | 37 | ACCESSORY TRAY | $129.99 | |||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 39 | CLAMP | $3.49 | ||
 | 277016 | 40 | BEARING | $62.49 | ||
| 394384 | 42 | SLEEVE | $28.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
 | 313668 | 48 | STRAIN RELIEF,NOTE: | $9.49 | ||
| 367635 | 50 | M4 X 12MM SELF-TAP SCREW | $6.49 | |||
 | 340773 | 51 | ROLLER | $99.99 | ||
 | 337966 | 53 | LARGE AXLE COVER | $5.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||

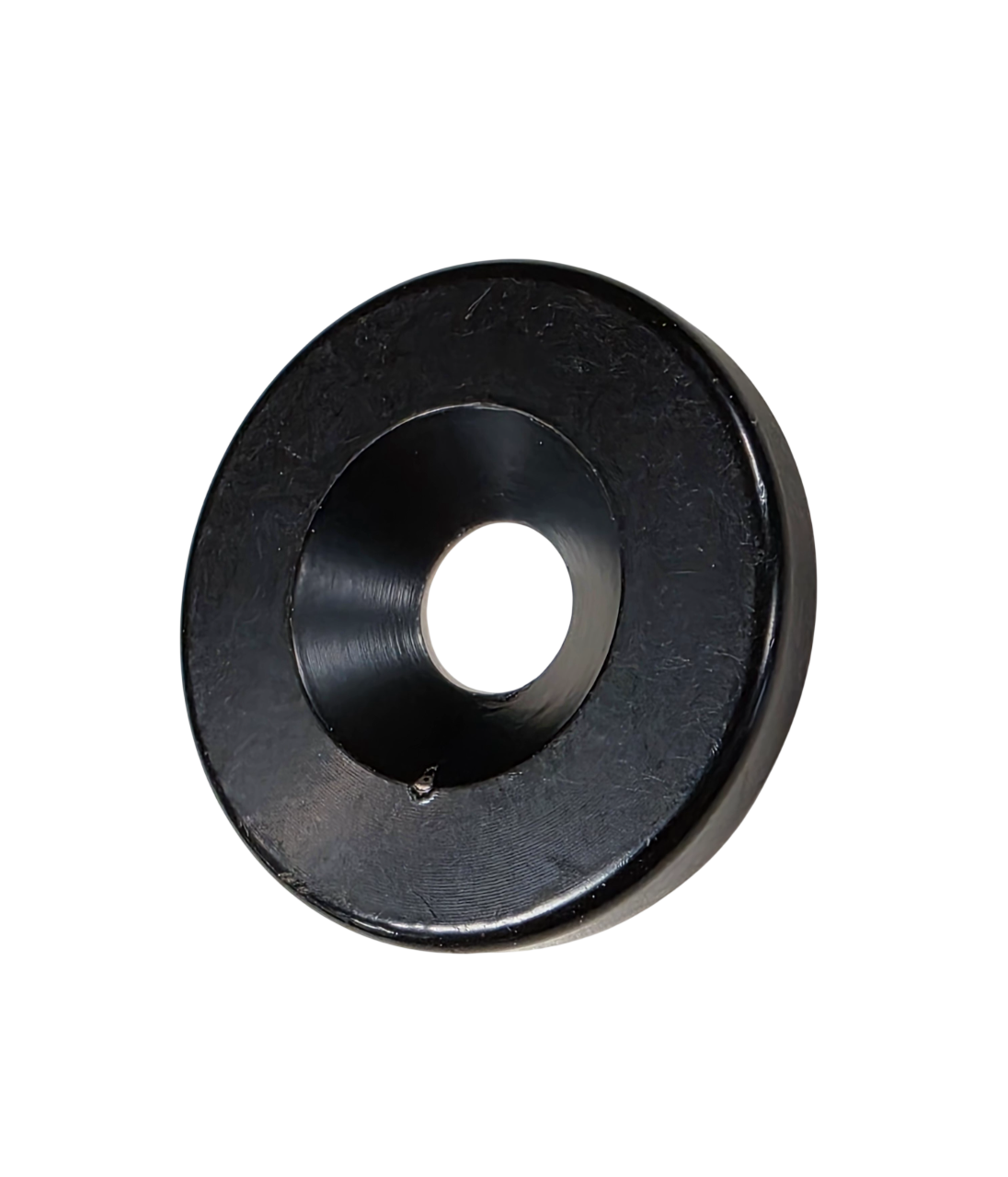

 | 444109 | 55 | RETAINER | $4.49 | ||
 | 290729 | 57 | ARM BEARING | $43.49 | ||
| 451473 | 62 | SADDLE BRACKET | $13.49 | |||
| 421101 | 63 | HANDLEBAR GRIP | $39.49 | |||
| 450926 | 64 | PEDAL ARM AXLE | $76.49 | |||
| 393304 | 65 | RIGHT ARM FRONT COVER | $40.99 | |||
| 393302 | 67 | LEFT ARM FRONT COVER | $40.99 | |||
| 420057 | 69 | RIGHT LEG OUTER COVER | $98.99 | |||
| 420239 | 70 | LEFT LEG OUTER COVER | $93.99 | |||
| 420240 | 72 | LEFT LEG INNER COVER | $93.99 | |||
| 417668 | 73 | LEFT SHIELD | $170.99 | |||
| 417712 | 74 | RIGHT SHIELD | $183.49 | |||
| 394570 | 75 | CENTER SHIELD COVER | $77.49 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||
| 444108 | 77 | CRANK COVER | $4.49 | |||
 | 386629 | 78 | KEY | $9.49 | ||
| 393307 | 81 | LOWER TRAY COVER | $54.49 | |||
 | 191032 | 82A | M8 X 13MM SCREW | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 420056 | 83 | RIGHT LEG INNER COVER | $98.99 | |||
| 234276 | 84 | M4 X 10MM GRND SCREW | $0.99 | |||
| 252795 | 85 | M10 SPLIT WASHER | $0.99 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 281150 | 88 | IDLER SCREW | $4.49 | ||
 | 208163 | 89 | PIVOT SCREW | $1.99 | ||
 | 413564 | 91 | M6X16MM SHLDR SCREW, MECH | $4.99 | ||
| 227701 | 92 | M10 X 25MM SCREW | $2.49 | |||
 | 168267 | 93 | RESISTANCE MOTOR SCREW | $0.99 | ||
| 444187 | 94 | LT HAND GRIP/CONTROL WIRE | $61.49 | |||
 | 206321 | 95 | M8 X 16MM SCREW | $3.49 | ||
| 451150 | 96 | M8 X 41MM SCREW | $10.99 | |||
 | 223812 | 97 | M8 WASHER | $1.99 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
| 428358 | 99 | INNER ARM BEARING | $64.99 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 362430 | 101A | M4 X 16MM SCREW | $3.49 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 256446 | 102 | M8 LOCKNUT | $0.99 | ||
 | 331026 | 103 | M8 LARGE WASHER | $0.99 | ||
| 353576 | 104 | M10 X 115MM SCREW | $15.49 | |||
| 214070 | 105 | M8 X 16MM BUTTON SCREW | $6.49 | |||
 | 394383 | 107 | CRANK SPACER | $28.49 | ||
 | 174108 | 108 | M6 CRANK ARM SCREW | $5.99 | ||
| 208583 | 109 | WHEEL BOLT | $5.99 | |||
| 445258 | 110 | MAIN WIRE | $28.99 | |||
| 445254 | 111 | LEFT EXTENSION WIRE | $17.49 | |||
| 378126 | 112 | M4 X 19MM SELF-TAP SCREW | $3.49 | |||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 416695 | 114 | CONTROLLER | $161.49 | ||
 | 125819 | 115 | STANDOFF | $3.99 | ||
| 372972 | 116B | M5 CRANK DISK WASHER | $0.99 | |||
| 393829 | 117 | FRONT SHIELD COVER | $66.99 | |||
| 426262 | 118 | REAR SHIELD COVER | $104.49 | |||
 | 342275 | 119 | POWER CORD | $49.99 | ||
 | 384942 | 120 | M8 X 20MM SCREW | $6.49 | ||
 | 143426 | 121 | UPRIGHT BUSHING | $8.99 | ||
| 324481 | 122 | LIFT MOTOR UPPER AXLE | $10.99 | |||
| 428360 | 123 | OUTER ARM BEARING | $64.99 | |||
 | 184369 | 124 | M4 X 16MM MACHINE SCREW | $0.99 | ||
| 262341 | 125A | M6 X 12MM SCREW | $3.49 | |||
 | 197037 | 125B | M6 X 12MM SCREW | $0.99 | ||
| 273353 | 126 | M4 X 38MM SCREW | $0.99 | |||
 | 281801 | 129 | M8 WASHER | $7.49 | ||
 | 213457 | 130 | M4 X 12MM SCREW | $1.99 | ||
| 394132 | 131 | ADHESIVE TAPE | $22.99 | |||
| 444251 | 132 | RT HAND GRIP/CONTROL WIRE | $61.49 | |||
| 116926 | 133 | RELEASABLE TIE | $0.99 | |||
 | 340140 | 135 | M6 LARGE CRANK ARM WASHER | $1.49 | ||
 | 325993 | 138 | ADJUSTMENT PIN | $19.99 | ||
| 321268 | 139 | SPRING | $3.49 | |||
 | 194653 | 140 | M6 ACORN NUT | $1.99 | ||
 | 353545 | 141 | M6 X 19MM WASHER | $1.49 | ||
| 400130 | 144 | M10 X 158MM BOLT | $26.49 | |||
 | 249930 | 146 | M8 X 20MM SCREW | $2.99 | ||

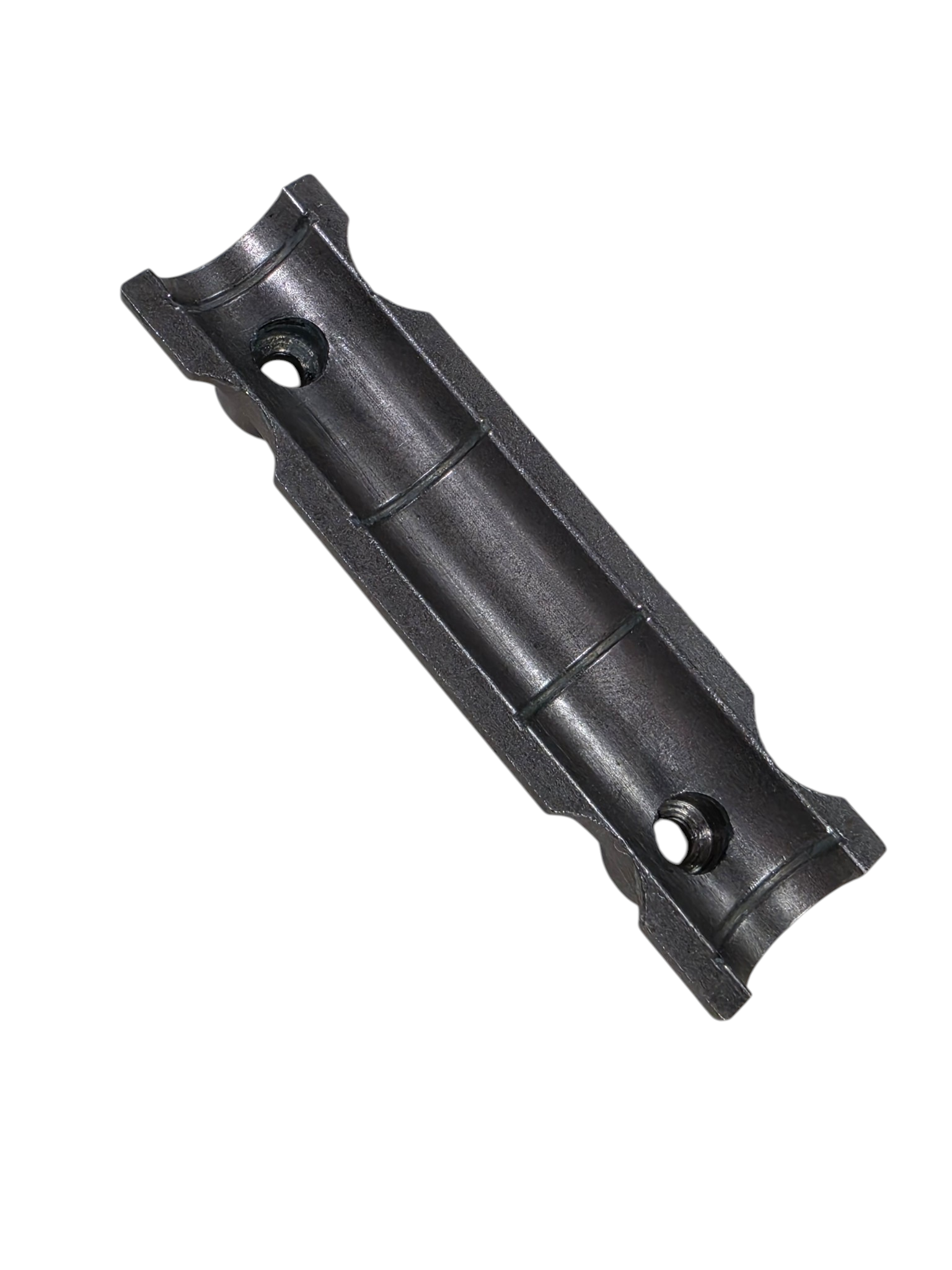

 | 431889 | 147 | SMALL SADDLE BRACKET | $47.49 | ||

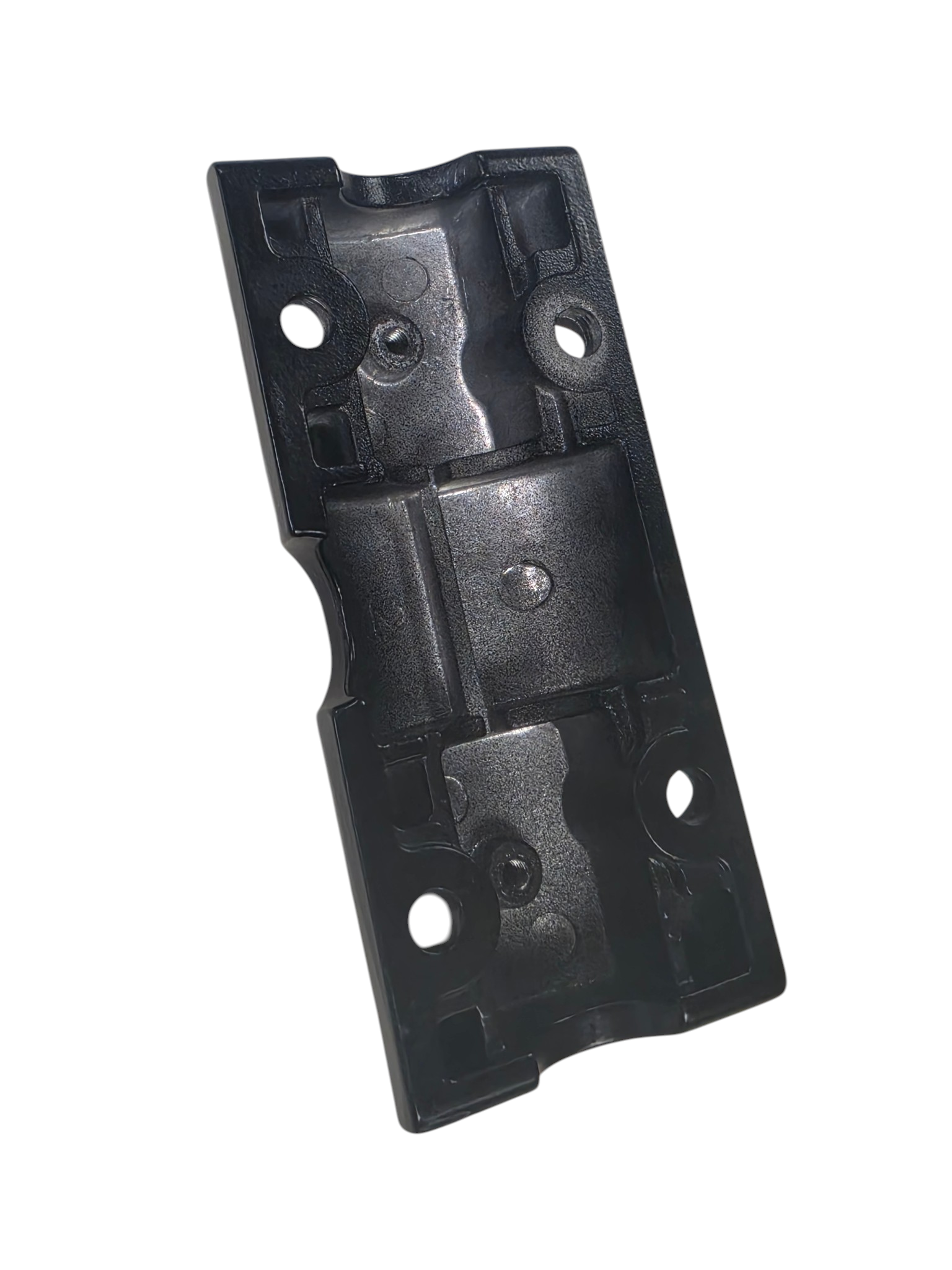

 | 434037 | 148 | SADDLE BRACKET COVER | $46.49 | ||
| 209659 | 149 | M8 X 30MM SCREW | $0.99 | |||
 | 239031 | 150 | M4 X 10MM SCREW | $1.49 | ||
 | 233523 | 151 | M6 X 15MM SCREW | $3.49 | ||
| 444107 | 152 | LOWER CONSOLE COVER | $11.49 | |||
| 444095 | 153 | UPPER CONSOLE COVER | $18.99 | |||
| 451000 | 155 | M4 X 18MM SCREW | $6.49 | |||
| 445808 | 156 | UPRIGHT GROMMET | $1.99 | |||
| 445251 | 157 | UPRIGHT WIRE | $30.99 | |||
| 450958 | 158 | PIVOT GUIDE | $21.49 | |||
| 451094 | 159 | WIRE CLIP | $5.49 | |||
 | 208320 | 160 | M4 X 10MM SCREW | $0.99 | ||
| 397183 | 161 | DRIVE BELT ADJUST SCREW | $43.99 | |||
| 445255 | 162 | RIGHT EXTENSION WIRE | $17.49 | |||
| 132315 | # | CABLE CLAMP | $3.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 451079 | # | HARDWARE KIT, NOTE: | $130.99 | |||
| 451609 | # | LITPAC, NOTE: | $374.99 | |||
| 300789 | # | DECAL,GENERAL WARNING | $22.49 | |||
| 437551 | # | ARM HEART RATE MONITOR | $194.99 | |||
| 166909 | # | DECAL,SITE WARNING | $2.49 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 236006 | # | DECAL,SURGE WARN,ENG/SP | $3.99 | |||
| 445257 | TS15 | 40″ WIRE HRNS,LEFT | $17.99 | |||
| 445256 | TS16 | 40″ WIRE HRNS,RIGHT | $17.99 | |||
| 445252 | TS20 | 45″ WIRE HARNESS | $18.49 | |||
| 270274 | TS4 | 18″ WHITE WIRE, F-M | $5.99 | |||
| 203981 | TS5 | 18″ BLUE WIRE, F/F | $6.49 | |||
| 320978 | TS6 | CONTROLLER GROUND WIRE | $5.49 | |||
| 445253 | TS7 | 50″ WIRE HRNS | $26.49 | |||
| 324737 | TS8 | LOWER WIRE HARNESS | $30.49 |
