NORDICTRACK A.C.T. ELLIPTICAL – 23878.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
90 Parts Available for NORDICTRACK A.C.T. ELLIPTICAL - 23878.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 314345 | 2 | UPRIGHT | $230.99 | |||
| 314052 | 7 | RIGHT SMALL RAIL COVER | $13.99 | |||
| 314362 | 8 | PEDAL LEG | $160.99 | |||
| 314087 | 10 | LEFT HANDLEBAR | $117.99 | |||
| 314324 | 13 | RIGHT HANDLEBAR LEG | $209.99 | |||
| 314327 | 16 | LEFT OUTER SHIELD | $175.99 | |||
| 314331 | 18 | LEFT INNER SHIELD | $174.99 | |||
| 314330 | 19 | RIGHT INNER SHIELD | $174.99 | |||
| 314139 | 20 | LEFT UPRIGHT COVER | $74.49 | |||
| 318935 | 21 | RIGHT UPRIGHT COVER | $190.49 | |||
| 314142 | 24 | LEFT INNER LEG COVER | $48.99 | |||
| 314145 | 26 | ADJUSTMENT ARM COVER | $23.49 | |||
| 322513 | 27 | ADJUSTMENT ARM | $91.99 | |||
| 326765 | 28 | ADJUSTMENT KNOB | $40.99 | |||
 | 299478 | 29 | HANDGRIP | $57.49 | ||
 | 308036 | 30 | RESISTANCE MOTOR | $117.99 | ||
 | 314059 | 31 | HANDLEBAR COVER | $8.49 | ||
 | 363093 | 32 | IDLER | $116.49 | ||
 | 259955 | 33 | PIVOT BUSHING | $27.49 | ||
 | 259954 | 34 | SMALL ADJUSTMENT BUSHING | $18.49 | ||
 | 259963 | 35 | LARGE ADJUSTMENT BUSHING | $44.99 | ||
| 117544 | 36 | LOWER UPRIGHT ENDCAP | $0.99 | |||
 | 247253 | 37 | PEDAL ARM BUSHING | $32.99 | ||
| 314144 | 39 | PEDAL AXLE COVER | $3.49 | |||
| 314368 | 40 | CRANK | $170.99 | Unavailable to order | ||
 | 314363 | 41 | RIGHT CRANK BRACKET | $149.99 | ||
| 314364 | 42 | LEFT CRANK BRACKET | $118.49 | |||
| 251313 | 44 | CRANK BEARING | $53.49 | |||
 | 259935 | 45 | LARGE SPACER | $5.99 | ||
| 259956 | 46 | PEDAL ARM ROLLER | $179.99 | |||
| 259931 | 47 | CRANK SPACER | $40.49 | |||
 | 314137 | 48 | CRANK COVER | $65.49 | ||
| 322512 | 49 | ADJUSTMENT PIN | $76.49 | |||
 | 139703 | 50 | SMALL BEARING / FOLDING FRAME BEARING | $33.49 | ||
| 261373 | 51 | WHEEL | $23.99 | |||
 | 237631 | 52 | LARGE LEVELING FOOT | $34.99 | ||
| 255072 | 53 | LARGE PULLEY | $91.99 | |||
| 314328 | 55 | FLYWHEEL | $299.99 | Unavailable to order | ||
| 263102 | 56 | PEDAL AXLE CAP | $3.49 | |||
 | 289193 | 57 | DRIVE BELT | $56.99 | ||
| 279645 | 58 | MOTOR BRACKET | $12.99 | |||
 | 143742 | 59 | SMALL SNAP RING | $3.99 | ||
 | 229541 | 60 | LARGE SNAP RING | $2.99 | ||
| 248334 | 61 | M10 X 19MM PATCH SCREW | $5.49 | |||
 | 191032 | 62 | M8 X 13MM SCREW, PULLEY | $1.99 | ||
| 140206 | 64 | M10 WASHER | $1.99 | |||
| 288961 | 65 | M12 X 55MM HEX BOLT | $13.99 | |||
| 288962 | 66 | M12 LOCKNUT | $8.49 | |||
 | 195562 | 67 | M4 X 16MM SCREW | $1.99 | ||
 | 289152 | 68 | M8 X 25MM FLAT HEAD SCREW | $3.49 | ||
| 258847 | 69 | M10 X 73MM SCREW | $4.49 | |||
 | 304734 | 70 | RESISTANCE ARM | $32.99 | ||
 | 207682 | 71 | M8 X 19MM BUTTON SCREW | $3.99 | ||
 | 168267 | 72 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 265269 | 73 | M4 X 64MM SCREW | $0.99 | |||
| 265270 | 74 | M4 X 30MM SCREW | $3.49 | |||
 | 287202 | 75 | SMALL WAVE WASHER | $1.99 | ||
 | 241954 | 76 | RESISTANCE DISC | $1.99 | ||
 | 303952 | 77 | RESISTANCE BRACKET | $4.99 | ||
 | 262341 | 78 | M6 X 12MM SCREW | $3.49 | ||
 | 177034 | 79 | M10 SPLIT WASHER | $1.49 | ||
 | 014174 | 80 | M8 SPLIT WASHER | $1.99 | ||
| 314258 | 81 | UPPER WIRE | $68.99 | |||
| 297184 | 82 | LOWER WIRE HARNESS | $85.49 | |||
 | 317189 | 84 | POWER ADAPTER | $19.99 | ||
| 260014 | 85 | CLIP | $5.99 | |||

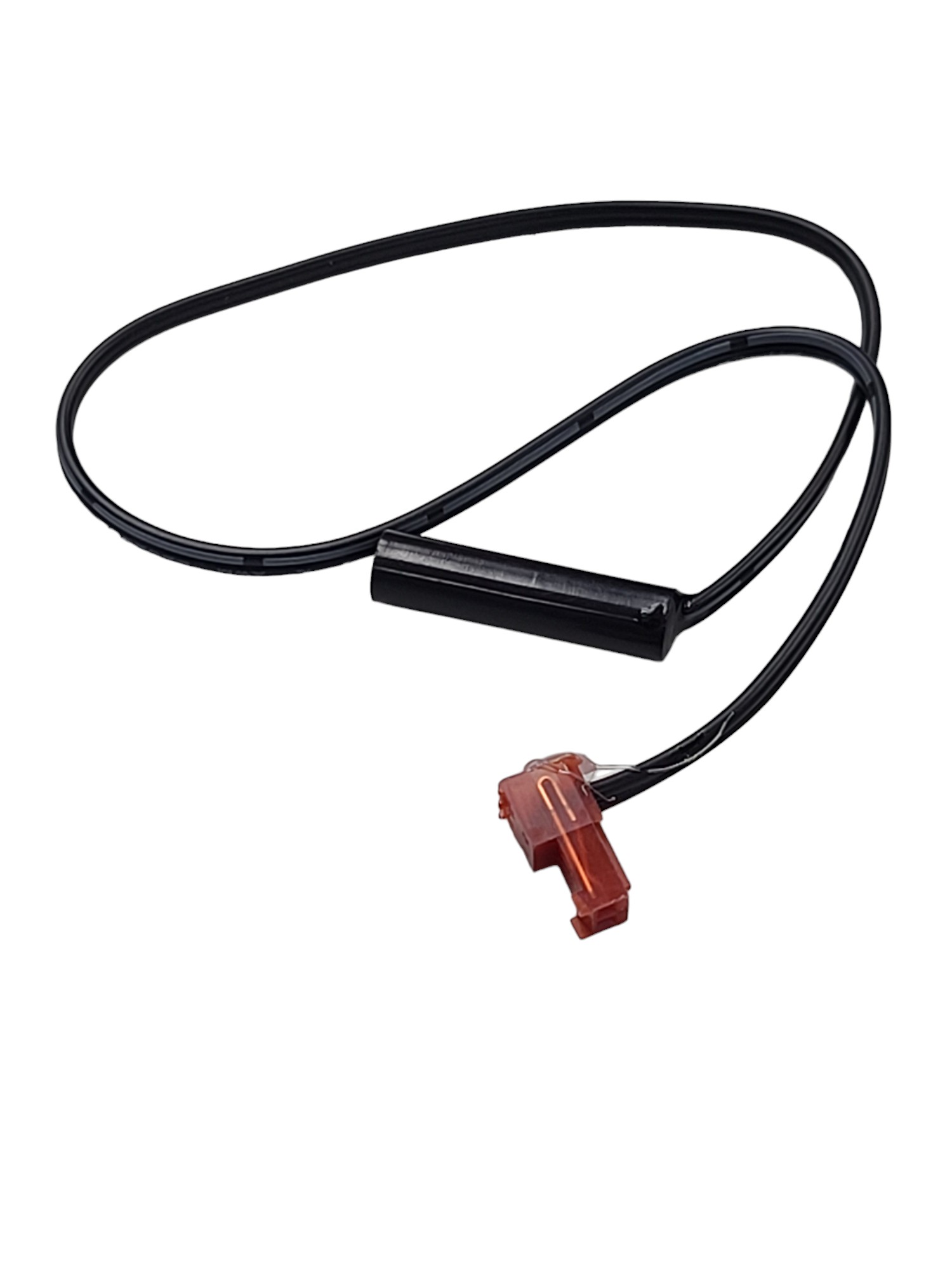

 | 186070 | 86 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 87 | CLAMP | $0.99 | ||
 | 113842 | 88 | MAGNET | $1.49 | ||
| 313086 | 89 | MAGNET BRACKET | $108.49 | |||
| 314321 | 90 | LEFT LARGE RAIL COVER | $65.49 | |||
| 314103 | 91 | UPPER PULSE GRIP | $71.99 | |||
| 314102 | 94 | LOWER PULSE GRIP | $71.99 | |||
| 283304 | 95 | M5 X 7MM SCREW | $3.49 | |||
| 281148 | 96 | C-MAGNET BRACKET BOLT | $3.49 | |||
 | 281150 | 97 | IDLER PIVOT SCREW | $4.49 | ||
| 250181 | 98 | M4 X 16MM BRIGHT SCREW | $0.99 | |||
 | 276024 | 99 | M3.5 X 12MM SCREW,NOTE | $1.49 | ||
| 254769 | 100 | M6 LOCKNUT | $1.49 | |||
 | 256446 | 101 | M8 LOCKNUT | $0.99 | ||
| 234286 | 102 | MOTOR BRACKET SCREW | $0.99 | |||
 | 208163 | 103 | IDLER SCREW | $1.99 | ||
 | 150327 | 104 | M5 NUT | $1.99 | ||
 | 304180 | 105 | SNAP RING | $0.99 | ||
 | 284116 | 106 | FLYWHEEL AXLE | $19.99 | ||
| 281156 | 107 | BELT ADJUSTMENT SCREW | $8.49 | |||
 | 014033 | 108 | IDLER WASHER | $1.49 | ||
| 361996 | 109 | RECEIVER/WIRE | $87.49 | |||
| 158742 | 110 | EXTENSION WIRE | $28.49 | |||
| 314431 | 111 | ROLL PIN | $0.99 | |||
| 314123 | 112 | LEFT PEDAL | $137.99 | |||
| 245941 | 113 | M4.2 X 12MM SCREW | $1.49 | |||
| 314125 | 114 | ALUMINUM COVER | $124.49 | |||
 | 148710 | 115 | M10 LOCKNUT | $2.49 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 285511 | # | OPTIONAL CHEST PULSE | $184.99 | |||
| EXIF12 | # | IFIT WIRI ACCESSORY KIT | NLA | Unavailable to order | ||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 326109 | # | USER’S MANUAL, FCA | $12.49 | |||
| 322528 | # | KNOB COVER | $10.99 | |||
| 317251 | # | DECAL, POWER SUPPLY | $3.49 | |||
| 132315 | # | ZIP TIE | $3.49 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 116926 | # | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 314146 | # | USER’S MANUAL | $12.49 | |||
| 314038 | # | LEFT PEDAL PLATE | $51.99 | |||
| 183633 | # | M5 WASHER | $1.99 | |||
| 314121 | # | RIGHT PEDAL PLATE | $51.99 | |||
| 313704 | # | DECAL, RT STRIDE ADJ | $3.99 | |||
| 313703 | # | DECAL, LT STRIDE ADJ | $3.99 | |||
| 258874 | # | DECAL, GENERAL WRNG, FCA | $4.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 258872 | # | DECAL, GENERAL WARNING | $5.49 | |||
| 314329 | # | CNSL REPROG MODULE | $189.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 013222 | # | M4 X 12MM GROUND SCREW | $2.49 |
