GOLD’S GYM PLATINUM BENCH – GGBE6958.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
73 Parts Available for GOLD'S GYM PLATINUM BENCH - GGBE6958.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 322382 | 1 | BASE | $194.49 | |||
| 270347 | 2 | CENTER BASE | $229.99 | |||
| 322374 | 3 | LEFT UPRIGHT | $309.99 | |||
| 270079 | 6 | LEFT SUPPORT | $181.99 | |||
| 270080 | 7 | RIGHT SUPPORT | $181.99 | |||
| 322378 | 8 | BACKREST UPRIGHT | $312.99 | |||
| 223106 | 9 | FOOT PLATE | $132.99 | |||
| 270086 | 10 | LEFT ARM | Contact for Pricing | |||
| 322370 | 12 | ARM FRAME | $181.99 | |||
| 322377 | 13 | SIDE TOP FRAME | $180.99 | |||
| 270089 | 18 | LOCKING BAR | $124.99 | |||
| 270095 | 19 | RIGHT CARRIAGE | $101.49 | |||
| 270094 | 20 | LEFT CARRIAGE | $101.49 | |||
| 214679 | 21 | M8 X 20MM HEX BOLT | $3.49 | |||
| 270092 | 24 | LEFT SPOTTER | $63.99 | |||
| 270093 | 25 | RIGHT SPOTTER | $63.99 | |||
 | 222058 | 27 | WEIGHT BUMPER | $18.49 | ||
| 223116 | 28 | GUIDE BUSHING | $6.49 | |||
| 270129 | 29 | UPRIGHT BACKREST | $169.49 | |||
| 270100 | 30 | ARM PAD | $84.49 | |||
| 233369 | 31 | ARM BUSHING | $10.99 | |||
 | 223103 | 33 | ROD CAP | $17.99 | ||
| 223096 | 34 | UPRIGHT CAP | $12.99 | |||
| 270091 | 36 | BARBELL SPOTTER | $139.99 | Unavailable to order | ||
| 223132 | 37 | WEIGHT BUMPER | $16.99 | |||
| 221468 | 38 | 48MM ROUND INNER CAP | $3.49 | |||
 | 214126 | 39 | GUARD | $39.99 | ||
 | 214118 | 40 | HALF FINGER GUARD | $10.99 | ||
| 223609 | 42 | CARRIAGE BUSHING | $27.99 | |||
| 344347 | 43 | ANKLE STRAP | $69.49 | |||
| 223686 | 44 | 51MM SPACER | $3.49 | |||
| 223687 | 45 | 24MM SPACER | $3.49 | |||
 | 267617 | 47 | U-BRACKET | $73.99 | ||
| 199654 | 48 | HANDGRIP | Contact for Pricing | |||
 | 149217 | 49 | UPRIGHT ENDCAP RIGHT | $4.49 | ||
| 320874 | 51 | LARGE FOOT PLATE | $20.99 | |||
 | 194610 | 52 | CLIP COVER | $23.99 | ||
| 223704 | 54 | LONG CABLE | $89.99 | |||
| 223685 | 55 | 25MM SPACER | $2.99 | |||
| 320900 | 57 | SWIVEL AXLE | $51.99 | |||
 | 226917 | 58 | 3 1/2″ PULLEY | $80.99 | ||
 | 159934 | 59 | 4.5″ PULLEY | $60.49 | ||
| 230474 | 60 | V-PULLEY | $62.99 | |||
| 270098 | 61 | LARGE CABLE TRAP | $7.99 | |||
| 270097 | 62 | LONG CABLE TRAP | $7.99 | |||
 | 157721 | 63 | CABLE TRAP | $8.99 | ||
| 322380 | 64 | CARRIAGE GUIDE | $143.49 | |||
| 189276 | 65 | LAT BAR | Contact for Pricing | |||
 | 223689 | 66 | 17MM SPACER | $2.99 | ||
| 307476 | 67 | HANDLE | $25.49 | |||
| 200896 | 68 | SNAP RING | $11.99 | |||
| 115383 | 69 | CABLE CLIP | $26.99 | |||
| 160327 | 70 | EXTENSION CAP | $6.99 | |||
| 223707 | 71 | BUTTERFLY CABLE | $73.99 | |||

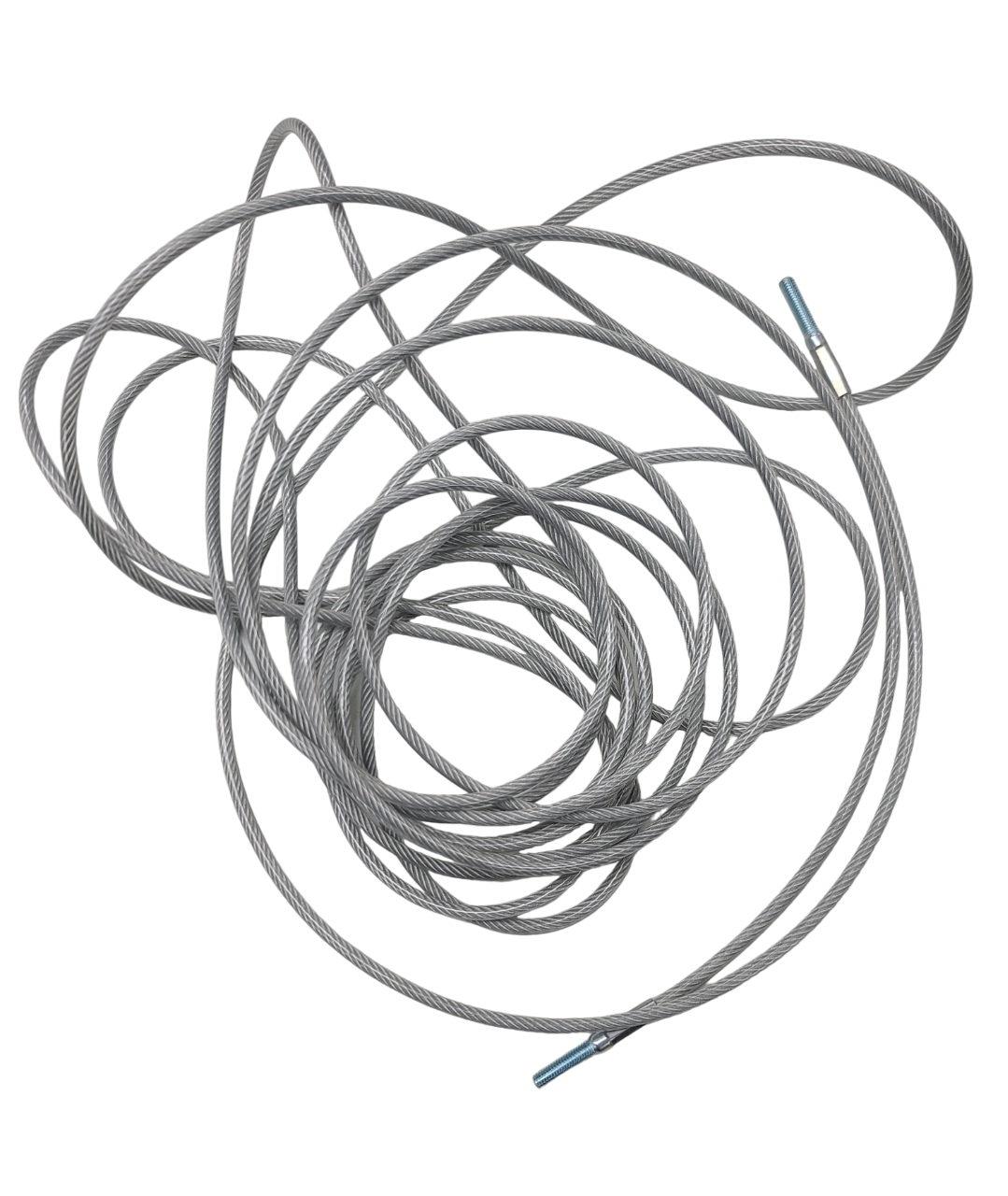

 | 223705 | 72 | LOW CABLE | $65.99 | ||
| 270099 | 74 | PULLEY PLATE | $25.49 | |||
 | 223690 | 75 | 6MM SPACER | $2.49 | ||

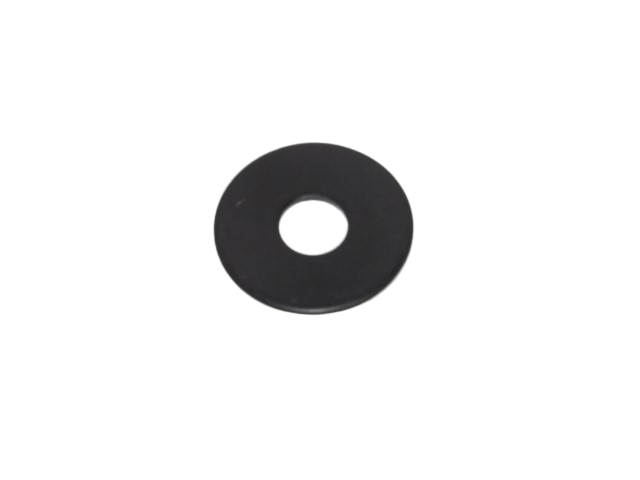

 | 223614 | 76 | M10 LARGE WASHER | $2.99 | ||
| 250420 | 77 | M10 X 20MM SCREW | $2.99 | |||
 | 256446 | 78 | M8 JAM LOCKNUT WHEELS | $0.99 | ||
 | 148710 | 79 | IDLER NUT | $2.49 | ||
 | 012142 | 80 | BRAKE NUT | $0.99 | ||
| 147592 | 81 | CHAIN | $23.49 | |||
 | 195562 | 82 | M4 X 16MM SCREW CHAIN CVR | $1.99 | ||
| 164086 | 83 | M10 X 62MM CARRIAGE BOLT | $13.99 | |||
| 140206 | 84 | M10 WASHER | $1.99 | |||
| 202512 | 85 | M8 X 19MM SHOULDER BOLT | $4.99 | |||
 | 014063 | 86 | M6 WASHER | $0.99 | ||
| 273871 | 87 | M6 X 80MM SCREW | $4.49 | |||
| 237573 | 88 | WHEEL BOLT | $5.49 | |||
| 273870 | 89 | M6 X 67MM SCREW | $3.99 | |||
| 204595 | 90 | M10 X 67MM BUTTON BOLT | $12.49 | |||
| 150915 | 91 | WEIGHT CLIP | $21.49 | |||
| 273874 | 92 | M10 X 95MM SCREW | $17.49 | |||
| 112006 | 93 | M10 SPLIT WASHER | $0.99 | |||
| 242419 | 94 | M8 WASHER | $0.99 | |||
 | 208320 | 95 | M4 X 10MM SCREW | $0.99 | ||
| 207815 | 96 | M10 X 48MM BUTTON BOLT | $8.99 | |||
| 226393 | 97 | M10 X 93MM BUTTON SCREW | $28.49 | |||
 | 208581 | 98 | M10 X 25MM SCREW | $5.49 | ||
| 222854 | 100 | BASE FOOT PLATE | $24.99 | |||
| 207831 | 101 | M10 X 116MM BUTTON BOLT | $14.99 | |||
| 208580 | 102 | M10 X 75MM BUTTON BOLT | $14.99 | |||
| 223086 | 104 | M10 X 50MM BUTTON SCREW | $4.49 | |||
| 195279 | 105 | M10 X 72MM BOLT | $11.49 | |||
| 206584 | 106 | M10 X 82MM BTNHD BOLT | $16.99 | |||
| 270122 | 107 | BENCH FRAME | $181.99 | |||
| 270346 | 108 | BENCH STABILIZER | $111.49 | |||
| 322369 | 109 | FRONT LEG | $198.99 | |||
| 222866 | 111 | BACKREST BRACKET | $120.99 | |||
| 270121 | 112 | CURL BAR | $199.49 | |||
| 270123 | 113 | CURL POST | $104.99 | |||
| 270128 | 115 | LONG PAD TUBE | $24.99 | |||
| 254271 | 116 | SEAT | $75.99 | |||
| 270105 | 117 | BACKREST | $229.99 | |||
| 320448 | 118 | BACKREST FRAME | $117.99 | |||
| 120696 | 119 | 25MM SQUARE INNER CAP | $4.49 | |||
| 132685 | 120 | 20MM X 40MM CAP | $1.99 | |||
| 323567 | 122 | SEAT FRAME | $102.49 | |||
| 270116 | 123 | SEAT PIN | $29.49 | |||
| 222666 | 125 | CURL CAP | $6.99 | |||
| 223733 | 127 | PAD COVER | $18.49 | |||
| 270127 | 129 | PAD TUBE | $22.49 | |||
| 213937 | 130 | M8 X 43MM BOLT | $5.49 | |||
| 171403 | 131 | 64MM SQUARE CAP | $7.99 | |||
| 234668 | 132 | 64MM THICK SQUARE CAP | $6.99 | |||
| 108874 | 133B | UPRIGHT ENDCAP | $5.99 | |||
| 233368 | 134 | BUTTERFLY BUSHING | $3.99 | |||
| 222669 | 135 | FRONT LEG BUMPER | $2.99 | |||
| 270113 | 136 | CURL KNOB | $29.49 | |||
| 222665 | 137 | LEG LEVER CAP | $14.99 | |||
| 196684 | 138 | 48MM ROUND INT ENDCAP | Contact for Pricing | |||
| 151213 | 139 | 57MM SQUARE CAP | $7.99 | |||
| 115366 | 140 | 19MM RND INT ENDCAP | $0.99 | |||
| 189241 | 141 | BUMPER | $16.99 | |||
| 220419 | 143 | M8 X 76MM CARRIAGE BOLT | $5.49 | |||
| 234412 | 145 | M10 X 180MM BUTTON BOLT | $23.99 | |||
| 200582 | 147 | M10 X 53MM BOLT | $10.99 | |||
| 198005 | 148 | M6 X 18MM BOLT | $2.49 | |||
 | 045008 | # | HEX KEY, 5MM | $2.49 | ||
| 045021 | # | HEX KEY, 6MM | $7.49 | |||
| 270073 | # | USER’S MANUAL | $12.49 | |||
| 119894 | # | HEX KEY, 4MM | $2.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
 | 104838 | # | GREASE PACKET | $8.49 |
