PROFORM 580 CS TREADMILL – PFTL57908.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
94 Parts Available for PROFORM 580 CS TREADMILL - PFTL57908.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013322 | 1 | SCREW | $0.99 | ||
 | 013576 | 2 | M4 X 16MM FLAT HEAD SCREW | $0.99 | ||
 | 013529 | 3 | #8 X 1.5″ SCREW | $0.99 | ||
| 013324 | 4 | HOOD SCREW, #10 X 3/4″ | $0.99 | |||
 | 146427 | 6 | #8 X 1″ TEK SCREW | $0.99 | ||
 | 266622 | 7 | 3/8″ X 1 3/4″ PATCH BOLT | $40.49 | ||
 | 215482 | 8 | 3/8″ X 4″ SCREW | $6.49 | ||
 | 013544 | 9 | LATCH SHOCK BOLT, LOWER | $3.99 | ||
 | 012149 | 10 | LATCH SHOCK NUT | $0.99 | ||
 | 163045 | 11 | 3/8″ STAR WASHER | $0.99 | ||
 | 014088 | 12 | #10 STAR WASHER | $1.49 | ||
 | 013300 | 13 | 3/4″ SCREW | $0.99 | ||
| 125214 | 14 | BELLY PAN SCREW, LONG | $0.99 | |||
 | 013607 | 15 | #8 X 3/4″ SCREW | $0.99 | ||
 | 162866 | 16 | PULLEY BOLT | $1.49 | ||
| 227191 | 17 | 5/16″ X 3 5/8″ BOLT | $2.49 | |||
| 259140 | 18 | 1″ LIFT FRAME BOLT | $2.49 | |||
 | 305744 | 19 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
| 179767 | 20 | 3/8″ X 1 3/4″ HEX HD BOLT | $61.49 | |||
 | 174320 | 21 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 141225 | 22 | FRAME PIVOT BOLT | $12.99 | |||
 | 186819 | 23 | 1/2″ SCREW | $0.99 | ||
| 123325 | 26 | 1/2″ SCREW | $0.99 | |||
| 014129 | 27 | 1/4″ WASHER | $0.99 | |||
| 014126 | 28 | REAR ROLLER LOCK WASHER | $0.99 | |||
 | 119425 | 29 | LOCK NUT | $0.99 | ||
| 136012 | 30 | PLATFORM NUT | $0.99 | |||
 | 133333 | 31 | CLIP | $0.99 | ||
| 269358 | 32 | FOOT RAIL DECAL | $18.99 | |||
| 413303 | 34 | WARNING DECAL | $3.99 | |||
| 269775 | 35 | PLATFORM CUSHION | $31.49 | |||
 | 198639 | 36 | BELT GUIDE | $5.99 | ||
| 252928 | 37 | FRAME CAP | $1.49 | |||
 | 251133 | 38 | FRAME SPACER | $1.49 | ||
| 251132 | 39 | DRIVE ROLLER SPACER | $0.99 | |||
 | 113842 | 40 | MAGNET | $1.49 | ||
 | 266762 | 42 | WALKING PLATFORM | $172.49 | ||
 | 262854 | 43 | WALKING BELT | $135.99 | ||
| 269768 | 47 | RIGHT FOOT RAIL | $72.49 | |||
 | 128457 | 52 | ALLEN WRENCH | $25.49 | ||
| 132315 | 53 | WIRE TIE | $3.49 | |||
| 269774 | 55 | RIGHT HANDRAIL COVER | $31.99 | |||
 | 249525 | 56 | IDLER ROLLER | $132.49 | ||
| 269771 | 57 | HOOD ACCENT | $75.49 | |||
| 266505 | 58 | MOTOR HOOD | $68.99 | |||

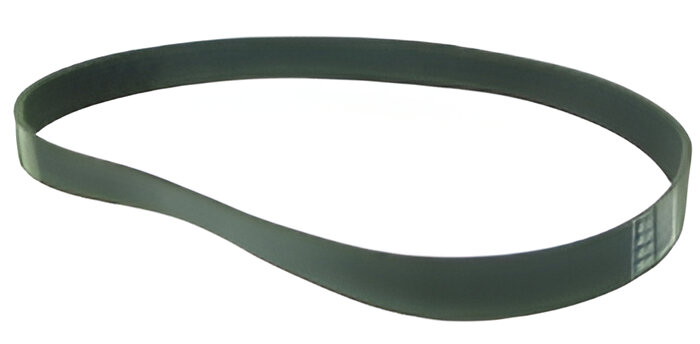

 | 264179 | 60 | MOTOR BELT | $44.99 | ||
 | 286075 | 61 | DRIVE MOTOR | $219.99 | ||
| 200747 | 62 | GROUND WIRE | $3.49 | |||
| 240351 | 63 | 50# WIRE CLAMP | $0.99 | |||
| 268672 | 64 | TOP HANDRAIL SPACER | $1.49 | |||
 | 165798 | 65 | REED SWITCH | $19.49 | ||
 | 131090 | 66 | REED SWITCH CLIP | $0.99 | ||
 | 409595 | 67 | Motor Control Board | $179.99 | ||
| 268671 | 68 | BOTTOM HANDRAIL SPACER | $9.49 | |||
| 263228 | 69 | 8″ GREEN WIRE, F/R | $4.99 | |||
 | 031229 | 70 | POWER CORD | $39.99 | ||
 | 173169 | 71 | POWER CORD GROMMET | $0.99 | ||
 | 186726 | 72 | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
| 266506 | 73 | BELLY PAN | $93.49 | |||
| 016057 | 74 | 8″ CABLE TIE | $2.99 | |||
| 116566 | 75 | 15 1/2″ CABLE TIE | $0.99 | |||
| 116926 | 76 | RELEASABLE TIE | $0.99 | |||
| 269369 | 77 | LEFT UPRIGHT | $110.49 | |||
| 269772 | 78 | LEFT HANDRAIL COVER | $31.99 | |||
| 267442 | 80 | HANDRAIL | $32.99 | |||
| 231224 | 81 | INCLINE MOTOR | $142.49 | |||
| 120696 | 83 | UPRIGHT CAP | $4.49 | |||
| 269776 | 85 | CONSOLE | $312.99 | |||
 | 208603 | 86 | KEY/CLIP ASSEMBLY | $19.99 | ||
| 266495 | 88 | ACCESSORY DOOR | $1.99 | |||
 | 215822 | 89 | 4″ GREEN WIRE, M/RING | $5.99 | ||
 | 253669 | 91 | UPRIGHT WIRE | $74.99 | ||
| 269366 | 92 | RIGHT UPRIGHT | $110.49 | |||
| 251437 | 93 | BASE CAP | $1.49 | |||
| 266690 | 96 | BASE | $180.99 | |||
 | 157600 | 97 | BUMPER | $1.99 | ||
 | 161411 | 98 | SPACER | $0.99 | ||
 | 139090 | 99 | WHEEL | $2.99 | ||
| 252433 | 101 | CAUTION DECAL | $0.99 | |||
 | 013423 | 102 | LATCH PLATE SCREW | $0.99 | ||
| 191554 | 103 | PHOTO SWITCH WIRE | $13.99 | |||
| 269467 | # | TECH SHEET | NLA | |||
| 137825 | # | 10″ BLUE WIRE, 2 F | $4.49 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
| 118204 | # | 8″ BLUE WIRE, M/F | $4.49 | |||
| 268476 | # | DECAL,GROUND WARNING | $0.99 | |||
| 284067 | # | USER’S MANUAL | NLA | |||
| 163253 | # | 10″ BLACK WIRE,M/F | $4.99 | |||
| 198085 | # | 12″ RED WIRE,M/F | $5.49 | |||
 | 219168 | # | LUBE KIT, 1 TUBE | $18.99 | ||
| 219170 | # | 3 TUBE LUBE KIT | $39.49 | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 269464 | # | HARDWARE KIT NOTE: | NLA | |||
| 284066 | # | LITPAC NOTE: | NLA |
