PROFORM TRAINER 5.0 TREADMILL – PFTL48520.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
121 Parts Available for PROFORM TRAINER 5.0 TREADMILL - PFTL48520.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 237573 | 1A | WHEEL BOLT | $5.49 | |||
| 163979 | 1B | HANDRAIL BOLT | $7.49 | |||
 | 208581 | 2 | M10 X 25MM SCREW | $5.49 | ||
 | 013322 | 3 | #8 X 3/4″ SCREW | $0.99 | ||
| 416245 | 4 | M8 X 50MM SCREW | $3.99 | |||
 | 139968 | 5 | M5 X 15MM FLAT HEAD SCREW | $0.99 | ||
 | 364027 | 6 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
| 183870 | 7 | M8 X 35MM BOLT | $2.49 | |||
| 296115 | 8 | M10 X 70MM BOLT | $8.49 | |||
| 241540 | 9 | 3/8″ X 2″ BOLT | $6.49 | |||
 | 013544 | 10 | 3/8″ X 2″ SCREW | $3.99 | ||
 | 295756 | 11 | 1/4″ MOTOR BOLT | $0.99 | ||
| 250549 | 12 | MOTOR BOLT | $5.49 | |||
 | 234288 | 13 | M8 X 20MM BOLT | $1.49 | ||
| 394752 | 14 | 3/8″ X 2″ BOLT | $4.49 | |||
| 159986 | 15 | 3/8″ X 2″ HEX BOLT | $6.49 | |||
 | 013576 | 16 | 1/2″ SCREW | $0.99 | ||
| 238292 | 17 | MAGNET SENSOR SCREW | $0.99 | |||
 | 148710 | 19 | NUT, M10 LOCK | $2.49 | ||
 | 012105 | 20 | M8 FLANGE NUT | $3.49 | ||
 | 256446 | 21 | MOTOR BRACKET NUT | $0.99 | ||
 | 119425 | 22 | 3/8″ NUT | $0.99 | ||
| 012139 | 23 | RLR TENSION/INCLN LEG NUT | $0.99 | |||
 | 133333 | 24 | HOOD CLIP | $0.99 | ||
| 237534 | 25 | M4.2 STAR WASHER | $0.99 | |||
| 234325 | 26 | MOTOR STAR WASHER | $1.49 | |||
| 140206 | 27A | HARDRAIL WASHERS | $1.99 | |||
| 425020 | 27B | M10 FLAT WASHERR | $2.49 | |||
| 417282 | 29 | DECKRAIL PAD SET, LT & RT | $353.99 | |||
| 236807 | 31 | M5 STAR WASHER | $0.99 | |||
| 428744 | 32 | WALKING PLATFORM | $467.99 | |||

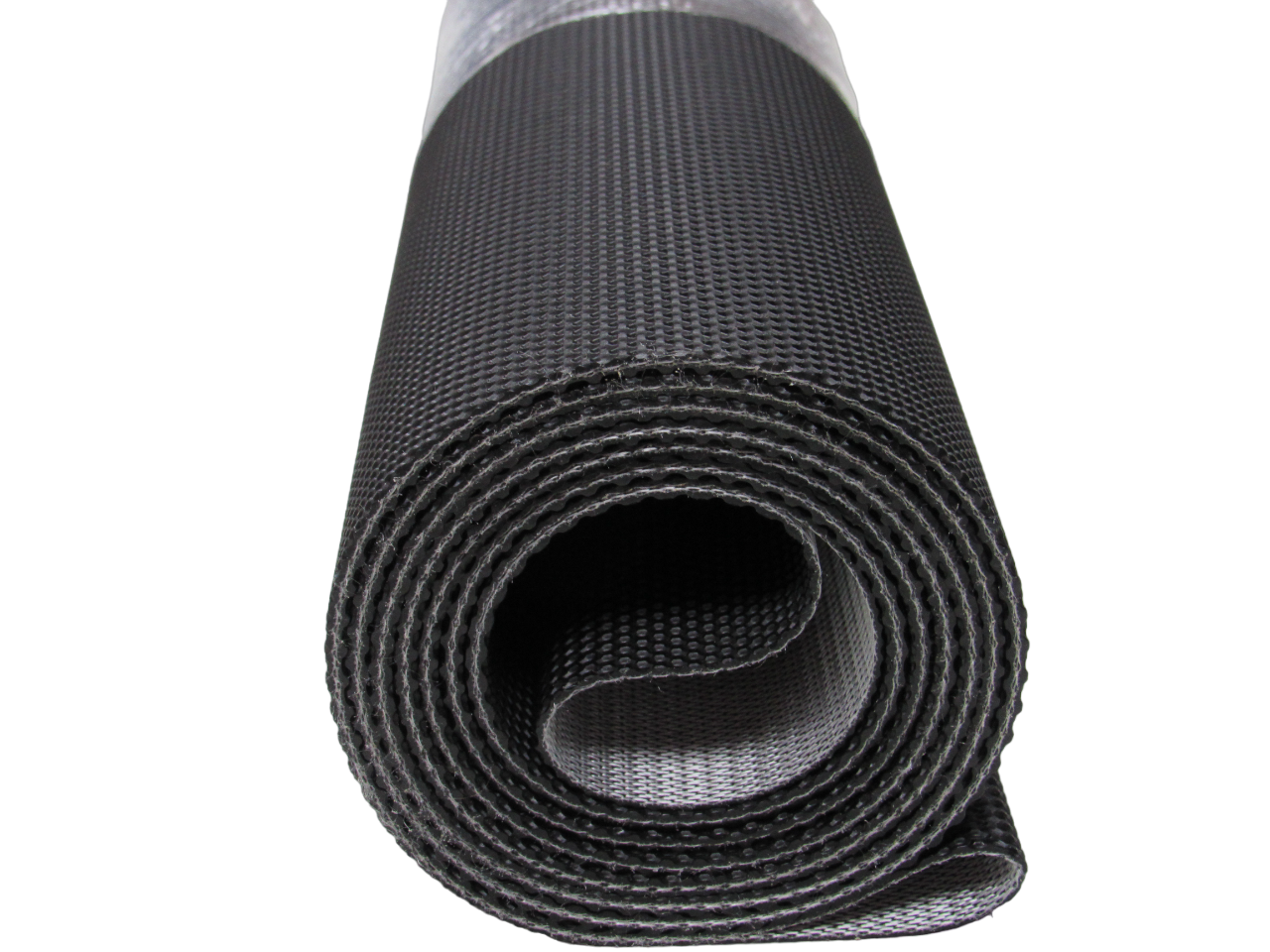

 | 417191 | 33 | WALKING BELT | $99.99 | ||
| 416873 | 34 | FRAME CAP | $5.49 | |||
| 198640 | 35 | BELT GUIDE | $25.49 | |||
| 417198 | 36 | MOTOR BELT | $31.99 | Unavailable to order | ||
| 417196 | 37 | DRIVE ROLLER/PULLEY | $137.99 | |||
| 417075 | 39 | MOTOR BRACKET | $72.99 | |||
| 417192 | 40 | DRIVE MOTOR | $236.49 | |||
| 417076 | 41 | RIGHT REAR FOOT | $101.99 | |||
| 417077 | 42 | LEFT REAR FOOT | $101.99 | |||
| 194339 | 43 | M8 X 41MM BUTTON BOLT | $4.49 | |||
| 416958 | 44 | REAR WHEEL | $6.99 | |||
| 417073 | 45 | RIGHT FOOT COVER | $72.99 | |||
| 417072 | 46 | LEFT FOOT COVER | $67.99 | |||
| 417277 | 47 | IDLER ROLLER | $128.99 | |||
| 417321 | 48 | HOOD COVER | $97.99 | |||
| 426182 | 49 | HOOD | $47.99 | |||
| 416957 | 50 | FRAME SPACER | $3.99 | |||
| 416998 | 51 | LIFT FRAME | $144.49 | |||
| 417194 | 52A | INCLINE MOTOR | $203.49 | |||
 | 406602 | 52B | INCLINE MOTOR SENSOR KIT | $46.99 | ||
| 418749 | 53 | POWER CORD | $140.49 | |||
 | 173169 | 54 | POWER CORD GROMMET | $0.99 | ||
| 428882 | 55 | CONTROLLER | $249.99 | |||
 | 186726 | 56 | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
| 416885 | 57 | HOOD POST | $16.49 | |||
| 417001 | 58 | BELLY PAN | $95.49 | |||
| 416004 | 59 | LEFT HANDRAIL TOP | $29.99 | |||
| 416005 | 60 | LEFT HANDRAIL BOTTOM | $23.49 | |||
| 416002 | 61 | RIGHT HANDRAIL TOP | $29.99 | |||
| 416003 | 62 | RIGHT HANDRAIL BOTTOM | $23.49 | |||
| 416996 | 63 | HANDRAIL | $136.49 | |||
| 416007 | 64 | CROSSBAR | $152.99 | |||
 | 215822 | 65 | GROUND WIRE | $5.99 | ||
 | 227199 | 66 | UPRIGHT GROMMET | $2.49 | ||
| 417201 | 67 | UPRIGHT WIRE | $100.99 | |||
| 417047 | 68 | STORAGE LATCH | $75.49 | |||
| 417317 | 69 | LEFT UPRIGHT | $97.49 | |||
| 417318 | 70 | RIGHT UPRIGHT | $97.49 | |||
| 416959 | 71 | BASE CAP | $8.99 | |||
 | 157600 | 72 | BUMPER | $1.99 | ||
| 252433 | 73 | CAUTION DECAL | $0.99 | |||
| 417315 | 74 | BASE | $166.49 | |||
 | 199545 | 75 | WHEEL | $2.49 | ||
| 416001 | 76 | LEFT TRAY | $33.99 | |||
| 416000 | 77 | RIGHT TRAY | $33.99 | |||
| 415999 | 78 | CONSOLE BASE | $76.99 | |||
| 422447 | 79 | CONSOLE | $278.49 | |||
 | 208603 | 80 | KEY/CLIP ASSEMBLY | $19.99 | ||
| 418422 | 82 | BASE FOOT | $28.49 | |||
 | 307031 | 83 | BASE FOOT | $2.99 | ||
| 413303 | 84 | LATCH WARNING DECAL | $3.99 | |||
| 356449 | 85 | PATCH PLATE | $23.49 | |||
| 420852 | 86 | UPRIGHT BUSHING | $27.49 | |||
 | 372092 | 87 | 3/8″ PLASTIC BUSHING | $4.99 | ||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 116566 | # | PLASTIC TIE | $0.99 | |||
| 417150 | # | HARDWARE KIT, NOTE: | $73.99 | |||
| 181248 | # | 6MM ALLEN WRENCH | $6.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 367244 | # | DECAL,REWORK SHEET,FCA | $72.49 | |||
| 368335 | # | CNSL,OVERLAY SHEET,FCA | $110.99 | |||
| 330165 | # | DECAL,REWRK,OVERLAY SHEET | $112.99 | |||
| 219896 | # | ACCESSORY KIT | Contact for Pricing | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 258703 | # | ALLEN WRENCH, 5MM | $3.49 | |||
| 1001235 | # | 4 TUBE LUBE KIT,FCA | $60.49 | |||
| 426177 | # | USER’S MANUAL | $23.99 | |||
 | 128457 | # | WRENCH | $25.49 | ||
| 429696 | # | USER’S MANUAL SP7 | $22.49 | |||
| 426176 | # | LITPAC, NOTE: | $65.99 | |||
| 101896 | TS11 | 4″ WHITE WIRE, M/F | $3.49 | |||
| 417218 | TS12 | 4″ BLACK WIRE F/M | $5.99 | |||
| 417219 | TS13 | 4″ BLACK WIRE F/F | $15.49 | |||
 | 214773 | TS3 | CONTROLLER GROUND WIRE | $2.99 | ||
| 406322 | TS6 | 12″ WIRE HRNS | $21.49 |
