PROFORM PRO HIIT H14 ELLIPTICAL – PFEL01421.1
138 Parts Available for PROFORM PRO HIIT H14 ELLIPTICAL - PFEL01421.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 416180 | 2 | RIGHT PEDAL BASE | $192.99 | |||
| 416177 | 3 | LEFT PEDAL BASE | $192.99 | |||
| 437519 | 4 | CONSOLE BRACKET | $211.99 | |||
| 437944 | 5 | CONSOLE (ARGON) | $973.49 | |||
| 386993 | 6 | SNAP RING | $13.49 | |||
| 417946 | 7 | CONSOLE COVER | $110.99 | |||
| 386965 | 8 | RIGHT STABILIZER | $289.99 | |||
| 386959 | 9 | LEFT STABILIZER | $185.99 | |||
| 416223 | 10 | RIGHT HANDLEBAR | $180.99 | |||
| 416222 | 11 | LEFT HANDLEBAR | $142.99 | |||
| 375970 | 12 | SHIELD COVER | $42.99 | |||
| 421101 | 13 | HANDLEBAR GRIP | $39.49 | |||
| 426943 | 14 | LEFT HANDLEBAR ARM | $175.99 | |||
| 426944 | 15 | RIGHT HANDLEBAR ARM | $175.99 | |||
| 416818 | 16 | MAGNET BRACKET | $102.49 | |||
| 376548 | 17A | IDLER | $65.49 | |||
| 375887 | 17B | IDLER BRACKET | $26.49 | |||
| 375928 | 17C | Idler Bushing | $1.99 | |||
| 373273 | 17D | Idler Axle | $17.99 | |||
| 150731 | 17E | IDLER RETAINER RING | $0.99 | |||
| 375968 | 18 | ACCESSORY TRAY | $19.99 | |||
| 375860 | 19 | EXCHANGE AXLE | $79.99 | |||
| 375936 | 20 | MEDIUM PULLEY | $40.99 | |||
 | 375952 | 21 | Large Pulley | $69.99 | ||
| 437700 | 22 | RIGHT PEDAL | $192.49 | |||
| 437697 | 23 | LEFT PEDAL | $192.49 | |||
| 376767 | 24 | RIGHT PEDAL LEG | $234.99 | |||
| 376766 | 25 | LEFT PEDAL LEG | $197.49 | |||
| 386625 | 26 | CONNECTOR ARM | $188.49 | |||
| 416361 | 27 | DISC AXLE | $175.99 | |||
 | 408855 | 28 | DRIVE BELT KIT (Set of 2) | $125.99 | ||
| 375858 | 29 | CRANK ARM | $90.99 | |||
 | 375856 | 30 | CRANK | $134.49 | ||
| 416812 | 32 | DISC | $355.49 | |||
| 375927 | 33 | Disc Hub | $28.49 | |||
| 373268 | 34 | SPROCKET | $189.99 | |||
| 375868 | 35 | LINK ARM | $58.99 | |||
 | 411461 | 36 | RESISTANCE MOTOR | $89.99 | ||
 | 241954 | 37 | RSISTANCE MOTOR DISK | $1.99 | ||
 | 304734 | 38 | RESISTANCE ROD | $43.49 | ||
 | 303952 | 39 | HANDLE BRACKET | $4.99 | ||
| 411087 | 40 | LOWER WIRE | $48.99 | |||
| 375958 | 41 | SMALL PULLEY | $55.99 | |||
 | 131090 | 42 | REED SWITCH CLIP | $0.99 | ||
 | 375931 | 43 | KEY | $3.99 | ||
| 416815 | 44 | MAGNET COVER | $102.49 | |||
 | 331026 | 45 | M8 RAMP PVT/WHEEL WASHER | $3.49 | ||
 | 375923 | 46 | Left Wheel Cover | $8.49 | ||
| 386602 | 47 | SELF-ALIGNING BEARING | $50.99 | |||
| 416364 | 48 | ROLLER ARM BEARING SLEEVE | $18.49 | |||
| 416200 | 49 | DISC RING | $110.99 | |||
| 440879 | 50 | LEFT SHIELD | $216.49 | |||
| 440878 | 51 | RIGHT SHIELD | $216.49 | |||
| 416173 | 52 | FRONT COVER | $80.99 | |||
| 416202 | 53 | REAR COVER | $80.49 | |||
| 375967 | 54 | Accessory Tray Base | $24.99 | |||
| 375925 | 55 | STABILIZER CAP | $14.99 | |||
| 332578 | 56 | FOOT | $13.49 | |||
 | 375922 | 57 | REAR WHEEL | $16.99 | ||
 | 375924 | 58 | RIGHT WHEEL COVER | $8.49 | ||
| 375971 | 59 | Handlebar Cap | $5.99 | |||
 | 291606 | 60 | CRANK BEARING | $22.49 | ||
| 416170 | 61 | LT REAR HANDLEBAR COVER | $125.49 | |||
| 416169 | 62 | LT FRONT HANDLEBAR COVER | $59.99 | |||
| 416171 | 63 | RT REAR HANDLEBAR COVER | $59.99 | |||
| 416172 | 64 | RT FRONT HANDLEBAR COVER | $59.99 | |||
| 376422 | 65 | REAR PIVOT COVER | $22.49 | |||
| 375969 | 66 | FRONT PIVOT COVER | $19.99 | |||
| 380618 | 67 | SPRING | $37.99 | |||
| 416203 | 68A | LOWER REAR SHIELD COVER | $103.49 | |||
| 396209 | 68B | PULLEY COVER | $24.99 | |||
 | 237631 | 69 | LEVELING FOOT | $34.99 | ||
 | 139703 | 70 | CRANK BEARING | $33.49 | ||
| 218132 | 71 | HUB BEARING | $60.49 | |||
| 300223 | 72 | LARGE BEARING | $55.99 | |||
| 375929 | 73 | Bushing | $2.99 | |||
 | 259935 | 74 | THRUST WASHER | $5.99 | ||
 | 116014 | 75 | STEEL WASHER | $11.49 | ||
| 341554 | 76 | M10 Jam Nut | $1.99 | |||
| 222789 | 77 | M8 X 32MM WASHER | $3.99 | |||

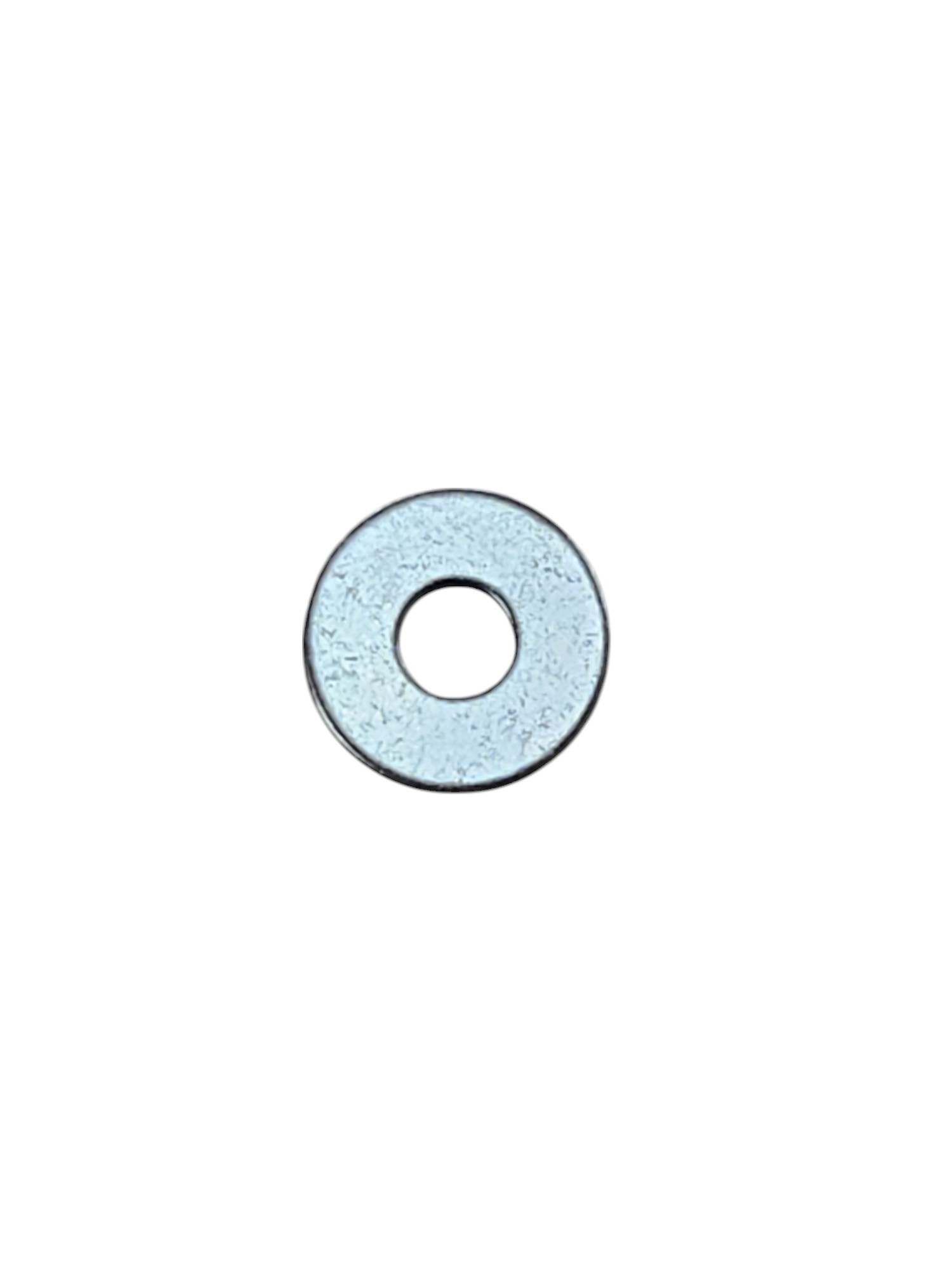

 | 261150 | 78 | M8 WASHER | $2.20 | ||
| 249933 | 79 | M6 WASHER | $0.99 | |||
 | 150327 | 80 | M5 NUT | $1.99 | ||
| 375930 | 81 | M10 SHOULDER BOLT | $8.49 | |||
| 373149 | 82 | M4 x 42mm Screw | $0.99 | |||
 | 133333 | 83 | HOOD CLIP | $0.99 | ||
| 393601 | 84 | M6 x 14mm Screw | $3.99 | |||
| 332268 | 85 | M5 X 16MM BOLT | $0.99 | |||
| 172677 | 86 | M3.5 X 12MM SCREW | $0.99 | |||
| 386639 | 87 | M8 X 16MM HEX SCREW | $29.99 | |||
| 375972 | 88 | Disc Screw | $18.99 | |||
 | 275907 | 89 | M10 LOCKNUT,CRNK ARM CLMP | $4.49 | ||
| 277730 | 90 | CRANK ARM BOLT | $8.99 | |||
| 356255 | 91 | M8 FLAT HEAD SCREW | $2.49 | |||
 | 346533 | 92 | M8 FLAT WASHER | $4.49 | ||
| 371429 | 93 | STUD | $18.99 | |||
| 195561 | 94 | M10 X 55MM BOLT | $11.49 | |||
| 130302 | 95 | M10 X 81MM BOLT | $26.49 | |||
 | 223089 | 96 | LINKARM WHEEL BKT SCRW | $6.99 | ||
| 419907 | 97 | M8 SHOULDER SCREW | $6.49 | |||
| 173667 | 98 | M8 X 30MM HEX SCREW | $4.49 | |||
 | 256446 | 99 | M8 NUT | $0.99 | ||
| 265605 | 100 | M8 x 23mm Screw | $9.49 | |||
| 380825 | 101 | HANDLE BRACKET SCRW,NOTE: | $2.49 | |||
| 417308 | 102 | M8 X 20MM SCREW | $6.49 | |||
| 417306 | 103 | CAP SCREW | $3.49 | |||
 | 113842 | 104 | MAGNET | $1.49 | ||
 | 236321 | 105 | M8 X 25MM SCREW | $4.49 | ||
 | 195562 | 106 | M4 X 16MM SCREW | $1.99 | ||
| 251831 | 107 | M4 X 22MM SCREW | $1.99 | |||
 | 197037 | 108 | M6 X 12MM SCREW, NOTE: | $0.99 | ||
| 382359 | 109 | M8 x 86mm Screw | $10.99 | |||
| 400743 | 110 | M10 x 20mm Screw | $9.49 | |||
| 391858 | 111 | SLANT CAP | $24.99 | |||
| 227701 | 112 | M10 X 25MM SCREW | $2.49 | |||
 | 250961 | 113 | M4 X 19MM SCREW | $0.99 | ||
 | 213457 | 114 | M4 X 12MM SCREW | $1.99 | ||
| 416987 | 115 | MAIN WIRE | $126.49 | |||
| 415080 | 116 | REED SWITCH/WIRE | $46.49 | |||
| 375926 | 117 | Crank Cover Disc | $24.99 | |||
 | 277969 | 118 | POWER ADAPTER | $29.99 | ||
 | 306510 | # | 5MM ALLEN WRENCH | $6.49 | ||
| 132315 | # | CABLE TIE | $3.49 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 341182 | # | AUDIO WIRE | $11.99 | |||
| 386951 | # | DECAL PINCH POINT WARNING | $6.49 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 450573 | # | 4MM ALLEN WRENCH, T-HNDL | $28.49 | |||
| 450422 | # | 13MM COMBO WRENCH | $63.99 | |||
| 450416 | # | PHILLIPS SCREW DRIVER | $76.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 417307 | # | HARDWARE KIT, NOTE: | $137.99 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 410314 | # | TABLET HOLDER | $117.49 | |||
| 449335 | # | DECAL,NFW WARNING | $14.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 450417 | # | 16MM COMBO WRENCH | $64.99 |
