PROFORM PREMIER 600 TREADMILL – PFTL60919.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
121 Parts Available for PROFORM PREMIER 600 TREADMILL - PFTL60919.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1A | ST4.2 X 10MM SCREW | $0.99 | ||
 | 013322 | 2 | M4 X 19MM SCREW | $0.99 | ||
 | 349213 | 3 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 264255 | 4 | 5/16″ X 3/4″ SCREW | $1.99 | ||
 | 014088 | 5 | #10 STAR WASHER | $1.49 | ||
 | 013250 | 6 | 5/16″X1 3/4″ BOLT, SHOCK | $2.99 | ||
 | 341768 | 7 | 3/8″ X 2 3/8″ SCREW | $8.99 | ||
 | 013423 | 8 | #8 X 1/2″ SCREW | $0.99 | ||
 | 167049 | 9 | #10 X 3/4″ SCREW | $0.99 | ||
 | 186819 | 10 | #8X1/2″ WASHER HEAD SCREW | $0.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 174801 | 12 | 1/4″ X 1/2″ SCREW | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
 | 013607 | 14 | #8 X 3/4″ SCREW, STRNRLF | $0.99 | ||
 | 364027 | 15 | 1/4″X2 1/2″ WASHER SCREW | $2.99 | ||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 381122 | 17 | 3/8″ X 1 3/8″ BOLT | $2.99 | ||
 | 189861 | 18 | ROLLER STAR WASHER | $1.49 | ||
| 136728 | 19 | #8 BELT GUIDE SCREW | $0.99 | |||
 | 295756 | 20 | MOTOR SCREW | $0.99 | ||
| 315068 | 21 | STRAIGHT PIN | $7.99 | |||
 | 372033 | 22 | 3/8″ 1 1/8″ SCREW | $5.49 | ||
 | 298484 | 23 | 5/16″ X 1 3/4″ BOLT | $2.49 | ||
| 014157 | 24 | #8 STAR WASHER | $0.99 | |||
| 390055 | 25 | UPRIGHT CROSSBAR | $68.99 | |||
| 132315 | 26 | WIRE TIE | $3.49 | |||
| 373000 | 27 | RIGHT TRAY | $39.99 | |||
| 274708 | 28 | 5/16″ X 2 1/2″ SCREW | $6.99 | |||
| 179767 | 29 | 3/8″ X 1 3/4″ BOLT | $61.49 | |||
 | 152478 | 30 | 5/16″ FLAT WASHER | $0.99 | ||
| 292368 | 31 | #8 X 1″ SCREW | $1.99 | |||
 | 114078 | 32 | LIFT SPACER | $2.49 | ||
 | 119425 | 33 | 3/8″ LOCKNUT | $0.99 | ||
 | 100427 | 34 | IDLER PULLEY NUT | $0.99 | ||
 | 121576 | 35 | 1/4″ NUT | $2.49 | ||
| 373001 | 36 | LEFT TRAY | $39.99 | |||
 | 291486 | 37 | #8 X 5/8″ PAN HEAD SCREW | $0.99 | ||
| 398979 | 38 | DRIVE MOTOR BRACKET | $97.99 | |||
| 388005 | 39 | ISOLATOR | $14.99 | |||
 | 348118 | 40 | REAR FOOT | $27.99 | ||
 | 347756 | 41 | LATCH CROSSBAR | $54.49 | ||
| 417085 | 42 | LEFT FOOT RAIL | $85.49 | |||
| 413303 | 43 | WARNING DECAL,ENGLISH | $3.99 | |||
| 396523 | 44 | WALKING PLATFORM | $182.49 | |||
 | 403881 | 45 | WALKING BELT | $155.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
 | 393579 | 47 | RIGHT REAR FOOT | $26.49 | ||
| 240351 | 48 | ANCHORED TIE BLOCK | $0.99 | |||
| 399308 | 49 | DRIVE ROLLER/PULLEY | $154.49 | |||
| 265234 | 50 | 1/4″ X 1/14″ SCREW | $1.99 | |||
| 372094 | 51 | 9/32″ PLASTIC BUSHING | $4.99 | |||
 | 372092 | 52 | 3/8″ BUSHING | $4.99 | ||
 | 388201 | 53 | STORAGE LATCH | $133.49 | ||
| 405625 | 54 | DRIVE MOTOR | $237.49 | |||
| 399309 | 55 | MOTOR BELT | $38.99 | |||
 | 393577 | 57 | LEFT REAR FOOT | $25.99 | ||
| 194020 | 58 | #3 X 1/4″ SCREW | $0.99 | |||
 | 298474 | 59 | SMALL CUSHION | $1.99 | ||
 | 311588 | 61 | IDLER ROLLER | $114.99 | ||
 | 181980 | 62 | 3/8″ X 1 3/4″ BOLT | $3.49 | ||
 | 181979 | 63 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
 | 349793 | 65 | MOTOR HOOD | $131.49 | ||
 | 197404 | 66 | M5 WASHER | $1.99 | ||
| 372093 | 67 | INCLINE FRAME SPACER | $4.99 | |||
 | 133333 | 68 | CAP CLIP | $0.99 | ||
| 406603 | 69A | INCLINE MOTOR | $203.49 | |||
 | 406602 | 69B | INCLINE MOTOR SENSOR KIT | $46.99 | ||
| 372381 | 70 | INCLINE FRAME | $139.49 | |||
| 343447 | 71 | FRAME SPACER | $6.49 | |||

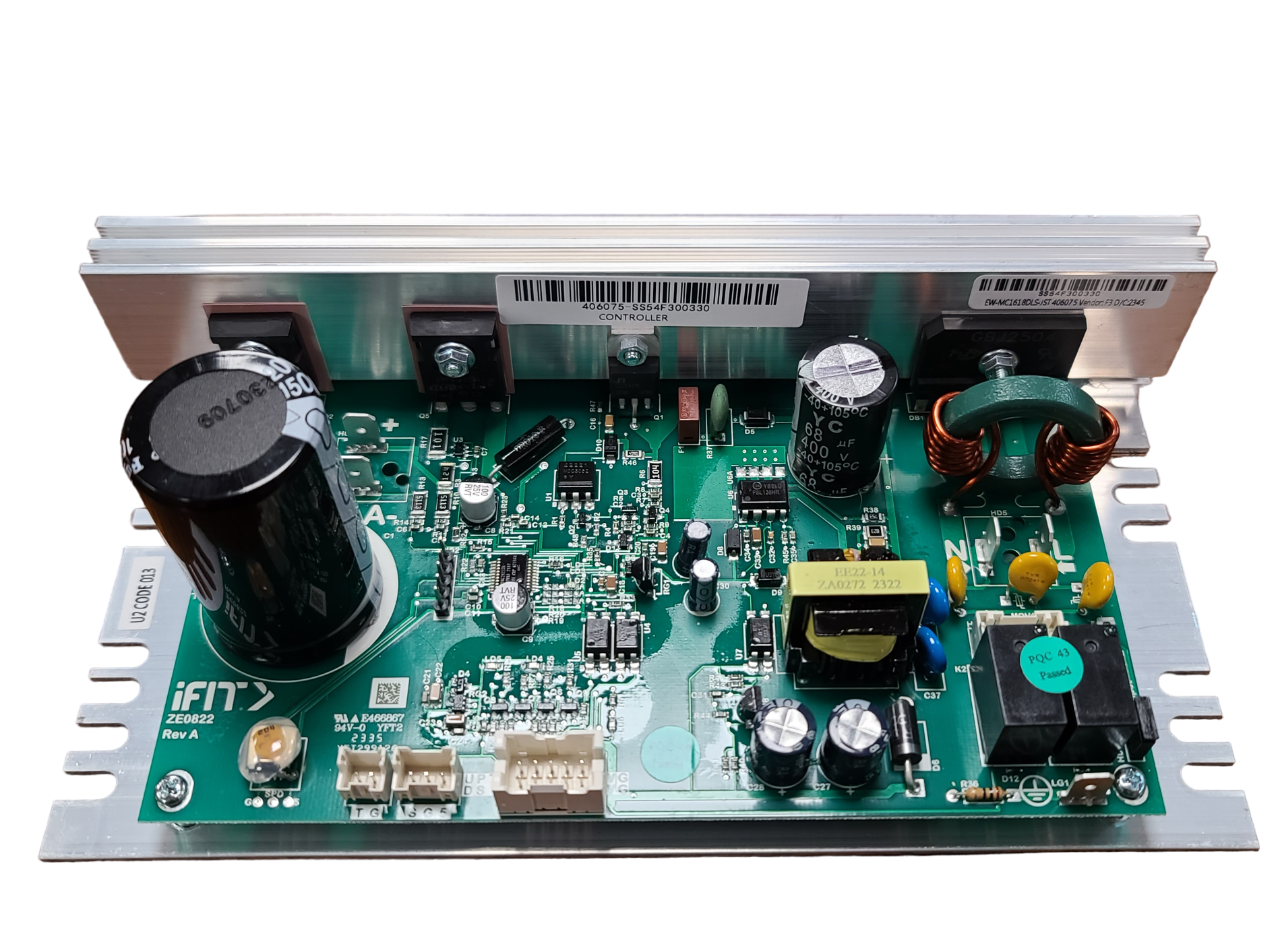

 | 410270 | 72 | MOTOR CONTROLLER | $182.99 | ||
| 315047 | 73 | ELECTRONICS PLATE | $2.49 | |||
| 359093 | 74 | CUSHION BOTTOM | $28.49 | |||
 | 186726 | 75 | POWER SWITCH | $22.49 | ||
 | 031229 | 76 | POWER CORD | $39.99 | ||
 | 227199 | 77 | SQUARE GROMMET | $2.49 | ||
| 347853 | 78 | BELLY PAN | $120.98 | |||
| 372706 | 79 | LEFT HANDRAIL COVER | $27.99 | Unavailable to order | ||
| 417087 | 80 | CONSOLE | $263.99 | |||

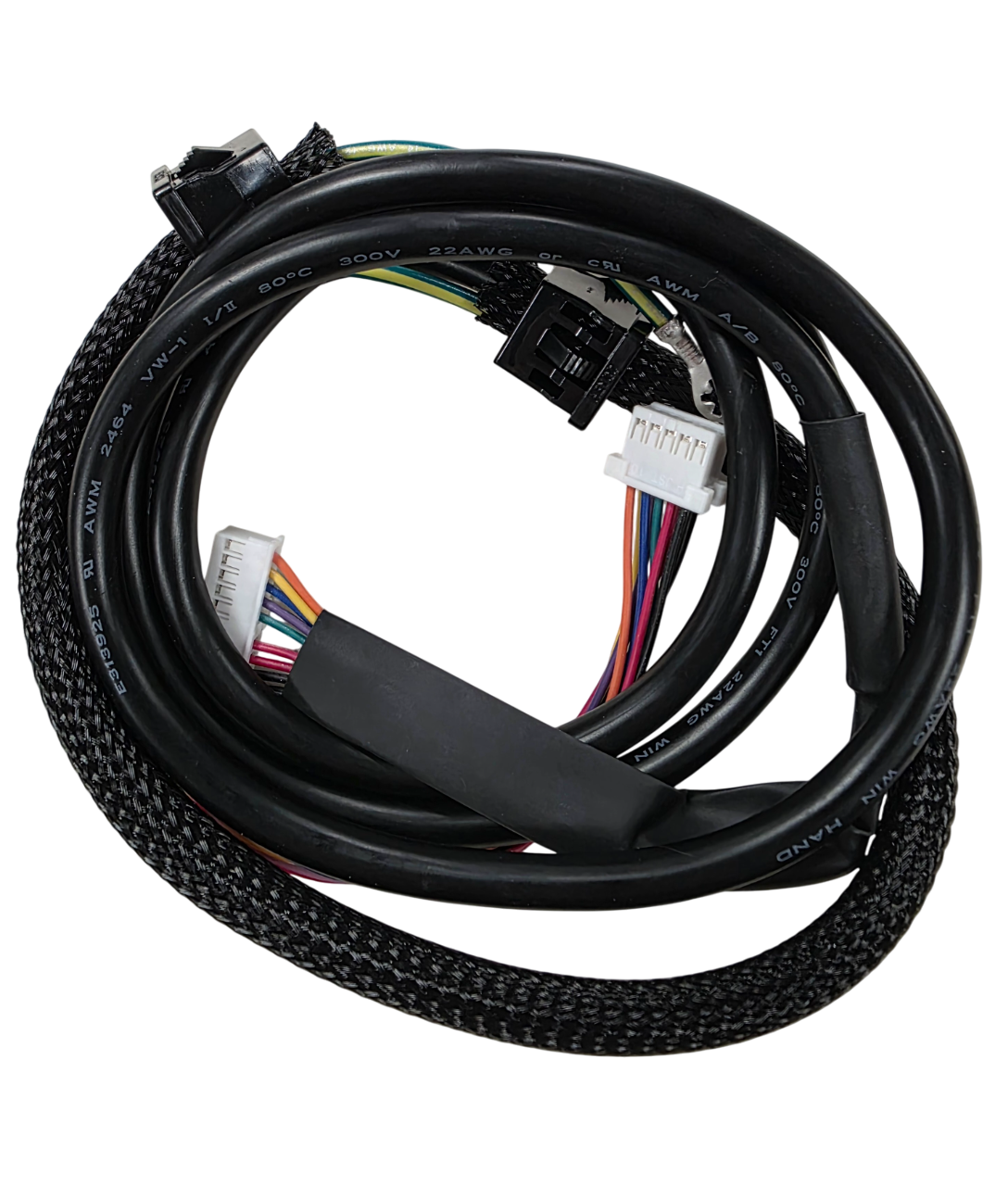

 | 409841 | 81 | UPRIGHT WIRE | $81.99 | ||
| 372700 | 82 | LEFT BASE COVER | $48.49 | |||
| 372699 | 83 | RIGHT BASE COVER | $48.49 | |||
| 365328 | 84 | CONTROLLER CLAMP | $15.49 | |||
| 372556 | 86 | HANDRAIL | $47.49 | |||
| 372705 | 87 | LEFT BTTM HANDRAIL COVER | $33.49 | |||
| 372708 | 88 | RIGHT BTTM HANDRAIL COVER | $33.49 | |||
| 417876 | 89 | LEFT UPRIGHT | $163.99 | |||
| 417877 | 90 | RIGHT UPRIGHT | $163.99 | |||
| 252433 | 91 | CAUTION DECAL | $0.99 | |||
| 243797 | 92 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
| 373033 | 93 | PULSE CROSSBAR | $102.49 | |||
| 378857 | 94 | BASE | $260.99 | |||
| 175284 | 95 | #6 X 13MM SCREW | $0.99 | |||
| 410050 | 96 | SPEAKER | $26.49 | |||
 | 307032 | 97 | BASE PAD | $3.99 | ||
 | 372591 | 98 | WHEEL | $7.49 | ||
| 372702 | 99 | LEFT INNER BASE COVER | $47.49 | |||
| 372701 | 100 | RIGHT INNER BASE COVER | $47.49 | |||
 | 102973 | 101 | 3/8″ THRUST WASHER | $0.99 | ||
| 225696 | 102 | 1/4″ X 1 1/4″ SCREW | $1.49 | |||
 | 173169 | 103 | POWER CORD GROMMET | $0.99 | ||
 | 314522 | 104 | BASE PAD SPACER | $0.99 | ||
 | 215822 | 105 | 4″ CONSOLE GROUND WIRE | $5.99 | ||
 | 012105 | 107 | M8 FLANGE NUT | $3.49 | ||
| 373004 | 108 | RIGHT SPEAKER COVER | $28.49 | |||
 | 347877 | 109 | KEY/CLIP | $25.99 | ||
| 405991 | 110 | PULSE CROSSBAR TOP | $90.99 | |||
| 372516 | 111 | CONSOLE FRAME | $28.49 | |||
| 373005 | 112 | LEFT SPEAKER COVER | $28.49 | |||
| 374005 | 113 | LEFT SPEAKER GRILL | $39.99 | |||
| 374004 | 114 | RIGHT SPEAKER GRILL | $39.99 | |||
 | 146427 | 115 | #8 X 1″ TEK SCREW | $0.99 | ||
 | 256446 | 116 | M8 NYLON LOCKNUT | $0.99 | ||
| 250549 | 117 | MOTOR PIVOT BOLT | $5.49 | |||
 | 234288 | 118 | M8 X 20MM BOLT | $1.49 | ||
| 234325 | 119 | M8.4 STAR WASHER | $1.49 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 417082 | # | LITPAC NOTE: | $106.49 | |||
| 045023 | # | 5/32″ ALLEN WRENCH, HEX | $1.99 | |||
 | 128457 | # | HEX KEY | $25.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 364361 | # | HEART RATE CHEST STRAP | $135.99 | |||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 116926 | # | 8″ CABLE TIE | $0.99 | |||
| 410314 | # | TABLET HOLDER | $117.49 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 406322 | TS11 | 12″ WIRE HRNS | $21.49 | |||
 | 102634 | TS3 | 8″ GREEN WIRE,F/R,CNTRLR | $3.49 | ||
| 126146 | TS5 | 4″ BLUE WIRE, F/F | $3.49 | |||
| 198081 | TS6 | 6″ BLUE WIRE, M/F | $3.99 | |||
| 163253 | TS7 | 10″ BLACK WIRE, M/F | $4.99 | |||
| 198085 | TS8 | 12″ RED WIRE, M/F | $5.49 |
