PROFORM FIT 425 TREADMILL - 24873.3 - Fitness Parts Warehouse

PROFORM FIT 425 TREADMILL – 24873.3

136 Parts Available for PROFORM FIT 425 TREADMILL - 24873.3 ↓

Part #	Diagram #	Title	Price

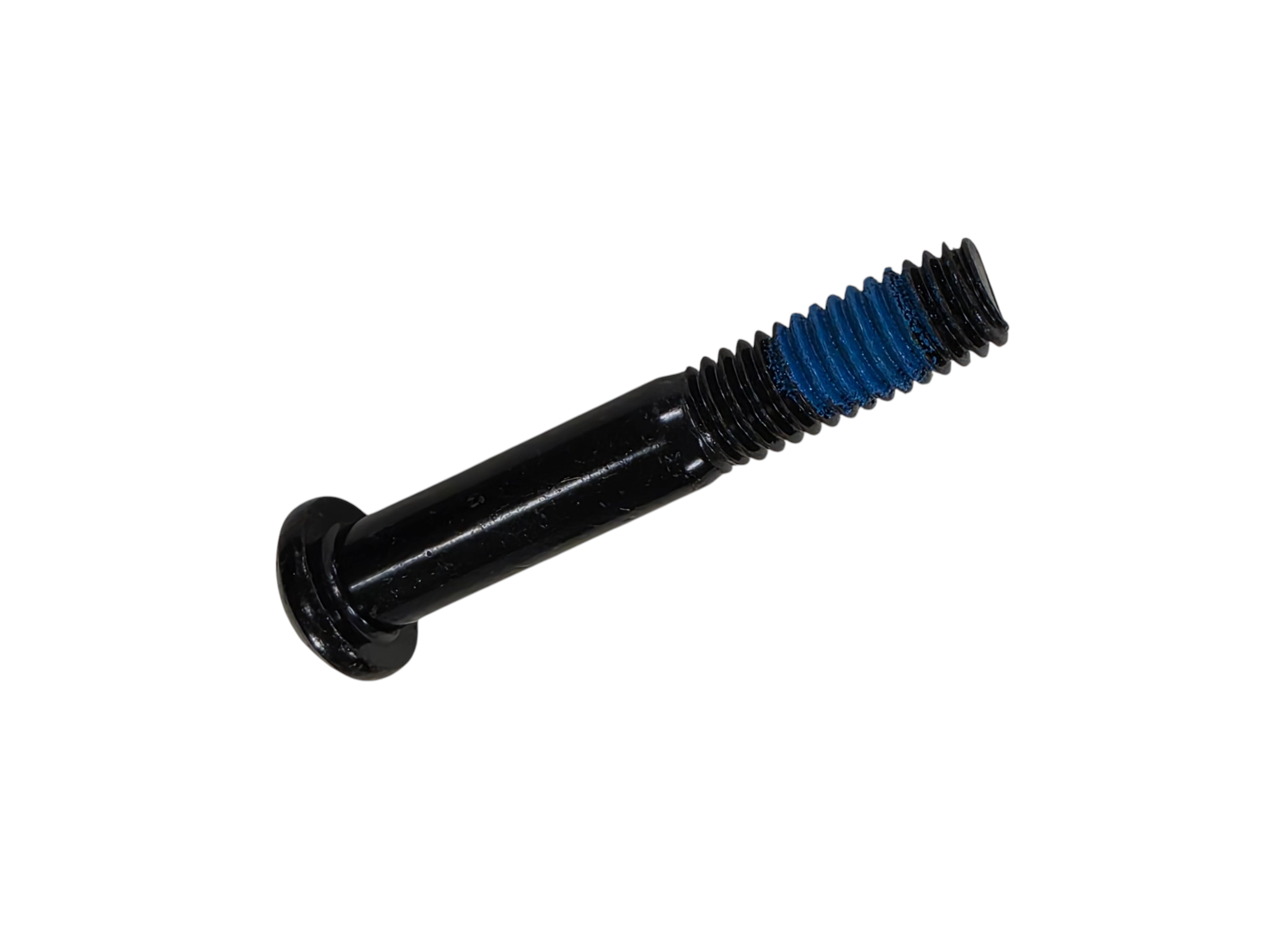

308092	1	BASE-TO-UPRT PATCH BOLT	$9.49
269362	2	3/8″ X 2 3/4″ SCREW	$5.49
241305	3	#8 WSHR HD SCREWS	$0.99
171558	4	3/8″ X 3/4″ SCREW	$3.49
394752	5	3/8″ X 2″ HEX HEAD BOLT	$4.49
234274	6	WALKING PLATFORM BOLT	$0.99
150508	7	#10 X 1/2″ SCREW	$0.99
234226	8	M4.2 X 19MM SCREW	$0.99
318367	9	M4.2 X 23MM SCREW	$1.99
013576	10A	M4 X 16MM FLAT HEAD SCREW	$0.99
013322	10B	SCREW	$0.99
241734	11	M4.2 X 19MM TEK SCREW	$0.99
241732	12	M4.2 X 19MM WSHR HD SCRW	$0.99
238292	14	CONTROLLER SCREW	$0.99
355671	15	M8 X 30MM BOLT	$6.99
234284	16	M4.2 X 13MM BLT GIDE SCRW	$0.99
234285	17	M6 X 70MM BOLT	$3.49
295756	18	5/16″ MOTOR SCREW	$0.99
250549	19	M8 X 102MM BOLT	$5.49
234288	20	M8 X 20MM BOLT	$1.49
013544	21	LATCH SHOCK BOLT, LOWER	$3.99
013423	22	LATCH PLATE SCREW	$0.99
382219	24	M10X57MM UPRT/LIFT BOLT	$6.49
237529	25	M4.2 X 13MM GROUND SCREW	$0.99
359996	26	3/8″ X 1 3/8″ BOLT	$6.99
207213	27	M10 STAR WASHER	$1.49
302928	28	M8 SEAT FRAME SCREW	$3.49
364028	29	M6 X 60MM SCREW	$2.99
268393	30	M10 X 54MM BOLT	$11.49
381224	31	M8 X 48MM SCREW	$79.99
014063	32	ISOLATOR WASHER	$0.99
234325	33	M8 STAR WASHER	$1.49
258690	34	M6 STAR WASHER	$0.99
140206	35	M10 FLAT WASHER	$1.99
213894	36	REAR PLATFORM WASHER	$0.99
237534	37	M4.2 STAR WASHER	$0.99
199545	38	FRONT WHEEL	$2.49
392693	39	CONSOLE	$283.49
391535	40	CONSOLE BASE	$196.99
396428	41	CONTROLLER BRACKET	$65.49
256446	42	M8 NUT	$0.99
119425	43	LOCK NUT	$0.99
012142	44	M6 NYLON LOCKNUT	$0.99
133333	45	CLIP	$0.99
234137	46	M8 REAR FOOT NUT	$2.49
148710	47	M10 LOCKNUT	$2.49
333350	48	M8 DECK MTG LOCKNUT	$1.99
392726	49	LEFT FOOT RAIL	$91.99
392725	50	RIGHT FOOT RAIL	$91.99
391615	51	BAR,CUSH ADJ,BLK	$35.99
392729	52	PLATFORM CUSHION	$31.49
391616	53	CUSHION STOP	$101.49
413303	54	WARNING DECAL	$3.99
392308	55	PATCH PLATE	$18.99
334130	56	PATCH PLATE SPACER	$111.49
198640	57	BELT GUIDE	$25.49
392279	58	WALKING BELT	$99.99
392547	59	DRIVE ROLLER/PULLEY	$139.49
392549	60	DRIVE BELT	$50.99
132315	61	WIRE TIE	$3.49
392727	63	WALKING PLATFORM	$150.99
370808	64	RIGHT IDLER ROLLER BRKT	$29.99
370807	65	LEFT IDLER ROLLER BRKT	$29.99
391614	66	RIGHT REAR FOOT	$62.49
391613	67	LEFT REAR FOOT	$35.49
392552	68	REAR ROLLER	$136.99
392334	69	MOTOR HOOD	$117.99
234661	70	MOTOR BRACKET	$58.99
405710	71	Drive Motor for ICON Fitness Part Number 392550	$193.49
359503	72	CONTROLLER BRACKET	$15.99
390296	73	Motor Control Board	$189.99
208603	74	KEY/CLIP ASSEMBLY	$19.99
248732	75	INCLINE MOTOR	$170.99
233464	76	WHEEL SPACER	$1.99
392307	77	INCLINE FRAME	$157.49
244123	78	FRAME SPACER	$0.99
391634	79	BELLY PAN	$160.49
186726	80	RESET/OFF CIRCUIT BREAKER	$22.49
031229	81	POWER CORD	$39.99
173169	82	POWER CORD GROMMET	$0.99
392799	83	BASE	$152.49
186253	84	CONSOLE FRAME CAP	$1.99
359232	85	LEFT CONSOLE FRAME	$66.49
359235	86	RIGHT CONSOLE FRAME	$63.99
215822	87	4″ GREEN WIRE, M/RING	$5.99
391848	88	PULSE CROSSBAR	$128.49
359240	89	FRONT HANDRAIL CAP	$5.99
359216	90	HANDRAIL BUSHING	$11.99
359237	91	HANDRAIL	$65.49
359239	92	HANDRAIL CAP	$7.49
392313	93	LATCH	$47.99
402348	94	LEFT UPRIGHT	$128.99
402342	95	RIGHT UPRIGHT	$128.99
227199	96	UPRIGHT WIRE GROMMET	$2.49
392273	97	UPRIGHT WIRE	$86.99
359249	98	LEFT OUTER UPRIGHT CAP	$19.99
359234	99	LEFT INNER UPRIGHT CAP	$25.99
359231	100	RIGHT INNER UPRIGHT CAP	$25.99
359229	101	RIGHT OUTER UPRIGHT CAP	$29.49
359271	102	BASE CAP	$14.49
157600	103	BUMPER	$1.99
252433	104	CAUTION DECAL	$0.99
012105	105	M8 FLANGE NUT	$3.49
396115	106	PLATFORM PAD	$0.99
146119	#	FLOOR MAT	$79.99
359357	#	HARDWARE KIT NOTE:	$63.49
ARC14	#	WALL ARC FILTER	$42.99
356520	#	ACCESSORY KIT	$62.49
215823	#	AUDIO WIRE	$11.99
219170	#	3 TUBE LUBE KIT	$39.49
286707	#	INCLN SENSOR WIRE KIT	$70.49
016057	#	8″ CABLE TIE	$2.99
116926	#	RELEASABLE TIE	$0.99
119894	#	HEX KEY	$2.49
219168	#	LUBE KIT, 1 TUBE	$18.99
153196	#	3/8″ DECK MTG WASHER	$2.49
128457	#	ALLEN WRENCH	$25.49
198086	TS03	6″ CNTRLR/PWR CORD WIRE	$3.99
126146	TS04	4″ BLUE WIRE, 2F	$3.49
114011	TS05	4″ BLACK WIRE, M/F	$3.49
114012	TS06	4″ RED WIRE, M/F	$3.99
201563	TS09	INCLINE MOTOR WIRE	$12.49
102634	TS14	CONTROLLER GROUND WIRE	$3.49
