PROFORM ENDURANCE 920 E ELLIPTICAL – PFEL51016.5
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
128 Parts Available for PROFORM ENDURANCE 920 E ELLIPTICAL - PFEL51016.5 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 331296 | 2 | REAR STABILIZER | $138.99 | |||
| 376234 | 3 | RAMP | $192.99 | |||

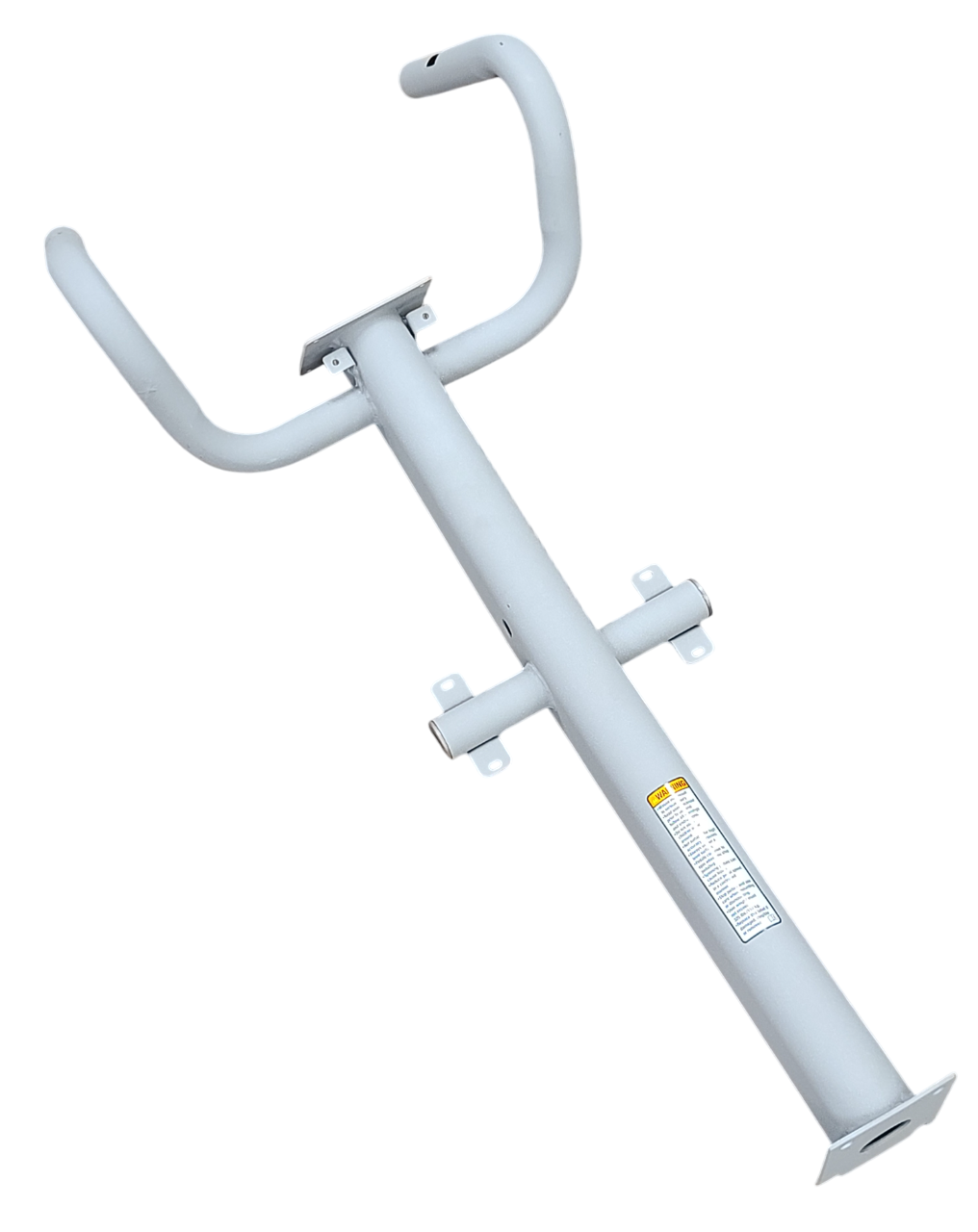

 | 385362 | 4 | UPRIGHT | $192.49 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 401598 | 7A | CONSOLE | $530.49 | |||
| 397222 | 7B | CONSOLE REPROG.DEVICE | $106.99 | |||
| 385663 | 7C | FAN | $111.99 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 372664 | 9 | TABLET HOLDER | $96.99 | ||
| 385339 | 10 | Ramp Cover | $141.99 | |||
| 320496 | 11 | INCLINE MOTOR | $156.49 | |||
| 331259 | 12 | INCLINE MOTOR ARM | $72.49 | |||
 | 320336 | 14 | RAMP ROLLER | $8.49 | ||
| 385338 | 15 | Rear Stabilizer Cover | $78.49 | |||

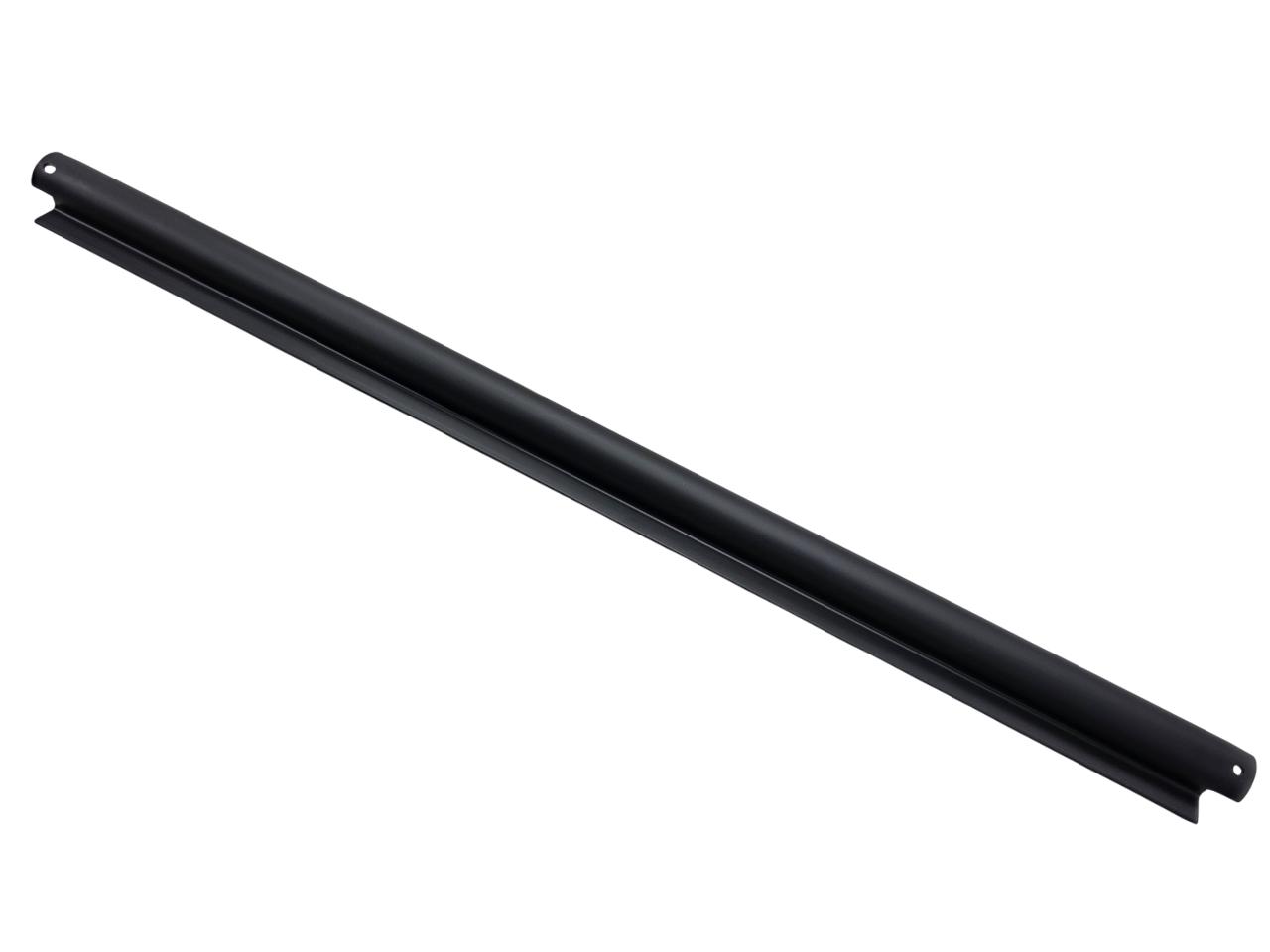

 | 371314 | 16A | TRACK | $39.99 | ||
| 317273 | 16B | TRACK FOAM TAPE | $13.49 | |||
 | 320335 | 17 | LARGE FRAME BUSHING | $16.99 | ||
 | 386166 | 18 | CRANK | $162.99 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 386662 | 20 | CRANK ARM | $182.99 | |||
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
| 332581 | 23 | M10 X 15MM SCREW | $6.49 | |||
| 332579 | 24 | M10 X 95MM BOLT | $14.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
| 195975 | 26 | M10 X 40MM BUTTON BOLT | $12.49 | |||
 | 125819 | 27 | PLASTIC STAND-OFF | $3.99 | ||
| 364320 | 28A | EDDY MECHANISM | $372.99 | |||
 | 321678 | 28B | RESISTANCE CABLE | $46.49 | ||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||

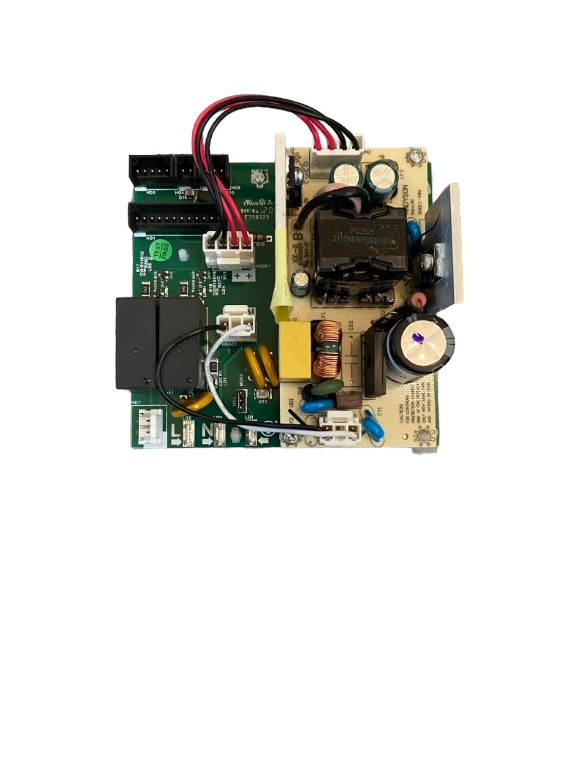

 | 416695 | 31 | CONTROLLER | $161.49 | ||
 | 264511 | 32 | POWER SWITCH | $32.99 | ||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | WHEEL | $24.99 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | UPRIGHT BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 372087 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 131090 | 39 | REED SWITCH CLIP | $0.99 | ||
 | 295804 | 40 | BEARING | $66.99 | ||
 | 362905 | 41 | SMALL SNAP RING | $1.49 | ||
| 338320 | 42 | SLEEVE | $4.99 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
 | 385178 | 44 | Left Pedal Arm | $184.99 | ||
| 380033 | 45 | LEFT ROLLER ARM | $285.99 | |||
| 420314 | 46 | LEFT UPPER BODY LEG | $194.99 | |||
| 385340 | 47 | LEFT UPPER BODY ARM | $144.99 | |||
| 250210 | 48 | 1/2″ HAIRPIN COTTER PIN | $1.99 | |||
| 385335 | 49 | Pedal | $162.99 | |||
 | 275907 | 50A | M10 CRANK NUT,NOTE: | $4.49 | ||
 | 148710 | 50B | M10 LOCKNUT | $2.49 | ||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 385370 | 52A | LT PEDAL HANDLE | $23.49 | |||
| 385372 | 52B | RT PEDAL HANDLE | $23.49 | |||
 | 384941 | 53 | CRANK COVER | $1.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | ARM BEARING | $43.49 | ||
| 385260 | 58 | RIGHT PEDAL ARM | $166.49 | |||
| 380020 | 59 | RIGHT ROLLER ARM | $176.49 | |||
| 420315 | 60 | RIGHT UPPER BODY LEG | $194.99 | |||
| 385341 | 61 | RIGHT UPPER BODY ARM | $144.99 | |||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 399157 | 63B | PULSE WIRE | $68.99 | |||
 | 384800 | 64 | PEDAL ARM AXLE | $43.99 | ||
| 384834 | 65 | RIGHT ARM FRONT COVER | $53.49 | |||
| 384828 | 66 | RIGHT ARM REAR COVER | $48.99 | |||
| 384816 | 67 | LEFT ARM FRONT COVER | $51.99 | |||
| 384822 | 68 | LEFT ARM REAR COVER | $46.49 | |||
 | 335837 | 69 | RIGHT LEG OUTER COVER | $43.99 | ||
 | 335834 | 70 | LEFT LEG OUTER COVER | $43.99 | ||
 | 316683 | 71 | DISC | $99.99 | ||
| 335835 | 72 | LEFT LEG INNER COVER | $43.99 | |||
| 385366 | 73 | Left Shield | $140.49 | |||
| 385367 | 74 | RIGHT SHIELD | $126.49 | |||
| 385365 | 75 | SHIELD COVER | $122.99 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||
 | 133333 | 77 | HOOD CLIP | $0.99 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 385137 | 79 | FRONT CONSOLE COVER | $29.99 | |||
| 385136 | 80 | REAR CONSOLE COVER | $54.49 | |||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 191032 | 82A | M8 X 13MM PATCH SCREW | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 335836 | 83 | RIGHT LEG INNER COVER | $43.99 | |||
| 248342 | 84 | M10 WASHER | $1.99 | |||
| 384939 | 85A | LT PEDAL PLATE | $113.49 | |||
| 385170 | 85B | RT PEDAL PLATE | $113.49 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 281150 | 88 | IDLER PIVOT SCREW | $4.49 | ||
 | 208163 | 89 | M6 X 20MM SCREW | $1.99 | ||
 | 340140 | 90 | CRANK WASHER | $1.49 | ||
 | 281149 | 91 | DRIVE BELT ADJ SCREW | $6.49 | ||
| 248334 | 92 | M10 X 20MM SCREW | $5.49 | |||
 | 168267 | 93 | FAN SCREW | $0.99 | ||
| 235322 | 94 | M5 X 14MM WASHER | $2.49 | |||
 | 206321 | 95A | M8 X 19MM PATCH SCREW | $3.49 | ||
 | 223089 | 95B | M8 X 15MM SCREW | $6.99 | ||
 | 251830 | 96 | M8 X 38MM BOLT | $4.49 | ||
 | 281801 | 97 | M8 X 21MM WASHER | $7.49 | ||
 | 224113 | 98 | M8 WASHER, UPRT | $2.49 | ||
 | 232289 | 99 | M10 X 20MM SCREW | $28.49 | ||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | 1/2″ TEK SCREW | $0.99 | ||
 | 194878 | 101B | M4 X 20MM SCREW | $2.99 | ||
 | 195562 | 101C | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102A | M8 NYLON LOCKNUT | $1.99 | ||
 | 256446 | 102B | M8 NYLON LOCKNUT | $0.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW | $3.49 | ||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | SNAP MOUNT ONLY | $2.49 | ||
| 303479 | 106B | SNAP MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
| 242105 | 108 | M6 X 16MM SCREW | $1.99 | |||
| 208938 | 109 | M10 X 60MM BUTTON BOLT | $5.99 | |||
 | 362904 | 110 | MAIN WIRE | $69.99 | ||
 | 184369 | 111 | M4 X 16MM SELF-TPPNG SCRW | $0.99 | ||
 | 313668 | 112 | POWER CORD GROMMET | $9.49 | ||
 | 119199 | 113 | DRIVE BELT | $59.99 | ||
| 300804 | 115 | CONTROL BOARD BRACKET | $29.99 | |||
 | 335816 | 117 | FRONT UPRIGHT COVER | $73.99 | ||
| 320382 | 118 | SHIELD COVER CAP | $40.99 | |||
 | 342275 | 119 | POWER CORD | $49.99 | ||
| 316836 | 120 | RAMP AXLE | $54.99 | |||
 | 237616 | 121 | BRASS BUSHING | $4.99 | ||
| 320499 | 122 | CLEVIS PIN | $10.99 | |||
| 306635 | 123 | PLASTIC SPACER | $3.49 | |||
 | 386630 | 124 | SMALL LEVELING FOOT | $19.99 | ||
 | 157600 | 125 | CURL BUMPER | $1.99 | ||
 | 384942 | 126 | M8 X 20MM FLAT HEAD SCREW | $6.49 | ||
 | 250961 | 127 | M4 X 19MM SCREW | $0.99 | ||
| 238278 | 128 | LIFT ARM WASHER | $1.49 | |||
 | 384931 | 129 | SMALL ARM BEARING | $43.99 | ||
| 377962 | 130 | RIGHT REAR HANDLEBAR CVR | $16.99 | |||
| 377960 | 131 | RIGHT FRONT HANDLEBAR CVR | $16.99 | |||
| 377964 | 134 | BOSS | $9.49 | |||
 | 378015 | 135 | M6 X 110MM SCREW | $5.49 | ||
| 349611 | 136 | PEDAL AXLE | $27.49 | |||
 | 194653 | 137 | M6 ACORN NUT | $1.99 | ||
| 384801 | 138 | BEARING SPACER | $24.99 | |||
 | 337966 | 139 | LARGE AXLE COVER | $5.49 | ||
 | 223812 | 140 | M8 CRANK PIVOT WASHER | $1.99 | ||
| 331242 | 141 | RECTANGLE GROMMET | $6.49 | |||
| 273352 | 143 | M4 X 19MM TEK SCREW | $0.99 | |||
 | 325993 | 144 | PEDAL PIN | $19.99 | ||
 | 321268 | 145 | PEDAL SPRING | $3.49 | ||
| 387819 | 146 | BRAKE WASHER | $1.99 | |||
 | 197037 | 147 | M6 X 12MM SCREW | $0.99 | ||
| 266083 | # | DECAL, GENERAL WARNING | $6.49 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
 | 014033 | # | M6 WASHER | $1.49 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 234276 | # | GROUND SCREW | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 248349 | # | M8 X 25MM WASHER | $6.49 | ||
| 320643 | TS4 | 26″ WHITE WIRE M/F, POWER | $34.99 | |||
| 320644 | TS5 | 30″ BLUE WIRE F/F, SWITCH | $25.49 | |||
 | 142711 | TS6 | CONTROL BOARD GRND WIRE | $2.49 | ||
| 302754 | TS7 | INCLINE MTR WIRE HARNESS | $27.49 | |||
| 324737 | TS8 | LOWER WIRE HARNESS | $30.49 |
