PROFORM CROSSWALK 3.0 XT TREADMILL – PFTL66806.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
96 Parts Available for PROFORM CROSSWALK 3.0 XT TREADMILL - PFTL66806.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 101263 | 15 | MOTOR PIVOT BOLT | $4.99 | |||
| 136728 | 17 | #8 BELT GUIDE SCREW | $0.99 | |||
 | 117332 | 18 | 3/8″ X 3/4″ SCREW | $4.49 | ||
 | 230327 | 19 | 1/4″ X 2 1/4″ SCREW | $19.49 | ||
| 137224 | 20 | PLATFORM BOLT, REAR | $0.99 | |||
| 207753 | 21 | HANDRAIL BOLT | $4.49 | |||
 | 013300 | 22 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
| 231085 | 23 | LIFT FRAME BOLT | $4.99 | |||
| 179767 | 24 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 181979 | 25 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
| 226451 | 27 | POWER CORD BRACKET | $3.99 | |||
| 014157 | 28 | #8 STAR WASHER | $0.99 | |||
| 120867 | 30 | MOTOR TENSION NUT | $2.49 | |||
 | 136012 | 32 | WALKING BOARD NUT | $0.99 | ||
| 226956 | 34 | HAND GRIP | $8.99 | |||
| 215158 | 35 | ACCESS DOOR | $1.99 | |||
| 252861 | 37 | BASE | $158.49 | |||
| 252859 | 38 | LEFT UPRIGHT | $117.49 | |||
| 252860 | 39 | RIGHT UPRIGHT | $117.49 | |||
| 227378 | 41 | LIFT FRAME | $106.99 | |||
| 227382 | 45 | CONSOLE SUPPORT BRACKET | $44.99 | |||
| 226650 | 46 | STOP BRACKET | $1.99 | |||
| 198640 | 47 | BELT GUIDE | $25.49 | |||
| 241739 | 49 | BELLY PAN | NLA | Unavailable to order | ||
 | 141173 | 50 | LIFT FRAME SPACER | $3.49 | ||
| 126650 | 51 | BUMPER | $0.99 | |||
 | 173169 | 52 | SQUARE GROMMET | $0.99 | ||
| 226447 | 57 | LEFT REAR FOOT | $9.49 | |||
| 226448 | 58 | RIGHT REAR FOOT | $9.49 | Unavailable to order | ||
 | 185207 | 59 | REED SWITCH/WIRE | $27.49 | ||
 | 013607 | 62 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 113842 | 63 | MAGNET | $1.49 | ||
 | 241697 | 64 | Controller | $189.99 | ||
 | 408938 | 64 | Motor Control Board | $179.99 | ||
 | 186726 | 65 | POWER SWITCH | $22.49 | ||
| 233360 | 66 | FRONT ROLLER BUSHING | NLA | Unavailable to order | ||
| 252900 | 68 | CONSOLE | $286.99 | |||
| 239428 | 69 | UPRIGHT WIRE | $84.49 | |||
| 227198 | 70 | REAR ROLLER GROUND WIRE | $2.49 | |||
 | 227199 | 72 | GROMMET | $2.49 | ||
 | 031229 | 73 | POWER CORD | $39.99 | ||
| 132315 | 77 | ZIP TIE | $3.49 | |||
 | 131090 | 78 | CLAMP | $0.99 | ||
| 116926 | 79 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 252854 | 80 | HOOD COVER | $103.49 | |||

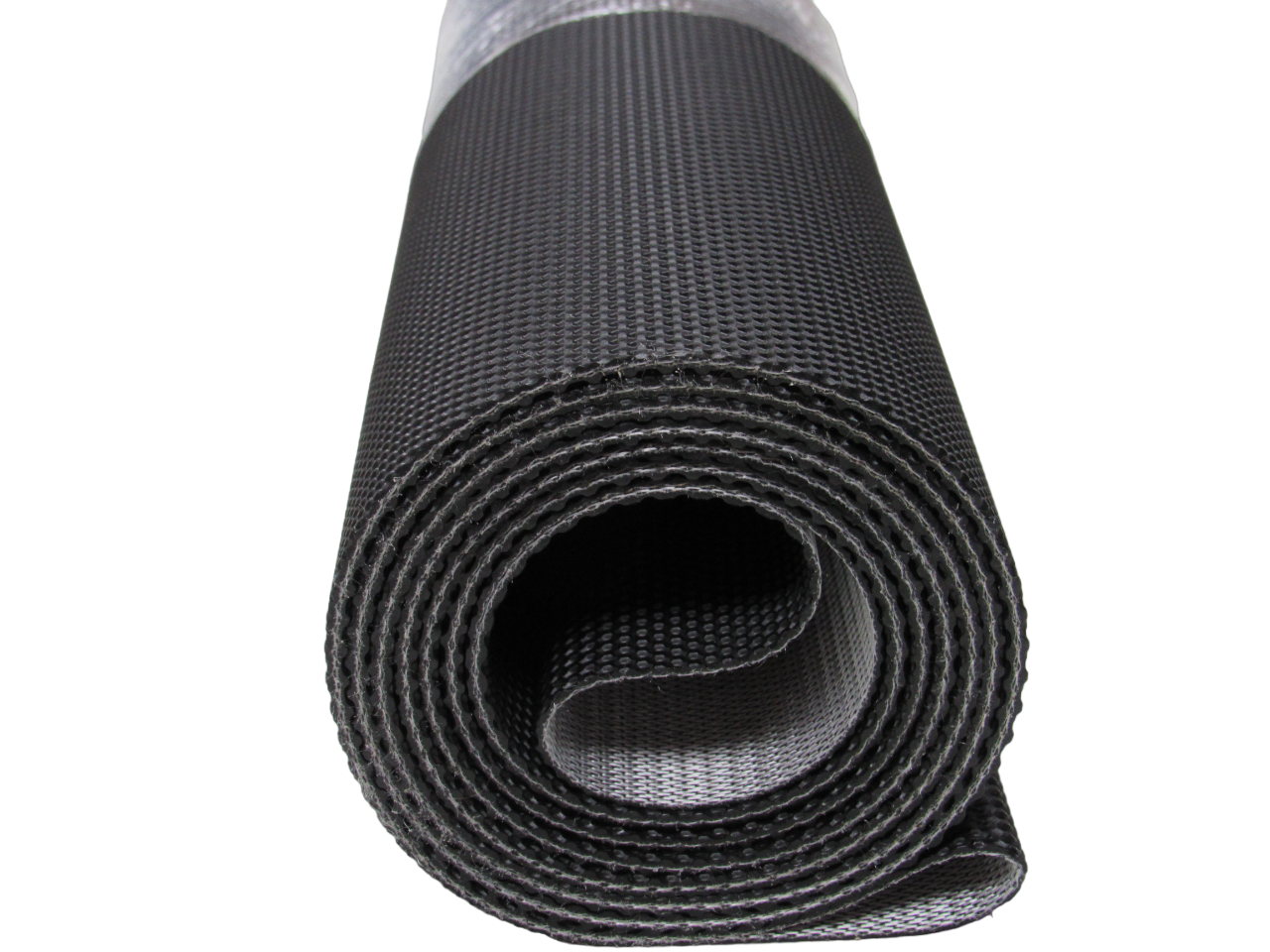

 | 252851 | 82 | WALKING BELT | $126.99 | ||
 | 013576 | 83 | CROWN SCREW | $0.99 | ||
 | 248762 | 85 | MOTOR BELT | $30.99 | ||
| 413303 | 87 | WARNING DECAL | $3.99 | |||
| 240692 | 88 | PROSOFT DECAL | NLA | Unavailable to order | ||
| 252433 | 89 | DECAL, CAUTION, BASE LEG | $0.99 | |||
 | 013316 | 95 | #10 X 3/4″ SCREW | $0.99 | ||
 | 227163 | 96 | UPPER BODY ARM ENDCAP | $1.49 | ||
| 227096 | 99 | BASE ENDCAP | $1.99 | |||
| 126942 | 100 | #8 X 3/4″ TEK SCREW, NOTE | $0.99 | |||
| 183824 | 101 | #8 X 3/8″ SCREW | $0.99 | |||
| 203982 | 102 | 10″ FILTER W/WIRE | $27.49 | |||
 | 112083 | # | 8″ BLUE WIRE, F/F | $4.49 | ||
| 114953 | # | 14″ BLUE WIRE,2 FEMALE | $5.49 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
| 240351 | # | 8″ WIRE TIE | $0.99 | |||
| 247832 | # | DECAL, X-WALK ARMS, LOGO | NLA | Unavailable to order | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 155354 | # | DECAL,LT ENDCP’SPACESAVR’ | $2.49 | |||
| 248047 | # | HARDWARE KIT | NLA | Unavailable to order | ||
| 114011 | # | 4″ BLACK WIRE,M/F | $3.49 | |||
| 114012 | # | 4″ RED WIRE, M/F | $3.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 247831 | # | DECAL, HOOD | NLA | Unavailable to order | ||
| 240185 | # | DECAL, CONSOLE LOGO | NLA | Unavailable to order | ||
| 194526 | # | 8″ GREEN WIRE, F/RING | $3.49 | |||
| 238628 | # | HOOD COVER TAPE | $3.49 | |||
| 229057 | # | REAR ROLLER BRACKET TAPE | $0.99 | |||
| 247835 | # | TECH SHEET | NLA | Unavailable to order | ||
| 221100 | # | TAPE, FRAME | $0.99 | |||
 | 208603 | . | KEY/CLIP | $19.99 | ||
 | 014132 | . | 3/8″ WASHER | $0.99 | ||
 | 189861 | . | ROLLER STAR WASHER | $1.49 | ||
| 016057 | . | 8″ CABLE TIE | $2.99 | |||
| 247837 | . | USER’S MANUAL | NLA | Unavailable to order | ||
 | 014063 | . | 1/4″ FLAT WASHER | $0.99 | ||
| 124123 | . | WHEEL BOLT | $3.49 | |||
 | 139090 | . | WHEEL | $2.99 | ||
| 045023 | . | 5/32″ ALLEN WRENCH, HEX | $1.99 | |||
| 013501 | . | 3/8″ X 2 1/2″ SCREW | $4.99 | |||
 | 119425 | . | 3/8″ LOCKNUT | $0.99 | ||
 | 012149 | . | 3/8″ NUT | $0.99 | ||
 | 186819 | . | #8 X 1/2″ SCREW | $0.99 | ||
 | 104838 | . | GREASE PACKET | $8.49 | ||
 | 128457 | . | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
 | 174801 | . | 1/4″ X 1/2″ SCREW | $0.99 | ||
 | 014117 | . | STAR WASHER | $0.99 | ||
| 126970 | . | 3 1/2″ BOLT | $2.49 | |||
| 101630 | . | STAR WASHER | $0.99 | |||
 | 013322 | . | #8 X 3/4″ SCREW | $0.99 |
