PROFORM 6.0 ZE ELLIPTICAL – PFEL53909.4
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
89 Parts Available for PROFORM 6.0 ZE ELLIPTICAL - PFEL53909.4 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 281553 | 2 | UPRIGHT | $171.49 | |||
| 280935 | 5 | ACCESSORY TRAY | $27.49 | |||
 | 241954 | 7 | RESISTANCE DISC | $1.99 | ||
| 281554 | 8 | LEFT UPPER BODY ARM | $120.49 | |||
| 281555 | 9 | RIGHT UPPER BODY ARM | $124.49 | |||
| 246303 | 11 | 1 1/4″ ROUND ENDCAP | $0.99 | |||
| 282741 | 13 | RIGHT PEDAL | $102.99 | |||
| 281573 | 14 | LEFT PEDAL ARM | $149.49 | |||
 | 280998 | 15 | PEDAL BRACKET | $47.49 | ||
 | 256295 | 17 | HANDLEBAR BUSHING (138574) | $4.99 | ||
| 305949 | 18 | DISC COVER | $61.49 | |||
| 316998 | 19 | PIVOT COVER A | $19.49 | |||
 | 281020 | 23 | PEDAL ARM BUSHING | $6.49 | ||
| 305952 | 26 | PEDAL DISC | $151.49 | |||
| 310434 | 27 | M8 X 12MM SCREW | $2.49 | |||
| 272391 | 28A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 28B | LEFT PULSE WIRE | $17.49 | |||
 | 018030 | 29 | MEDIUM ROLLER | $19.49 | ||
| 281023 | 31 | SHOULDER BOLT | $17.99 | |||
 | 283133 | 32 | CONSOLE COVER | $27.99 | ||
 | 261150 | 33 | M8 X 23.5MM WASHER | $2.20 | ||
 | 303952 | 34 | RESISTANCE BRACKET | $4.99 | ||
| 183633 | 35 | M5 WASHER | $1.99 | |||
 | 304180 | 36 | SNAP RING | $0.99 | ||
| 280929 | 37 | TOP SHIELD COVER | $25.49 | |||
 | 139703 | 38 | FOLDING FRAME BEARING | $33.49 | ||
| 283138 | 39 | HANDLEBAR | $89.99 | |||
| 256148 | 40 | SPACER | $6.49 | |||
 | 113842 | 41 | MAGNET | $1.49 | ||
 | 014033 | 43 | M6 WASHER | $1.49 | ||
| 281552 | 45 | RIGHT SHIELD | $192.99 | |||
 | 306492 | 46 | DRIVE BELT | $67.49 | ||
| 280953 | 47 | LEVELING FOOT | $24.49 | |||
| 281574 | 49 | RIGHT PEDAL ARM | $171.49 | |||
 | 280951 | 50 | WHEEL | $24.49 | ||
| 312441 | 51 | FLYWHEEL | $286.99 | |||
 | 363093 | 52 | IDLER | $116.49 | ||
 | 308036 | 54 | RESISTANCE MOTOR | $117.99 | ||
| 279645 | 55 | MOTOR BRACKET | $12.99 | |||
 | 304734 | 56 | RESISTANCE ARM | $32.99 | ||
 | 131090 | 57 | CLAMP | $0.99 | ||
 | 186070 | 58 | REED SWITCH/WIRE | $28.99 | ||
| 283338 | 59 | REAR SHIELD COVER | $72.49 | |||
| 281559 | 60 | KEY | $2.49 | |||
| 281558 | 61 | RT CRANK ARM NUT | $3.49 | |||
 | 199493 | 62 | M6 X 16MM TAPRD BTN SCREW | $4.62 | ||
 | 251978 | 63 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
 | 284116 | 64 | FLYWHEEL AXLE | $19.99 | ||
| 281148 | 65 | C-MAGNET BRACKET BOLT | $3.49 | |||
 | 281150 | 66 | IDLER BOLT | $4.49 | ||
 | 168267 | 69 | RESISTANCE MOTOR SCREW | $0.99 | ||
| 281005 | 70 | REAR STABILIZER | $107.99 | |||
| 234286 | 71 | MOTOR BRACKET SCREW | $0.99 | |||
 | 281149 | 72 | BELT ADJUSTMENT SCREW | $6.49 | ||
| 254769 | 74 | M6 LOCKNUT | $1.49 | |||
| 153770 | 76 | M8 X 45MM BUTTON SCREW | $14.49 | |||
 | 256446 | 77 | M8 JAM NUT | $0.99 | ||
 | 177034 | 78 | M10 SPLIT WASHER | $1.49 | ||
| 248334 | 79 | M10 X 19MM PATCH SCREW | $5.49 | |||
 | 223168 | 80 | CAM SCREW | $5.99 | ||
| 204486 | 81 | M8 X 14MM BUTTON SCREW | $2.99 | |||
| 283304 | 83 | M5 X 7MM SCREW | $3.49 | |||
 | 247329 | 85 | M8 X 18MM BOLT | $2.99 | ||
| 277369 | 86 | PULLEY | $174.49 | |||
 | 276024 | 87 | M3.5 X 12MM SCREW,NOTE | $1.49 | ||
 | 208163 | 88 | PIVOT SCREW | $1.99 | ||
 | 275248 | 89 | M4 X 48MM SCREW | $0.99 | ||
 | 013423 | 90 | GROUND SCREW | $0.99 | ||
 | 150327 | 91 | M5 NUT | $1.99 | ||
 | 013162 | 92A | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 208817 | 92B | #8 X 5/8″ SCREW | $0.99 | ||
| 284963 | 93A | LT PULSE GRIP ASSY W/WIRE | $68.49 | |||
| 284964 | 93B | RT PULSE GRIP ASSY W/WIRE | $68.49 | |||

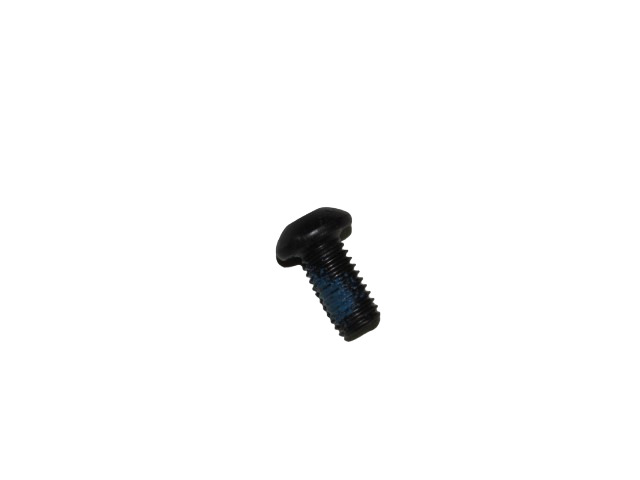

 | 223089 | 95 | M8 X 15MM SCREW | $6.99 | ||
| 305942 | 96 | LEFT CRANK ARM | $123.49 | |||
| 305948 | 97 | CRANK ARM SPACER | $16.99 | |||
 | 342275 | 119 | POWER CORD | $49.99 | ||
| 116926 | # | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 240351 | # | ANCHORED ZIP TIE | $0.99 | |||
| 299925 | # | WARNING DECAL | $11.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 127597 | # | TREE FASTENER | $1.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 345058 | # | USER’S MANUAL | $12.49 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 248512 | # | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
| 045021 | # | 6MM ALLEN WRENCH | $7.49 | |||
 | 045008 | # | 5MM ALLEN WRENCH | $2.49 |
