PROFORM 6.0 ZE ELLIPTICAL – PFEL53909.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
87 Parts Available for PROFORM 6.0 ZE ELLIPTICAL - PFEL53909.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 281553 | 2 | UPRIGHT | $171.49 | |||
| 280935 | 5 | ACCESSORY TRAY | $27.49 | |||
 | 241954 | 7 | RESISTANCE WHEEL | $1.99 | ||
| 281554 | 8 | LEFT UPPER BODY ARM | $120.49 | |||
| 281555 | 9 | RIGHT UPPER BODY ARM | $124.49 | |||
| 246303 | 11 | 1 1/4″ ROUND ENDCAP | $0.99 | |||
| 282741 | 13 | RIGHT PEDAL | $102.99 | |||
| 281573 | 14 | LEFT PEDAL ARM | $149.49 | |||
 | 280998 | 15 | PEDAL BRACKET | $47.49 | ||
 | 256295 | 17 | HANDLEBAR BUSHING (138574) | $4.99 | ||
| 305949 | 18 | DISC COVER | $61.49 | |||
| 316998 | 19 | PIVOT COVER A | $19.49 | |||
 | 281020 | 23 | PEDAL ARM BUSHING | $6.49 | ||
 | 345904 | 24 | CRANK | $61.49 | ||
| 305952 | 27 | PEDAL DISC | $151.49 | |||
| 272391 | 28A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 28B | LEFT PULSE WIRE | $17.49 | |||
 | 018030 | 29 | MEDIUM ROLLER | $19.49 | ||
| 281023 | 31 | SHOULDER BOLT | $17.99 | |||
 | 283133 | 32 | CONSOLE COVER | $27.99 | ||
 | 261150 | 33 | M8 X 23.5MM WASHER | $2.20 | ||
| 183633 | 35 | M5 WASHER | $1.99 | |||
 | 304180 | 36 | SNAP RING | $0.99 | ||
| 280929 | 37 | TOP SHIELD COVER | $25.49 | |||
 | 139703 | 38 | FOLDING FRAME BEARING | $33.49 | ||
| 283138 | 39 | HANDLEBAR | $89.99 | |||
 | 143742 | 40 | SMALL SNAP RING | $3.99 | ||
 | 113842 | 41 | MAGNET | $1.49 | ||
 | 014063 | 43 | 1/4″ FLAT WASHER | $0.99 | ||
| 281552 | 45 | RIGHT SHIELD | $192.99 | |||

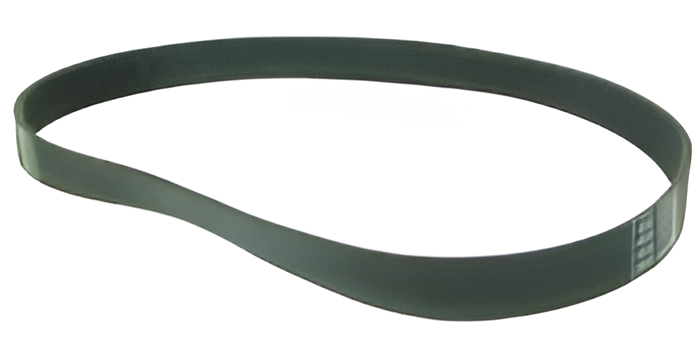

 | 306492 | 46 | DRIVE BELT | $67.49 | ||
| 280953 | 47 | LEVELING FOOT | $24.49 | |||
| 281574 | 49 | RIGHT PEDAL ARM | $171.49 | |||
 | 280951 | 50 | WHEEL | $24.49 | ||
| 312443 | 51 | FLYWHEEL | $264.49 | |||
 | 363093 | 52 | IDLER | $116.49 | ||
 | 308036 | 54 | RESISTANCE MOTOR | $117.99 | ||
| 279645 | 55 | MOTOR BRACKET | $12.99 | |||
 | 304734 | 56 | RESISTANCE ARM | $32.99 | ||
 | 131090 | 57 | CLAMP | $0.99 | ||
 | 186070 | 58 | REED SWITCH/WIRE | $28.99 | ||
| 283338 | 59 | REAR SHIELD COVER | $72.49 | |||
| 281559 | 60 | KEY | $2.49 | |||
| 281558 | 61 | RT CRANK ARM NUT | $3.49 | |||
 | 199493 | 62 | M6 X 16MM TAPRD BTN SCREW | $4.62 | ||
 | 251978 | 63 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
 | 284116 | 64 | FLYWHEEL AXLE | $19.99 | ||
| 281148 | 65 | C-MAGNET BRACKET BOLT | $3.49 | |||
 | 281150 | 66 | IDLER BOLT | $4.49 | ||
 | 168267 | 69 | RESISTANCE MOTOR SCREW | $0.99 | ||
| 281005 | 70 | REAR STABILIZER | $107.99 | |||
| 234286 | 71 | MOTOR BRACKET SCREW | $0.99 | |||
 | 281149 | 72 | BELT ADJUSTMENT SCREW | $6.49 | ||
| 254769 | 74 | M6 LOCKNUT | $1.49 | |||
| 153770 | 76 | M8 X 45MM BUTTON SCREW | $14.49 | |||
 | 256446 | 77 | M8 JAM NUT | $0.99 | ||
 | 177034 | 78 | M10 SPLIT WASHER | $1.49 | ||
| 248334 | 79 | M10 X 19MM PATCH SCREW | $5.49 | |||
 | 223168 | 80 | CAM SCREW | $5.99 | ||
| 204486 | 81 | M8 X 14MM BUTTON SCREW | $2.99 | |||
| 283304 | 83 | M5 X 7MM SCREW | $3.49 | |||
 | 247329 | 85 | M8 X 18MM BOLT | $2.99 | ||
| 277369 | 86 | PULLEY | $174.49 | |||
 | 276024 | 87 | M3.5 X 12MM SCREW | $1.49 | ||
 | 208163 | 88 | PIVOT SCREW | $1.99 | ||
 | 275248 | 89 | M4 X 48MM SCREW | $0.99 | ||
 | 013423 | 90 | GROUND SCREW | $0.99 | ||
 | 013162 | 92A | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 208817 | 92B | #8 X 5/8″ SCREW | $0.99 | ||
| 284963 | 93A | LT PULSE GRIP ASSY W/WIRE | $68.49 | |||
| 284964 | 93B | RT PULSE GRIP ASSY W/WIRE | $68.49 | |||
| 215823 | 95 | AUDIO WIRE | $11.99 | |||
| 305942 | 96 | LEFT CRANK ARM | $123.49 | |||
| 305948 | 97 | CRANK ARM SPACER | $16.99 | |||
| 310434 | 98 | M8 X 12MM SCREW | $2.49 | |||
 | 248512 | # | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
| 045021 | # | 6MM ALLEN WRENCH | $7.49 | |||
| 240351 | # | ANCHORED ZIP TIE | $0.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 319656 | # | USER’S MANUAL, FCA | $12.49 | |||
| 306382 | # | USER’S MANUAL | $8.49 | |||
| 166909 | # | DECAL, SITE WARNING | $2.49 | |||
| 116926 | # | RELEASABLE CABLE TIE | $0.99 | |||
| 258873 | # | DECAL, GENERAL WRNG, FCA | $2.99 | |||
| 127597 | # | TREE FASTENER | $1.99 | |||
| 299925 | # | WARNING DECAL | $11.49 | |||
 | 045008 | # | 5MM ALLEN WRENCH | $2.49 |
