PROFORM 575 CROSSTRAINER TREADMILL – PFTL54706.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
112 Parts Available for PROFORM 575 CROSSTRAINER TREADMILL - PFTL54706.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 234275 | 3 | M4.2 X 13MM TEK SCREW | $0.99 | |||
 | 234235 | 4 | M4.2 X 16MM SCREW | $0.99 | ||
| 413303 | 6 | WARNING DECAL | $3.99 | |||
| 252163 | 12 | CONSOLE BACK | NLA | Unavailable to order | ||
| 234283 | 19 | M8 X 30MM SCREW | $1.49 | |||
| 237529 | 21 | M4.2 X 13MM SCREW | $0.99 | |||
| 234280 | 25 | M5.5 X 25MM SCREW | $0.99 | |||
| 234274 | 27 | M8 X 35MM SCREW | $0.99 | |||
| 234284 | 28 | M4.2 X 13MM SCREW | $0.99 | |||
 | 234285 | 29 | M6 X 70MM BOLT | $3.49 | ||
| 250549 | 31 | MOTOR PIVOT BOLT | $5.49 | |||
 | 234288 | 34 | M8 X 20MM BOLT | $1.49 | ||
| 206320 | 35 | M10 X 65MM SCREW | $4.49 | |||
| 234928 | 36 | STAR WASHER | $0.99 | |||
 | 186726 | 37 | POWER SWITCH | $22.49 | ||
| 234325 | 38 | M8.4 STAR WASHER | $1.49 | |||
| 248728 | 39 | WIRE HARNESS | $80.99 | |||
| 248732 | 40 | INCLINE MOTOR | $170.99 | |||
| 241305 | 41 | M4.2X13MM WASHR HEAD SCRW | $0.99 | |||
| 237534 | 42 | M4.2 STAR WASHER | $0.99 | |||
| 144681 | 44 | M8 FLANGE NUT | $0.99 | |||
| 243068 | 45 | WHEEL HOUSING | NLA | Unavailable to order | ||
 | 256446 | 46 | M8 LOCKNUT | $0.99 | ||
 | 133333 | 47 | CLIP NUT | $0.99 | ||
 | 227199 | 49 | GROMMET | $2.49 | ||
 | 138853 | 50 | PLASTIC FASTENER | $0.99 | ||
| 252020 | 52 | BASE | $135.49 | |||
| 247434 | 53 | LEFT UPRIGHT | $99.99 | |||
| 247430 | 54 | RIGHT UPRIGHT | $96.49 | |||
 | 248571 | 55 | IDLER ROLLER | $166.49 | ||
 | 248569 | 56 | DRIVE BELT | $14.99 | ||
| 397391 | 57 | ELECTRONICS BRACKET | $61.49 | |||
| 179767 | 58 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
| 234661 | 59 | DRIVE MOTOR BRACKET | $58.99 | |||
 | 113842 | 62 | MAGNET | $1.49 | ||
| 239459 | 64 | CATCH | $4.99 | |||
| 252009 | 67 | LEFT FOOT RAIL | $73.99 | |||
| 252010 | 68 | RIGHT FOOT RAIL | $67.49 | |||
| 236932 | 69 | WHEEL SPACER | $2.49 | |||
| 244269 | 70 | WHEEL | $6.99 | |||
| 297196 | 71 | DRIVE ROLLER/PULLEY | $144.99 | |||
 | 181979 | 72 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
| 252164 | 73 | ACCESS DOOR | $3.99 | |||
| 247147 | 75 | M5.5 X 30MM SCREW | $0.99 | |||

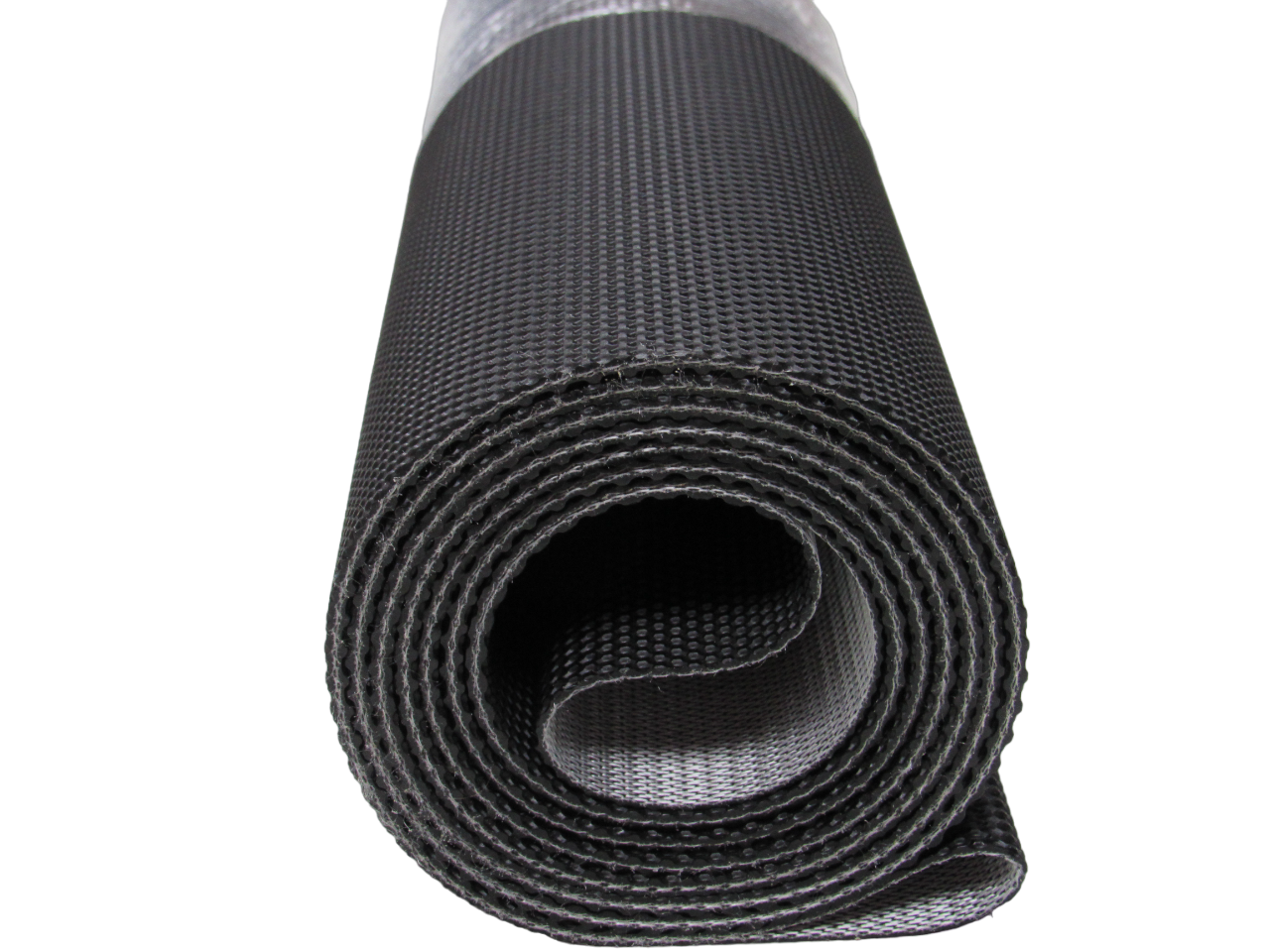

 | 248720 | 76 | WALKING BELT | $107.99 | ||
| 131221 | 77 | HANDRAIL CAP | $1.49 | |||
| 252042 | 78 | PLATFORM CUSHION | $21.99 | |||
| 405691 | 79 | DRIVE MOTOR | $204.49 | |||
| 132315 | 80 | ZIP TIE | $3.49 | |||
 | 012149 | 82 | 3/8″ NUT | $0.99 | ||
 | 131090 | 83 | CLAMP | $0.99 | ||
| 248719 | 86 | WALKING PLATFORM | $140.49 | |||
 | 408938 | 87 | Motor Control Board | $179.99 | ||
 | 185207 | 89 | REED SWITCH/WIRE | $27.49 | ||
 | 031229 | 90 | POWER CORD | $39.99 | ||
| 252989 | 91 | CONSOLE ASSEMBLY | $272.49 | |||
 | 119425 | 92 | 3/8″ LOCKNUT | $0.99 | ||
| 198640 | 93 | BELT GUIDE | $25.49 | |||
| 104794 | 95 | FRAME CAP | $1.99 | |||
| 116926 | 96 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 243709 | 97 | REAR FOOT, RIGHT | $12.49 | |||
 | 189813 | 98 | FILTER WIRE | $23.99 | ||
 | 173169 | 99 | SQUARE GROMMET | $0.99 | ||
 | 201563 | 100 | INCLINE MOTOR WIRE | $12.49 | ||
| 236884 | 101 | ROLLER WASHER | $15.99 | |||
| 238292 | 102 | M4 X 10MM SCREW | $0.99 | |||
| 240194 | 103 | CONSOLE FAN | $29.49 | |||
| 165395 | 104 | 2 LB WEIGHT | $59.99 | |||
| 241356 | 105 | CAGE NUT | $2.99 | |||
| 252433 | 106 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 243172 | # | DECAL,LOGO,PROFORM,6″CNSL | $5.49 | |||
| 101896 | # | 4″ WHITE WIRE,M/F | $3.49 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 143112 | # | 016″ BLUE WIRE | $5.49 | |||
| 244805 | # | DECAL,PRO TECH CUSHIONING | NLA | Unavailable to order | ||
| 231283 | # | TAPE,REAR ROLLER BRACKET | $0.99 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 126146 | # | 4″ BLUE WIRE,F/F | $3.49 | |||
| 016063 | # | CLAMP, TWIST TIE | $0.99 | |||
| 114011 | # | 4″ BLACK WIRE,M/F | $3.49 | |||
| 198084 | # | 6″ RED WIRE, M/F | $3.99 | |||
| 221100 | # | TAPE, FRAME | $0.99 | |||
| 249274 | # | HARDWARE KIT | NLA | Unavailable to order | ||
| 141995 | # | 8″ BLACK WIRE, M/F | $4.49 | |||
| 128548 | . | M8 X 14MM BUTTON SCREW | $2.99 | |||
| 244931 | . | M10 X 60MM SCREW | $15.49 | |||
| 236807 | . | M5 STAR WASHER | $0.99 | |||
| 140206 | . | M10 WASHER | $1.99 | |||
| 244627 | . | USER’S MANUAL | $12.49 | |||
 | 014033 | . | IDLER WASHER | $1.49 | ||
| 119894 | . | 4MM ALLEN WRENCH | $2.49 | |||
| 016057 | . | 8″ CABLE TIE | $2.99 | |||
 | 045008 | . | 5MM ALLEN WRENCH | $2.49 | ||
| 244123 | . | FRAME SPACER | $0.99 | |||
| 163979 | . | M10 X 58MM BOLT | $7.49 | |||
| 236808 | . | SHAFT EXTERNAL STAR WSHR | $0.99 | |||
| 181248 | . | 6MM ALLEN WRENCH | $6.99 | |||
| 237809 | . | M6 X 58MM SCREW | $1.49 | |||
 | 155030 | . | BASE PAD | $1.99 | ||
| 241732 | . | M4.2X19MM WASHR HEAD SCRW | $0.99 | |||
| 241734 | . | M4.2 X 19MM TEK SCREW | $0.99 | |||
 | 186819 | . | #8 X 1/2″ SCREW | $0.99 | ||
 | 104838 | . | GREASE PACKET | $8.49 | ||
 | 148710 | . | M10 LOCKNUT | $2.49 | ||
 | 208603 | . | KEY/CLIP | $19.99 | ||
| 207213 | . | M10 STAR WASHER | $1.49 | |||
| 236948 | . | M5 X 16MM SCREW | $0.99 | |||
| 234226 | . | M4.2 X 19MM SCREW | $0.99 | |||
 | 012142 | . | BRACKET SPACER | $0.99 |
