PROFORM 510 ES ELLIPTICAL – PFEL64913.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
154 Parts Available for PROFORM 510 ES ELLIPTICAL - PFEL64913.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 331296 | 2 | REAR STABILIZER | $138.99 | |||
| 347931 | 3 | RAMP | $148.99 | |||
| 347925 | 4 | UPRIGHT | $135.99 | |||
 | 194878 | 5 | M4 X 20MM SCREW | $2.99 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 325912 | 8 | LEFT HANDLEBAR | $57.49 | |||
| 325908 | 9 | RIGHT HANDLEBAR | $57.49 | |||
| 347927 | 10 | RAMP COVER | $130.49 | |||
| 347914 | 11 | LEFT LATCH HANDLE | $33.49 | |||
| 347913 | 12 | RIGHT LATCH HANDLE | $30.99 | |||
| 316731 | 14 | LATCH BRACKET | $5.49 | |||
| 347926 | 15 | REAR STABILIZER COVER | $87.99 | |||
 | 305744 | 16 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
| 317273 | 16C | TRACK FOAM TAPE | $13.49 | |||
| 316805 | 17 | LATCH PIN | $40.99 | |||
| 338325 | 18 | CRANK | $102.99 | Unavailable to order | ||
| 277369 | 19 | PULLEY | $174.49 | |||
 | 339855 | 20 | CRANK ARM | $150.99 | Unavailable to order | |
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
 | 157600 | 23 | BUMPER | $1.99 | ||
| 386630 | 24 | SMALL LEVELING FOOT | $7.99 | |||
 | 371887 | 25 | RESISTANCE MTR,W/TCD CBL | $105.99 | ||
 | 275907 | 26A | M10 LOCKNUT, CRANK | $4.49 | ||
 | 148710 | 26B | M10 LOCKNUT | $2.49 | ||
| 248342 | 27 | M10 WASHER | $1.99 | |||
| 362821 | 28A | EDDY MECHANISM | $265.99 | |||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||
| 248334 | 31 | M10 X 19MM PATCH SCREW | $5.49 | |||
| 235322 | 32 | M5 WASHER | $2.49 | |||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | WHEEL | $3.49 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | RAMP BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
| 307218 | 38 | REED SWITCH | $30.49 | |||

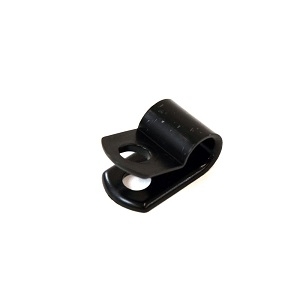

 | 131090 | 39 | CLAMP | $0.99 | ||
 | 295804 | 40 | PEDAL ARM BEARING | $66.99 | ||
| 346386 | 41 | AXLE WASHER | $23.99 | |||
| 338320 | 42 | SLEEVE | $2.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 316827 | 45 | LEFT ROLLER ARM | $137.99 | |||
| 328851 | 47 | LEFT UPPER BODY ARM | $65.49 | Unavailable to order | ||
| 322142 | 48 | CUSHION SPRING | $11.99 | |||
| 347915 | 49 | PEDAL | $128.49 | |||
 | 237616 | 50 | SMALL FRAME BUSHING | $4.99 | ||
 | 390204 | 51 | ROLLER / COVER FIXKIT | $199.99 | ||
| 316748 | 52 | PEDAL ARM CAP | $7.99 | |||
 | 278267 | 53 | LARGE AXLE COVER | $1.99 | ||
 | 287202 | 54 | SMALL WAVE WASHER | $1.99 | ||
| 347970 | 55 | SMALL AXLE COVER | $4.99 | |||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | PEDAL ARM BEARING ASSY | $43.49 | ||
| 316834 | 59 | RIGHT ROLLER ARM | $137.99 | |||
| 329317 | 60 | RIGHT UPPER BODY LEG | $138.99 | |||
| 328849 | 61 | RIGHT UPPER BODY ARM | $65.49 | |||
 | 299478 | 62 | HANDGRIP | $57.49 | ||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 272391 | 63B | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 63C | LEFT PULSE WIRE | $17.49 | |||
 | 316835 | 64 | PEDAL ARM AXLE | $43.49 | Unavailable to order | |
| 335812 | 65 | RIGHT ARM FRONT COVER | $68.49 | |||
| 335813 | 66 | RIGHT ARM REAR COVER | $54.99 | |||
| 335810 | 67 | LEFT ARM FRONT COVER | $68.49 | |||
| 335811 | 68 | LEFT ARM REAR COVER | $54.99 | |||
 | 031229 | 69 | POWER CORD | $39.99 | ||
 | 335837 | 69 | RIGHT LEG OUTER COVER | $43.99 | ||
 | 335834 | 70 | LEFT LEG OUTER COVER | $43.99 | ||
| 347911 | 71 | DISC | $110.99 | |||
| 335835 | 72 | LEFT LEG INNER COVER | $43.99 | |||
| 347929 | 73 | LEFT SHIELD | $182.99 | |||
| 347930 | 74 | RIGHT SHIELD | $182.99 | |||
| 347928 | 75 | SHIELD COVER | $131.99 | |||
| 316843 | 76 | LEFT PEDAL ARM SIDE CAP | $9.49 | |||
| 316841 | 77 | AXLE SPACER | $17.99 | Unavailable to order | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 347918 | 79 | FRONT CONSOLE COVER | $25.99 | |||
| 347917 | 80 | REAR CONSOLE COVER | $23.49 | |||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 191032 | 82 | M8 X 13MM SCREW, PULLEY | $1.99 | ||
| 335836 | 83 | RIGHT LEG INNER COVER | $43.99 | |||
| 316836 | 84 | RAMP AXLE | $54.99 | |||
| 310664 | 85 | M4 X 14MM SCREW | $2.99 | |||
| 310999 | 86 | M10 X 58MM HEX BOLT | $8.49 | |||
| 316844 | 87 | RIGHT PEDAL ARM SIDE CAP | $9.49 | |||
 | 208163 | 88 | IDLER SCREW | $1.99 | ||
 | 281150 | 89 | IDLER PIVOT SCREW | $4.49 | ||
 | 340140 | 90 | M6 X 26MM WASHER | $1.49 | ||
 | 281149 | 91 | DRIVE BELT ADJUST SCREW | $6.49 | ||
| 232289 | 92 | M10 X 25MM SCREW | $28.49 | |||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 012152 | 94 | PHOTO SWITCH NUT | $0.99 | |||
 | 206321 | 95 | M8 X 19MM SCREW, NOTE | $3.49 | ||
 | 234732 | 96 | M8 X 37MM PTH SCRW,NOTE: | $4.49 | ||
 | 248349 | 97A | CRANK PVT CAP WSHR | $6.49 | ||
 | 223812 | 97B | M8 X 28MM WASHER | $1.99 | ||
 | 289434 | 98 | SNAP RING | $1.99 | ||
| 306635 | 99 | PLASTIC SPACER | $3.49 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 256446 | 102A | M8 LOCKNUT | $0.99 | ||
 | 012042 | 102B | M8 LOCKNUT | $1.99 | ||
| 262341 | 103 | M6 X 12MM SCREW | $3.49 | |||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | SNAP MOUNT ONLY | $2.49 | ||
| 303479 | 106B | SNAP MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
 | 174108 | 108 | M6 X 13MM SCREW | $5.99 | ||
| 208938 | 109 | M10 X 60MM BUTTON SCREW | $5.99 | |||
| 322061 | 110 | UPPER WIRE | $98.49 | |||
 | 290160 | 111 | POWER RECEPTACLE/WIRE | $35.99 | ||
 | 313568 | 112 | M4X19MM RSW CLAMP SCREW | $0.99 | ||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 322839 | 114 | M4 X 40MM SCREW | $1.49 | ||
| 172496 | 115 | #8 X 1 3/4″ SCREW | $2.99 | |||
| 348056 | 116 | DISC RING | $107.99 | |||
 | 335816 | 117 | FRONT UPRIGHT COVER | $73.99 | ||
 | 347975 | 119 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 132315 | # | ZIP TIE | $3.49 | |||
 | 014033 | # | IDLER WASHER | $1.49 | ||
| 320622 | # | DECAL, RIGHT RAMP ANGLE | $62.99 | |||
| 320621 | # | DECAL, LEFT RAMP ANGLE | $62.99 | |||
 | 248512 | # | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 347924 | # | USER’S MANUAL | $12.49 | |||
| EXIF12 | # | IFIT WIRI ACCESSORY KIT | NLA | Unavailable to order | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 234276 | # | M4 X 12MM GROUND SCREW | $0.99 | |||
| 317272 | # | PIN SPRING | $3.49 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 258869 | # | DECAL, GENERAL WARNING | $4.99 | |||
| 116926 | # | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 |
