NORDICTRACK X24 TREADMILL – NTL39225.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
127 Parts Available for NORDICTRACK X24 TREADMILL - NTL39225.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 190979 | 1 | WHEEL BOLT | $17.99 | ||
 | 163045 | 3 | 3/8″ STAR WASHER | $0.99 | ||
| 250957 | 4 | #8 X 5/8″ SCREW | $0.99 | |||
 | 013607 | 5A | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 013322 | 5B | #8 X 3/4″ SCREW | $0.99 | ||
| 136728 | 6 | #8 BELT GUIDE SCREW | $0.99 | |||
 | 333880 | 8 | 1/2″ WASHER | $0.99 | ||
 | 291486 | 10 | #8 X 5/8″ SCREW | $0.99 | ||
| 013500 | 11 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
| 171229 | 12 | #8 X 1 1/2″ SCREW | $0.99 | |||
 | 364027 | 13 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 425557 | 14 | M8 X 32MM BOLT | $7.49 | ||
| 425558 | 15 | M8 X 51MM BOLT | $7.99 | |||
 | 432335 | 16 | CROWN FASTENER | $1.99 | ||
 | 013576 | 17A | CROWN SCREW | $0.99 | ||
 | 186819 | 17B | #8 X 1/2″ SCREW | $0.99 | ||
 | 117332 | 18 | 3/8″ X 3/4″ SCREW | $4.49 | ||
 | 333350 | 19 | M8 LOCKNUT | $1.99 | ||
| 1003430 | 20 | 5/16″ MOTOR BOLT | $11.49 | |||
| 379212 | 21 | 3/8″ X 2 3/8″ SCREW | $8.99 | |||
| 014157 | 23 | #8 STAR WASHER | $0.99 | |||
| 454056 | 24 | PRIMARY DISPLAY | $233.99 | |||
 | 152478 | 25 | 5/16″ FLAT WASHER | $0.99 | ||
 | 119425 | 26 | 3/8″ LOCKNUT | $0.99 | ||
 | 100427 | 27 | 5/16″ NUT | $0.99 | ||
 | 012090 | 28 | 1/4″ NUT | $0.99 | ||
 | 198639 | 29 | BELT GUIDE | $5.99 | ||
| 454378 | 30 | WALKING PLATFORM | $189.99 | |||
 | 454379 | 31 | WALKING BELT | $180.99 | ||
| 454380 | 32 | LEFT FOOT RAIL | $127.49 | |||
| 454381 | 33 | RIGHT FOOT RAIL | $127.49 | Unavailable to order | ||
| 338270 | 34 | IDLER ROLLER | $160.99 | |||
 | 454207 | 35 | BELLY PAN COVER | $67.99 | ||
 | 454206 | 36 | BELLY PAN | $102.49 | ||
 | 186726 | 37 | POWER SWITCH | $22.49 | ||
 | 227199 | 38 | GROMMET | $2.49 | ||
 | 173169 | 39 | SQUARE GROMMET | $0.99 | ||
| 252752 | 40 | POWER CORD | $69.99 | |||
| 132315 | 41 | ZIP TIE | $3.49 | |||
 | 376275 | 42 | DRIVE ROLLER/PULLEY | $175.49 | ||

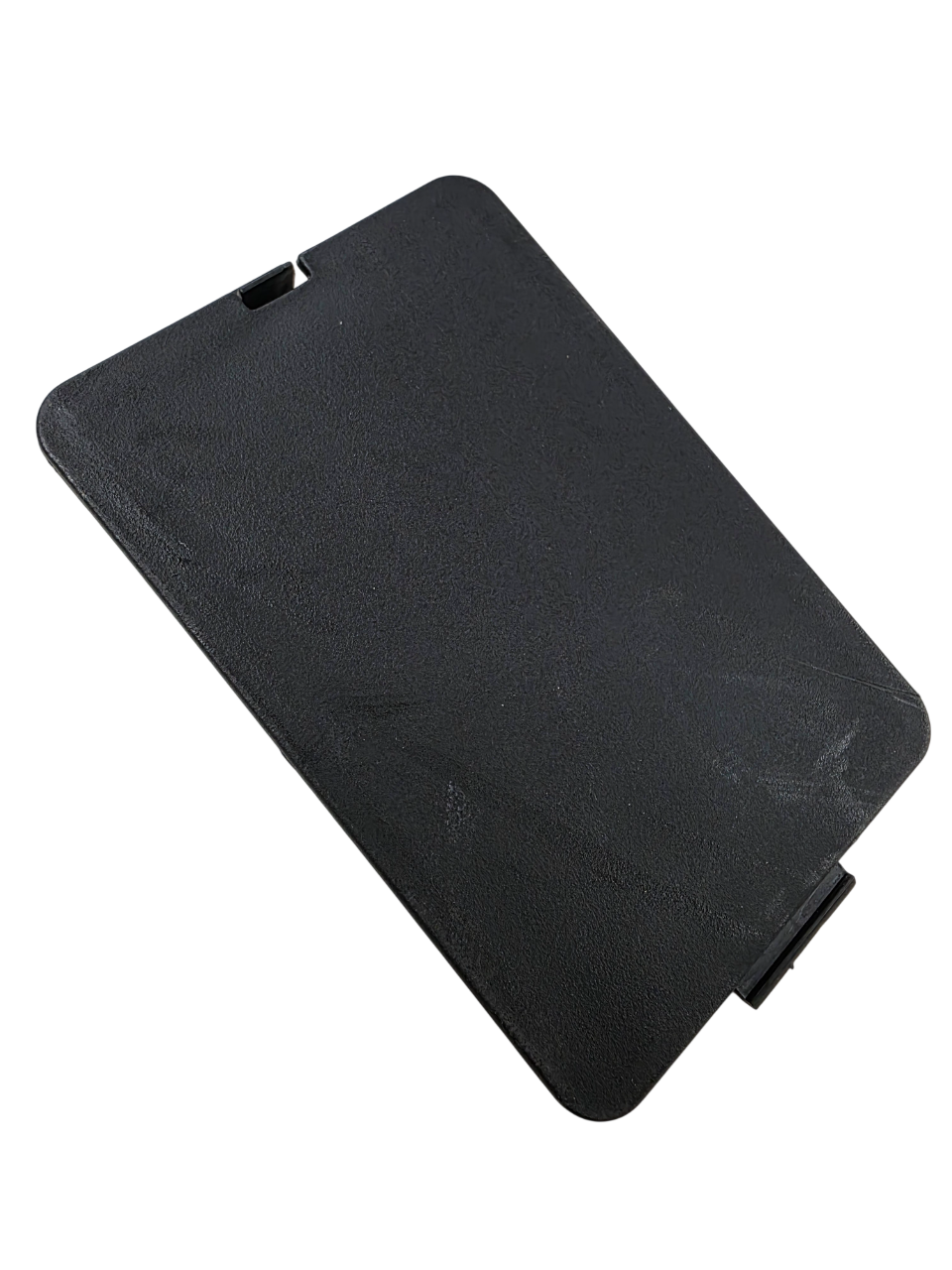

 | 454265 | 43 | FOOT RAIL COVER | $21.49 | ||
| 454204 | 45 | SMALL PIVOT BUSHING | $3.99 | |||
| 330114 | 46 | DRIVE MOTOR BELT | $70.49 | |||
 | 454209 | 47 | UPPER FRONT COVER | $132.99 | ||
 | 454382 | 48 | LOWER FRONT COVER | $121.99 | ||
| 454214 | 49 | LEFT UPRIGHT COVER | $98.99 | |||
| 454215 | 50 | RIGHT UPRIGHT COVER | $98.99 | |||

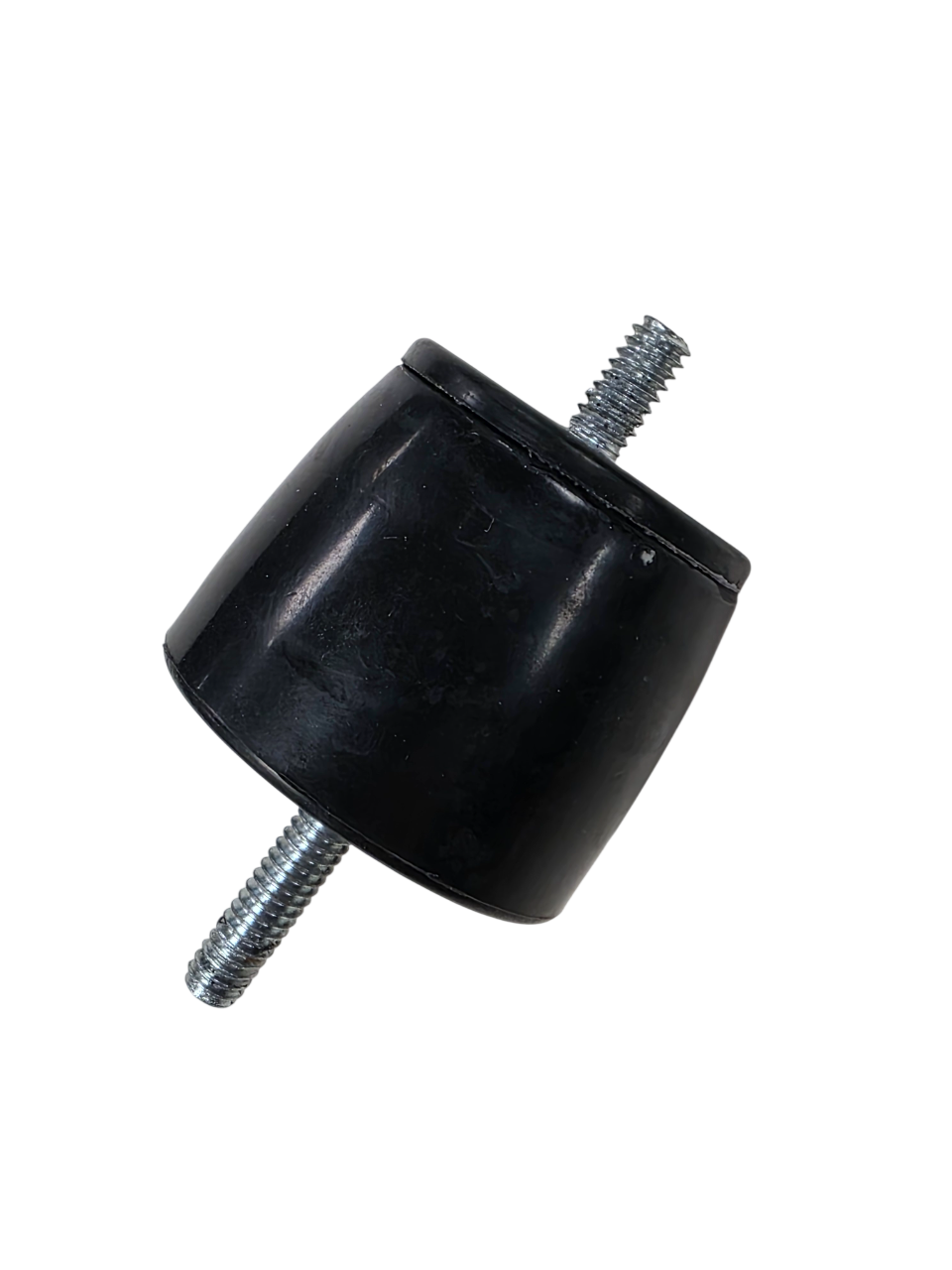

 | 453927 | 51 | LARGE CUSHION | $118.99 | ||
 | 454314 | 52 | BASE WIRE | $128.49 | ||
 | 298474 | 53 | SMALL CUSHION | $1.99 | ||
| 373400 | 54 | LARGE PIVOT BUSHING | $6.99 | |||
| 391085 | 55 | ELECTRONICS COVER | $72.49 | |||
 | 329456 | 56 | INCLINE MOTOR TOP COVER | $13.49 | ||
| 440347 | 57 | FASTENER RECEPTACLE | $2.99 | |||
 | 433536 | 58 | INCLINE MOTOR BOTTOM CVR | $16.99 | ||
 | 425559 | 59 | INCLINE MOTOR BUSHING | $2.99 | ||
 | 425791 | 60 | INCLINE MOTOR | $197.99 | ||
| 425782 | 61 | ELECTRONICS BRACKET | $112.49 | |||
 | 454383 | 62 | CONTROLLER | $289.99 | ||
 | 442305 | 63 | RESISTOR | $104.49 | ||
 | 416801 | 64 | DRIVE MOTOR | $261.99 | ||
 | 276104 | 65 | #8X5/8″ MACHINE SCREW | $0.99 | ||
| 106731 | 67 | FAN SCREW | $0.99 | |||
| 454152 | 68 | LEFT OUTSIDE FRAME COVER | $52.49 | |||
| 454151 | 69 | LEFT INSIDE FRAME COVER | $31.99 | |||
| 454147 | 70 | RIGHT INSIDE FRAME COVER | $31.99 | |||
| 454148 | 71 | RIGHT OUTSIDE FRAME COVER | $52.49 | |||
 | 273782 | 72 | WHEEL | $3.99 | ||
 | 350476 | 73 | BASE PAD | $6.49 | ||
| 454377 | 75 | UPRIGHT WIRE | $120.99 | |||
| 439784 | 76 | ROUND GROMMET | $2.99 | |||
 | 1000550 | 77 | LEVELING FOOT | $42.49 | ||
 | 454201 | 78 | AXLE | $47.49 | ||
| 443401 | 80 | COVER SUPPORT | $4.99 | |||
| 126960 | 81 | COVER CAP | $0.99 | |||
| 454482 | 84 | 5/16″ X 3/4″ SCREW | $12.49 | |||
| 454187 | 85 | UPPER FRAME | $216.49 | |||
| 428745 | 86 | #4 X 3/8″ SCREW | $2.99 | |||
| 454154 | 87 | ACCESS COVER | $18.49 | |||
 | 263710 | 88 | KEY | $19.99 | ||
| 454419 | 89 | RIGHT HANDRAIL TOP | $43.99 | |||
| 454420 | 90 | LEFT HANDRAIL TOP | $43.99 | |||
 | 453819 | 91 | UPPER DISPLAY COVER | $14.49 | ||
 | 453906 | 92 | DISPLAY BRACKET | $34.99 | ||
 | 1000723 | 93 | DISPLAY (XENON) | $976.99 | ||
 | 454149 | 94 | ACCESSORY TRAY | $62.99 | ||
 | 454150 | 95 | UPPER FRAME COVER | $110.99 | ||
 | 454155 | 96 | LEFT PIVOT COVER | $15.99 | ||
 | 453821 | 97 | LOWER DISPLAY COVER | $16.99 | ||
| 454467 | 98 | LEFT HANDRAIL BOTTOM | $267.99 | |||
| 454469 | 99 | RIGHT HANDRAIL BOTTOM | $364.49 | |||
| 454153 | 100 | RIGHT PIVOT COVER | $15.99 | |||
| 453913 | 101 | 1″ PLASTIC WASHER | $230.99 | |||
| 398609 | 102 | M3 X 12MM SCREW | $0.99 | |||
 | 424108 | 103 | POWER SUPPLY | $189.99 | ||
 | 428528 | 104 | INCLINE MOTOR CONTROLLER | $119.99 | ||
 | 125819 | 105 | STANDOFF | $3.99 | ||
 | 407819 | 106 | CONSOLE FAN | $129.99 | ||
 | 453914 | 107 | M30 NUT | $41.49 | ||
| 196829 | 108 | BELLY PAN GROMMET | $2.49 | |||
 | 453911 | 109 | METAL SPACER | $30.49 | ||
 | 453912 | 110 | PLASTIC SPACER | $5.99 | ||
| 454312 | 111 | PIVOT PLATE | $31.49 | |||
| 454283 | 112 | PIVOT FRONT COVER | $26.49 | |||
| 454284 | 113 | PIVOT BACK COVER | $32.99 | |||
 | 431889 | 115 | INNER PIVOT BUSHING | $47.49 | ||
 | 434037 | 116 | BRACKET MOUNT | $46.49 | ||
 | 453915 | 117 | LARGE SADDLE BRACKET | $72.99 | ||
 | 137337 | 118 | M6 X 16MM SCREW | $3.49 | ||
 | 234926 | 119 | M4 X 10MM SCREW | $2.99 | ||
 | 391488 | 120 | M6 X 25MM SCREW | $2.49 | ||
 | 133333 | 121 | CLIP NUT | $0.99 | ||
| 146439 | 122 | #8 LOCKNUT | $0.99 | |||
| 013341 | 123 | 1/4″X2 1/2″ WASHER SCREW | $0.99 | |||
 | 013300 | 124 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
| 240351 | # | 8″ WIRE TIE | $0.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 432834 | # | 5MM ALLEN WRENCH | $14.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 437551 | # | ARM HEART RATE MONITOR | $194.99 | |||
| 268476 | # | DECAL, GROUND WARNING | $0.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 252433 | # | DECAL, CAUTION, BASE LEG | $0.99 | |||
 | ARC14 | # | ARC FILTER | |||
| 454008 | # | M40 OPEN END WRENCH | $60.99 | |||
| 271317 | # | DECAL, WARNING | $14.49 | |||
 | 203663 | # | 12″ BLACK WIRE | $4.49 | ||
| 454299 | # | TOOL KIT, NOTE: | $182.99 | |||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 454484 | # | 1/4″ ALLEN WRENCH, T-HNDL | $27.99 | |||
| 450419 | # | 7/32″ ALLEN WRENCH,T-HNDL | $27.99 | |||
| 1000105 | # | 5/16″ ALLEN WRENCH | $27.99 | |||
| 454298 | # | HARDWARE KIT, NOTE: | $162.99 | |||
| 450421 | # | 9/16″ COMBO WRENCH | $24.99 | |||
| 450416 | # | PHILLIPS SCREW DRIVER | $76.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 189813 | TA15 | FILTER WIRE | $23.99 | ||
 | 153403 | TA18 | 4″ BLUE WIRE,MF | $3.99 | ||
 | 353808 | TA3 | 14″ BROWN WIRE, F/F | $5.49 | ||
 | 414703 | TA4 | 4.5″ WIRE HRNS | $13.49 | ||
 | 429538 | TA5 | 12″ WIRE HRNS | $23.49 | ||
 | 102634 | TA6 | 8″ GREEN WIRE | $3.49 | ||
 | 426425 | TA7 | 62″ WIRE HRNS | $43.49 | ||
 | 452965 | TA8 | 12″ WIRE HRNS | $17.49 | ||
 | 426440 | TA95 | 14″ WIRE HRNS | $30.49 | ||
 | 215822 | TB20 | 4″ GRN WIRE | $5.99 | ||
 | 155623 | TB24 | 7″ GRN WIRE | $3.99 |
