NORDICTRACK X24 TREADMILL – NTL39225.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
105 Parts Available for NORDICTRACK X24 TREADMILL - NTL39225.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 190979 | 1 | WHEEL BOLT | $17.99 | ||
 | 163045 | 3 | 3/8″ STAR WASHER | $0.99 | ||
| 250957 | 4 | M4 X 16MM FLAT HEAD SCREW | $0.99 | |||
 | 013607 | 5A | BASE PAD SCREW | $0.99 | ||
 | 013322 | 5B | #8 X 3/4″ SCREW | $0.99 | ||
| 136728 | 6 | #8 X 7/16″ SCREW | $0.99 | |||
 | 013300 | 7 | #8 X 3/4″ SCREW | $0.99 | ||
| 213894 | 8 | 7/32″ WASHER | $0.99 | |||
 | 291486 | 10 | #8 X 5/8″ SCREW | $0.99 | ||
| 013500 | 11 | 5/16″X1 1/2″MACHINE SCREW | $2.49 | |||
| 171229 | 12 | CONSOLE PLATE SCREW | $0.99 | |||
 | 364027 | 13 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 425557 | 14 | M8 X 32MM BOLT | $25.99 | ||
| 425558 | 15 | M8 X 51MM BOLT | $7.99 | |||
 | 432335 | 16 | CROWN FASTENER | $1.99 | ||
 | 013576 | 17A | M4 X 16MM SCREW | $0.99 | ||
 | 186819 | 17B | CONSOLE GROUND SCREW | $0.99 | ||
 | 117332 | 18 | 3/8″ X 3/4″ BOLT | $4.49 | ||
 | 333350 | 19 | M8 LOCKNUT | $1.99 | ||
| 1003430 | 20 | 5/16″ MOTOR BOLT | $11.49 | |||
| 379212 | 21 | 3/8″ X 2 3/8″ SCREW | $8.99 | |||
| 014157 | 23 | #8 STAR WASHER | $0.99 | |||
| 454056 | 24 | PRIMARY DISPLAY | $233.99 | |||
 | 152478 | 25 | 5/16″ FLAT WASHER | $0.99 | ||
 | 119425 | 26 | 3/8″ JAM NUT | $0.99 | ||
 | 100427 | 27 | 5/16″ NUT | $0.99 | ||
 | 012090 | 28 | 1/4″ HEX NUT | $0.99 | ||
 | 198639 | 29 | BELT GUIDE | $5.99 | ||
| 454378 | 30 | WALKING PLATFORM | $189.99 | |||
 | 454379 | 31 | WALKING BELT | $180.99 | ||
| 454380 | 32 | LEFT FOOT RAIL | $127.49 | |||
| 454381 | 33 | RIGHT FOOT RAIL | $127.49 | Unavailable to order | ||
| 338270 | 34 | IDLER ROLLER | $160.99 | |||

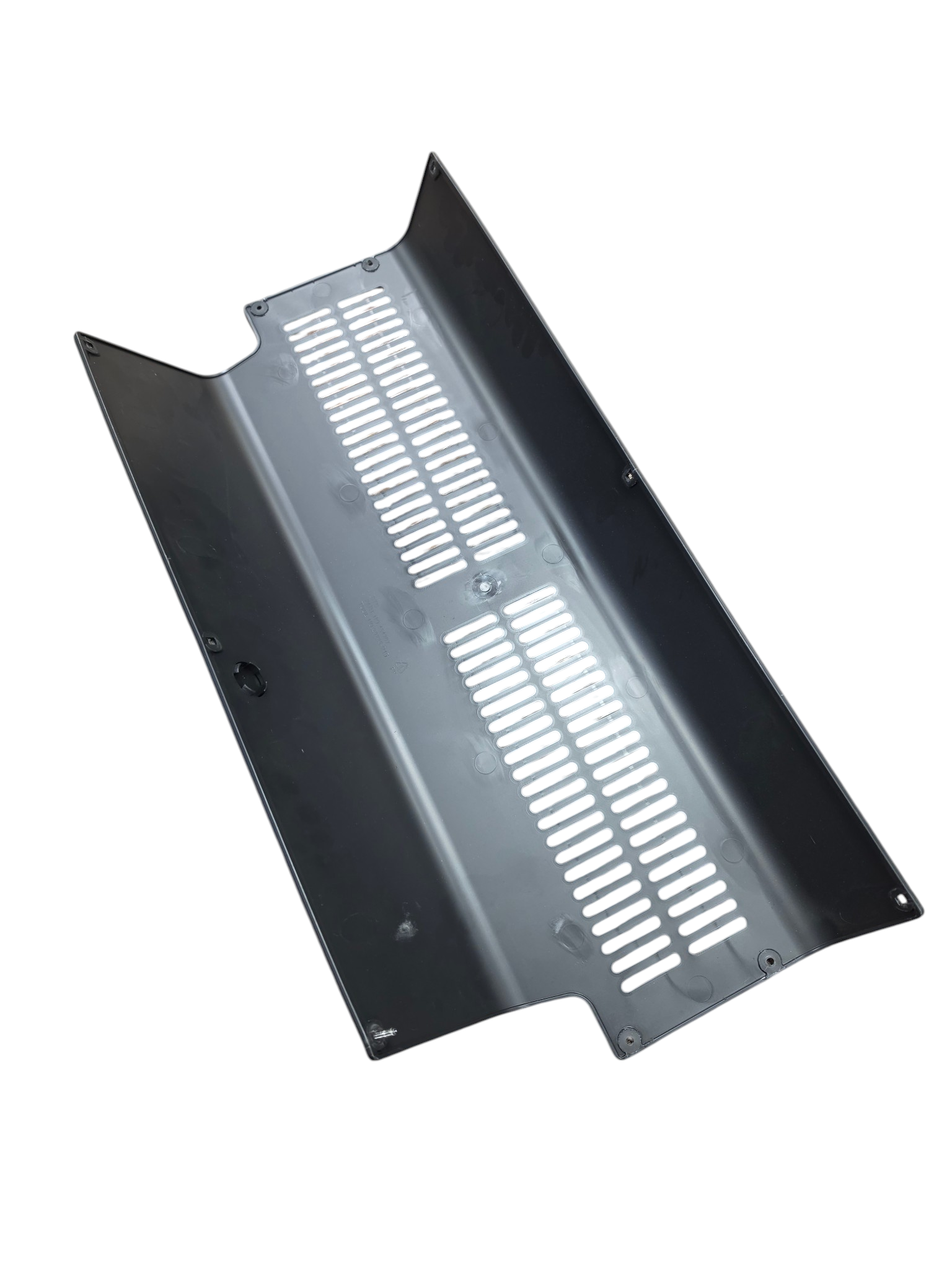

 | 454207 | 35 | BELLY PAN COVER | $67.99 | ||
 | 454206 | 36 | BELLY PAN | $102.49 | ||
 | 186726 | 37 | POWER SWITCH | $22.49 | ||
 | 227199 | 38 | GROMMET | $2.49 | ||
 | 173169 | 39 | GROMMET | $0.99 | ||
| 252752 | 40 | POWER CORD | $69.99 | |||
| 132315 | 41 | WIRE TIE | $3.49 | |||
 | 376275 | 42 | DRIVE ROLLER/PULLEY | $175.49 | ||
 | 454265 | 43 | FOOT RAIL COVER | $21.49 | ||
| 014064 | 44 | BRACKET STAR WASHER | $0.99 | |||
| 454204 | 45 | SMALL PIVOT BUSHING | $3.99 | |||
| 330114 | 46 | BELT | $70.49 | |||

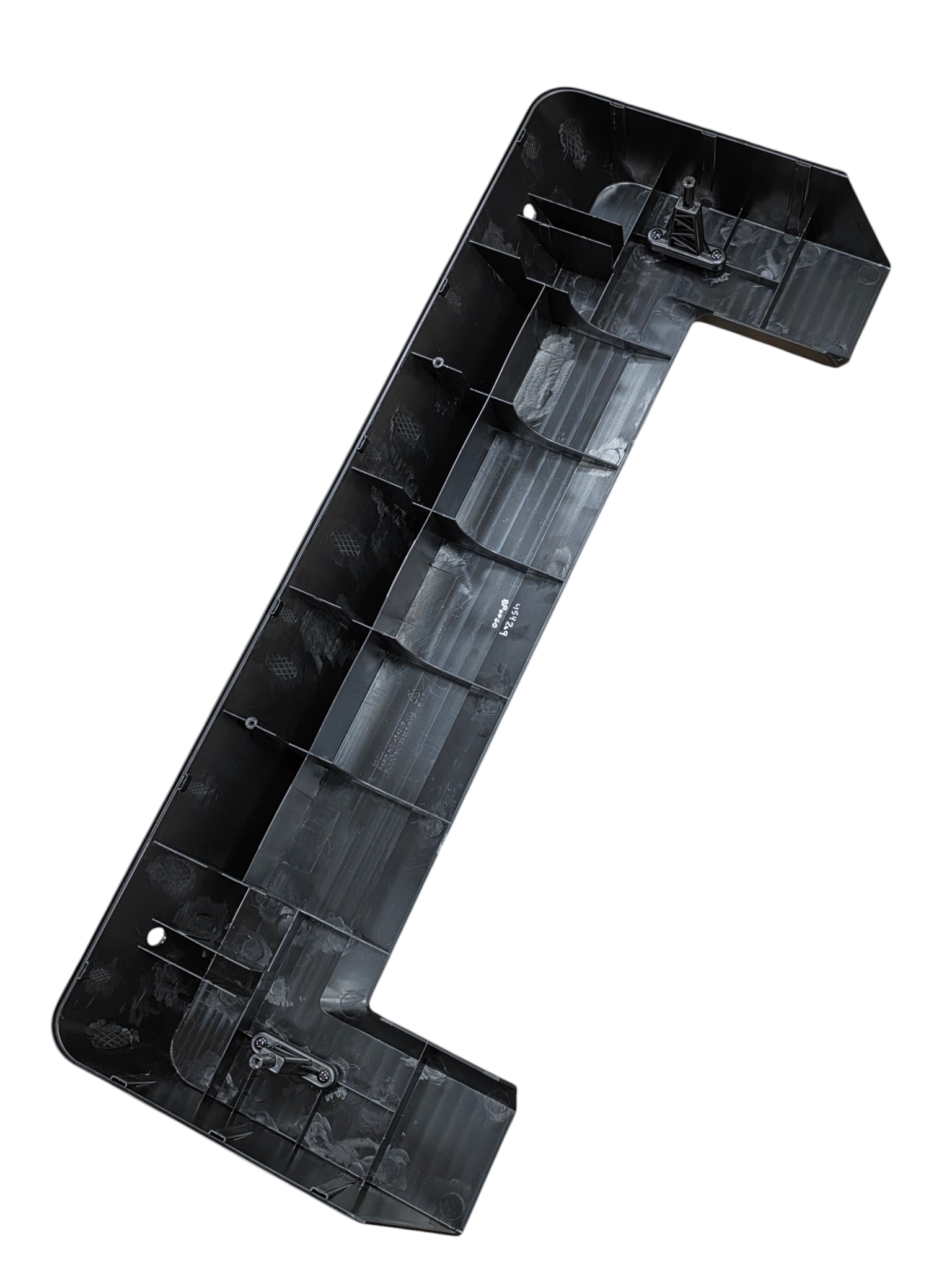

 | 454209 | 47 | UPPER FRONT COVER | $132.99 | ||
 | 454382 | 48 | LOWER FRONT COVER | $121.99 | ||
| 454214 | 49 | LEFT UPRIGHT COVER | $98.99 | |||
| 454215 | 50 | RIGHT UPRIGHT COVER | $98.99 | |||
 | 453927 | 51 | LARGE CUSHION | $118.99 | ||

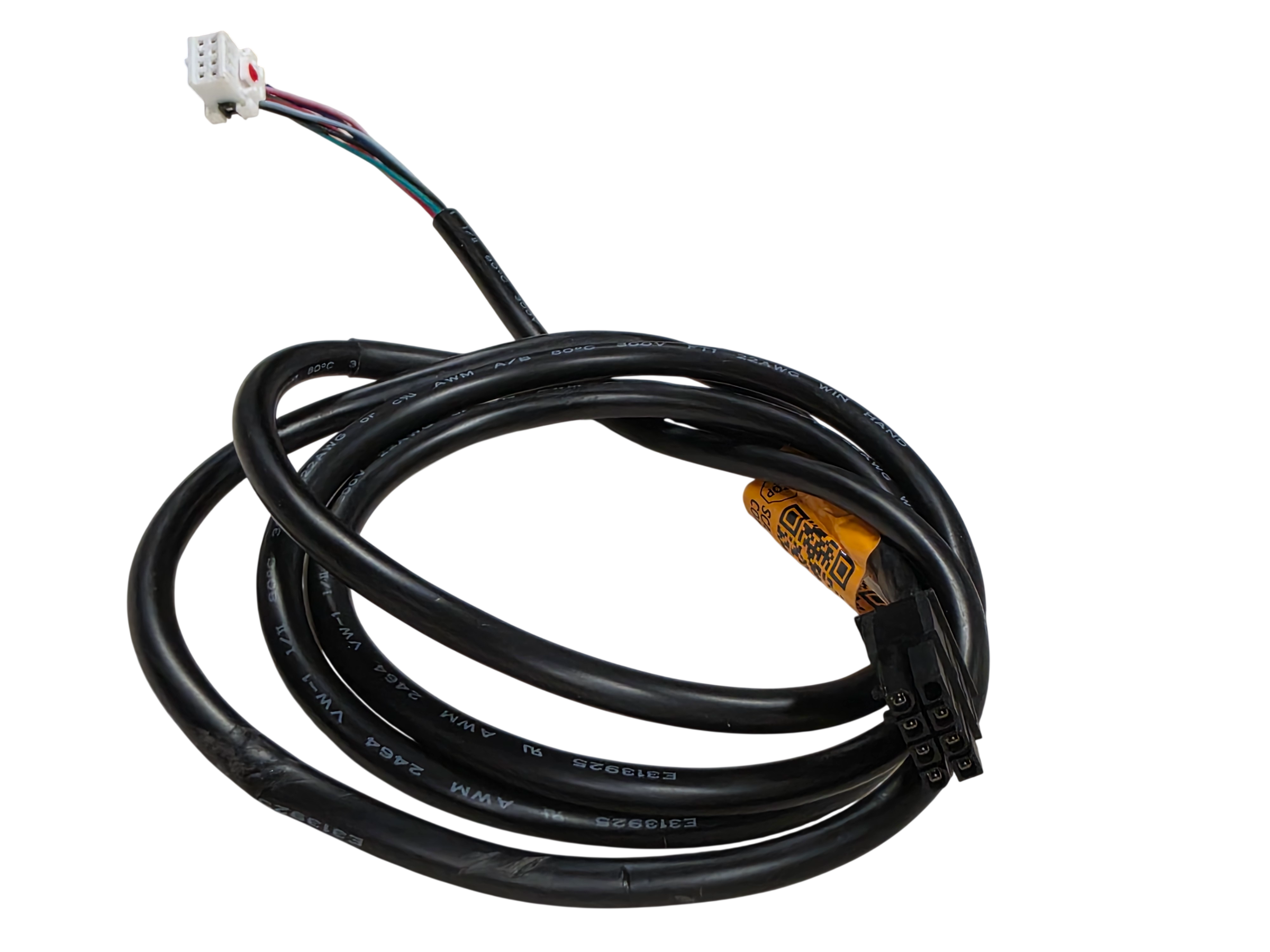

 | 454314 | 52 | BASE WIRE | $128.49 | ||
 | 298474 | 53 | RUBBER CUSHION | $1.99 | ||
| 373400 | 54 | LARGE PIVOT BUSHING | $6.99 | |||
| 391085 | 55 | ELECTRONICS COVER | $72.49 | |||
 | 329456 | 56 | INCLINE MOTOR TOP COVER | $13.49 | ||
| 440347 | 57 | FASTENER RECEPTACLE | $2.99 | |||
 | 433536 | 58 | INCLINE MOTOR BOTTOM CVR | $16.99 | ||
 | 425559 | 59 | INCLINE MOTOR BUSHING | $2.99 | ||
 | 425791 | 60A | INCLINE MOTOR | $197.99 | ||
 | 426162 | 60B | INCLINE MOTOR SENSOR KIT | $38.99 | ||
| 425782 | 61 | ELECTRONICS BRACKET | $112.49 | |||
 | 454383 | 62 | CONTROLLER | $289.99 | ||
 | 442305 | 63 | RESISTOR | $104.49 | ||
 | 416801 | 64 | DRIVE MOTOR | $261.99 | ||
 | 276104 | 65 | #8 X 5/8″ MACHINE SCREW | $0.99 | ||
| 106731 | 67 | FAN SCREW | $0.99 | |||
| 454152 | 68 | LEFT OUTSIDE FRAME COVER | $52.49 | |||
| 454151 | 69 | LEFT INSIDE FRAME COVER | $31.99 | |||
| 454147 | 70 | RIGHT INSIDE FRAME COVER | $31.99 | |||
| 454148 | 71 | RIGHT OUTSIDE FRAME COVER | $52.49 | |||
 | 273782 | 72 | WHEEL | $3.99 | ||
 | 350476 | 73 | BASE PAD | $6.49 | ||
| 454376 | 74 | BASE | $293.49 | |||
| 454377 | 75 | UPRIGHT WIRE | $120.99 | |||
| 439784 | 76 | ROUND GROMMET | $2.99 | |||

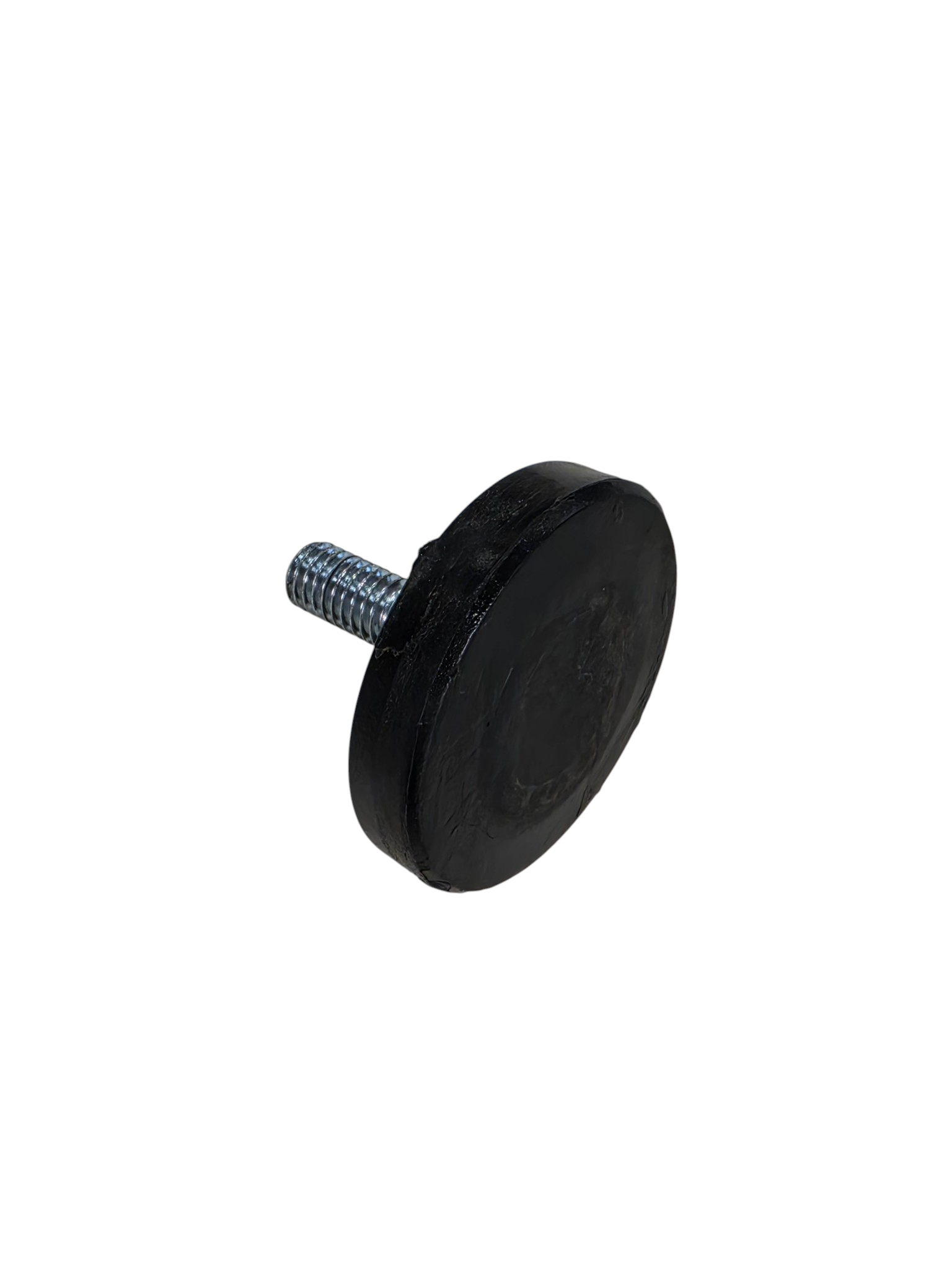

 | 1000550 | 77 | LEVELING FOOT | $34.99 | ||
 | 454201 | 78 | AXLE | $47.49 | ||
| 454210 | 79 | BASE CAP | $23.49 | |||
| 443401 | 80 | COVER SUPPORT | $4.99 | |||
| 126960 | 81 | HOLE PLUG | $0.99 | |||
| 454176 | 82 | LEFT UPRIGHT | $179.99 | |||
| 454183 | 83 | RIGHT UPRIGHT | $179.99 | |||
 | 454482 | 84 | 5/16″ X 3/4″ SCREW | $12.49 | ||
| 454187 | 85 | UPPER FRAME | $216.49 | |||
| 428745 | 86 | #4 X 3/8″ SCREW | $2.99 | |||
| 454154 | 87 | ACCESS COVER | $18.49 | |||
 | 263710 | 88 | KEY/CLIP | $19.99 | ||
| 454419 | 89 | RIGHT HANDRAIL TOP | $43.99 | |||
| 454420 | 90 | LEFT HANDRAIL TOP | $43.99 | |||
 | 453819 | 91 | DISPLAY UPPER COVER | $14.49 | ||
 | 453906 | 92 | DISPLAY BRACKET | $34.99 | ||
| 453765 | 93 | DISPLAY (XENON) | $1021.49 | |||

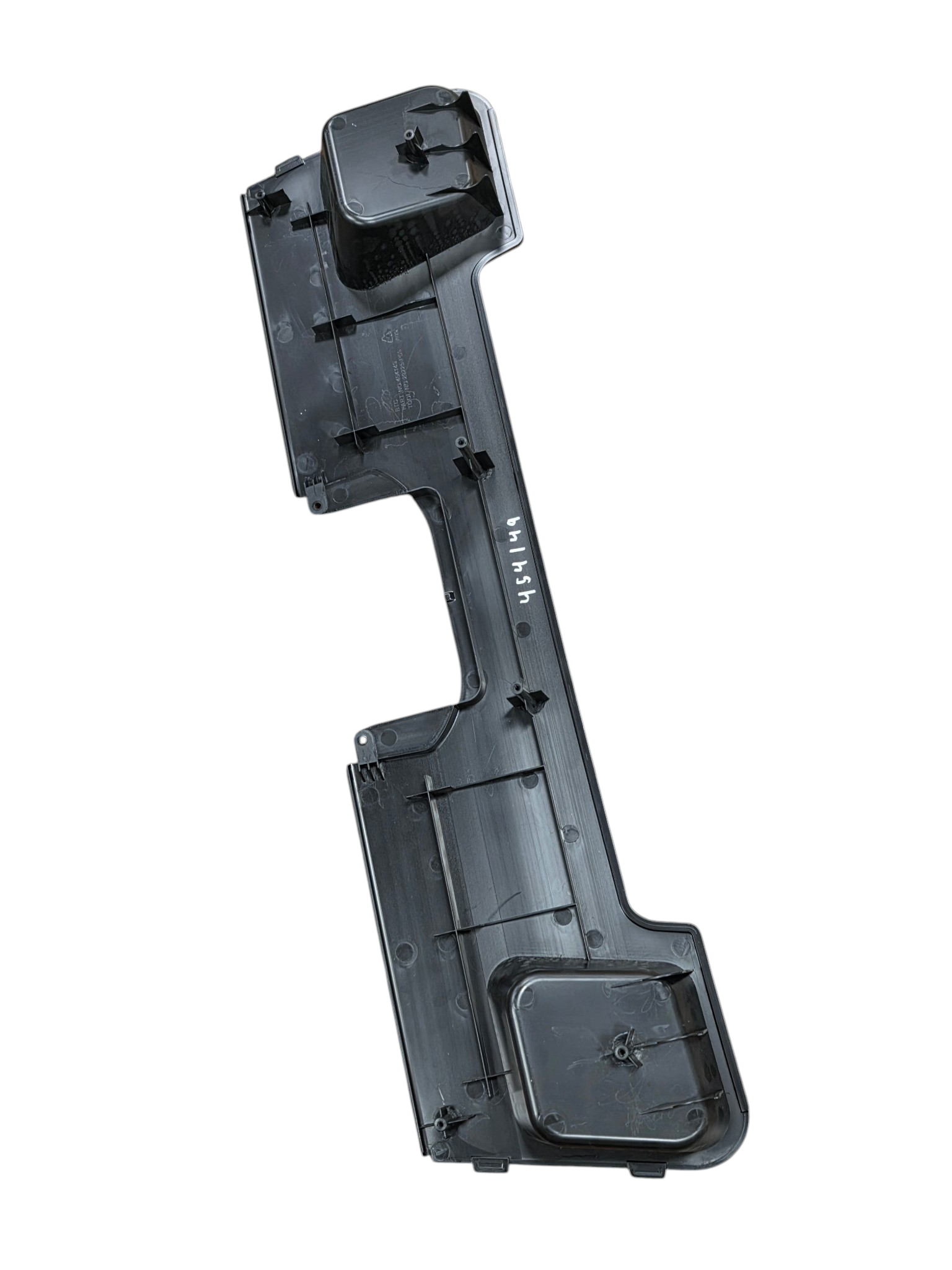

 | 454149 | 94 | ACCESSORY TRAY | $62.99 | ||

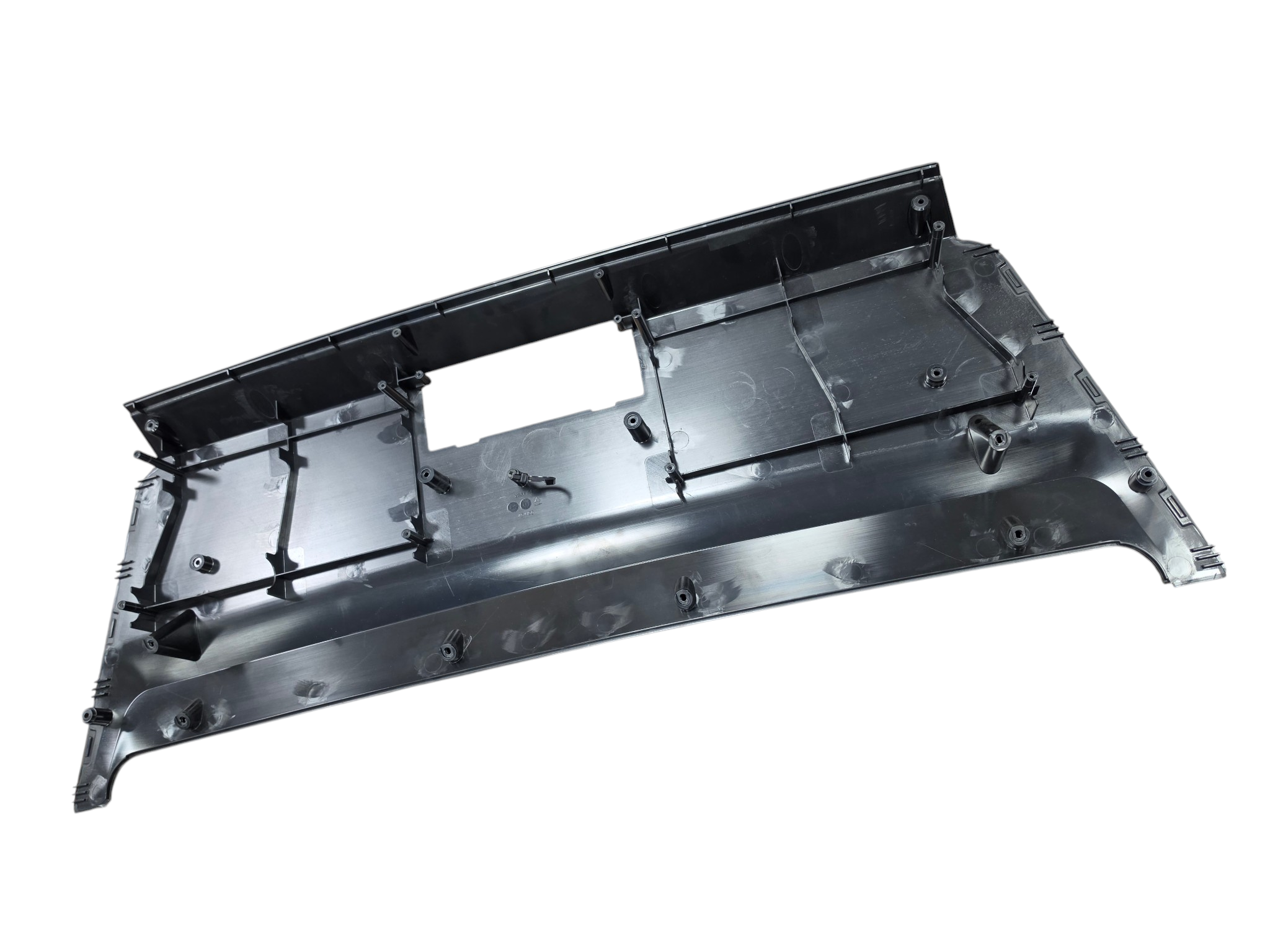

 | 454150 | 95 | UPPER FRAME COVER | $110.99 | ||
 | 454155 | 96 | LEFT PIVOT COVER | $15.99 | ||
 | 453821 | 97 | LOWER DISPLAY COVER | $16.99 | ||
| 454467 | 98 | LEFT HANDRAIL BOTTOM | $267.99 | |||
| 454469 | 99 | RIGHT HANDRAIL BOTTOM | $364.49 | |||
| 454153 | 100 | RIGHT PIVOT COVER | $15.99 | |||
| 453913 | 101 | 1″ PLASTIC WASHER | $230.99 | |||
| 398609 | 102 | M3 X 12MM SCREW | $0.99 | |||
 | 424108 | 103 | POWER SUPPLY | $189.99 | ||
 | 428528 | 104 | INCLINE MOTOR CONTROLLER | $119.99 | ||
 | 125819 | 105 | PLASTIC STAND-OFF | $3.99 | ||
 | 407819 | 106 | CONSOLE FAN | $39.99 | ||
 | 453914 | 107 | M30 NUT | $41.49 | ||
| 196829 | 108 | BELLY PAN GROMMET | $2.49 | |||
 | 453911 | 109 | METAL SPACER | $30.49 | ||
 | 453912 | 110 | PLASTIC SPACER | $5.99 | ||
| 454312 | 111 | PIVOT PLATE | $31.49 | |||
| 454284 | 112 | PIVOT BACK COVER | $32.99 | |||
| 454283 | 113 | PIVOT FRONT COVER | $26.49 | |||
| 454200 | 114 | PIVOT BRACKET | $104.49 | |||
 | 431889 | 115 | INNER PIVOT BUSHING | $47.49 | ||
 | 434037 | 116 | BRACKET MOUNT | $46.49 | ||
 | 453915 | 117 | LARGE SADDLE BRACKET | $72.99 | ||
 | 137337 | 118 | M6 SCREW | $3.49 | ||
| 1003433 | 119 | M4 X 10MM SCREW | $8.99 | |||
 | 391488 | 120 | M6 X 25MM CAP SCREW,NOTE | $2.49 | ||
 | 133333 | 121 | CLIP | $0.99 | ||
| 146439 | 122 | M8 LOCKNUT | $0.99 | |||
| 013341 | 123 | 1/4″ X 2.5″ HH BOLT | $0.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 236006 | # | DECAL,SURGE WARNING | $3.99 | |||
| 240351 | # | CABLE TIE | $0.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 252433 | # | DECAL,CAUTION BASE LEG | $0.99 | |||
| 454534 | # | USER’S MANUAL,ENGLISH | $23.99 | |||
| 450416 | # | #2 PHILLIPS SCREW DRIVER | $76.99 | |||
 | ARC14 | # | ARC FILTER | |||
| 1000105 | # | 5/16″ ALLEN WRENCH | $27.99 | |||
| 454484 | # | 1/4″ ALLEN WRENCH, T-HNDL | $27.99 | |||
| 454299 | # | TOOL KIT, NOTE: | $182.99 | |||
| 404032 | # | DECAL,NORDICTRACK CONSOLE | $20.99 | |||
| 454008 | # | M40 OPEN END WRENCH | $60.99 | |||
 | 450419 | # | 7/32″ ALLEN WRENCH | $27.99 | ||
| 450421 | # | 9/16″ COMBO WRENCH | $24.99 | |||
| 1000755 | # | #8X1/2″GRND SCRW,BASE LEG | $3.49 | |||
 | 437551 | # | ARM HEART RATE MONITOR | $194.99 | ||
| 1000156 | # | USER’S MANUAL,SP13 | $60.99 | |||
| 411544 | # | WIFI REPEATER | $62.99 | |||
| 454298 | # | HARDWARE KIT, NOTE: | $162.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 454533 | # | LITPAC, NOTE: | $193.99 | |||
| 268476 | # | WARNING DECAL | $0.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 271317 | # | WARNING DECAL | $14.49 | |||
| 432834 | # | 5MM ALLEN WRENCH | $14.49 | |||
 | 189813 | TA15 | FILTER WIRE | $23.99 | ||
 | 153403 | TA18 | 4″ BLUE WIRE, M/F | $3.99 | ||
 | 353808 | TA3 | 14″ BROWN WIRE,F/F | $5.49 | ||
 | 414703 | TA4 | 4.5″ WIRE HRNS | $13.49 | ||
 | 429538 | TA5 | 12″ WIRE HRNS | $23.49 | ||
 | 102634 | TA6 | 8″ GREEN WIRE | $3.49 | ||
 | 426425 | TA7 | 62″ WIRE HRNS,INCLINE MTR | $43.49 | ||
 | 452965 | TA8 | 12″ WIRE HARNESS | $17.49 | ||
 | 426440 | TA9 | 14″ WIRE HRNS | $30.49 | ||
 | 215822 | TB19 | GROUND WIRE | $5.99 | ||
 | 155623 | TB23 | JACK GROUND WIRE | $3.99 | ||
 | 203663 | TS24 | GROUND WIRE | $4.49 |
