NORDICTRACK X16 TREADMILL – NTL29225.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
113 Parts Available for NORDICTRACK X16 TREADMILL - NTL29225.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 190979 | 1 | WHEEL BOLT | $17.99 | ||
 | 144985 | 2 | #8 X 5/8″ SCREW | $0.99 | ||
 | 163045 | 3 | 3/8″ STAR WASHER | $0.99 | ||
| 250957 | 4 | M4 X 16MM FLAT HEAD SCREW | $0.99 | |||
 | 013607 | 5A | #8 X 3/4″ SCREW | $0.99 | ||
 | 013322 | 5B | #8 X 3/4″ SCREW | $0.99 | ||
| 136728 | 6 | #8 X 3/4″ SCREW | $0.99 | |||
 | 333880 | 8 | 1/2″ WASHER | $0.99 | ||
 | 291486 | 10 | #8 X 5/8″ SCREW | $0.99 | ||
| 013500 | 11 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
| 171229 | 12 | CONSOLE PLATE SCREW | $0.99 | |||
 | 364027 | 13 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 425557 | 14 | M8 X 32MM BOLT | $25.99 | ||
| 425558 | 15 | M8 X 51MM BOLT | $7.99 | |||
 | 432335 | 16 | CROWN FASTENER | $1.99 | ||
 | 013576 | 17A | #8 X 1/2″ SCREW | $0.99 | ||
 | 186819 | 17B | #8 X 1/2″ SCREW | $0.99 | ||
| 1000755 | 17C | #8X1/2″GRND SCRW,BASE LEG | $3.49 | |||
 | 117332 | 18 | 3/8″ X 3/4″ BOLT | $4.49 | ||
 | 333350 | 19 | M8 NUT | $1.99 | ||
| 1003430 | 20 | 5/16″ MOTOR BOLT | $11.49 | |||
| 379212 | 21 | 3/8″ X 2 3/8″ SCREW | $8.99 | |||
| 014157 | 23 | #8 STAR WASHER | $0.99 | |||
| 454056 | 24 | PRIMARY DISPLAY | $233.99 | |||
 | 152478 | 25 | 5/16″ FLAT WASHER | $0.99 | ||
 | 119425 | 26 | 3/8″ JAM NUT | $0.99 | ||
 | 100427 | 27 | 5/16″ NUT | $0.99 | ||
 | 012090 | 28 | 1/4″ NUT | $0.99 | ||
 | 198639 | 29 | BELT GUIDE | $5.99 | ||
| 454378 | 30 | WALKING PLATFORM | $189.99 | |||
 | 454379 | 31 | WALKING BELT | $180.99 | ||
| 454380 | 32 | LEFT FOOT RAIL | $127.49 | |||
| 454381 | 33 | RIGHT FOOT RAIL | $127.49 | Unavailable to order | ||
| 338270 | 34 | IDLER ROLLER | $160.99 | |||
 | 454207 | 35 | BELLY PAN COVER | $67.99 | ||
 | 454206 | 36 | BELLY PAN | $102.49 | ||
 | 186726 | 37 | POWER SWITCH | $22.49 | ||
 | 227199 | 38 | GROMMET | $2.49 | ||
 | 173169 | 39 | POWER CORD GROMMET | $0.99 | ||
| 252752 | 40 | POWER CORD | $69.99 | |||
| 132315 | 41 | WIRE TIE | $3.49 | |||
 | 376275 | 42 | DRIVE ROLLER/PULLEY | $175.49 | ||
 | 454265 | 43 | FOOT RAIL COVER | $21.49 | ||
| 454204 | 45 | SMALL PIVOT BUSHING | $3.99 | |||
| 330114 | 46 | BELT | $70.49 | |||
 | 454209 | 47 | UPPER FRONT COVER | $132.99 | ||
 | 454577 | 48 | LOWER FRONT COVER | $121.99 | ||
| 454214 | 49 | LEFT UPRIGHT COVER | $98.99 | |||
| 454215 | 50 | RIGHT UPRIGHT COVER | $98.99 | |||
 | 453927 | 51 | LARGE CUSHION | $118.99 | ||
 | 454314 | 52 | BASE WIRE | $128.49 | ||
 | 298474 | 53 | RUBBER CUSHION | $1.99 | ||
| 373400 | 54 | LARGE PIVOT BUSHING | $6.99 | |||
| 391085 | 55 | ELECTRONICS COVER | $72.49 | |||
 | 329456 | 56 | INCLINE MOTOR TOP COVER | $13.49 | ||
| 440347 | 57 | FASTENER RECEPTACLE | $2.99 | |||
 | 433536 | 58 | INCLINE MOTOR BOTTOM CVR | $16.99 | ||
 | 425559 | 59 | INCLINE MOTOR BUSHING | $2.99 | ||
 | 425791 | 60A | INCLINE MOTOR | $197.99 | ||
 | 426162 | 60B | INCLINE MOTOR SENSOR KIT | $38.99 | ||
| 425782 | 61 | ELECTRONICS BRACKET | $112.49 | |||
 | 454383 | 62 | CONTROLLER | $289.99 | ||
 | 442305 | 63 | RESISTOR | $104.49 | ||
 | 416801 | 64 | DRIVE MOTOR | $261.99 | ||
 | 276104 | 65 | #8 X 5/8″ MACHINE SCREW | $0.99 | ||
| 106731 | 67 | FAN SCREW | $0.99 | |||
| 454152 | 68 | LEFT OUTSIDE FRAME COVER | $52.49 | |||
| 454151 | 69 | LEFT INSIDE FRAME COVER | $31.99 | |||
| 454147 | 70 | RIGHT INSIDE FRAME COVER | $31.99 | |||
| 454148 | 71 | RIGHT OUTSIDE FRAME COVER | $52.49 | |||
 | 273782 | 72 | WHEEL | $3.99 | ||
 | 350476 | 73 | BASE PAD | $6.49 | ||
| 1002580 | 74 | BASE | $272.99 | |||
| 454377 | 75 | UPRIGHT WIRE | $120.99 | |||
| 439784 | 76 | ROUND GROMMET | $2.99 | |||
 | 1000550 | 77 | LEVELING FOOT | $42.49 | ||

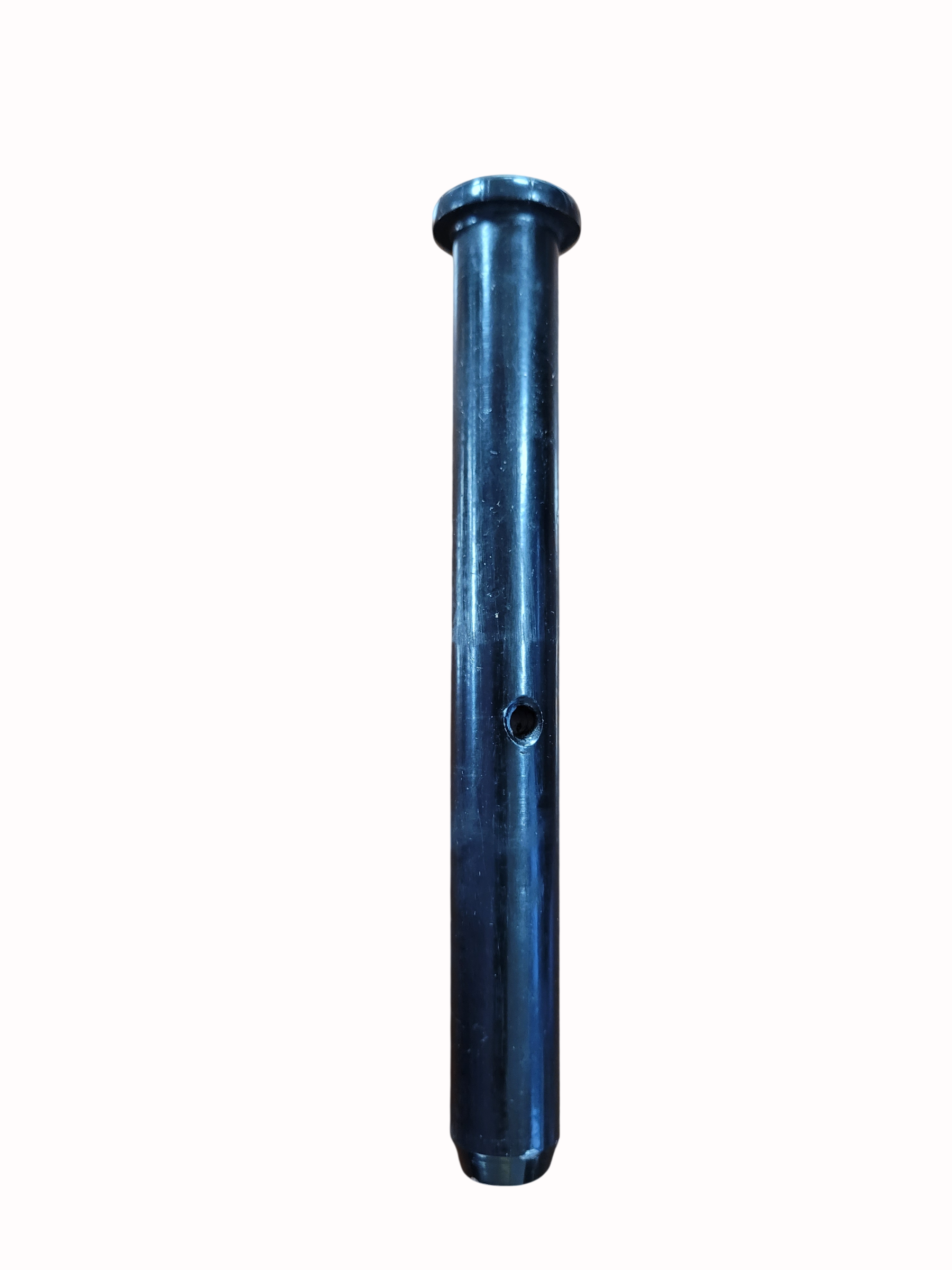

 | 454201 | 78 | AXLE | $47.49 | ||
| 1002635 | 79 | BASE CAP | $11.99 | |||
| 443401 | 80 | COVER SUPPORT | $4.99 | |||
| 126960 | 81 | HOLE PLUG | $0.99 | |||
| 1002737 | 82 | LEFT UPRIGHT | $172.49 | |||
| 1002733 | 83 | RIGHT UPRIGHT | $172.49 | |||
 | 454482 | 84 | 5/16″ X 3/4″ SCREW | $12.49 | ||
| 454187 | 85 | UPPER FRAME | $216.49 | |||
| 428745 | 86 | #4 X 3/8″ SCREW | $2.99 | |||
| 454154 | 87 | ACCESS COVER | $18.49 | |||
 | 263710 | 88 | KEY/CLIP | $19.99 | ||
| 454419 | 89 | RIGHT HANDRAIL TOP | $43.99 | |||
| 454420 | 90 | LEFT HANDRAIL TOP | $43.99 | |||
 | 453841 | 91 | UPPER DISPLAY COVER | $29.99 | ||
 | 453906 | 92 | DISPLAY BRACKET | $34.99 | ||
 | 453923 | 93 | DISPLAY | $842.49 | ||
 | 454149 | 94 | ACCESSORY TRAY | $62.99 | ||
 | 454150 | 95 | UPPER FRAME COVER | $110.99 | ||
 | 454155 | 96 | LEFT PIVOT COVER | $15.99 | ||
 | 453847 | 97 | LOWER DISPLAY COVER | $24.99 | ||
| 454467 | 98 | LEFT HANDRAIL BOTTOM | $267.99 | |||
| 454469 | 99 | RIGHT HANDRAIL BOTTOM | $364.49 | |||
| 454153 | 100 | RIGHT PIVOT COVER | $15.99 | |||
| 453913 | 101 | 1″ PLASTIC WASHER | $230.99 | |||
| 398609 | 102 | M3 X 12MM SCREW | $0.99 | |||
 | 424108 | 103 | POWER SUPPLY | $189.99 | ||
 | 428528 | 104 | INCLINE MOTOR CONTROLLER | $119.99 | ||
 | 125819 | 105 | STANDOFF | $3.99 | ||
 | 407819 | 106 | CONSOLE FAN | $129.99 | ||
 | 453914 | 107 | M30 NUT | $41.49 | ||
| 196829 | 108 | BELLY PAN GROMMET | $2.49 | |||
 | 453911 | 109 | METAL SPACER | $30.49 | ||
 | 453912 | 110 | PLASTIC SPACER | $5.99 | ||
| 454312 | 111 | PIVOT PLATE | $31.49 | |||
| 454283 | 112 | PIVOT FRONT COVER | $26.49 | |||
| 454284 | 113 | PIVOT BACK COVER | $32.99 | |||
| 1002736 | 114 | PIVOT BRACKET | $99.99 | |||
 | 431889 | 115 | INNER PIVOT BUSHING | $47.49 | ||
 | 434037 | 116 | BRACKET MOUNT | $46.49 | ||
 | 453915 | 117 | LARGE SADDLE BRACKET | $72.99 | ||
 | 137337 | 118 | M6 X 16MM SCREW | $3.49 | ||
 | 234926 | 119 | M4 X 10MM SCREW | $2.99 | ||
 | 391488 | 120 | M6 X 25MM SCREW | $2.49 | ||
 | 133333 | 121 | #8 CLIP | $0.99 | ||
| 146439 | 122 | M5 NUT | $0.99 | |||
| 1003361 | 123 | 1/4″ X 2 1/2″ WASHER SCW | $8.49 | |||
| 1003870 | 124 | M4 X 16MM SCREW | $1.49 | |||
| 1004169 | 125 | 0.177″ FLAT WASHER | $2.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 240351 | # | PLASTIC TIE | $0.99 | |||
| 1002607 | # | LITPAC, NOTE: | $157.49 | |||
| 252433 | # | CAUTION DECAL | $0.99 | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 432834 | # | 5MM ALLEN WRENCH | $14.49 | |||
| 454298 | # | HARDWARE KIT, NOTE: | $162.99 | |||
| 1000105 | # | 5/16″ ALLEN WRENCH | $27.99 | |||
| 454484 | # | 1/4″ ALLEN WRENCH, T-HNDL | $27.99 | |||
| 454299 | # | TOOL KIT, NOTE: | $182.99 | |||
| 454008 | # | M40 OPEN END WRENCH | $60.99 | |||
 | 450419 | # | 7/32″ ALLEN WRENCH,T-HNDL | $27.99 | ||
| 1003431 | # | 5/16″ MOTOR SCREW | $10.99 | |||
| 450416 | # | PHILLIPS SCREW DRIVER | $76.99 | |||
 | 437551 | # | HEART RATE ARM BAND | $194.99 | ||
 | ARC14 | # | WALL ARC FILTER | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 268476 | # | DECAL, GROUND WARNING | $0.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 271317 | # | WARNING DECAL | $14.49 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 450421 | # | 9/16″ COMBO WRENCH | $24.99 | |||
 | 189813 | TA15 | FILTER WIRE | $23.99 | ||
 | 153403 | TA18 | 4″ BLUE WIRE, M/F | $3.99 | ||
 | 203663 | TA19 | UPRIGHT GROUND WIRE | $4.49 | ||
 | 353808 | TA3 | 14″BROWN WIRE,F/F,WAS 8″ | $5.49 | ||
 | 414703 | TA4 | 4.5″ WIRE HRNS | $13.49 | ||
 | 429538 | TA5 | 12″ WIRE HRNS | $23.49 | ||
 | 102634 | TA6 | 8″ GREEN WIRE | $3.49 | ||
 | 426425 | TA7 | 62″ WIRE HRNS,INCLINE MTR | $43.49 | ||
 | 452965 | TA8 | 12″ WIRE HARNESS | $17.49 | ||
 | 426440 | TA9 | 14″ WIRE HRNS | $30.49 | ||
 | 215822 | TB20 | CONSOLE GROUND WIRE | $5.99 | ||
 | 155623 | TB24 | 7″ GREEN WIRE, M/RING | $3.99 |
