NORDICTRACK X16 TREADMILL – NTL29225.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
131 Parts Available for NORDICTRACK X16 TREADMILL - NTL29225.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 190979 | 1 | WHEEL BOLT | $17.99 | ||
| 250957 | 2A | M4 X 16MM FLAT HEAD SCREW | $0.99 | |||
 | 163045 | 3 | 3/8″ STAR WASHER | $0.99 | ||
 | 013607 | 5A | M4 X 19MM SCREW | $0.99 | ||
 | 013322 | 5B | 3/4″ SCREW | $0.99 | ||
| 136728 | 6 | #8 X 7/16″ SCREW | $0.99 | |||
| 213894 | 8 | 7/32″ WASHER | $0.99 | |||
 | 013300 | 9 | #8 X 3/4″ SCREW | $0.99 | ||
 | 291486 | 10 | #8 X 5/8″ SCREW | $0.99 | ||
| 013500 | 11 | BOLT | $2.49 | |||
| 171229 | 12 | CONSOLE PLATE SCREW | $0.99 | |||
| 013341 | 13 | 1/4″ X 2.5″ HH BOLT | $0.99 | |||
 | 425557 | 14 | M8 X 32MM BOLT | $25.99 | ||
| 425558 | 15 | M8 X 51MM BOLT | $7.99 | |||
 | 432335 | 16 | CROWN FASTENER | $1.99 | ||
 | 013576 | 17A | SCREW | $0.99 | ||
 | 186819 | 17B | CONSOLE GROUND SCREW | $0.99 | ||
 | 117332 | 18 | 3/8″ X 3/4″ SCREW | $4.49 | ||
 | 333350 | 19 | M8 LOCKNUT | $1.99 | ||
 | 295758 | 20 | 5/16″ MOTOR BOLT | $3.49 | ||
| 379212 | 21 | 3/8″ X 2 3/8″ SCREW | $8.99 | |||
| 344029 | 22 | 3/8″ X 3″ SCREW | $6.49 | |||
| 014157 | 23 | STAR WASHER | $0.99 | |||
| 454056 | 24 | PRIMARY DISPLAY | $233.99 | |||
 | 152478 | 25 | 5/16″ FLAT WASHER | $0.99 | ||
 | 119425 | 26 | 3/8″ NYLON LOCKNUT * | $0.99 | ||
 | 100427 | 27 | 5/16″ NYLON LOCKNUT | $0.99 | ||
 | 012090 | 28 | 1/4″ NYLON LOCKNUT | $0.99 | ||
 | 198639 | 29 | BELT GUIDE | $5.99 | ||

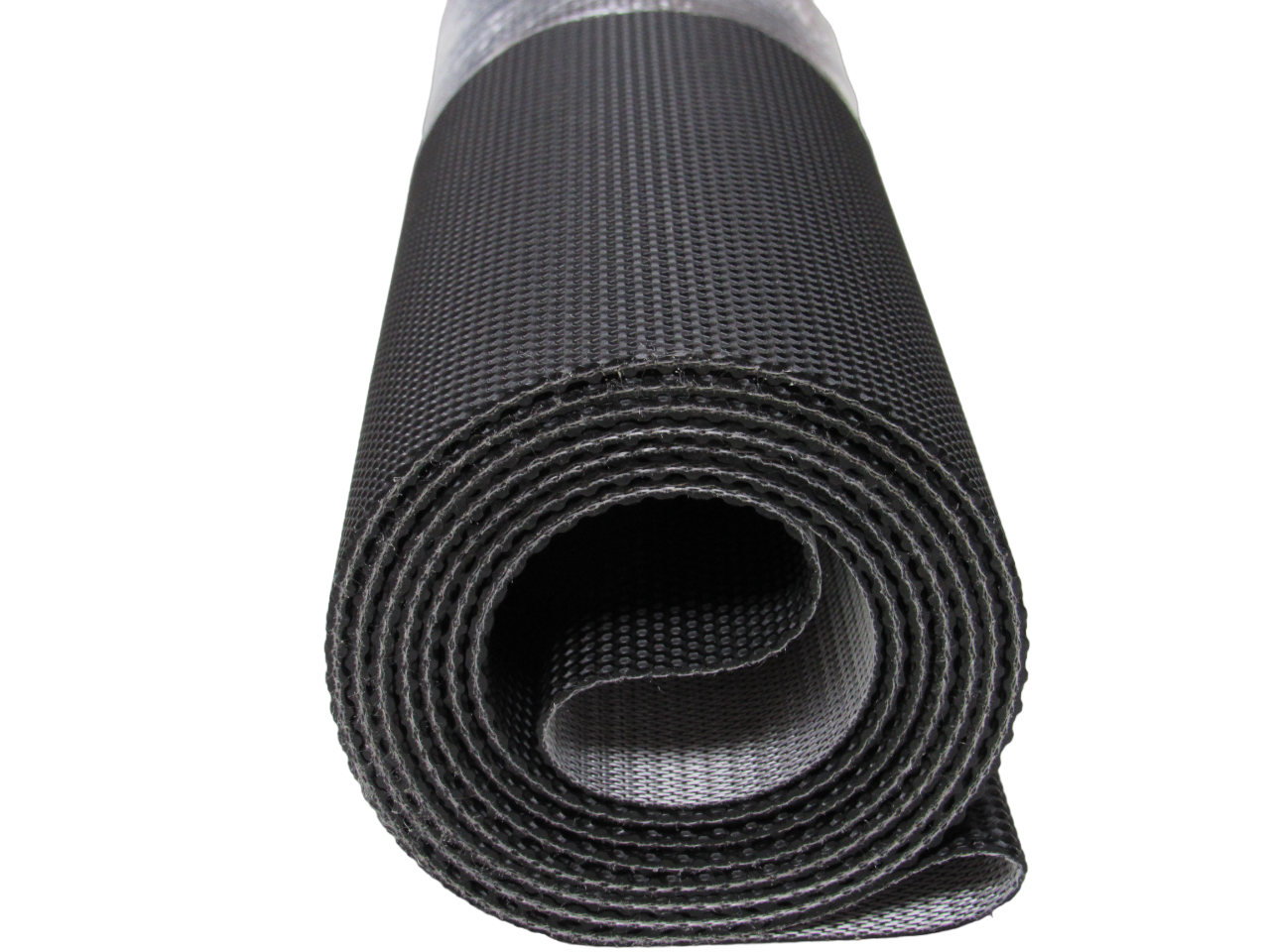

 | 454379 | 31 | WALKING BELT | $180.99 | ||
| 454380 | 32 | LEFT FOOT RAIL | $127.49 | |||
| 454381 | 33 | RIGHT FOOT RAIL | $127.49 | Unavailable to order | ||
| 338270 | 34 | IDLER ROLLER | $160.99 | |||
 | 454207 | 35 | BELLY PAN COVER | $67.99 | ||
 | 454206 | 36 | BELLY PAN | $102.49 | ||
 | 186726 | 37 | POWER SWITCH | $22.49 | ||
 | 227199 | 38 | GROMMET | $2.49 | ||
 | 173169 | 39 | GROMMET | $0.99 | ||
| 252752 | 40 | POWER CORD | $69.99 | |||
| 132315 | 41 | WIRE TIE | $3.49 | |||
 | 376275 | 42 | DRIVE ROLLER/PULLEY | $175.49 | ||
 | 454265 | 43 | FOOT RAIL COVER | $21.49 | ||
| 014064 | 44 | M6 STAR WASHER | $0.99 | |||
| 454204 | 45 | SMALL PIVOT BUSHING | $3.99 | |||
| 330114 | 46 | BELT | $70.49 | |||
 | 454209 | 47 | UPPER FRONT COVER | $132.99 | ||

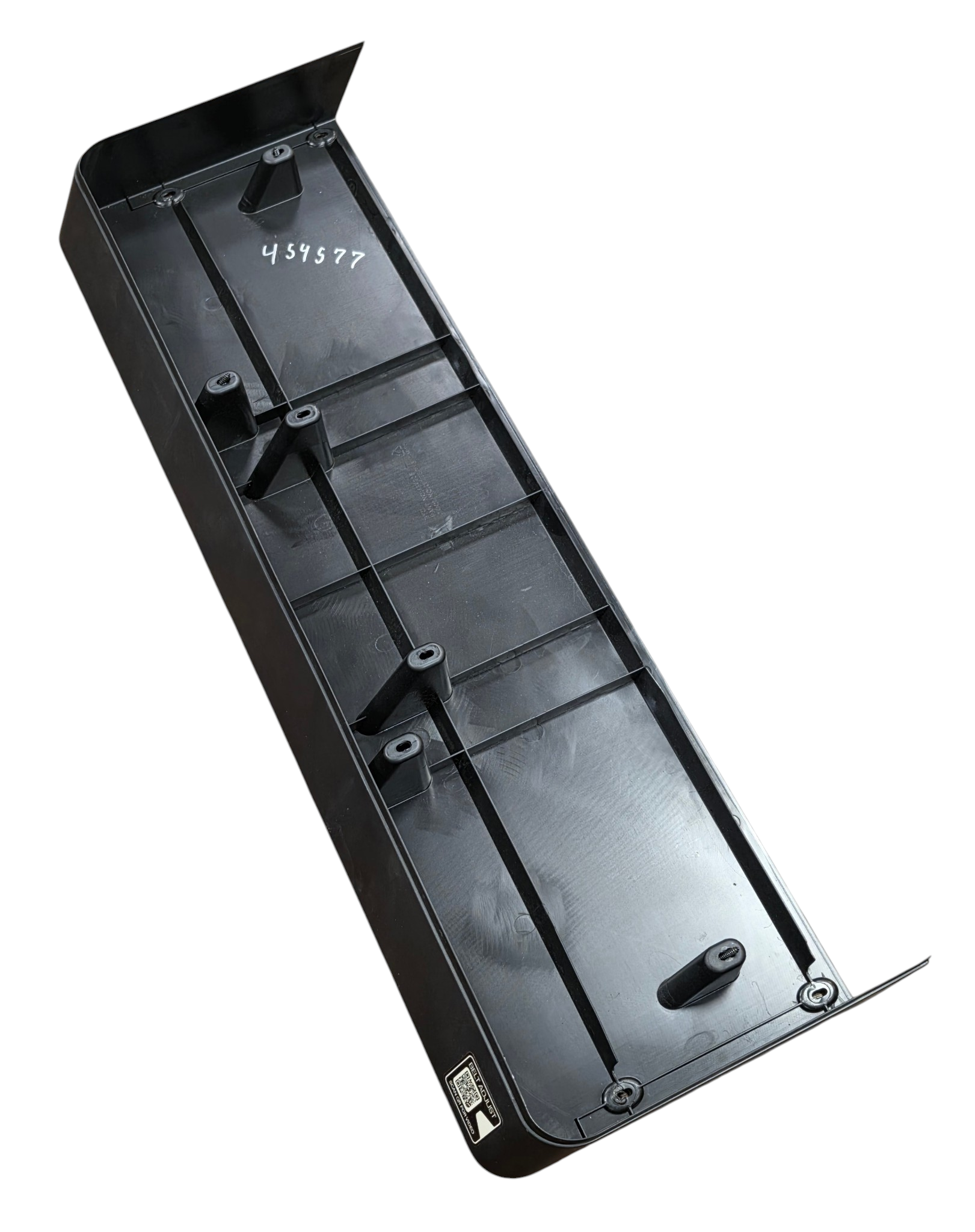

 | 454577 | 48 | LOWER FRONT COVER | $121.99 | ||
| 454214 | 49 | LEFT UPRIGHT COVER | $98.99 | |||
| 454215 | 50 | RIGHT UPRIGHT COVER | $98.99 | |||
 | 453927 | 51 | LARGE CUSHION | $118.99 | ||
 | 454314 | 52 | BASE WIRE | $128.49 | ||
 | 298474 | 53 | RUBBER CUSHION | $1.99 | ||
| 373400 | 54 | LARGE PIVOT BUSHING | $6.99 | |||
| 391085 | 55 | ELECTRONICS COVER | $72.49 | |||
 | 329456 | 56 | INCLINE MOTOR TOP COVER | $13.49 | ||
| 440347 | 57 | FASTENER RECEPTACLE | $2.99 | |||
 | 433536 | 58 | INCLINE MOTOR BOTTOM CVR | $16.99 | ||
 | 425559 | 59 | INCLINE MOTOR BUSHING | $2.99 | ||
 | 425791 | 60A | INCLINE MOTOR | $197.99 | ||
 | 426162 | 60B | INCLINE MOTOR SENSOR KIT | $38.99 | ||
| 425782 | 61 | ELECTRONICS BRACKET | $112.49 | |||
 | 454383 | 62 | CONTROLLER | $289.99 | ||
 | 442305 | 63 | RESISTOR | $104.49 | ||
 | 416801 | 64 | DRIVE MOTOR | $261.99 | ||
 | 276104 | 65 | #8 X 5/8″ MACHINE SCREW | $0.99 | ||
| 106731 | 67 | FAN SCREW | $0.99 | |||
| 454152 | 68 | LEFT OUTSIDE FRAME COVER | $52.49 | |||
| 454151 | 69 | LEFT INSIDE FRAME COVER | $31.99 | |||
| 454147 | 70 | RIGHT INSIDE FRAME COVER | $31.99 | |||
| 454148 | 71 | RIGHT OUTSIDE FRAME COVER | $52.49 | |||
 | 273782 | 72 | WHEEL | $3.99 | ||
 | 350476 | 73 | BASE PAD | $6.49 | ||
| 454376 | 74 | BASE | $293.49 | |||
| 454377 | 75 | UPRIGHT WIRE | $120.99 | |||
| 439784 | 76 | ROUND GROMMET | $2.99 | |||
| 325431 | 77A | LEVELING FOOT | $23.99 | |||
 | 012149 | 77B | 3/8″ NYLON LOCKNUT | $0.99 | ||
 | 454201 | 78 | AXLE | $47.49 | ||
| 454210 | 79 | BASE CAP | $23.49 | |||
| 443401 | 80 | COVER SUPPORT | $4.99 | |||
| 126960 | 81 | HOLE PLUG | $0.99 | |||
| 454176 | 82 | LEFT UPRIGHT | $179.99 | |||
| 454183 | 83 | RIGHT UPRIGHT | $179.99 | |||

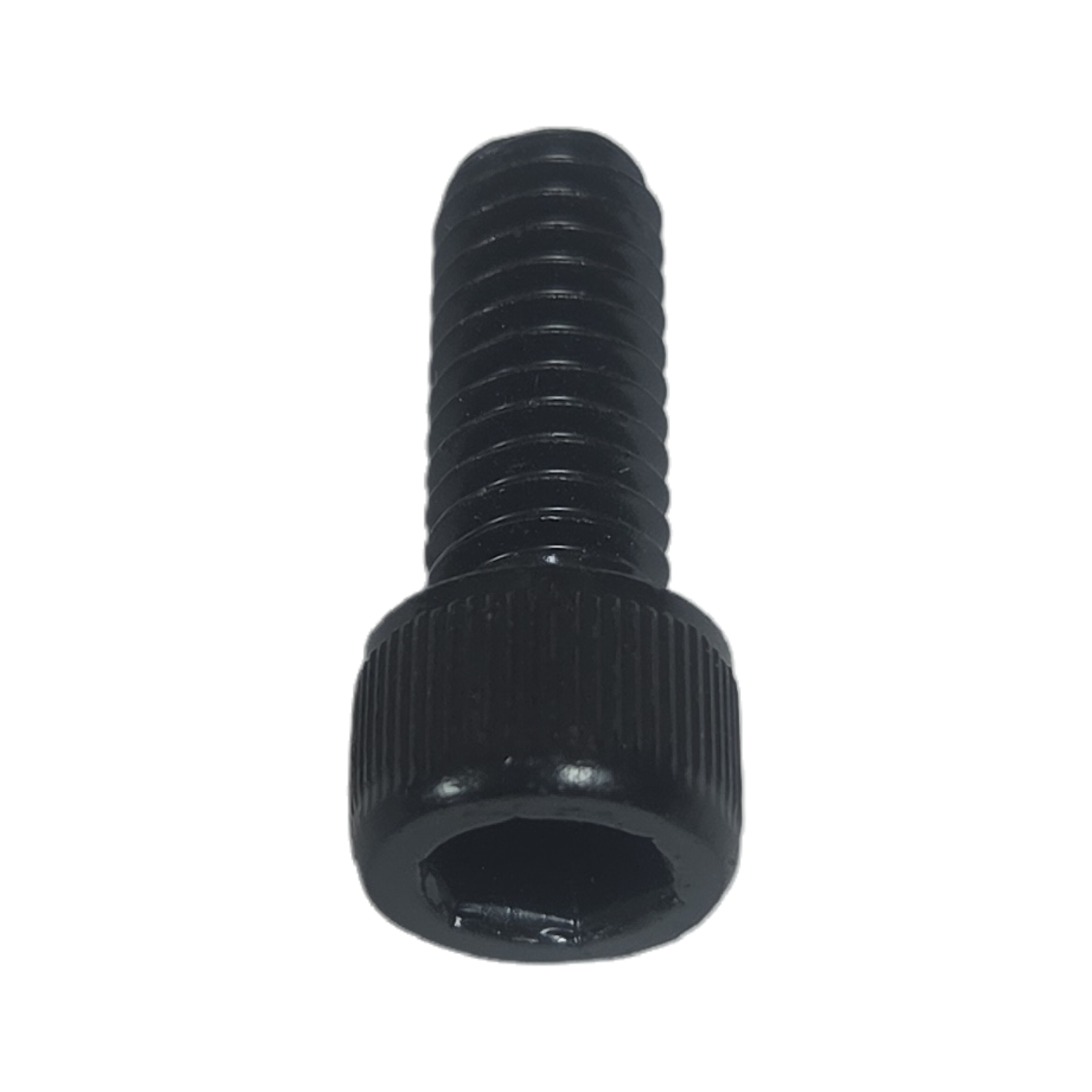

 | 454482 | 84 | 5/16″ X 3/4″ SCREW | $12.49 | ||
| 454187 | 85 | UPPER FRAME | $216.49 | |||
| 428745 | 86 | #4 X 3/8″ SCREW | $2.99 | |||
| 454154 | 87 | ACCESS COVER | $18.49 | |||
 | 263710 | 88 | KEY/CLIP | $19.99 | ||
| 454469 | 89 | RIGHT HANDRAIL BOTTOM | $364.49 | |||
| 454467 | 90 | LEFT HANDRAIL BOTTOM | $267.99 | |||
 | 453841 | 91 | UPPER DISPLAY COVER | $29.99 | ||
 | 453906 | 92 | DISPLAY BRACKET | $34.99 | ||
 | 453923 | 93 | DISPLAY | $842.49 | ||
 | 454149 | 94 | ACCESSORY TRAY | $62.99 | ||
 | 454150 | 95 | UPPER FRAME COVER | $110.99 | ||
 | 454155 | 96 | LEFT PIVOT COVER | $15.99 | ||
 | 453847 | 97 | LOWER DISPLAY COVER | $24.99 | ||
| 454420 | 98 | LEFT HANDRAIL TOP | $43.99 | |||
| 454419 | 99 | RIGHT HANDRAIL TOP | $43.99 | |||
| 454153 | 100 | RIGHT PIVOT COVER | $15.99 | |||
| 453913 | 101 | 1″ PLASTIC WASHER | $230.99 | |||
| 398609 | 102 | M3 X 12MM SCREW | $0.99 | |||
 | 424108 | 103 | POWER SUPPLY | $189.99 | ||
 | 428528 | 104 | INCLINE MOTOR CONTROLLER | $119.99 | ||
 | 125819 | 105 | PLASTIC STAND-OFF | $3.99 | ||
 | 407819 | 106 | CONSOLE FAN | $39.99 | ||
 | 453914 | 107 | M30 NUT | $41.49 | ||
| 196829 | 108 | BELLY PAN GROMMET | $2.49 | |||
 | 453911 | 109 | METAL SPACER | $30.49 | ||
 | 453912 | 110 | PLASTIC SPACER | $5.99 | ||
| 454312 | 111 | PIVOT PLATE | $31.49 | |||
| 454283 | 112 | PIVOT FRONT COVER | $26.49 | |||
| 454284 | 113 | PIVOT BACK COVER | $32.99 | |||
| 454200 | 114 | PIVOT BRACKET | $104.49 | |||
 | 431889 | 115 | INNER PIVOT BUSHING | $47.49 | ||
 | 434037 | 116 | BRACKET MOUNT | $46.49 | ||
 | 453915 | 117 | LARGE SADDLE BRACKET | $72.99 | ||
 | 137337 | 118 | M6 SCREW | $3.49 | ||
 | 234926 | 119 | M4 X 10MM SCREW | $2.99 | ||
 | 391488 | 120 | M6 X 25MM CAP SCREW,NOTE | $2.49 | ||
 | 133333 | 121 | CLIP | $0.99 | ||
| 146439 | 122 | M8 LOCKNUT | $0.99 | |||
 | 364027 | 123 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
| 454298 | # | HARDWARE KIT, NOTE: | $162.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
 | ARC14 | # | ARC FILTER | |||
| 411544 | # | WIFI REPEATER | $62.99 | |||
| 404032 | # | DECAL,NORDICTRACK CONSOLE | $20.99 | |||
| 454008 | # | M40 OPEN END WRENCH | $60.99 | |||
| 454575 | # | LITPAC, NOTE: | $193.99 | |||
 | 450419 | # | 7/32″ ALLEN WRENCH | $27.99 | ||
| 240351 | # | CABLE TIE | $0.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
 | 437551 | # | ARM HEART RATE MONITOR | $194.99 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 450421 | # | 9/16″ COMBO WRENCH | $24.99 | |||
| 1000105 | # | 5/16″ ALLEN WRENCH | $27.99 | |||
| 454484 | # | 1/4″ ALLEN WRENCH, T-HNDL | $27.99 | |||
| 1000152 | # | USER’S MANUAL, SP13 | $60.99 | |||
| 268476 | # | WARNING DECAL | $0.99 | |||
| 252433 | # | DECAL,CAUTION BASE LEG | $0.99 | |||
| 432834 | # | 5MM ALLEN WRENCH | $14.49 | |||
| 271317 | # | WARNING DECAL | $14.49 | |||
 | 104838 | # | GREASE | $8.49 | ||
| 454299 | # | TOOL KIT, NOTE: | $182.99 | |||
| 236006 | # | DECAL,SURGE WARNING | $3.99 | |||
| 450416 | # | #2 PHILLIPS SCREW DRIVER | $76.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | 189813 | TA15 | FILTER WIRE | $23.99 | ||
 | 153403 | TA18 | 4″ BLUE WIRE, M/F | $3.99 | ||
 | 353808 | TA3 | 14″ BROWN WIRE,F/F | $5.49 | ||
 | 414703 | TA4 | 4.5″ WIRE HRNS | $13.49 | ||
 | 429538 | TA5 | 12″ WIRE HRNS | $23.49 | ||
 | 102634 | TA6 | 8″ GREEN WIRE | $3.49 | ||
 | 426425 | TA7 | 62″ WIRE HRNS,INCLINE MTR | $43.49 | ||
 | 452965 | TA8 | 12″ WIRE HARNESS | $17.49 | ||
 | 426440 | TA9 | 14″ WIRE HRNS | $30.49 | ||
 | 215822 | TB19 | GROUND WIRE | $5.99 | ||
 | 155623 | TB23 | JACK GROUND WIRE | $3.99 |
