NORDICTRACK STEP CLIMBER XL ELLIPTICAL – NTEL16825.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
142 Parts Available for NORDICTRACK STEP CLIMBER XL ELLIPTICAL - NTEL16825.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 416180 | 2 | RIGHT PEDAL BASE | $192.99 | |||
| 416177 | 3 | LEFT PEDAL BASE | $192.99 | |||
| 456081 | 4 | CONSOLE BRACKET | $190.49 | |||
 | 456744 | 5 | CONSOLE | $789.99 | ||
| 386993 | 6 | SNAP RING | $13.49 | |||
 | 432335 | 7A | CROWN FASTENER | $1.99 | ||
| 386965 | 8 | RIGHT STABILIZER | $289.99 | |||
| 386959 | 9 | LEFT STABILIZER | $185.99 | |||
| 416223 | 10 | RIGHT HANDLEBAR | $180.99 | |||
| 416222 | 11 | LEFT HANDLEBAR | $142.99 | |||
 | 375970 | 12 | SHIELD COVER | $42.99 | ||
 | 421101 | 13 | HANDLEBAR GRIP | $39.49 | ||
 | 426943 | 14 | LEFT HANDLEBAR ARM | $175.99 | ||
 | 426944 | 15 | RIGHT HANDLEBAR ARM | $175.99 | ||
| 416818 | 16 | MAGNET BRACKET | $102.49 | |||
| 375887 | 17A | IDLER BRACKET | $26.49 | |||
| 375928 | 17B | IDLER BUSHING | $1.99 | |||
| 376548 | 17C | IDLER PULLEY | $65.49 | |||
| 373273 | 17D | IDLER AXLE | $17.99 | |||
| 150731 | 17E | IDLER SNAP RING | $0.99 | |||
 | 375968 | 18 | ACCESSORY TRAY | $19.99 | ||
| 375860 | 19 | EXCHANGE AXLE | $79.99 | |||
| 375936 | 20 | MEDIUM PULLEY | $40.99 | |||
 | 375952 | 21 | Large Pulley | $69.99 | ||

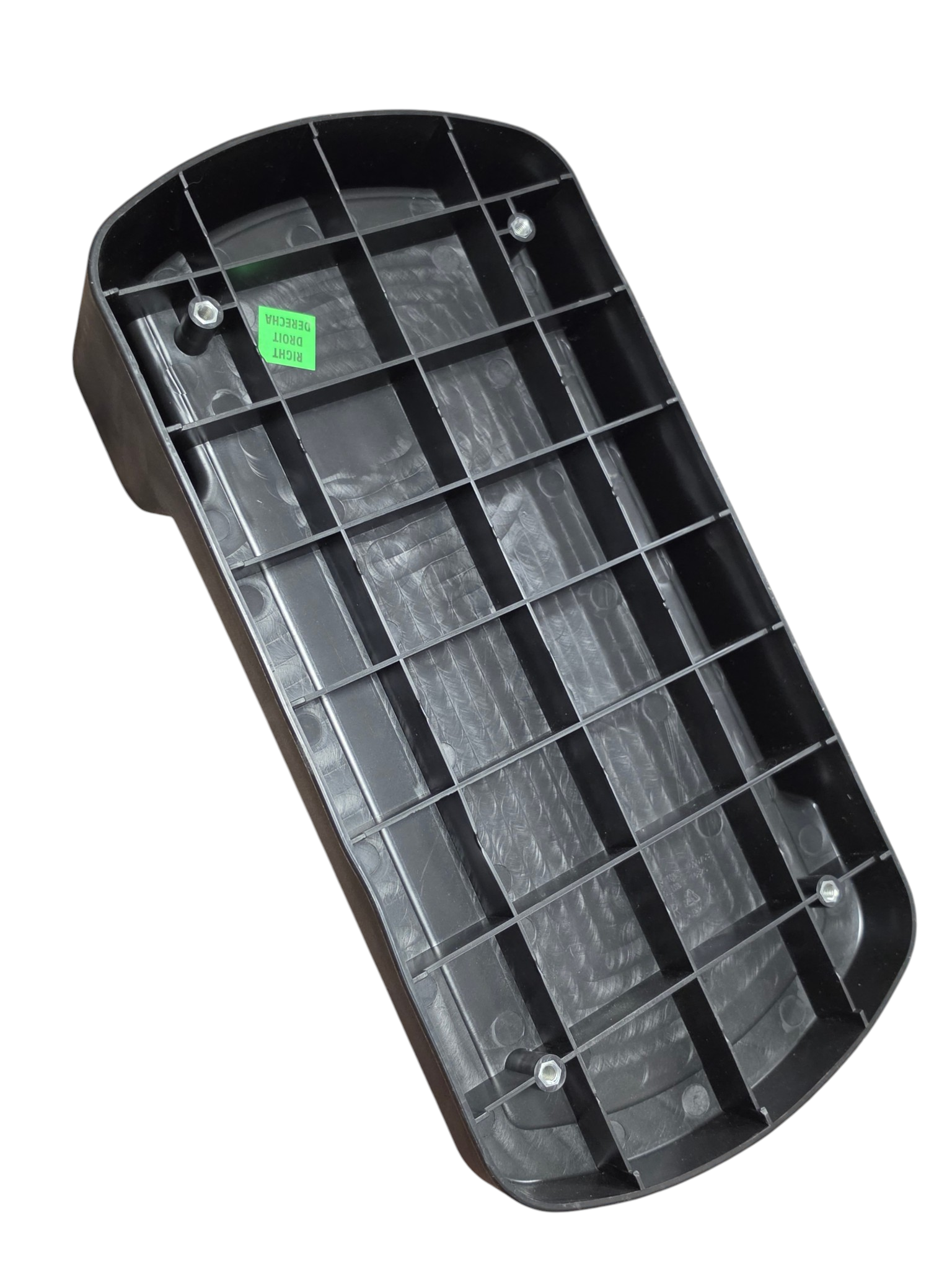

 | 1000752 | 22 | RIGHT PEDAL | $226.99 | ||
 | 1000748 | 23 | LEFT PEDAL | $226.99 | ||
 | 376767 | 24 | RIGHT PEDAL LEG | $307.99 | ||
 | 376766 | 25 | LEFT PEDAL LEG | $269.49 | ||
 | 386625 | 26 | CONNECTOR ARM | $190.49 | ||
| 416361 | 27 | DISC AXLE | $175.99 | |||
 | 408855 | 28 | DRIVE BELT KIT (Set of 2) | $125.99 | ||
| 375858 | 29 | CRANK ARM | $90.99 | |||
 | 375856 | 30 | CRANK | $134.49 | ||
| 1000757 | 32 | DISC | $255.99 | |||

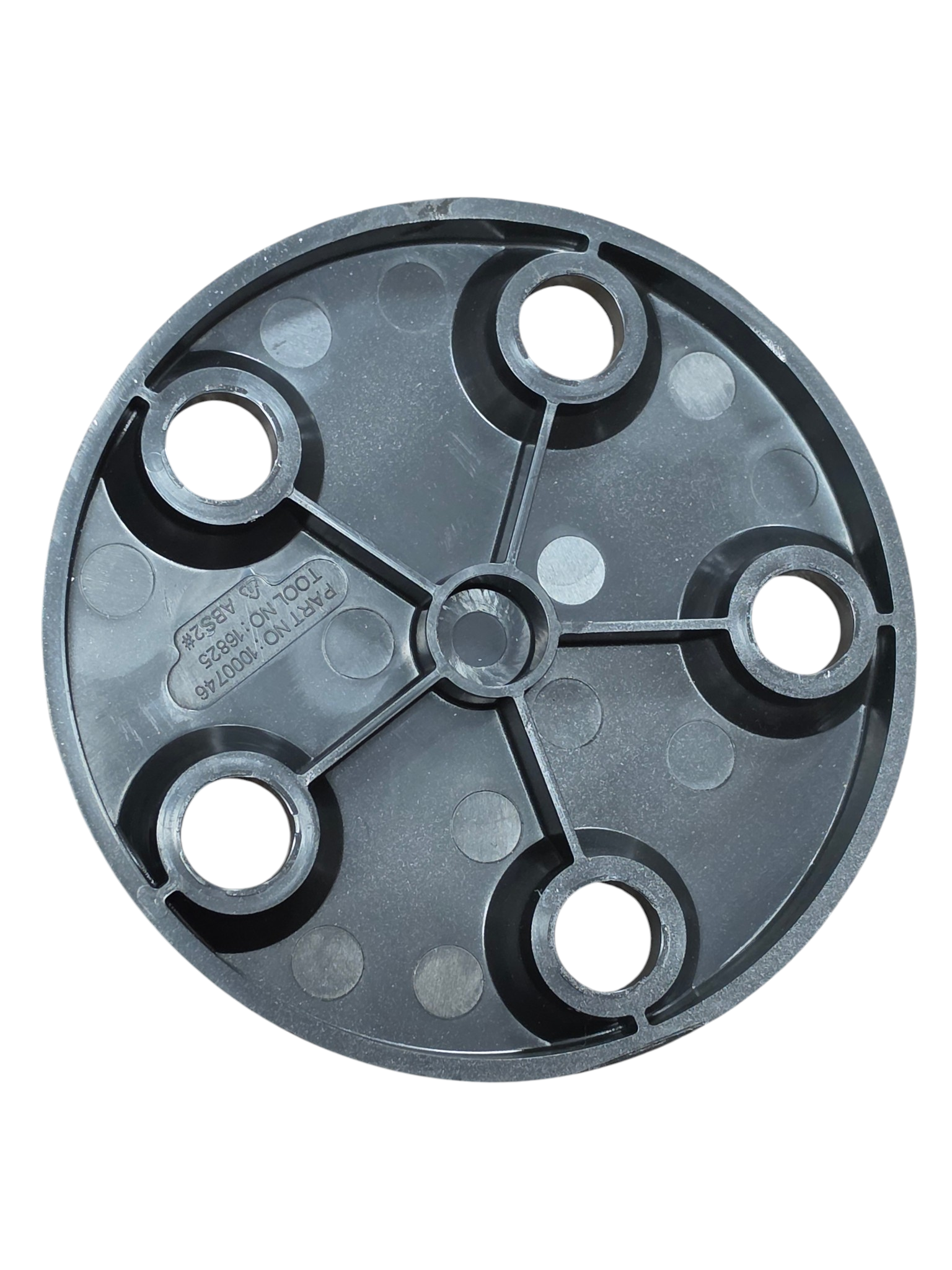

 | 1000746 | 33 | DISC HUB | $31.99 | ||
| 373268 | 34 | SPROCKET | $189.99 | |||
| 375868 | 35 | LINK ARM | $58.99 | |||
 | 411461 | 36 | RESISTANCE MOTOR | $99.99 | ||
 | 241954 | 37 | RESISTANCE DISC | $1.99 | ||
 | 304734 | 38 | RESISTANCE ARM | $32.99 | ||
 | 303952 | 39 | RESISTANCE BRACKET | $4.99 | ||
 | 411087 | 40 | POWER RECEPTACLE/WIRE | $48.99 | ||
| 375958 | 41 | SMALL PULLEY | $55.99 | |||
 | 131090 | 42 | REED SWITCH CLAMP | $0.99 | ||
 | 375931 | 43 | KEY | $3.99 | ||
| 1000747 | 44 | MAGNET COVER | $96.49 | |||
 | 331026 | 45 | M8 WASHER | $3.99 | ||
 | 375923 | 46 | Left Wheel Cover | $8.49 | ||
| 386602 | 47 | LARGE PEDAL ARM BEARING | $67.49 | |||
 | 416364 | 48 | ROLLER ARM BEARING SLEEVE | $16.99 | ||
 | 1000756 | 49 | DISC RING | $141.49 | ||
| 1000797 | 50 | LEFT SHIELD | $344.99 | |||
| 1000796 | 51 | RIGHT SHIELD | $344.99 | |||
 | 456078 | 52 | FRONT COVER | $124.99 | ||
 | 446940 | 53 | REAR COVER | $64.99 | ||
 | 375967 | 54 | ACCESSORY TRAY BASE | $24.99 | ||
 | 375925 | 55 | STABILIZER CAP | $14.99 | ||
 | 332578 | 56 | FRONT STABILIZER FOOT | $13.99 | ||
 | 375922 | 57 | WHEEL | $16.99 | ||
 | 375924 | 58 | RIGHT WHEEL COVER | $8.49 | ||
| 375971 | 59 | HANDLEBAR CAP | $5.99 | |||
 | 291606 | 60 | CRANK BEARING | $22.49 | ||
 | 416170 | 61 | LEFT REAR HANDLEBAR COVER | $125.49 | ||
 | 416169 | 62 | LT FRONT HANDLEBAR COVER | $59.99 | ||
| 416171 | 63 | RT REAR HANDLEBAR COVER | $59.99 | |||
 | 416172 | 64 | RT FRONT HANDLEBAR COVER | $59.99 | ||
| 375969 | 65 | REAR PIVOT COVER | $19.99 | |||
| 376422 | 66 | FRONT PIVOT COVER | $22.49 | |||
| 380618 | 67 | SPRING | $60.49 | |||
 | 446939 | 68A | LOWER REAR SHIELD COVER | $76.99 | ||
 | 396209 | 68B | PULLEY COVER | $24.99 | ||
 | 237631 | 69 | LARGE LEVELING FOOT | $34.99 | ||
 | 139703 | 70 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
| 218132 | 71 | 6205 BEARING | $60.49 | |||
| 300223 | 72 | LARGE BEARING | $71.99 | |||
| 375929 | 73 | BUSHING | $2.99 | |||
 | 259935 | 74 | THRUST WASHER | $5.99 | ||
 | 116014 | 75 | 3/4″ WASHER | $11.49 | ||
| 341554 | 76 | M10 JAM NUT | $1.99 | |||
| 222789 | 77 | M8 X 32MM WASHER | $3.99 | |||
 | 261150 | 78 | M8 X 25MM WASHER | $2.20 | ||
| 249933 | 79 | M6 WASHER | $0.99 | |||
 | 150327 | 80 | M5 NUT | $1.99 | ||
| 375930 | 81 | M10 SHOULDER BOLT | $8.49 | |||
| 373149 | 82 | M4 X 42MM SCREW | $0.99 | |||
 | 133333 | 83 | CLIP | $0.99 | ||
 | 393601 | 84 | M6 X 14MM SCREW,NOTE | $3.99 | ||
| 332268 | 85 | M5 X 16MM BOLT | $0.99 | |||
 | 276024 | 86 | M3.5 X 12MM SCREW | $1.49 | ||
| 386639 | 87 | M8 X 16MM HEX SCREW | $29.99 | |||
| 375972 | 88 | DISC SCREW | $18.99 | |||
 | 275907 | 89 | M10 LOCKNUT | $4.49 | ||
| 277730 | 90 | CRANK ARM BOLT | $8.99 | |||
| 356255 | 91 | M8 FLAT HEAD SCREW | $2.49 | |||
 | 346533 | 92 | CRANK ARM WASHER | $4.49 | ||
| 371429 | 93 | STUD | $18.99 | |||
| 130302 | 95 | M10 X 80MM BOLT | $26.49 | |||
 | 223089 | 96 | M8 X 16MM WHL AXLE SCREW | $6.99 | ||
| 419907 | 97 | M8 SHOULDER SCREW | $6.49 | |||
| 318838 | 98 | M8 X 30MM BOLT | $4.99 | |||
 | 256446 | 99 | M8 NUT | $0.99 | ||
| 265605 | 100 | M8 X 23MM SCREW | $9.49 | |||
| 380825 | 101 | M4 X 16MM COVER SCREW | $2.49 | |||
| 417308 | 102 | M8 X 20MM FLANGE SCREW | $6.49 | |||
| 417306 | 103 | CAP SCREW | $3.49 | |||
 | 113842 | 104 | MAGNET | $1.49 | ||
 | 236321 | 105 | M8 X 25MM SCREW | $4.49 | ||
 | 195562 | 106 | M4 X 16MM SCREW | $1.99 | ||
| 251831 | 107 | M4 X 22MM SELF-TAP SCREW | $1.99 | |||
 | 197037 | 108 | M6 X 12MM SCREW | $0.99 | ||
| 382359 | 109 | M8 X 86MM SCREW | $10.99 | |||
| 400743 | 110 | M10 X 20MM SCREW | $9.49 | |||
| 391858 | 111 | SLANTED CAP | $24.99 | |||
 | 227701 | 112 | M10 X 25MM SCREW | $2.49 | ||
 | 277969 | 113 | AC POWER ADAPTER | $28.99 | ||
 | 213457 | 114 | M4 X 12MM SCREW, NOTE: | $1.99 | ||
 | 453262 | 115 | MAIN WIRE | $164.49 | ||
 | 415080 | 116 | REED SWITCH/WIRE | $46.49 | ||
 | 375926 | 117 | CRANK COVER DISC | $24.99 | ||
 | 250961 | 118 | M4 X 19MM SCREW | $0.99 | ||
 | 456077 | 119 | CONSOLE UPPER COVER | $51.99 | ||
 | 456075 | 120 | CONSOLE LOWER COVER w/ NO MUSHROOM CAPS | $64.49 | ||
 | 137337 | 121 | M6 X 16MM SCREW | $3.49 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 132315 | # | CABLE TIE | $3.49 | |||
| 456122 | # | HARDWARE KIT, NOTE | $162.99 | |||
| 404032 | # | DECAL,NORDICTRACK CONSOLE | $20.99 | |||
| 1000678 | # | LITPAC, NOTE: | $297.49 | |||
| 1002502 | # | USER’S MANUAL,SP13 | $133.99 | |||
| 456110 | # | 15MM COMBO WRENCH | $82.99 | |||
| 456121 | # | TOOL KIT, NOTE | $191.99 | |||
| 450422 | # | 13MM COMBO WRENCH | $63.99 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 386951 | # | DECAL,PINCH POINT WARNING | $6.49 | |||
| 450416 | # | PHILLIPS SCREW DRIVER | $76.99 | |||
| 449335 | # | DECAL,GENERAL WARNING | $14.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 450573 | # | 4MM ALLEN WRENCH, T-HNDL | $28.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 364361 | # | CHEST HEARTRATE MONITOR | $135.99 | |||
| 450574 | # | 5MM ALLEN WRENCH,T-HNDL | $64.99 | |||
 | 437551 | # | HEART RATE ARM BAND | $194.99 |
