NORDICTRACK FUSION CST W/ROWER SYSTEM – NTSY20119.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
202 Parts Available for NORDICTRACK FUSION CST W/ROWER SYSTEM - NTSY20119.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 373668 | 2 | TOWER TOP COVER | $34.99 | |||
| 373677 | 3 | SPRING | $53.49 | |||
| 378817 | 4 | SPRING COVER | $19.49 | |||
| 367428 | 5 | DISC COVER | $13.99 | |||
| 373672 | 6 | RESISTANCE DISC | $346.99 | |||
| 367961 | 7 | RESISTANCE AXLE | $103.49 | |||
| 368147 | 8 | RETENTION RING | $0.99 | |||
| 259192 | 9 | MAIN BEARING | $23.49 | |||
| 366150 | 10 | FRONT HUB SPACER | $2.49 | |||
| 258074 | 11 | BEARING SPACER | $56.49 | |||
| 373674 | 12 | PULLEY HUB | $64.49 | |||
| 373673 | 13 | MECHANISM PULLEY | $64.49 | |||
| 366149 | 14 | PULLEY SPACER | $3.99 | |||
| 387939 | 15A | TABLET STAND | $178.49 | |||
| 387938 | 15B | TABLET SLIDE | $34.49 | |||
| 372908 | 16 | TOWER BRACKET | $45.49 | |||
| 367433 | 17 | SLIDE FRAME BRACKET | $3.49 | |||
| 374009 | 18 | RESISTANCE ARM ASSEMBLY | $23.49 | |||
| 387259 | 19 | TOWER ARM | $120.99 | |||
| 372926 | 20 | UPPER TOWER COVER | $6.49 | |||
| 367941 | 21 | RESISTANCE DISC | $0.99 | |||
 | 367939 | 22 | RESISTANCE MOTOR | $118.99 | ||
| 367896 | 23 | REED SWITCH BRACKET | $2.49 | |||
 | 363953 | 24 | REED SWITCH CLAMP/SCREW | $2.49 | ||
 | 372449 | 25 | REED SWITCH/WIRE | $23.49 | ||
| 372928 | 26 | TOWER ARM COVER | $7.99 | |||
| 265485 | 27 | SWIVEL BEARING | $57.49 | |||
| 368148 | 28 | SNAP RING | $0.99 | |||
| 367429 | 29 | COUNTERWEIGHT | $9.49 | |||
| 373112 | 30 | RIGHT PULLEY COVER A | $26.49 | |||
| 373113 | 31 | RIGHT PULLEY COVER B | $26.49 | |||
| 362932 | 32 | SWIVEL PULLEY AXLE | $0.99 | |||
| 366344 | 33 | SWIVEL PULLEY | $22.49 | |||
| 367440 | 34 | ROPE COLLAR | $13.49 | |||
| 373417 | 35 | ROPE END | $11.99 | |||
 | 103087 | 36 | CABLE CLIP | $20.99 | ||
| 385883 | 37 | HANDLE | $16.99 | |||
| 372934 | 38 | RIGHT TOWER COVER | $6.49 | |||
| 373401 | 39 | EYEBOLT | $1.99 | |||
| 331708 | 40 | BUMPON,HOOD COWLING | $0.99 | |||
 | 244821 | 41A | POWER RECEPTACLE/WIRE | $99.99 | ||
 | 214003 | 41B | POWER WIRE/RECEPTACLE NUT | $5.49 | ||
| 371321 | 42 | REAR HUB SPACER | $2.49 | |||
| 372933 | 43 | LEFT TOWER COVER | $6.49 | |||
| 374014 | 44 | RIGHT LEG | $494.49 | |||
| 350910 | 45 | FOOT | $4.99 | |||
| 372880 | 46 | PULLEY CARRIAGE | $6.99 | |||
| 372924 | 47 | CABLE TRAP | $1.99 | |||
| 373434 | 48 | D SENSOR | $60.99 | |||
| CC1248 | 49 | 1/2″ STAND-OFF | $5.49 | |||
| 401045 | 50 | TALL SENSOR BRACKET | $3.49 | |||
| 372920 | 51 | SHORT SENSOR BRACKET | $1.49 | |||

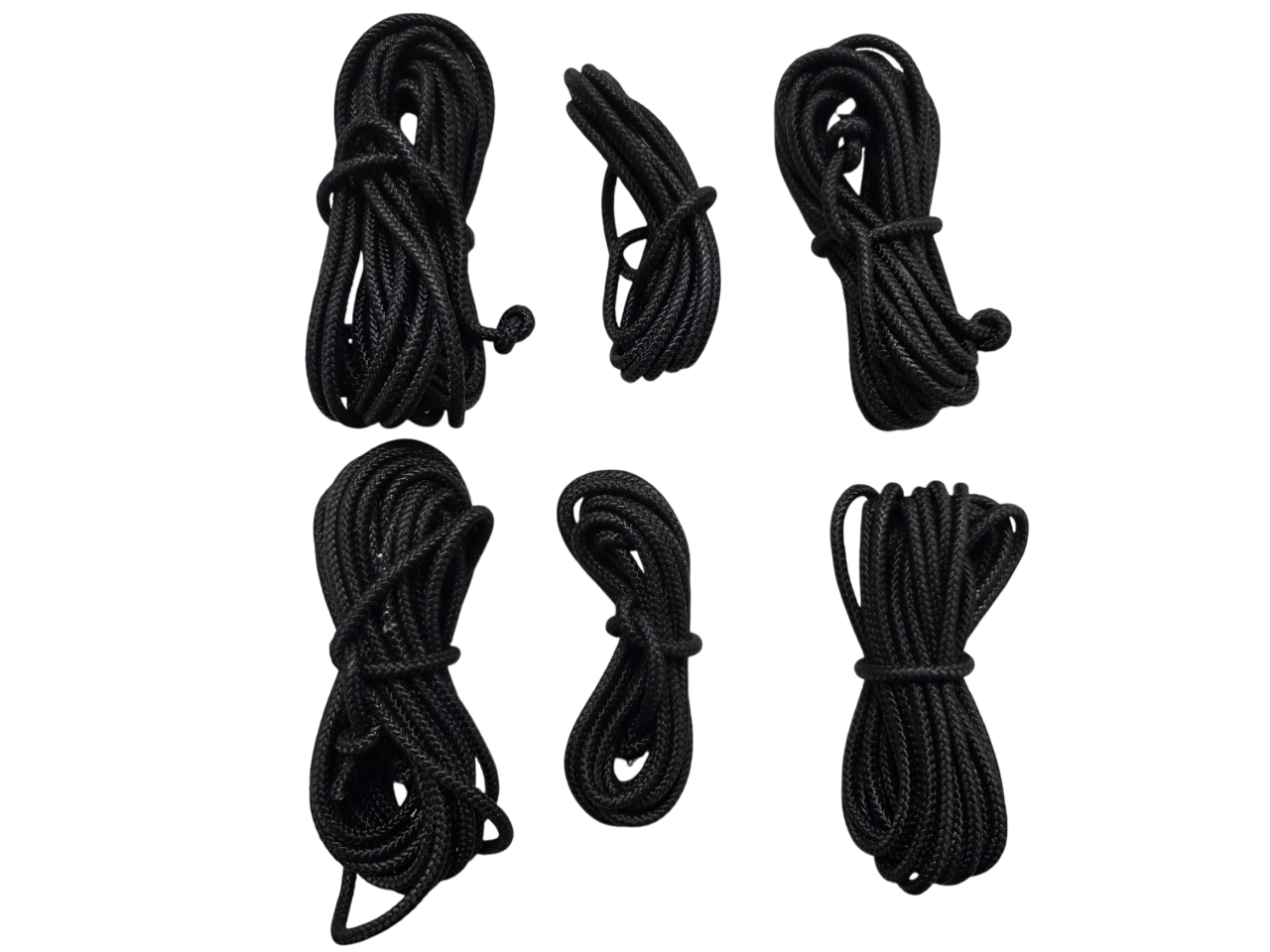

 | 387106 | 52 | ROPE KIT, NOTE: | $194.99 | ||
| 387373 | 53 | ANKLE STRAP | $27.49 | |||
| 366113 | 54 | ARM PULLEY SPACER | $2.49 | |||
| 366347 | 55 | SMALL PULLEY | $19.49 | |||
| 371318 | 56 | LARGE PULLEY | $19.49 | |||
| 373068 | 57 | SHROUD COVER | $152.99 | |||
| 372952 | 58 | FRONT SHROUD | $157.99 | |||
| 387941 | 59 | REAR SHROUD WITHOUT SLOTS | $146.99 | |||
| 405835 | 60 | RIGHT LEG SHIELD | $129.99 | |||
| 277705 | 61 | M6 X 15MM SCREW | $3.49 | |||
 | 014033 | 62 | IDLER WASHER | $1.49 | ||
| 368871 | 63 | PULLEY GUIDE WITH PLATE | $13.49 | |||
| 180547 | 64 | SQUAT PULLEY | $56.49 | |||
| 367404 | 65 | DISC SHIELD | $50.99 | |||
| 374016 | 66 | LEFT LEG | $494.49 | |||
| 373671 | 67 | FRONT BOTTOM COVER | $236.99 | |||
| 373689 | 68 | TABLET HOLDER | $97.49 | |||
| 367434 | 70 | SLIDE FRAME | $9.49 | |||
| 368177 | 71 | MAGNET BRACKET | $39.99 | |||
| 367220 | 72 | LIGHT BAR | $102.49 | |||
 | 386678 | 73A | CONSOLE | $269.49 | ||
 | 286527 | 74 | SNAP MOUNT ONLY | $2.49 | ||
| 127597 | 75 | TREE FASTENER | $1.99 | |||
| CC1053 | 76 | .188″ SCREW | $0.99 | |||
| 369109 | 77 | M4 X 5MM SET SCREW | $0.99 | |||
| 226395 | 78 | M4 X 12MM BOLT | $0.99 | |||
| 330440 | 79 | M4 X 30MM MACHINE SCREW | $2.49 | |||
| 013509 | 80 | #6 X 3/8″ SCREW | $0.99 | |||
| 144528 | 81 | M4 X 10MM SCREW | $0.99 | |||
 | 013423 | 82 | SCREW | $0.99 | ||
 | 013576 | 83 | CUSHION ADJ HOUSING | $0.99 | ||
| 250957 | 84 | M4 X 16MM FLAT HEAD SCREW | $0.99 | |||
| 242355 | 85 | REED SWITCH SCREW | $0.99 | |||
 | 013322 | 86 | CONSOLE SCREW | $0.99 | ||
 | 013529 | 87 | #8 X 1 1/2″ SCREW | $0.99 | ||
 | 174108 | 88 | M6 X 14MM SCREW | $5.99 | ||
| 369110 | 89 | M6 X 20MM HEX SCREW | $9.49 | |||
| 234274 | 90 | M8 X 35MM BOLT | $0.99 | |||
| 369114 | 91 | M8 X 115MM BOLT | $3.99 | |||
| 369111 | 92 | M10 X 25MM FLAT HEAD SCRW | $1.49 | |||
| 173852 | 93 | M10 X 67MM BOLT | $6.49 | |||
 | 197037 | 94 | M6 X 12MM SCREW | $0.99 | ||
| 276016 | 95 | M4 LOCKNUT, NOTE: | $0.99 | |||
 | 012006 | 96 | M6 NYLON LOCKNUT | $0.99 | ||
 | 333350 | 97 | M8 LOCKNUT | $1.99 | ||
| 203402 | 98 | M10 JAM NUT | $0.99 | |||
| 207522 | 99 | ZIP TIE | $3.49 | |||
| 348905 | 100A | M10X30MM SCREW | $1.49 | |||
| 193239 | 100B | M10 X 30MM SCREW, STBLZRS | $5.49 | |||
| 164237 | 101 | M10 X 25MM BOLT | $8.99 | |||
| 405834 | 102 | LEFT LEG SHIELD | $129.99 | |||
 | 256446 | 106 | M8 LOCKNUT | $0.99 | ||
 | 209659 | 107 | M8 X 30MM BUTTON SCREW | $0.99 | ||
| 355570 | 108 | M8 X 30MM PATCH SCREW | $4.99 | |||
| 372930 | 109 | REAR BOTTOM COVER | $20.99 | |||
| 378659 | 112 | M8 X 33MM BOLT | $9.49 | |||
| 223125 | 113 | M8 X 65MM BOLT | $7.49 | |||
 | 248340 | 114 | M10 WASHER | $0.99 | ||
| 373111 | 115 | LEFT PULLEY COVER A | $26.49 | |||
| 373114 | 116 | LEFT PULLEY COVER B | $26.49 | |||
 | 373623 | 118 | M4 X 25MM SCREW, | $0.99 | ||
 | 113842 | 119 | MAGNET | $1.49 | ||
| 193109 | 120 | M8 SMALL WASHER | $3.99 | |||
| 132315 | 121 | TIE | $3.49 | |||
| 373556 | 122 | SENSOR WIRE | $27.99 | |||
| 367824 | 123 | MAIN WIRE | $18.99 | |||
| 263974 | 124 | #8 X 5/8″ TEK SCREW | $1.99 | |||
| 367819 | 125 | EXTENSION WIRE | $33.99 | |||
 | 337717 | 126 | Power Adapter | $18.99 | ||
| 364361 | 129 | CHEST HEART RATE MONITOR | $135.99 | |||
 | 012142 | 130 | M6 LOCKNUT | $0.99 | ||
| 406030 | 131 | RAIL | $152.99 | |||
| 406037 | 132 | RAIL PLATE | $137.99 | |||
| 406981 | 133 | ROWER FRAME | $172.99 | |||
| 406035 | 134 | REAR STABILIZER | $68.49 | |||
| 406038 | 135 | FRONT STABILIZER | $96.49 | |||
| 406166 | 136 | SEAT CARRIAGE | $70.99 | |||
 | 363663 | 137 | SEAT | $143.99 | ||
| 406020 | 138 | RAIL HANDLE | $13.99 | |||
| 406019 | 139 | FRONT RAIL CAP | $17.99 | |||
| 207685 | 140 | M10 X 32MM BUTTON BOLT | $7.99 | |||
 | 012149 | 141 | 3/8″ NUT | $0.99 | ||
| 407055 | 142 | ROW BAR | $27.49 | |||
 | 186477 | 143 | HANDLEBAR CAP | $4.49 | ||
| 406909 | 145 | ROW BAR REST | $14.49 | |||
| 406040 | 146 | FOOTREST FRAME | $174.49 | |||
 | 363149 | 147 | RIGHT FOOTREST | $28.99 | ||
 | 363151 | 148 | RIGHT FOOT PAD | $8.49 | ||
 | 363153 | 149 | RIGHT FOOTREST BRACKET | $8.49 | ||
 | 363148 | 150 | LEFT FOOTREST | $28.99 | ||
| 363150 | 151 | LEFT FOOT PAD | $8.49 | |||
 | 363152 | 152 | LEFT FOOTREST BRACKET | $8.49 | ||
 | 372591 | 153 | WHEEL | $7.49 | ||
| 126166 | 154 | 26MM X 76MM INT ENDCAP | $6.99 | |||
 | 307031 | 155 | THIN BASE PAD | $2.99 | ||
 | 363166 | 156 | STOP | $1.99 | ||
 | 363914 | 157 | LARGE CARRIAGE ROLLER | $34.99 | ||
 | 363915 | 158 | SMALL CARRIAGE ROLLER | $7.49 | ||
 | 362437 | 159 | ROLLER AXLE | $13.99 | ||
| 246785 | 160 | M6 X 16MM SCREW | $3.49 | |||
| 406326 | 161 | M10 X 50MM FLAT HEAD SCRW | $6.49 | |||
 | 363815 | 162 | 5MM WASHER | $2.99 | ||
| 250420 | 163 | M10 X 20MM BUTTON SCREW | $2.99 | |||
 | 360925 | 164 | M5 X 10MM SCREW | $0.99 | ||
 | 208320 | 165 | M4 X 10MM SCREW | $0.99 | ||
 | 268411 | 166 | M6 X 13MM WASHER | $0.99 | ||
 | 397122 | 167 | FOOTREST STRAP | $32.49 | ||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 387603 | # | SYSTEM HARDWARE KIT,NOTE: | $26.99 | |||
| 368073 | # | DECAL, GENERAL WARNING | $0.99 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 375547 | # | 16MM WRENCH | $6.49 | |||
| 045021 | # | HEX KEY | $7.49 | |||
| GZ7006 | # | DECAL, CAUTION | $4.99 | |||
| 387844 | # | EXERCISE CHART | $33.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 166909 | # | DECAL, SITE WARNING | $2.49 | |||
| 406960 | # | LITPAC, NOTE: | $65.99 | |||
| 406262 | # | ROWER HARDWARE KIT, NOTE | $65.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| GZ1517 | # | FLOOR BUMPER | $18.49 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| GZ10196 | # | LEG ENDCAP | $10.99 | |||
| 266080 | # | DECAL, GENERAL WARNING | $10.99 | |||
| 013294 | # | CUSHION ADJ HOUSING SCREW | $0.99 | |||
 | 173847 | # | M10 X 13MM BUTTON SCREW | $3.99 | ||
| 125803 | # | #8 X 1″ SCREW | $1.99 | |||
| 408244 | # | USER’S MANUAL | $23.99 |
