NORDICTRACK ELITE 13.1 ELLIPTICAL – 24055.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
174 Parts Available for NORDICTRACK ELITE 13.1 ELLIPTICAL - 24055.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 383339 | 2 | REAR STABILIZER COVER | $93.99 | |||
| 351008 | 3B | 1 1/4″ X 27.5 FOAM TAPE | $22.49 | |||
| 371462 | 3C | 3/4″ X 2″ FOAM TAPE | $1.99 | |||
| 350867 | 5 | REAR STABILIZER | $64.99 | |||
| 350835 | 6 | RIGHT FRONT STABILIZER | $70.49 | |||
| 402325 | 7A | CONSOLE | $549.49 | |||
| 383338 | 7B | CNSL REPROG CARD | $131.49 | |||
 | 350885 | 8 | FRONT STABILIZER COVER | $85.49 | ||
| 350833 | 9 | LEFT FRONT STABILIZER | $70.49 | |||
| 358033 | 10 | RAMP COVER | $56.49 | |||
| 365468 | 11 | TRACK | $67.49 | |||
| 351323 | 12 | LEFT ROLLER ARM | $193.49 | |||
| 358710 | 14 | LEFT PEDAL | $101.49 | |||
 | 316981 | 15 | CONTROLLER | $124.99 | ||
 | 264511 | 16 | POWER SWITCH | $32.99 | ||
 | 313668 | 17 | STRAIN RELIEF,NOTE: | $9.49 | ||
 | 350829 | 18 | CRANK | $99.49 | ||
| 356073 | 19 | PULLEY | $181.49 | |||
| 350790 | 20 | CRANK ARM | $177.99 | |||
| 350966 | 21 | PEDAL ARM CAP | $5.99 | |||
| 351325 | 22 | IDLER | $101.49 | |||
| 194903 | 23 | M12 NUT | $3.99 | |||
| 399566 | 24A | RT PULSE WIRE | $43.99 | |||
| 383334 | 24B | RT PULSE GRIP ASSY | $84.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
| 356516 | 26 | LOWER SADDLE BRACKET | $116.99 | |||
| 350929 | 27 | LIFT FRAME BUSHING | $39.49 | |||
| 364319 | 28A | EDDY MECHANISM | $312.99 | |||
| 356546 | 28B | RESISTANCE CABLE | $39.49 | |||
 | 350041 | 30 | MEDIUM BUSHING | $49.99 | ||
| 346262 | 31 | LIFT FRAME AXLE | $30.99 | |||
| 399568 | 32A | LT PULSE WIRE | $48.99 | |||
| 383335 | 32B | LT PULSE GRIP ASSY | $84.99 | |||
| 281865 | 33 | SMALL SNAP RING | $3.49 | |||

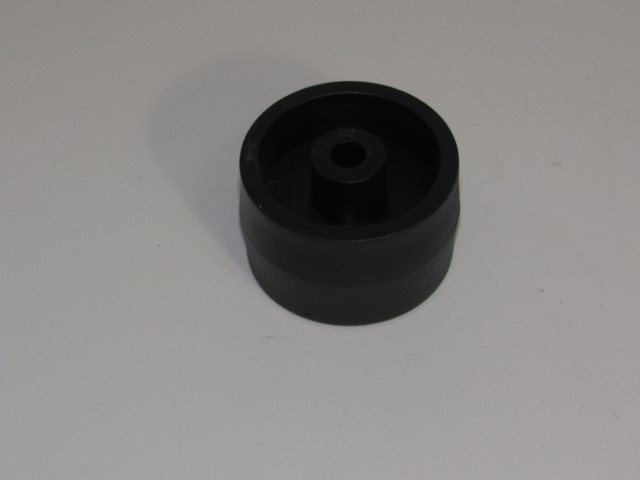

 | 148803 | 34 | WHEEL | $3.49 | ||
| 356056 | 35 | BOLT SET | $20.99 | |||
| 383369 | 36 | RIGHT UPPER BODY LEG | $149.49 | |||
 | 372087 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 39 | CLAMP | $3.49 | ||
| 251313 | 40 | CRANK BEARING | $53.49 | |||
| 350956 | 41 | RIGHT UPPER GRIP | $62.99 | |||
| 350830 | 42 | MEDIUM CRANK SPACER | $2.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 350786 | 44 | LEFT PEDAL ARM | $175.49 | |||
| 351324 | 45 | RIGHT ROLLER ARM | $193.49 | |||
| 383368 | 46 | LEFT UPPER BODY LEG | $149.49 | |||
| 352310 | 47 | LEFT UPPER BODY ARM | $111.49 | |||
| 350947 | 48 | LEFT UPPER GRIP | $62.99 | |||
| 358711 | 49 | RIGHT PEDAL | $101.49 | |||
| 350955 | 50 | RIGHT LOWER GRIP | $60.99 | |||
| 329271 | 51 | LARGE ROLLER | $176.49 | |||
| 350946 | 52 | LEFT LOWER GRIP | $60.99 | |||
| 350958 | 53 | AXLE COVER | $15.49 | |||
 | 350960 | 54 | LEFT SADDLE BRACKET CVR | $64.99 | ||
| 354852 | 55 | DISC COVER | $70.49 | |||
| 358715 | 56 | SHIELD COVER | $193.49 | |||
 | 287322 | 57 | SMALL BUSHING | $10.99 | ||
| 350788 | 58 | RIGHT PEDAL ARM | $175.49 | |||
| 350939 | 59 | LEFT UPPER SADDLE BKT | $65.49 | |||
| 350961 | 60 | RIGHT SADDLE BRACKET CVR | $64.99 | |||
| 352311 | 61 | RIGHT UPPER BODY ARM | $111.49 | |||
| 332578 | 62 | FOOT | $13.49 | |||
 | 353075 | 63 | NYLON BUSHING | $1.99 | ||
 | 194878 | 64 | M4 X 20MM SCREW | $2.99 | ||
 | 350943 | 66 | LEFT OUTER LEG COVER | $34.99 | ||
| 350942 | 67 | LEFT INNER LEG COVER | $29.49 | |||
| 350953 | 68 | UPPER UPRIGHT COVER | $23.49 | |||
| 350952 | 69 | LOWER UPRIGHT COVER | $27.49 | |||
| 350913 | 70 | UPPER BODY LEG BSHG | $32.49 | |||
| 358712 | 71 | DISC | $175.49 | |||
| 358713 | 73 | LEFT SHIELD | $181.49 | |||
| 358714 | 74 | RIGHT SHIELD | $181.49 | |||
| 364400 | 75 | REAR SHIELD | $113.99 | |||
| 358717 | 76 | FRAME COVER | $78.99 | |||
| 350959 | 77 | UPPER BODY ARM COVER | $67.49 | |||
| 351233 | 78 | KEY | $6.49 | |||
 | 194653 | 79 | M6 ACORN NUT | $1.99 | ||
 | 350875 | 80 | ACCESSORY TRAY BASE | $78.99 | ||
| 351235 | 81 | J-BOLT | $18.99 | |||
 | 351287 | 82 | PEDAL SPACER | $2.49 | ||
| 350846 | 83 | SMALL CRANK SPACER | $2.49 | |||
| 350949 | 84 | RIGHT PEDAL INSERT | $92.49 | |||
| 350948 | 85 | LEFT PEDAL INSERT | $92.49 | |||
 | 018030 | 86 | MEDIUM ROLLER | $19.49 | ||
| 358548 | 88 | LEFT PEDAL PLATE | $155.49 | |||
 | 328293 | 89 | M10 X 122MM SCREW | $18.99 | ||
| 350957 | 90 | FRAME CAP | $9.49 | |||
 | 246285 | 92 | LEVELING FOOT | $10.99 | ||
| 167082 | 93 | LARGE SNAP RING | $0.99 | |||
| 321268 | 94 | SPRING | $3.49 | |||
 | 286527 | 95 | COVER MOUNT | $2.49 | ||
 | 289434 | 96 | SNAP RING | $1.99 | ||
| 346264 | 97 | ROLLER AXLE | $11.99 | |||
 | 133333 | 98 | COVER CLIP | $0.99 | ||
| 380688 | 99 | M10 LOCKNUT | $1.99 | |||
| 350831 | 100 | LARGE CRANK SPACER | $13.99 | |||
| 362389 | 101 | M8 X 18MM SCREW | $3.49 | |||
 | 333350 | 102 | M8 LOCKNUT | $1.99 | ||
 | 325993 | 103 | ADJUSTMENT PIN | $19.99 | ||
 | 195562 | 104 | M4 X 16MM SCREW | $1.99 | ||
| 360433 | 105 | LIFT FRAME | $138.49 | |||
 | 320336 | 106 | RAMP ROLLER | $8.49 | ||
 | 125819 | 107 | STANDOFF | $3.99 | ||
| 245941 | 108 | M4 X 12MM ROUND HEAD SCRW | $1.49 | |||
| 251831 | 109 | M4 X 16MM ROUND HEAD SCRW | $1.99 | |||
| 360619 | 110 | MAIN WIRE | $114.99 | |||
| 358720 | 111 | RIGHT PEDAL HANDLE | $25.99 | |||
 | 342275 | 112 | POWER CORD | $49.99 | ||
 | 186476 | 113 | DRIVE BELT | $49.99 | ||
| 356153 | 114 | M17 WASHER | $8.49 | |||
| 224545 | 115 | M8 SMALL WASHER | $6.49 | |||
| 350042 | 116 | ROD END BEARING | $76.99 | |||
| 328419 | 117 | M10 X 54MM BOLT | $9.49 | |||
 | 275907 | 118 | CRANK ARM M10 LOCKNUT | $4.49 | ||
| 193108 | 119 | M8 WASHER | $0.99 | |||
 | 347975 | 120 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 350937 | 121 | RIGHT UPPER SADDLE BKT | $65.49 | |||
| 177325 | 122 | STOP PLATE | $1.99 | |||
| 334515 | 123 | CONTROL BOARD BRACKET | $22.49 | |||
 | 224606 | 124 | M4 X 25MM SCREW | $0.99 | ||
| 350944 | 125 | RIGHT INNER LEG COVER | $29.49 | |||
| 350945 | 126 | RIGHT OUTER LEG COVER | $23.49 | |||
| 301345 | 127 | BASE PAD | $2.99 | |||
 | 346533 | 128 | M8 FLAT WASHER | $4.49 | ||
| 356253 | 129 | M10 X 38MM WASHER | $2.99 | |||
 | 247329 | 130 | M8 X 18MM BOLT | $2.99 | ||
| 356255 | 131 | M8 FLAT HEAD SCREW | $2.49 | |||
 | 373258 | 132 | M10 X 20MM BOLT | $5.49 | ||
 | 268411 | 133 | M6 PDL ADT WASHER | $0.99 | ||
| 350182 | 134 | M10 X 48MM BOLT | $9.49 | |||
| 194885 | 135 | M10 X 40MM BOLT | $6.49 | |||
| 356254 | 136 | M10 WASHER | $0.99 | |||
 | 208320 | 137 | M4 X 10MM SCREW | $0.99 | ||
 | 197037 | 138 | M6 X 12MM SCREW | $0.99 | ||
| 355854 | 139 | M10 X 70MM SCREW | $11.99 | |||
| 208938 | 140 | M10 X 60MM BOLT | $5.99 | |||
| 014039 | 141 | M4 WASHER | $4.99 | |||
 | 223809 | 142 | M10 X 75MM SCREW | $15.49 | ||
 | 275977 | 143 | M10 X 45MM BOLT | $7.99 | ||
| 248334 | 144 | M10 X 20MM SCREW | $5.49 | |||
 | 362905 | 145 | SMALL SNAP RING | $1.49 | ||
 | 372664 | 146 | TABLET HOLDER | $96.99 | ||
 | 276104 | 147 | #8 X 15MM SCREW | $0.99 | ||
| 369805 | 148 | CENTER RAMP COVER | $56.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 132315 | # | CABLE CLAMP | $3.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 383336 | # | USER’S MANUAL | $23.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 116926 | # | RELEASABLE TIE | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 198086 | TS04 | 6″ WHITE WIRE, M/F | $3.99 | |||
| 137825 | TS05 | BLUE WIRE | $4.49 | |||
 | 214773 | TS06 | 6″ JUMPER WIRE | $2.99 | ||
| 351172 | TS07 | 20″ CNCTLR/LIFT MTR WIRE | $50.99 | |||
| 324737 | TS08 | LOWER WIRE HARNESS | $30.49 |
