NORDICTRACK E 7.5 I ELLIPTICAL – 24030.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
149 Parts Available for NORDICTRACK E 7.5 I ELLIPTICAL - 24030.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 331296 | 2 | REAR STABILIZER | $138.99 | |||
| 374496 | 3 | RAMP | $187.99 | |||
| 383110 | 4 | UPRIGHT | $189.99 | |||
 | 194878 | 5 | M4 X 20MM SELF-TAP SCREW | $2.99 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 383074 | 7 | CONSOLE | $329.49 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 184369 | 9 | M4 X 16MM SCREW | $0.99 | ||
| 383186 | 10 | RAMP COVER | $65.49 | |||
 | 376040 | 11 | LEFT LATCH HANDLE | $24.99 | ||
 | 376039 | 12 | RIGHT LATCH HANDLE | $49.99 | ||
| 316731 | 14 | LATCH BRACKET | $5.49 | |||
| 383075 | 15 | REAR STABILIZER COVER | $26.49 | |||
 | 371314 | 16A | TRACK | $39.99 | ||
| 317273 | 16B | TRACK FOAM TAPE | $13.49 | |||
| 316805 | 17 | LATCH PIN | $40.99 | |||
| 338325 | 18 | CRANK | $102.99 | |||
| 277369 | 19 | PULLEY | $174.49 | |||
 | 208320 | 21 | M4 X 10MM ROUND HEAD SCRW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
 | 157600 | 23 | BASE PAD | $1.99 | ||
| 386630 | 24 | SMALL LEVELING FOOT | $7.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 275907 | 26A | M10 LOCKNUT, CRANK | $4.49 | ||
 | 148710 | 26B | M10 LOCKNUT | $2.49 | ||
| 248342 | 27 | M10 WASHER | $1.99 | |||
 | 380708 | 28A | EDDY MECHANISM | $150.99 | ||
 | 321678 | 28B | RESISTANCE CABLE | $46.49 | ||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||
| 248334 | 31 | M10 X 19MM PATCH SCREW | $5.49 | |||
| 235322 | 32 | M5 WASHER | $2.49 | |||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | WHEEL | $3.49 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||

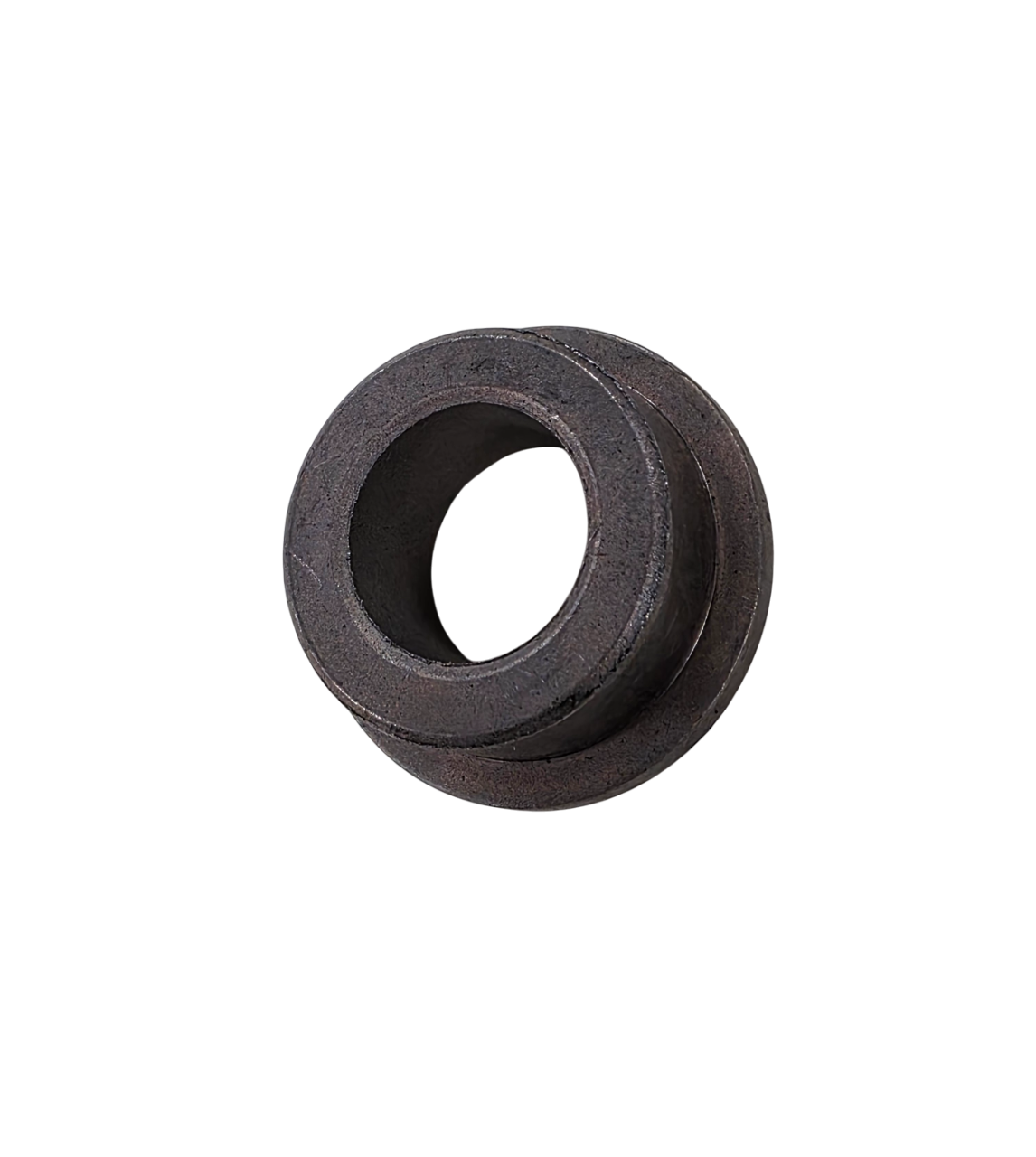

 | 143426 | 36 | RAMP BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 131090 | 39 | REED SWITCH CLAMP | $0.99 | ||
 | 295804 | 40 | PEDAL ARM BEARING | $66.99 | ||
| 361361 | 41 | SMALL SNAP RING | $0.99 | |||
| 338320 | 42 | SLEEVE | $2.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 383105 | 44 | LEFT PEDAL ARM | $130.99 | |||
| 379975 | 45 | LEFT ROLLER ARM | $150.49 | |||
| 383264 | 47 | LEFT UPPER BODY ARM | $28.49 | |||
| 322142 | 48 | CUSHION SPRING | $11.99 | |||
| 382984 | 49 | RIGHT PEDAL | $68.49 | |||
 | 237616 | 50 | SMALL FRAME BUSHING | $4.99 | ||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 348190 | 52 | PEDAL ARM REAR CAP | $6.49 | |||
 | 337966 | 53 | ROLLER ARM COVER | $5.49 | ||
 | 287202 | 54 | SMALL WAVE WASHER | $1.99 | ||
 | 379978 | 55 | SMALL AXLE COVER | $3.49 | ||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | PEDAL ARM BEARING ASSY | $43.49 | ||
| 383174 | 58 | RIGHT PEDAL ARM | $130.99 | |||
| 379970 | 59 | RIGHT ROLLER ARM | $150.49 | |||
| 329317 | 60 | RIGHT UPPER BODY LEG | $138.99 | |||
| 383265 | 61 | RIGHT UPPER BODY ARM | $28.49 | |||
 | 299478 | 62 | HANDGRIP | $57.49 | ||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 399154 | 63B | RIGHT PULSE WIRE | $27.49 | |||
| 399152 | 63C | LEFT PULSE WIRE | $65.49 | |||
 | 316835 | 64 | PEDAL ARM AXLE | $43.49 | ||
| 335812 | 65 | RT UPPER BODY ARM FRT CVR | $68.49 | |||
| 335813 | 66 | RT UPPER BODY ARM RR CVR | $54.99 | |||
| 335810 | 67 | LT UPPER BODY ARM FRT CVR | $68.49 | |||
| 335811 | 68 | LT UPPER BODY ARM RR CVR | $54.99 | |||
 | 335837 | 69 | RT UPR BODY LEG OUTER CVR | $43.99 | ||
 | 335834 | 70 | LT UPR BODY LEG OUTER CVR | $43.99 | ||
| 363048 | 71 | DISC | $77.99 | |||
| 335835 | 72 | LT UPR BODY LEG INNER CVR | $43.99 | |||
| 380568 | 73 | LEFT SHIELD | $162.99 | |||
| 362698 | 74 | RIGHT SHIELD | $177.99 | |||
| 383076 | 75 | SHIELD COVER | $89.99 | |||
 | 337964 | 76 | LEFT PEDAL ARM SIDE CAP | $10.99 | Unavailable to order | |
| 316841 | 77 | AXLE SPACER | $17.99 | |||

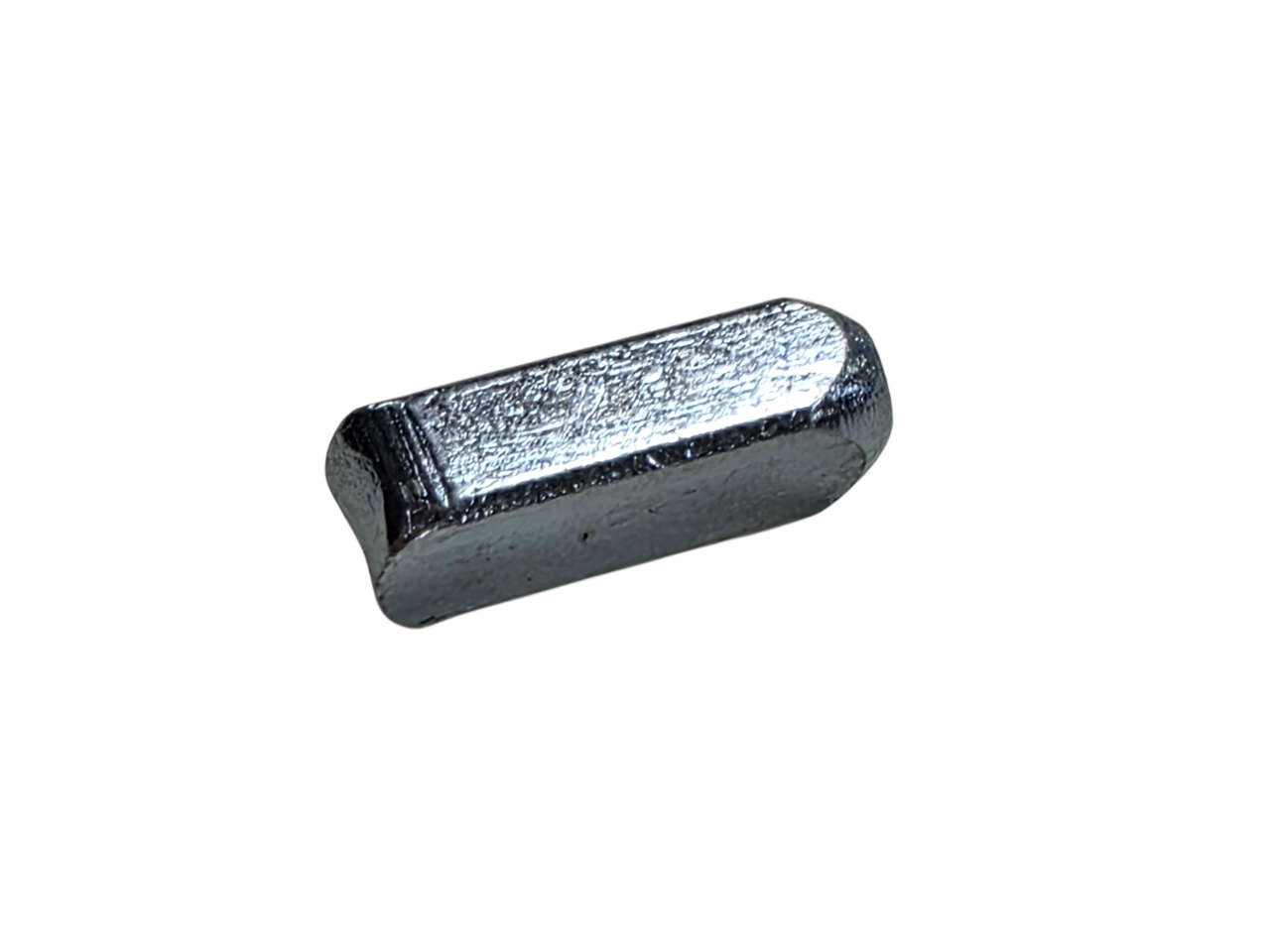

 | 386629 | 78 | KEY | $9.49 | ||
| 383085 | 79 | FRONT CONSOLE COVER | $54.49 | |||
| 383083 | 80 | REAR CONSOLE COVER | $10.99 | |||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 191032 | 82A | M8 X 13MM SCREW | $1.99 | ||

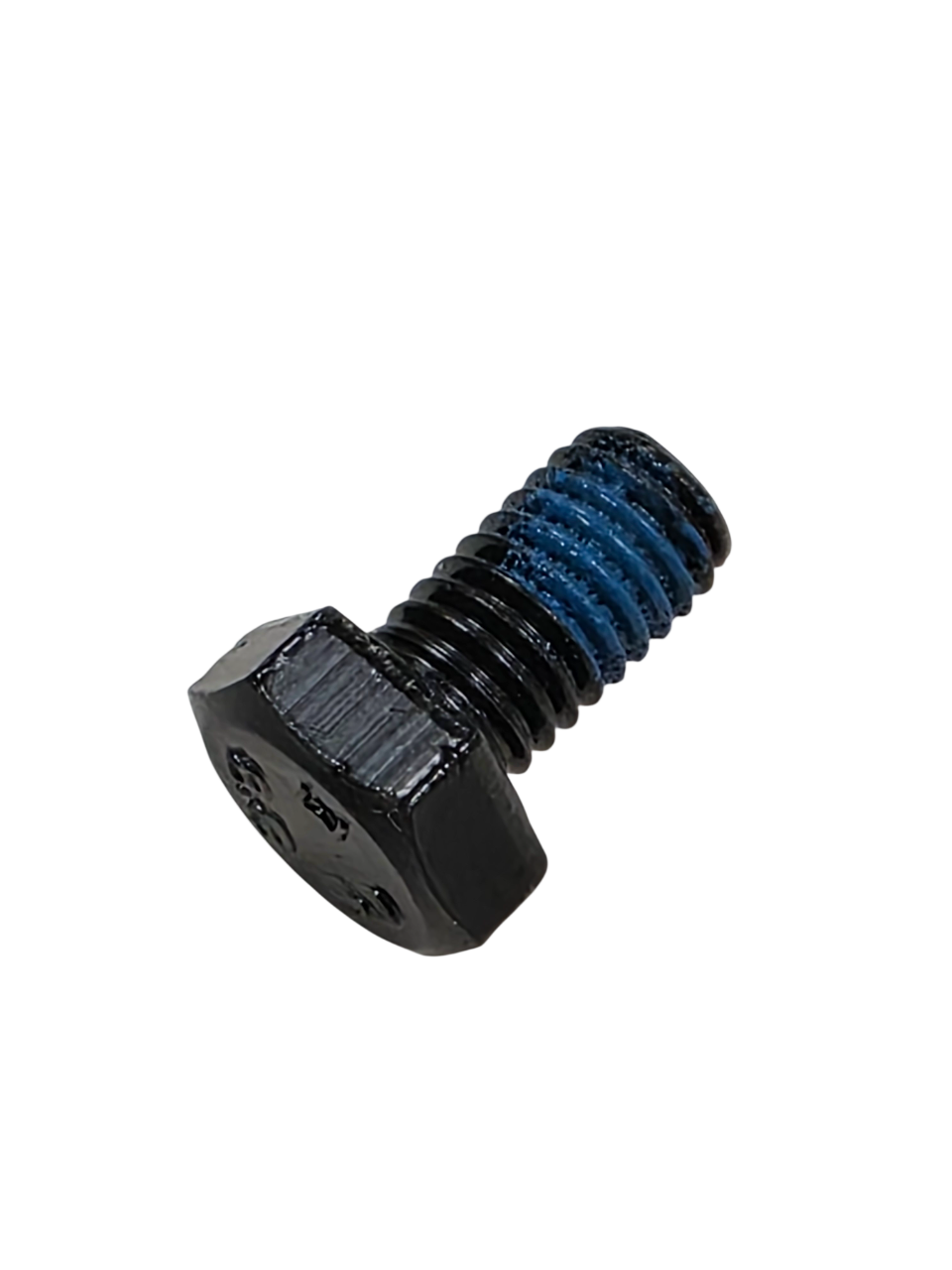

 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 335836 | 83 | RT UPR BODY LEG INNER CVR | $43.99 | |||
| 316836 | 84 | RAMP AXLE | $54.99 | |||
 | 310664 | 85 | M4 X 14MM SCREW | $2.99 | ||
| 310999 | 86 | M10 X 58MM HEX BOLT | $8.49 | |||
 | 337965 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | ||
 | 281150 | 88 | IDLER PIVOT SCREW | $4.49 | ||
 | 208163 | 89 | IDLER SCREW | $1.99 | ||
 | 014033 | 90A | M6 WASHER | $1.49 | ||
 | 340140 | 90B | M6 X 26MM WASHER | $1.49 | ||
 | 281149 | 91 | DRIVE BELT ADJUST SCREW | $6.49 | ||
 | 232289 | 92 | M10 X 25MM SCREW | $28.49 | ||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 012152 | 94 | #8 NUT | $0.99 | |||
 | 206321 | 95A | M8 X 19MM SCREW, NOTE | $3.49 | ||
 | 223089 | 95B | M8 X 15MM SCREW | $6.99 | ||
 | 251830 | 96 | M8 X 38MM HEX SCREW | $4.49 | ||
 | 248349 | 97A | CRANK PVT CAP WSHR | $6.49 | ||
 | 223812 | 97B | M8 X 28MM WASHER | $1.99 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
| 306635 | 99 | PLASTIC SPACER | $3.49 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | #8 X 1/2″ TEK SCREW | $0.99 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102 | M8 LOCKNUT | $1.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW | $3.49 | ||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | COVER INSERT | $2.49 | ||
| 303479 | 106B | SNAP MOUNT SCREW | $3.99 | |||

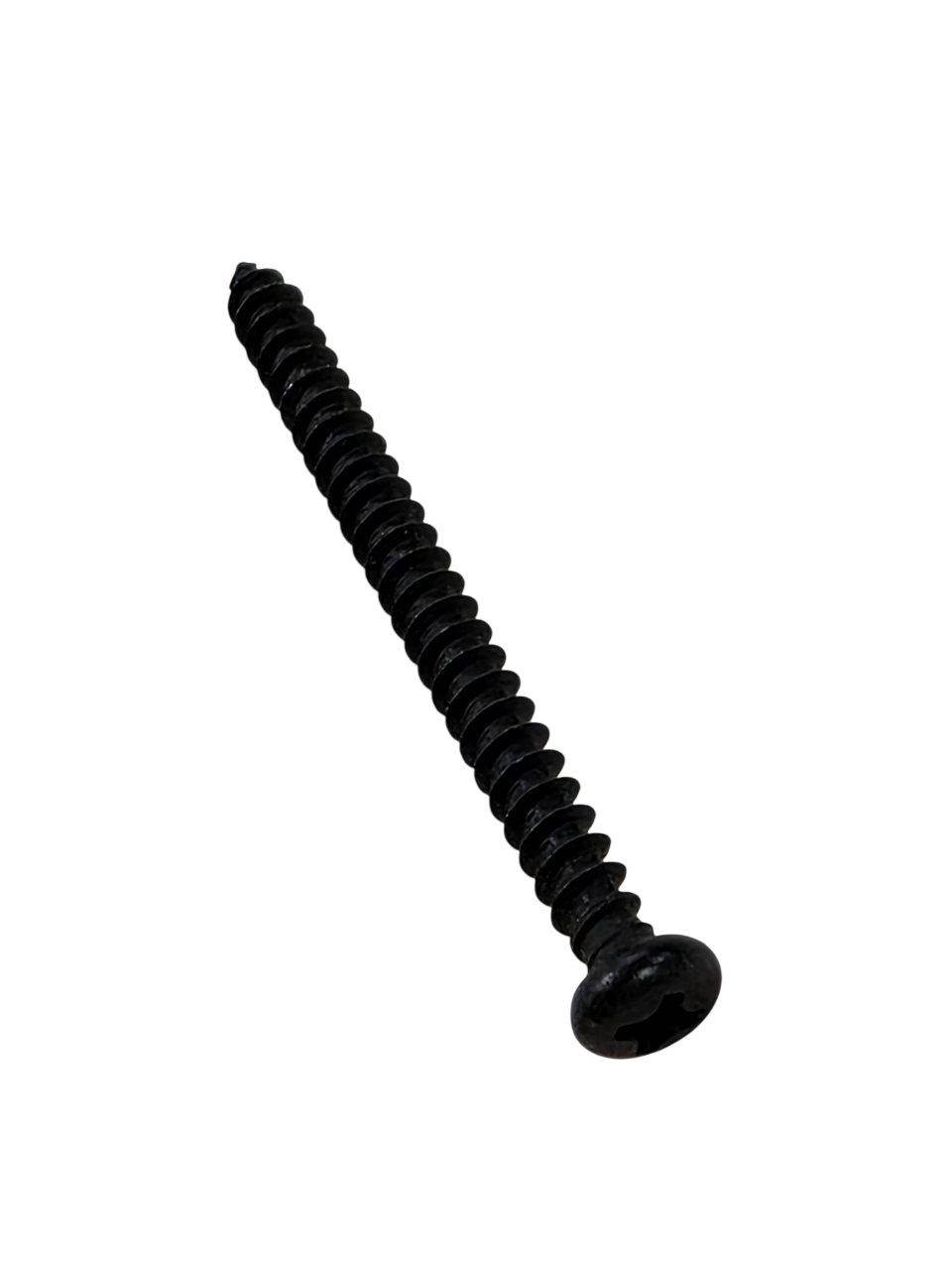

 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
| 373267 | 108 | M6 X 12MM HEX SCREW | $0.99 | |||
| 208938 | 109 | M10 X 60MM BUTTON SCREW | $5.99 | |||
 | 290160 | 111A | POWER RECEPTACLE/WIRE | $35.99 | ||
 | 214003 | 111B | POWER JACK NUT | $5.49 | ||
 | 313568 | 112 | M4X19MM RSW CLAMP SCREW | $0.99 | ||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 322839 | 114 | M4 X 40MM SCREW | $1.49 | ||
| 172496 | 115 | HANDRAIL SCREW | $2.99 | |||
| 384449 | 116 | DISC RING | $68.49 | |||

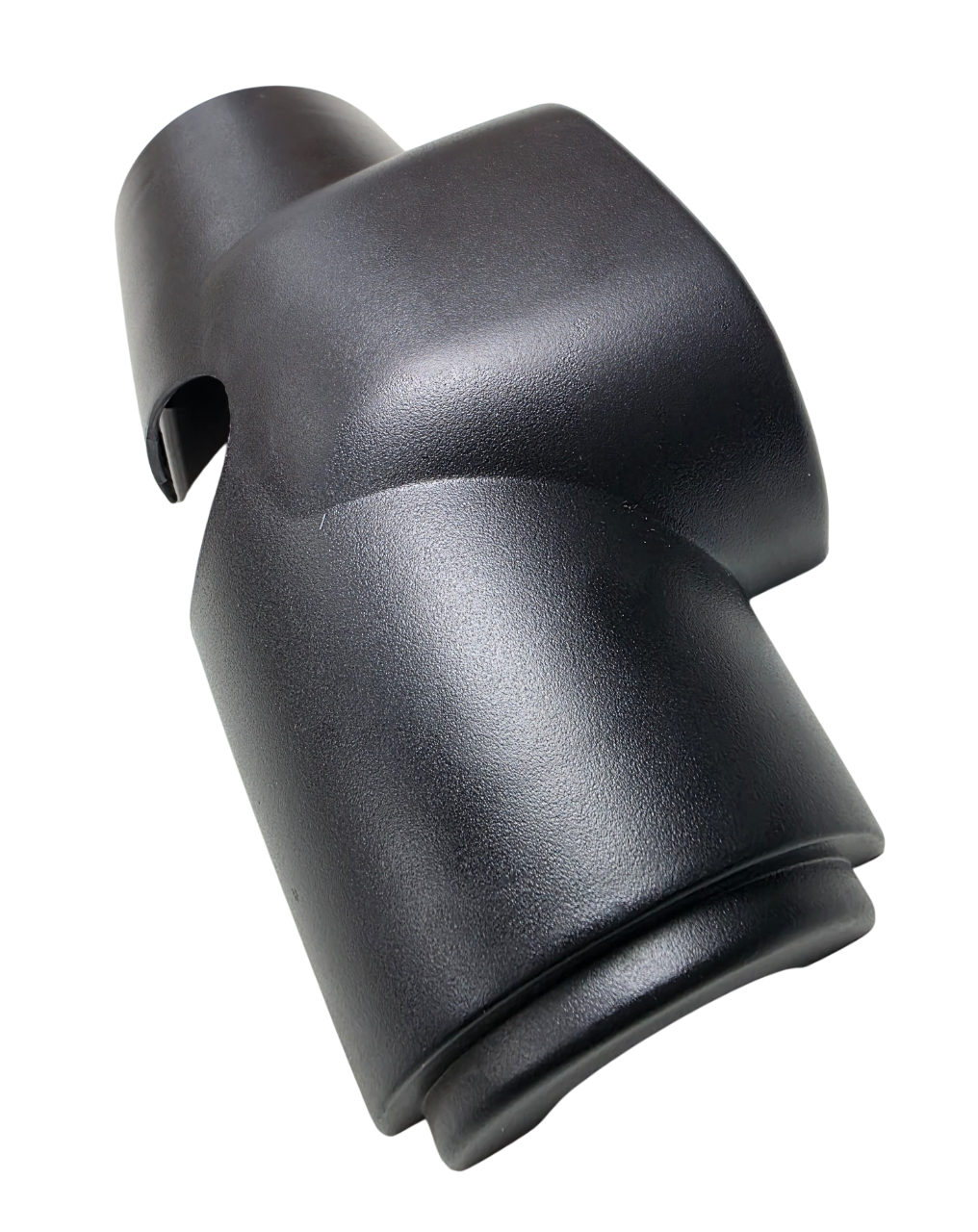

 | 335816 | 117 | FRONT UPRIGHT COVER | $73.99 | ||
| 316692 | 118 | SHIELD COVER CAP | $28.49 | |||
 | 337717 | 119 | Power Adapter | |||
 | 347975 | 120 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
 | 372664 | 121 | TABLET HOLDER | $96.99 | Unavailable to order | |
| 317272 | 122 | PIN SPRING | $3.49 | |||
 | 379979 | 123 | SMALL ARM BEARING | $42.49 | ||
| 012139 | 124 | 1/4″ NYLON LOCKNUT | $0.99 | |||
 | 013235 | 125 | 1/4″ X 1 1/2″ BOLT | $6.99 | ||
| 195728 | 126 | M10 FLANGE NUT | $3.49 | |||
| 331242 | 127 | RECTANGLE GROMMET | $6.49 | |||
 | 133333 | 128 | CAP CLIP | $0.99 | ||
| 382983 | 129 | LEFT PEDAL | $68.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 132315 | # | WIRE TIE | $3.49 | |||
| 383242 | # | HARDWARE KIT | $118.99 | |||
| 234276 | # | M4 X 12MM GROUND SCREW | $0.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 383073 | # | USER’S MANUAL | $23.99 | |||
| 116926 | # | 8″ CABLE TIE | $0.99 | |||
| 300789 | # | DECAL, GENERAL WARNING | $22.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 |
