NORDICTRACK E 5.7 ELLIPTICAL – NTEL05011.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
138 Parts Available for NORDICTRACK E 5.7 ELLIPTICAL - NTEL05011.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 323633 | 2 | REAR STABILIZER | $141.99 | |||
| 317294 | 4 | UPRIGHT | $179.99 | |||
| 323629 | 6 | FRONT STABILIZER | $134.49 | |||
| 316802 | 8 | LEFT HANDLEBAR | $66.49 | |||
| 316804 | 9 | RIGHT HANDLEBAR | $66.49 | |||
| 317302 | 10 | RAMP COVER | $100.99 | |||
| 316736 | 11 | LEFT LATCH HANDLE | $28.99 | |||
| 316735 | 12 | RIGHT LATCH HANDLE | $26.49 | |||
| 316730 | 13 | LATCH BUTTON | $8.49 | |||
| 316731 | 14 | LATCH BRACKET | $5.49 | |||
| 317295 | 15 | REAR STABILIZER COVER | $57.49 | |||
| 316805 | 17 | LATCH PIN | $40.99 | |||
 | 316839 | 18 | CRANK | $119.99 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
| 313086 | 23 | C-MAGNET | $108.49 | |||
| 279645 | 24 | MOTOR BRACKET | $12.99 | |||
 | 308036 | 25 | RESISTANCE MOTOR | $117.99 | ||
 | 304734 | 26 | RESISTANCE ROD | $43.49 | ||
 | 241954 | 27 | RSISTANCE MOTOR DISK | $1.99 | ||

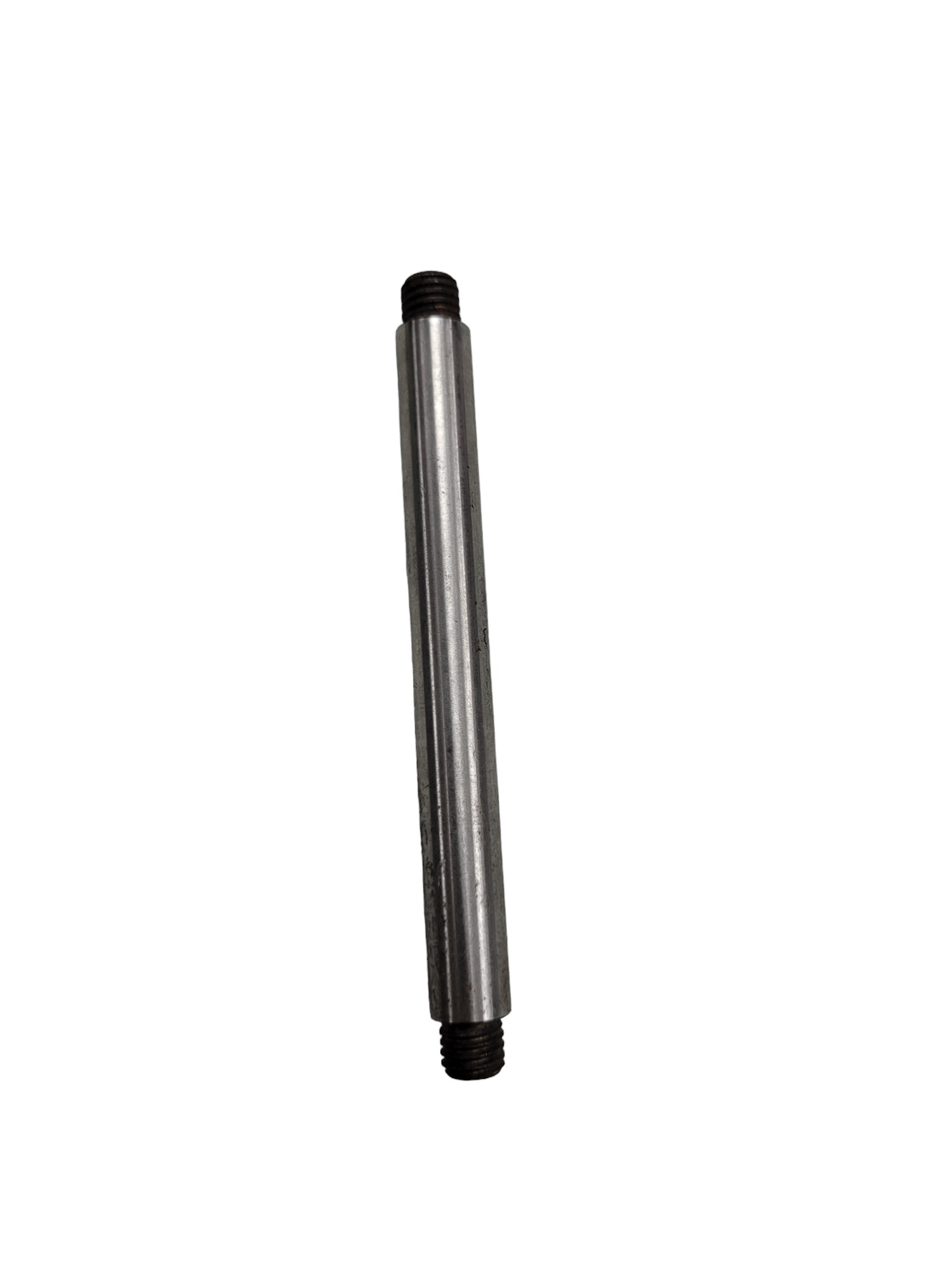

 | 284116 | 29 | FLYWHEEL AXLE | $19.99 | ||
| 315749 | 30 | REAR UPPER CAP | $25.99 | |||
| 315750 | 31 | REAR LOWER CAP | $25.99 | |||
| 315747 | 32 | FRONT RIGHT UPPER CAP | $19.99 | |||
| 323144 | 34 | WHEEL | $49.49 | |||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | UPRIGHT BUSHING | $8.99 | ||
| 316753 | 37 | ACCESSORY TRAY | $41.49 | |||
| 307218 | 38 | REED SWITCH/WIRE | $30.49 | |||
 | 131090 | 39 | CLAMP | $0.99 | ||
 | 139703 | 40 | CRANK BEARING | $33.49 | ||
 | 143742 | 42 | LARGE SNAP RING | $3.99 | ||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 316827 | 45 | LEFT ROLLER ARM | $137.99 | |||
| 317310 | 46 | LEFT UPPER BODY LEG | $135.99 | |||
| 322142 | 48 | RAMP SPRING | $11.99 | |||
| 316732 | 49 | PEDAL | $155.99 | |||
| 315748 | 50 | FRONT RIGHT LOWER CAP | $19.99 | |||
 | 390204 | 51 | ROLLER / COVER FIXKIT | $199.99 | ||
| 316748 | 52 | PEDAL ARM CAP | $7.99 | |||
 | 278267 | 53 | LARGE AXLE COVER | $1.99 | ||
 | 287202 | 54 | 16MM WAVE WASHER | $1.99 | ||
 | 348634 | 55 | SMALL AXLE COVER | $41.49 | ||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 316834 | 59 | RIGHT ROLLER ARM | $137.99 | |||
 | 299478 | 62 | GRIP | $57.49 | ||
| 272391 | 63B | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 63C | LEFT PULSE WIRE | $17.49 | |||
 | 316835 | 64 | PEDAL ARM AXLE | $43.49 | ||
| 317177 | 67 | LT UPR BODY ARM FRONT CVR | $60.49 | |||
| 335975 | 69 | RIGHT UPPER BODY LEG | $65.49 | |||
| 335974 | 70 | LEFT UPPER BODY LEG | $65.49 | |||
 | 316683 | 71 | DISC | $99.99 | ||
| 317304 | 73 | LEFT SHIELD | $168.49 | |||
| 316843 | 76 | LEFT PEDAL ARM SIDE CAP | $9.49 | |||
| 316841 | 77 | AXLE SPACER | $17.99 | |||
 | 386629 | 78 | KEY | $9.49 | ||
| 316749 | 79 | FRONT CONSOLE COVER | $42.49 | |||
| 316750 | 80 | REAR CONSOLE COVER | $28.99 | |||
| 316752 | 81 | REAR UPRIGHT COVER | $61.99 | |||
 | 191032 | 82 | M8X13MM,PULLEY CRANK SCRW | $1.99 | ||
| 315746 | 84 | FRONT LEFT LOWER CAP | $19.49 | |||
| 310664 | 85 | M4 X 14MM SCREW | $2.99 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 316844 | 87 | RIGHT PEDAL ARM SIDE CAP | $9.49 | |||
 | 208163 | 88 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 281150 | 89 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
 | 014033 | 90A | WASHER | $1.49 | ||
 | 340140 | 90B | M6 CRANK ARM WASHER | $1.49 | ||
| 281156 | 91 | BELT ADJUSTMENT SCREW | $8.49 | |||
| 281148 | 92 | M6 X 65MM HEX SCREW | $3.49 | |||
 | 168267 | 93 | FAN SCREW | $0.99 | ||
| 254769 | 94 | M6 NUT | $1.49 | |||
 | 206321 | 95 | M8 X 19MM SCRW, NOTE: OM | $3.49 | ||
 | 234732 | 96 | M8 X 38MM BOLT | $4.49 | ||
 | 223812 | 97 | M8 WASHER | $1.99 | ||
 | 289434 | 98 | MEDIUM SNAP RING | $1.99 | ||
 | 304180 | 99 | SNAP RING | $0.99 | ||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
 | 194878 | 101B | M4 X 19MM SCREW | $2.99 | ||
 | 012042 | 102 | M8 NYLON LOCKNUT | $1.99 | ||
| 262341 | 103 | M6 X 12MM SCREW | $3.49 | |||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 106B | COVER MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
 | 174108 | 108 | M6 X 13MM SCREW | $5.99 | ||
| 212500 | 109 | M8 X 45MM BUTTON BOLT | $5.49 | |||
| 317283 | 110 | UPPER WIRE | $102.49 | |||
 | 290160 | 111 | LOWER WIRE | $35.99 | ||
| 215823 | 112 | AUDIO WIRE | $11.99 | |||
 | 300001 | 113 | DRIVE BELT | $115.49 | ||
 | 322839 | 114 | M4 X 42MM SCREW | $1.49 | ||
| 315745 | 115 | FRONT LEFT UPPER CAP | $21.49 | |||
| 317306 | 116 | DISC RING | $80.99 | |||
| 316751 | 117 | FRONT UPRIGHT COVER | $50.49 | |||
| 316692 | 118 | SHIELD COVER CAP | $28.49 | |||
 | 248512 | 119 | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
| 316836 | 120 | RAMP AXLE | $54.99 | |||
 | 237616 | 121 | FRAME BUSHING | $4.99 | ||
| 172496 | 122 | M4 X 30MM SCREW | $2.99 | |||
| 012152 | 124 | PHOTO SWITCH NUT | $0.99 | |||
| 234286 | 125 | M6 X 8MM HEX SCREW | $0.99 | |||
| 276024 | 126 | M3.5 X 12MM, NOTE: | $1.49 | |||
| 283304 | 128 | M5 X 7MM SCREW | $3.49 | |||
| 183633 | 130 | M5 WASHER | $1.99 | |||
 | 232289 | 131 | M10 X 25MM SCREW | $28.49 | ||
| 248334 | 133 | M10 X 19MM SCREW | $5.49 | |||
| 248342 | 134 | M10 WASHER | $1.99 | |||
 | 275907 | 135 | M10 LOCKNUT,CRNK ARM CLMP | $4.49 | ||
| 386630 | 136 | SMALL LEVELING FOOT | $7.99 | |||
 | 157600 | 137 | BUMPER | $1.99 | ||
| 313568 | 138 | M4 X 19MM, SELF-TAP SCRW | $0.99 | |||
| 316558 | # | CNSL REPROG MODULE | $197.49 | |||
| 317244 | # | DECAL, LEFT RAMP ANGLE | $60.49 | |||
| 317245 | # | DECAL, RIGHT RAMP ANGLE | $60.49 | |||
| 116566 | # | 15 1/2″ WIRE TIE | $0.99 | |||
| 132315 | # | CABLE TIE | $3.49 | |||
| EXIF12 | # | IFIT WIFI ACCESSORY KIT | NLA | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 324757 | # | USER’S MANUAL, FCA | $12.49 | |||
| 328856 | # | PEDAL | $123.49 | |||
| 195694 | # | 3/8″ X 1 3/4″ BOLT | $7.49 | |||
| 317213 | # | USER’S MANUAL | $12.49 | |||
 | 104838 | # | LUBE GREASE | $8.49 | ||
| 258870 | # | DECAL, GENERAL WARNING | $3.49 | |||
| 317272 | # | PIN SPRING | $3.49 | |||
| 317273 | # | TRACK FOAM TAPE | $13.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 116926 | # | RELEASABLE TIE | $0.99 | |||
| 234276 | # | M4 GROUND SCREW | $0.99 | |||
| 166909 | # | DECAL, SITE WARNING | $2.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 |
