GOLD’S GYM GOLD’S GYM XR45 SYSTEM – GGSY2067.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
90 Parts Available for GOLD'S GYM GOLD'S GYM XR45 SYSTEM - GGSY2067.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 257642 | 1 | BASE | $202.99 | |||
| 257638 | 3 | UPPER UPRIGHT | $207.49 | |||
| 257892 | 5 | PIVOT FRAME | Contact for Pricing | |||
| 257645 | 6 | SEAT FRAME | $175.49 | |||
| 257640 | 7 | FRONT LEG | $178.99 | |||
| 257644 | 8 | LEG LEVER | $153.49 | |||
| 257682 | 11 | HANDLE | $113.99 | |||
| 224344 | 12 | SQUARE PLATE | $21.99 | |||
| 257660 | 16 | BACKREST | $201.49 | |||
| 257679 | 17 | UPPER SHROUD | Contact for Pricing | |||
| 257634 | 18 | TOP CAP | $54.99 | |||
| 257635 | 19 | LEFT CAP | $22.49 | |||
| 320446 | 21 | UPPER WEIGHT GUIDE | $102.49 | |||
| 120294 | 22 | WEIGHT (One 12.5 Plate) | $62.99 | |||
 | 122691 | 23 | 1″ RND INT POINTED CAP | $3.49 | ||
| 257650 | 24 | WEIGHT TUBE | $83.49 | |||
 | 193926 | 26 | WEIGHT PIN | $19.99 | ||
 | 208378 | 28 | FOAM ROLLER | $32.99 | ||
 | 225224 | 30 | 50MM ROUND INNER CAP | $4.49 | ||
 | 162910 | 31 | 50MM SQUARE OUTER CAP | $11.99 | ||
| 224363 | 32 | 38MM SQUARE OUTER CAP | $13.99 | |||
| 014039 | 33 | M4 WASHER | $4.99 | |||
 | 239042 | 34 | PAD CAP | $3.99 | ||
| 332404 | 36 | HANDGRIP | $27.49 | |||
 | 103087 | 37 | SNAP HOOK | $20.99 | ||
| 187404 | 38 | LEG PIN | $29.49 | |||
| 256077 | 39 | CABLE PIVOT | $22.99 | |||
| 297558 | 40 | ARM PIN | $30.99 | |||
 | 214126 | 41 | FULL FINGER GUARD | $39.99 | ||
| 200877 | 42 | LARGE FOAM PAD | $71.99 | |||
 | 214118 | 43 | HALF GUARD | $10.99 | ||
 | 215142 | 44 | ARM BUSHING | $16.49 | ||
| 259282 | 45 | U-BRACKET | $63.99 | |||
 | 155878 | 46 | V-PULLEY | $81.49 | ||
 | 214226 | 47 | THIN PULLEY | $85.49 | ||
| 163633 | 48 | 90MM PULLEY | $80.99 | |||
 | 194082 | 50 | CABLE TRAP | $9.49 | ||
 | 194081 | 51 | CABLE TRAP | $5.99 | ||
 | 214060 | 52 | 12MM SPACER | $5.99 | ||
 | 214311 | 53 | LOW CABLE | $101.49 | ||
 | 214312 | 54 | ARM CABLE | $109.49 | ||
 | 148710 | 56 | M10 LOCKNUT | $2.49 | ||
 | 014132 | 57 | M10 WASHER | $0.99 | ||
 | 012042 | 58 | M8 NYLON LOCKNUT | $1.99 | ||
| 014073 | 59 | HANDLEBAR WASHER | $1.49 | |||
 | 213899 | 60 | LEG BUMPER | $23.99 | ||
 | 149651 | 61 | KNOB | $28.99 | ||
 | 199493 | 62 | M6 X 16MM SCREW | $4.62 | ||
| 259283 | 63 | DOUBLE U-BRACKET | $66.99 | |||
| 220148 | 64 | M5 X 20MM SELF-TAP SCREW | $1.49 | |||
 | 200521 | 65 | M8 X 22MM SHOULDER BOLT | $6.99 | ||
| 152125 | 66 | M10 X 50MM BOLT | $14.49 | |||
| 194587 | 67 | M10 X 85MM BOLT | $12.49 | |||
| 129147 | 68 | M8 X 65MM BOLT | $8.99 | |||
 | 194878 | 69 | M4 X 20MM SELF-TAP SCREW | $2.99 | ||

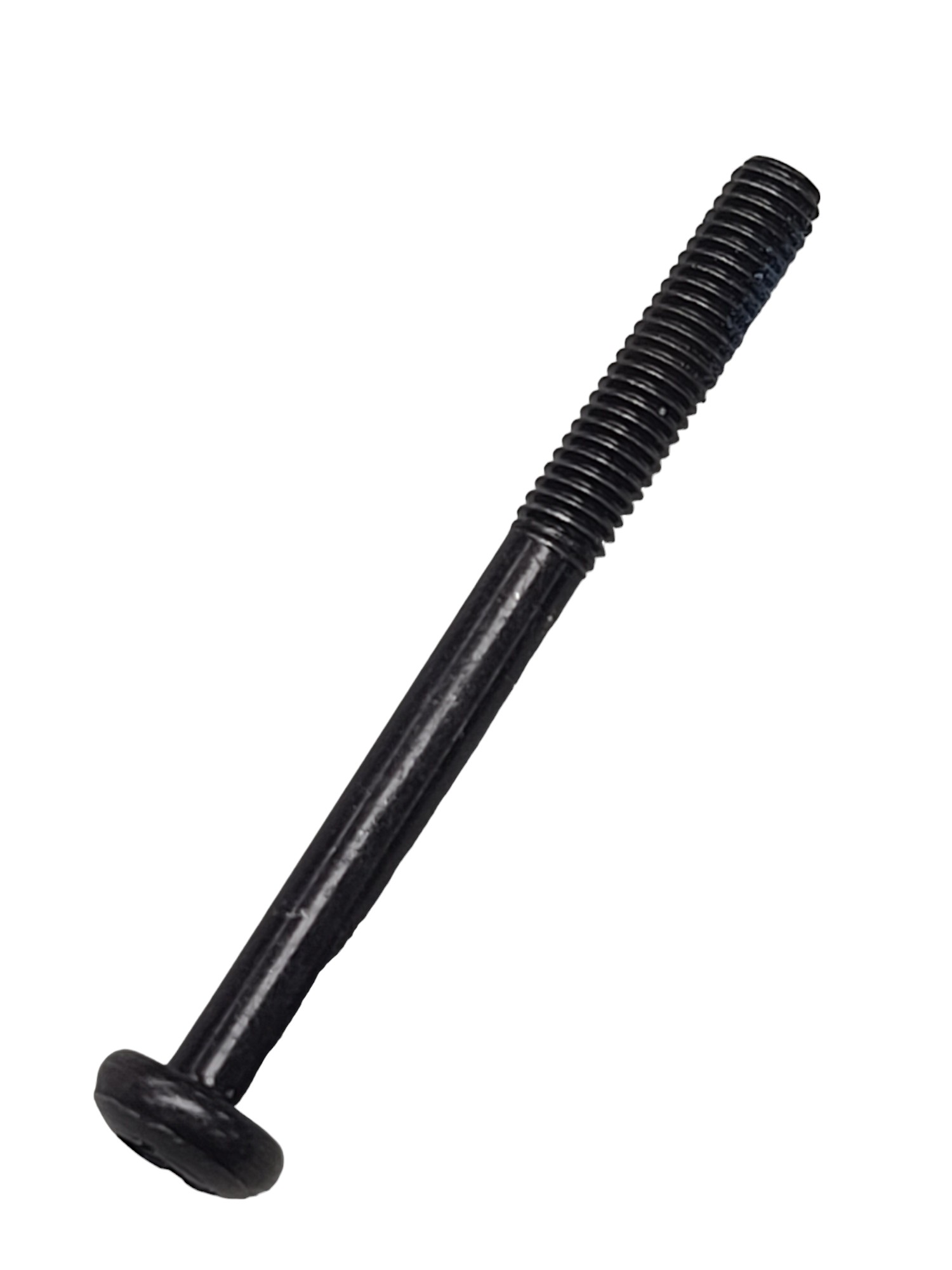

 | 220169 | 70 | M6 X 63MM MACHINE SCREW | $4.49 | ||
 | 144781 | 71 | M10 X 68MM BOLT | $15.99 | ||
| 183633 | 72 | M5 WASHER | $1.99 | |||
| 257657 | 73 | LOCK PLATE | $42.49 | |||
| 165356 | 74 | M10 X 27MM BOLT | $8.99 | |||
| 132889 | 75 | M10 X 63MM BOLT | $12.99 | |||
| 246155 | 76 | M10 X 65MM BOLT SET | $28.99 | |||
 | 208581 | 77 | M10 X 25MM SCREW | $5.49 | ||
 | 012142 | 78 | M6 NYLON LOCKNUT | $0.99 | ||
| 132654 | 79 | M10 X 78MM BOLT | $19.49 | |||
| 115177 | 80 | STRAP W/HANDLE | $56.49 | |||
| 194561 | 81 | M10 X 47MM BOLT | $10.99 | |||
 | 014063 | 82 | 1/4″ WASHER | $0.99 | ||
| 147592 | 83 | CHAIN | $23.49 | |||
| 194903 | 84 | M12 NUT | $3.99 | |||
| 194746 | 85 | 50MM WASHER | $14.49 | |||
| 132651 | 86 | M10 X 70MM BOLT | $15.99 | |||
 | 198678 | 87 | M8 X 63MM CARRIAGE BOLT | $5.99 | ||
 | 224989 | 88 | LOCK W/KEYS | $7.99 | ||
| 186308 | 89 | LOCKING BAR | $18.49 | |||
| 257651 | 90 | LOWER SHROUD | $323.99 | |||
 | 208320 | 91 | M4 X 10MM SELF-TAP SCREW | $0.99 | ||
| 146439 | 92 | M8 NYLON LOCKNUT | $0.99 | |||
| 257639 | 93 | LOWER UPRIGHT | $215.49 | |||
| 257643 | 94 | FRONT BASE | $184.99 | |||
 | 373258 | 95 | M10 X 20MM BOLT | $5.49 | ||
| 214679 | 96 | M8 X 20MM SCREW | $3.49 | |||
 | 193237 | 97 | M10 X 65MM HEX BOLT | $4.99 | ||
| 135884 | 98 | M6 X 16MM SCREW | $1.99 | |||
 | 045008 | # | HEX KEY, ALLEN WRENCH 5MM | $2.49 | ||
| 245794 | # | FOOT | $3.49 | |||
| 253230 | # | DECAL, GENERAL WARNING | $8.49 | |||
| 166909 | # | DECAL,SITE WARNING,ENG | $2.49 | |||
 | 104838 | # | GREASE PACK | $8.49 | ||
| 298414 | # | USER’S MANUAL | $12.49 |
