Nordictrack Incln Trainer X9I Intera Treadmill – NETL29714.0 / NETL297140
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
97 Parts Available for Nordictrack Incln Trainer X9I Intera Treadmill - NETL29714.0 / NETL297140 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 136489 | 1 | 3/8″ X 5 1/4″ SCREW | $13.49 | |||
 | 130659 | 4 | #8 X 3/4″ BLACK SCREW | $0.99 | ||
 | 013322 | 5A | #8 X 3/4″ SCREW | $0.99 | ||
 | 013576 | 5B | #8 X 1/2″ SCREW | $0.99 | ||
| 136728 | 6 | #8 X 7/16″ SCREW | $0.99 | |||
 | 013607 | 8 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 013300 | 9 | #8 X 3/4″ TEK SCREW | $0.99 | ||
 | 291486 | 10 | #8 X 5/8″ SCREW | $0.99 | ||
| 013500 | 11 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
 | 183246 | 12 | 1/4″ X 1/2″ SCREW | $1.49 | ||
 | 364027 | 13 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
| 307849 | 14 | 3/8″ X 1 1/2″ BOLT | $8.49 | |||
| 159986 | 15 | TOP INCLINE BOLT | $6.49 | |||
 | 133333 | 16 | CLIP | $0.99 | ||
 | 186819 | 17A | #8X1/2″ WSHR HD SCREW | $0.99 | ||
| 102959 | 17B | PHOTO SWITCH SCREW | $0.99 | |||
| 295759 | 20 | 5/16″ MOTOR BOLT | $2.49 | |||
| 150148 | 21 | 3/8″ X 2 3/8″ SCREW | $4.49 | |||
 | 135622 | 22 | 3/8″ X 2 3/4″ SCREW | $18.99 | ||
| 014064 | 24 | 1/4″ STAR WASHER | $0.99 | |||
 | 152478 | 25 | 5/16″ FLAT WASHER | $0.99 | ||
 | 119425 | 26 | 3/8″ JAM NUT | $0.99 | ||
 | 100427 | 27 | 5/16″ NUT | $0.99 | ||
 | 012090 | 28 | 1/4″ NUT | $0.99 | ||
 | 198639 | 29 | BELT GUIDE | $5.99 | ||
| 351355 | 30 | WALKING PLATFORM | $178.49 | |||
 | 353084 | 31 | WALKING BELT | $184.49 | ||
| 350494 | 32 | LEFT FOOT RAIL | $58.99 | |||
| 350495 | 33 | RIGHT FOOT RAIL | $58.99 | |||
| 338270 | 34 | IDLER ROLLER | $160.99 | |||
| 350490 | 35 | BELLY PAN COVER | $43.99 | |||
| 250627 | 37 | RESET/OFF CIRCUIT BREAKER | $16.49 | |||
| 196829 | 38 | BELLY PAN GROMMET | $2.49 | |||
 | 109231 | 39 | RECEPTACLE | $18.49 | ||
| 327046 | 40 | Power Cord Drawing | NLA | |||
| 132315 | 41 | WIRE TIE | $3.49 | |||
| 371623 | 42 | DRIVE ROLLER/PULLEY | $160.99 | |||
| 351346 | 43 | RIGHT FOOT RAIL COVER | $29.99 | |||
| 351360 | 44 | Left Foot Rail Cover | $32.49 | |||
| 195476 | 45 | MAGNET | $16.49 | |||
| 319711 | 46 | MOTOR BELT | $48.64 | |||
| 351345 | 47 | FRONT HOOD COVER | $109.99 | |||
| 350503 | 48 | FRONT HOOD | $71.99 | |||

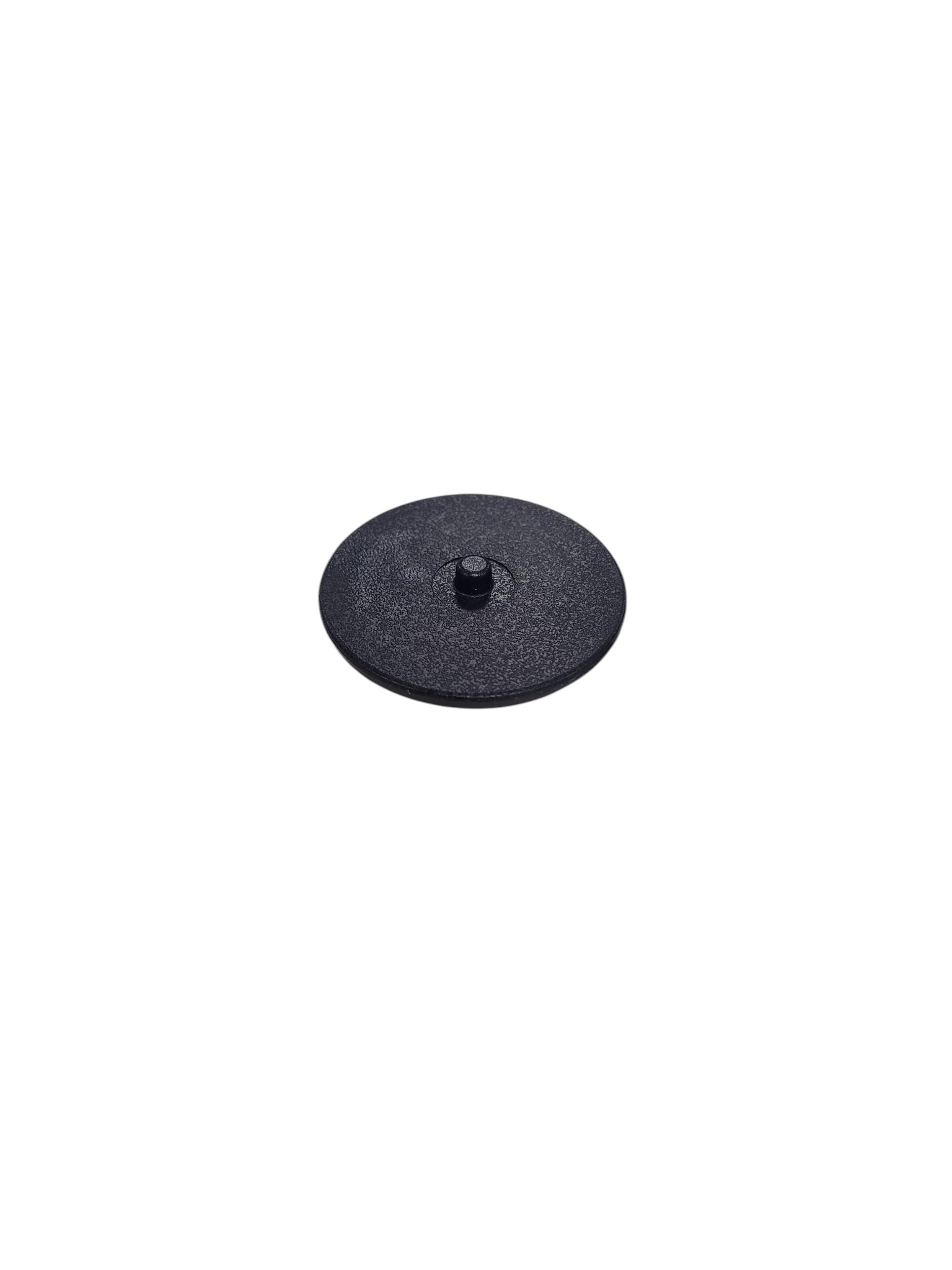

 | 320295 | 49 | CUSHION CAP | $0.99 | ||
 | 319487 | 50 | SPRING | $13.99 | ||

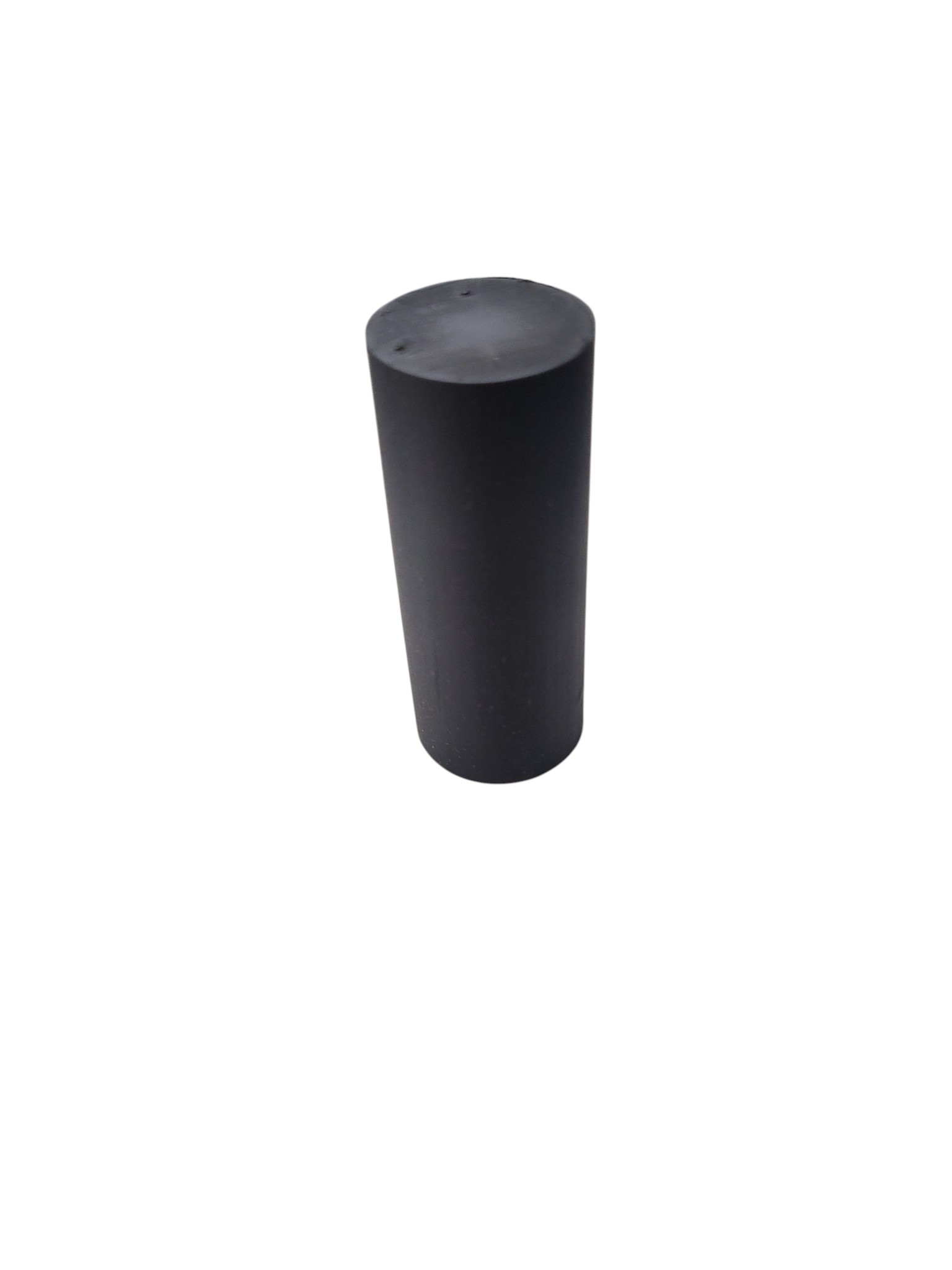

 | 324707 | 51 | CUSHION | $8.49 | ||
 | 358598 | 52 | BASE WIRE | $66.99 | ||
| 331921 | 53 | RUBBER CUSHION | $2.49 | |||
| 351129 | 55 | ELECTRONICS COVER | $86.99 | |||
 | 329456 | 56 | INCLINE MOTOR TOP COVER | $13.49 | ||
| 187089 | 57 | Incline Bracket | NLA | |||
| 329455 | 58 | Incline Motor Bottom Bracket | NLA | |||
| 295667 | 59 | INCLINE MOTOR BUSHING | $4.49 | |||
| 357855 | 60 | INCLINE MOTOR | $179.49 | |||
| 318705 | 61 | ELECTRONICS PLATE | $22.99 | |||
| 391420 | 63 | RESISTOR | $90.49 | |||
| 339941 | 64 | Part # 339941 | NLA | |||
 | 131090 | 65 | CLAMP | $0.99 | ||
 | 165798 | 67 | REED SWITCH | $19.49 | ||
| 350521 | 68 | Part # 350521 | NLA | |||
| 350520 | 69 | LEFT INSIDE UPRIGHT COVER | $24.49 | |||
| 350518 | 70 | RIGHT INSIDE UPRIGHT CVR | $27.99 | |||
| 350519 | 71 | RIGHT OUTSIDE UPRIGHT CVR | ||||
 | 273782 | 72 | WHEEL | $3.99 | ||
 | 350476 | 73 | REAR FOOT | $6.49 | ||
| 356728 | 74 | Base | NLA | |||
 | 351351 | 75 | UPRIGHT WIRE | $68.99 | ||
 | 129004 | 76 | ROUND GROMMET | $1.99 | ||
| 325431 | 77 | LEVELING FOOT | $23.99 | |||
| 374509 | 78 | Axle Noise Fix Kit | $78.49 | |||
| 350473 | 79 | BASE CAP | $10.99 | |||
| 271317 | 80 | LATCH WARNING DECAL | $14.49 | |||
| 252433 | 81 | CAUTION DECAL | $0.99 | |||
| 350191 | 82 | CONSOLE CLAMP | $3.49 | |||
| 356729 | 83 | UPRIGHT | $338.99 | |||
 | 215822 | 84 | CONSOLE GROUND WIRE | $5.99 | ||
| 355798 | 85 | SHORT HANDRAIL GRIP | $21.99 | |||
 | 186477 | 86 | ROW BAR CAP | $4.49 | ||
| 351145 | 87 | PULSE ASSEMBLY | $64.49 | |||
| 355797 | 88 | LONG HANDRAIL GRIP | $76.49 | |||
| 351344 | 89 | RIGHT HANDRAIL | $152.49 | |||
| 351343 | 90 | LEFT HANDRAIL | $146.49 | |||
| 350195 | 91 | LEFT TRAY | $13.49 | |||
| 350193 | 92A | Console Base | NLA | |||
| 016055 | 92B | WIRE CLAMP,SLF ADHSV | $1.99 | |||
| 349544 | 93C | FAN | $43.49 | |||
| 350196 | 94 | RIGHT TRAY | $13.49 | |||
 | 263710 | 95 | KEY/CLIP | $19.99 | ||
| 350192 | 96 | Back Console | NLA | |||
| 364361 | 97 | CHEST HEART RATE MONITOR | $135.99 | |||
| 389952 | 99 | MOTOR BUSHING | $14.99 | |||
| 225552 | 100 | MOTOR ISOLATOR | $3.99 | |||
| 210461 | 101 | FILTER | $163.49 |
