Nordictrack C 590 Pro Treadmill – NTL59417.5 / NTL594175
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
98 Parts Available for Nordictrack C 590 Pro Treadmill - NTL59417.5 / NTL594175 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013423 | 1 | GROUND SCREW | $0.99 | ||
| 182180 | 4 | Upper Incline Motor Bolt | NLA | |||
| 013500 | 5 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
 | 163045 | 6 | 3/8″ STAR WASHER | $0.99 | ||
 | 014149 | 7 | 5/16″ STAR WASHER | $0.99 | ||
 | 014088 | 8 | #10 STAR WASHER | $1.49 | ||
 | 167049 | 9 | #10 X 3/4″ SCREW | $0.99 | ||
 | 013576 | 10 | #8 X 1/2″ SCREW | $0.99 | ||
 | 013322 | 11A | #8 X 3/4″ SCREW | $0.99 | ||
 | 013607 | 11B | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 139090 | 12 | WHEEL | $2.99 | ||
 | 264255 | 13 | 5/16″ X 3/4″ SCREW | $1.99 | ||
| 400182 | 14 | Drive Motor with Resistance and Package | NLA | |||
 | 319894 | 15 | M6 X 55MM SCREW | $6.49 | ||
 | 372033 | 16 | 3/8″ X 1 1/8″ BOLT | $5.49 | ||
| 265234 | 17 | 1/4″ X 1 1/4″ PATCH SCREW | $1.99 | |||
| 347701 | 18 | Handrail Cap | $22.49 | |||
 | 291486 | 19 | #8 X 5/8″ SCREW | $0.99 | ||
| 179767 | 20 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 346519 | 21 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 295756 | 22 | MOTOR SCREW | $0.99 | ||
| 132315 | 24 | CABLE TIE | $3.49 | |||
 | 142622 | 25 | 3/8″ X 1 1/2″ SCREW | $2.99 | ||
 | 208603 | 26 | KEY/CLIP | $19.99 | ||
 | 186819 | 27 | GROUND SCREW | $0.99 | ||
| 013028 | 28 | #8 X 1″ TRUSS HD SCREW | $0.99 | |||
| 213894 | 29 | SMALL WASHER | $0.99 | |||
| 014157 | 30 | #8 STAR WASHER | $0.99 | |||
| 395525 | 31 | Console for NordicTrack ETNT59417 | $340.99 | |||
 | 102973 | 32 | 3/8″ THRUST WASHER | $0.99 | ||
 | 121576 | 33 | 1/4″ NUT | $2.49 | ||
 | 012142 | 34 | M6 LOCKNUT | $0.99 | ||
 | 133333 | 35 | CLIP NUT | $0.99 | ||
 | 119425 | 36 | 3/8″ LOCKNUT | $0.99 | ||
 | 195683 | 37 | 3/8″ X 2 1/2″ BOLT | $16.49 | ||
| 395522 | 38 | RAIL,DECK,ARPS,LT,W/DECALS | $190.49 | |||
| 395523 | 39 | RAIL,DECK,ARPS,RT,W/DECAL | $190.49 | |||
| 393680 | 40 | Platform Cushion | $141.49 | |||
| 305284 | 41 | Latch Warning Decal | NLA | |||
| 392552 | 42 | IDLER ROLLER | $136.99 | |||

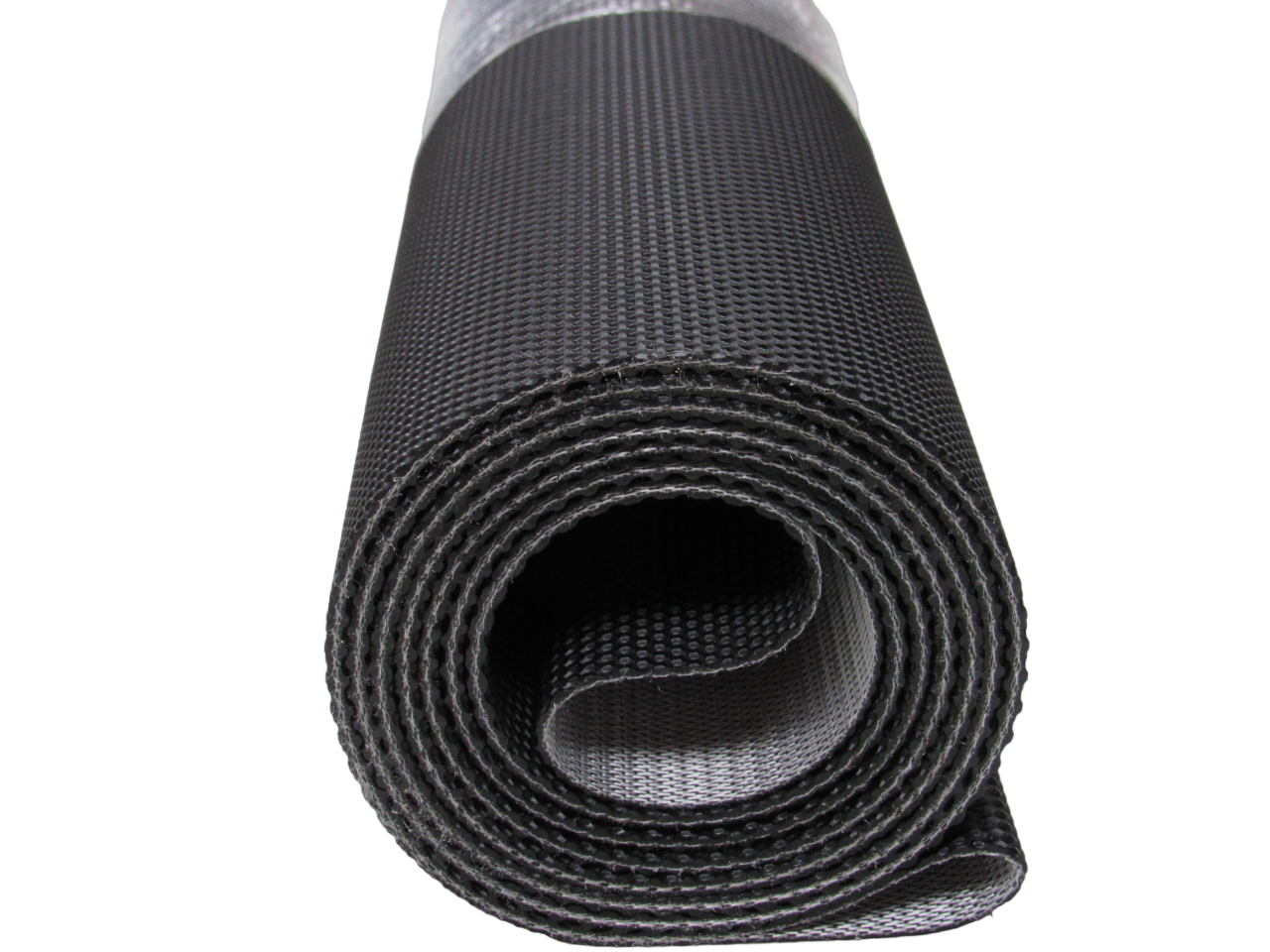

 | 400529 | 44 | WALKING BELT | $134.49 | ||
| 198640 | 45 | BELT GUIDE | $25.49 | |||
| 400267 | 46 | FRONT ROLLER/PULLEY | $355.49 | |||
| 315068 | 47 | 1/2″ PIN | $7.99 | |||
| 372094 | 48 | 9/32″ PLASTIC BUSHING | $4.99 | |||
| 393318 | 49 | CONTROLLER PLATE | $11.99 | |||
| 240351 | 50 | ANCHORED ZIP TIE | $0.99 | |||
| 349816 | 51 | LATCH PLATE | $14.49 | |||
| 395468 | 52 | LATCH,ASSY,LABBK | $76.49 | |||
| 399309 | 53 | MOTOR BELT | $38.99 | |||
| 393452 | 55 | RIGHT REAR FOOT | $34.99 | |||
| 393453 | 56 | LEFT REAR FOOT | $39.99 | |||
| 393670 | 57 | Motor Hood | $102.49 | |||
| 372093 | 59 | 1/2″ PLASTIC WASHER | $4.99 | |||
 | 372092 | 60 | 3/8″ PLASTIC BUSHING | $4.99 | ||
| 395713 | 61 | INCLINE MOTOR | $157.99 | |||
| 343447 | 62 | FRAME SPACER | $6.49 | |||
| 395737 | 63 | INCLINE FRAME | $130.99 | |||
 | 114078 | 64 | LIFT SPACER | $2.49 | ||
| 399954 | 65 | CONTROLLER | $193.49 | |||
 | 031229 | 66A | POWER CORD | $39.99 | ||
| 251086 | 66B | POWER CORD,FCA | $39.99 | ||
 | 173169 | 67 | POWER CORD GROMMET | $0.99 | ||
 | 186726 | 68 | POWER SWITCH | $22.49 | ||
| 393456 | 69 | BELLY PAN | $89.49 | |||
| 394609 | 70 | LEFT HANDRAIL COVER | $68.49 | |||
| 394608 | 71 | RIGHT HANDRAIL COVER | $68.49 | |||
| 394819 | 72 | HANDRAIL | $187.99 | |||
| 393316 | 73 | CONSOLE FRAME | $124.99 | |||
| 394940 | 75 | PULSE CROSSBAR | $142.99 | |||
 | 215822 | 76 | CONSOLE GROUND WIRE | $5.99 | ||
| 393769 | 77 | UPRIGHT CROSSBAR | $101.99 | |||
| 394672 | 80 | UPRIGHT WIRE | $79.49 | |||
 | 227199 | 81 | GROMMET | $2.49 | ||
| 306715 | 82 | BASE CAP | $1.49 | |||
 | 307032 | 83 | BASE PAD | $3.99 | ||
 | 307031 | 84 | STABILIZER FOOT | $2.99 | ||
| 393390 | 85 | LEFT TRAY | $27.99 | |||
| 393389 | 86 | RIGHT TRAY | $27.99 | |||
| 252433 | 87 | CAUTION DECAL | $0.99 | |||
| 395519 | 88 | BASE | $316.99 | |||
| 398979 | 89 | DRIVE MOTOR BRACKET | $97.99 | |||
 | 256446 | 90 | M8 JAM NUT | $0.99 | ||
| 250549 | 91 | MOTOR PIVOT BOLT | $5.49 | |||
 | 234288 | 92 | M8 X 20MM BOLT | $1.49 | ||
| 234325 | 93 | M8.4 STAR WASHER | $1.49 | |||
 | 012105 | 94 | M8 FLANGE NUT | $3.49 | ||
| 118201 | TS11 | 8″ RED WIRE,M/F | $4.49 | |||
| 141995 | TS12 | 8″ BLACK WIRE, M/F | $4.49 | |||
 | 153403 | TS13 | 4″ BLUE WIRE,MF | $3.99 | ||
| 126146 | TS14 | 4″ BLUE WIRE,F/F | $3.49 | |||
 | 102634 | TS3 | 8″ GREEN WIRE | $3.49 | ||
| 211260 | TS6 | 12″ WIRE HRNS | $12.99 |
