Golds Gym Golds Gym Trainer 430I Treadmill – GGTL39615.0 / GGTL396150
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
103 Parts Available for Golds Gym Golds Gym Trainer 430I Treadmill - GGTL39615.0 / GGTL396150 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 308092 | 1 | BASE-TO-UPRT PATCH BOLT | $9.49 | ||
| 171558 | 4 | 3/8″ X 3/4″ SCREW | $3.49 | |||
| 241305 | 5 | M4.2X13MM WASHR HEAD SCRW | $0.99 | |||
 | 013576 | 6 | CROWN SCREW | $0.99 | ||
| 150508 | 7 | #10 X 1″ SCREW | $0.99 | |||
| 241734 | 8 | M4.2 X 19MM TEK SCREW | $0.99 | |||
| 241732 | 9 | M4.2X19MM WASHR HEAD SCRW | $0.99 | |||
| 237529 | 10 | M4.2 X 13MM SCREW | $0.99 | |||
| 238292 | 11 | M4 X 10MM SCREW | $0.99 | |||
| 355671 | 12 | M8 X 30MM BOLT | $6.99 | |||
| 234284 | 13 | M4.2 X 13MM SCREW | $0.99 | |||
 | 234285 | 14 | M6 X 70MM BOLT | $3.49 | ||
 | 295756 | 15 | MOTOR SCREW | $0.99 | ||
| 250549 | 16 | MOTOR PIVOT BOLT | $5.49 | |||
 | 234288 | 17 | M8 X 20MM BOLT | $1.49 | ||
 | 013544 | 18 | 3/8″ X 2″ BOLT | $3.99 | ||
| 302928 | 19 | M8 X 40MM SCREW | $3.49 | |||
| 382219 | 20 | M10 X 58MM SCREW | $6.49 | |||
| 234274 | 21 | M8 X 35MM SCREW | $0.99 | |||
| 234325 | 22 | M8.4 STAR WASHER | $1.49 | |||
| 213894 | 25 | SMALL WASHER | $0.99 | |||
| 014140 | 26 | #8 ISOLATOR MTG WASHER | $0.99 | |||
| 207213 | 27A | M10 STAR WASHER | $1.49 | |||
| 140206 | 27B | M10 WASHER | $1.99 | |||
| 234137 | 28 | M8 WELD NUT | $2.49 | |||
| 246066 | 29 | M8-1.25 Flange Hex Nut | NLA | Unavailable to order | ||
 | 012105 | 29 | M8 FLANGE NUT | $3.49 | ||
 | 013423 | 30 | GROUND SCREW | $0.99 | ||
 | 256446 | 31 | M8 LOCKNUT | $0.99 | ||
 | 119425 | 32 | 3/8″ LOCKNUT | $0.99 | ||
 | 133333 | 33 | CLIP NUT | $0.99 | ||
| 359986 | 34 | SCREW,CSTM,SHLDR,BPO,5/16-18X2 | $14.49 | |||
 | 199545 | 35 | WHEEL | $2.49 | ||
| 371093 | 36 | Base Upright Arms | $148.49 | |||
| 359462 | 37 | RAIL,DECK,ARPS,LT,W/DECALS | $88.49 | |||
| 305284 | 38 | Latch Warning Decal | NLA | Unavailable to order | ||
| 334130 | 39 | LATCH PLATE SPACER | $111.49 | |||
| 359250 | 40 | ISLATR,DECK,PMS123 | $55.49 | |||
| 198640 | 41 | BELT GUIDE | $25.49 | |||
| 302735 | 42 | LATCH HOUSING | $113.49 | |||
 | 014063 | 43 | 1/4″ FLAT WASHER | $0.99 | ||
| 163979 | 44 | M10 X 58MM BOLT | $7.49 | |||

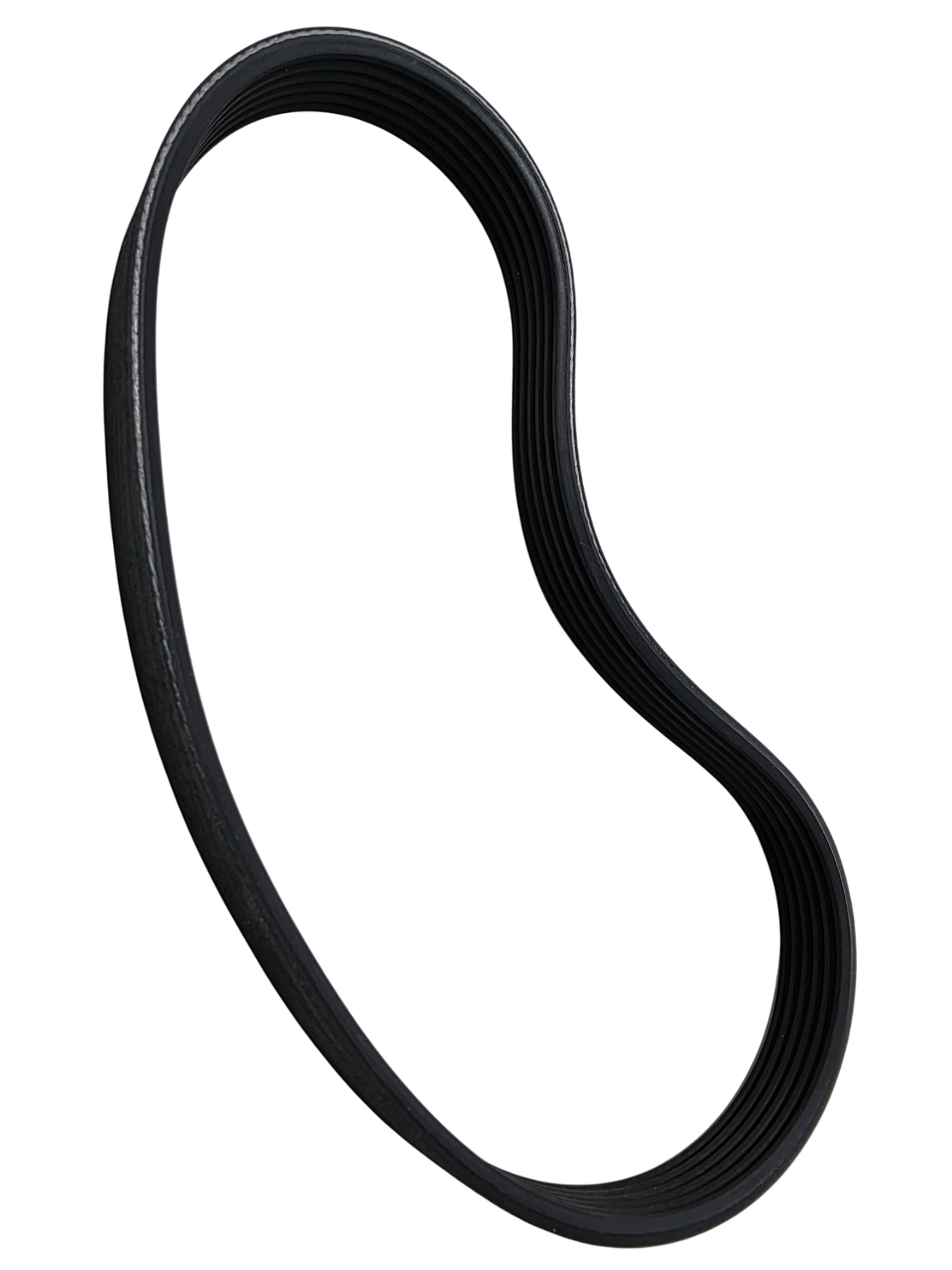

 | 248569 | 45 | DRIVE BELT | $14.99 | ||
| 297196 | 46 | DRIVE ROLLER/PULLEY | $144.99 | |||
 | 308725 | 47 | WALKING BELT | $83.99 | ||
| 346663 | 48 | Walking Platform | $172.49 | |||
| 371456 | 49 | RAIL,DECK,ARPS,RT,W/DECALS | $89.49 | |||
| 334338 | 51 | RIGHT IDLER ROLLER BKT | $24.99 | |||
| 359225 | 52 | RIGHT REAR FOOT | $55.99 | |||
 | 359224 | 53 | LEFT REAR FOOT | $55.99 | ||
 | 248571 | 54 | IDLER ROLLER | $166.49 | ||
| 334337 | 55 | LEFT IDLER ROLLER BRACKET | $24.99 | |||
| 336049 | 56 | Motor Hood | $119.49 | |||
| 234661 | 57 | DRIVE MOTOR BRACKET | $58.99 | |||
 | 347895 | 58 | Part # 347895 | NLA | Unavailable to order | |
| 396428 | 59 | ELECTRONICS BRACKET | $65.49 | |||
 | 328333 | 60 | Part # 328333 | NLA | Unavailable to order | |
| 336030 | 61 | Belly Pan | NLA | Unavailable to order | ||
 | 186726 | 62 | POWER SWITCH | $22.49 | ||
 | 173169 | 63 | SQUARE GROMMET | $0.99 | ||
 | 031229 | 64 | POWER CORD | $39.99 | ||
| 244123 | 65 | FRAME SPACER | $0.99 | |||
| 359996 | 66 | 3/8″ X 1 1/4″ BOLT | $6.99 | |||
| 359195 | 67 | Console Base | $150.49 | |||
| 359239 | 68 | HANDRAIL CAP | $7.49 | |||
| 359237 | 69 | HANDRAIL | $65.49 | |||
| 360007 | 71 | UPRIGHT WIRE | $59.99 | |||
| 394752 | 72 | 3/8″ X 2″ HEX HEAD BOLT | $4.49 | |||
 | 208603 | 74 | KEY/CLIP | $19.99 | ||
| 132315 | 75 | ZIP TIE | $3.49 | |||
| 359271 | 77 | BASE CAP | $14.49 | |||
 | 157600 | 78 | BUMPER | $1.99 | ||
 | 013322 | 79 | #8 X 3/4″ SCREW | $0.99 | ||
 | 167049 | 80 | #10 X 3/4″ SCREW | $0.99 | ||
| 293508 | 81 | 3/8-16 GR8 PTH Screw | NLA | Unavailable to order | ||
 | 364028 | 82 | M6 X 60MM BOLT | $2.99 | ||
 | 014088 | 83 | #10 STAR WASHER | $1.49 | ||
| 153196 | 84 | DECK MOUNTING WASHER | $2.49 | |||
 | 333350 | 85 | M8 LOCKNUT | $1.99 | ||
 | 100427 | 86 | 5/16″ NUT | $0.99 | ||
 | 012142 | 87 | BRACKET SPACER | $0.99 | ||
 | 148710 | 88B | M10 LOCKNUT | $2.49 | ||
| 359503 | 89 | CONTROLLER CLAMP | $15.99 | |||
| 248732 | 92 | INCLINE MOTOR | $170.99 | |||
| 344139 | 93 | INCLINE FRAME | $162.49 | |||
| 186253 | 94 | SQUARE CAP | $1.99 | |||
| 359232 | 95 | LEFT CONSOLE FRAME | $66.49 | |||
| 359235 | 96 | RIGHT CONSOLE FRAME | $63.99 | |||
| 359198 | 97 | PULSE CROSSBAR | $137.99 | |||
 | 215822 | 98 | 4″ GRN WIRE | $5.99 | ||
| 359240 | 99 | FRONT HANDRAIL CAP | $5.99 | |||
| 359216 | 100 | HANDRAIL BUSHING | $11.99 | |||
 | 227199 | 101B | GROMMET | $2.49 | ||
| 359244 | 102 | UPRT,RT,STLGS | $114.49 | |||
| 359249 | 103 | LEFT OUTER UPRIGHT CAP | $19.99 | |||
| 359234 | 104 | LEFT INNER UPRIGHT CAP | $25.99 | |||
| 359231 | 105 | RIGHT INNER UPRIGHT CAP | $25.99 | |||
| 359229 | 106 | RIGHT OUTER UPRIGHT CAP | $29.49 | |||
| 252433 | 107 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 356449 | 108 | LATCH CATCH PLATE | $23.49 | |||
| 318367 | 109 | M4.2 X 25MM SCREW | $1.99 |
