PROFORM HYBRID TRAINER BIKE – PFCCEL03812.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
71 Parts Available for PROFORM HYBRID TRAINER BIKE - PFCCEL03812.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 333183 | 2 | FRONT STABILIZER | $73.99 | |||
| 212416 | 3 | UPPER BODY ARM CAP | $6.99 | |||
| 364068 | 4 | WHEEL/ENDCAP | $22.99 | |||
 | 143742 | 5 | SNAP RING | $3.99 | ||
| 333184 | 6 | REAR STABILIZER | $73.99 | |||
| 243728 | 7 | 25MM ROUND CAP | $3.49 | |||
 | 256446 | 10A | M8 LOCKNUT | $0.99 | ||
 | 012042 | 10B | M8 LOCKNUT | $1.99 | ||
| 243654 | 11 | SEAT CARRIAGE CAP | $2.99 | |||
| 332781 | 13 | UPRIGHT | $121.49 | |||
| 333186 | 15 | RIGHT SEAT BRACKET | $71.49 | |||
 | 335031 | 16A | CONSOLE | $144.49 | ||
| 328127 | 16D | CONSOLE BATTERY SCREW | $1.99 | |||
| 335032 | 17 | LEFT SHIELD | $113.99 | |||
| 335033 | 18 | RIGHT SHIELD | $113.99 | |||
| 332783 | 19 | SEAT FRAME | $54.99 | |||
| 315564 | 20 | SEAT FRAME CAP | $4.49 | |||
| 332798 | 21A | CRANK | $83.99 | |||
 | 287202 | 21B | 27MM X 16MM WAVE WASHER | $1.99 | ||
 | 131090 | 22 | CLAMP | $0.99 | ||
| 327627 | 24 | PULLEY | $100.49 | |||
| 235234 | 25 | M6 CURVED WASHER | $0.99 | |||
| 243656 | 26 | SEAT HANDLE GRIP | $18.49 | |||
 | 328787 | 27 | WATER BOTTLE HOLDER | $31.99 | ||
 | 208163 | 28 | PIVOT SCREW | $1.99 | ||
 | 193223 | 30 | RESISTANCE MOTOR | $99.99 | ||
 | 168267 | 31A | RESISTANCE MOTOR SCREW | $0.99 | ||
 | 014033 | 32 | M6 LARGE WASHER | $1.49 | ||
| 225360 | 33 | M10 X 98MM BOLT | $18.49 | |||
 | 249930 | 34 | M8 X 20MM SCREW | $2.99 | ||
 | 176559 | 35 | DRIVE BELT | $59.99 | ||
 | 310739 | 36 | M8 X 10MM BOLT | $2.99 | ||
 | 321353 | 37B | RESISTANCE CABLE | $49.99 | ||
 | 113842 | 38 | PULLEY MAGNET | $1.49 | ||

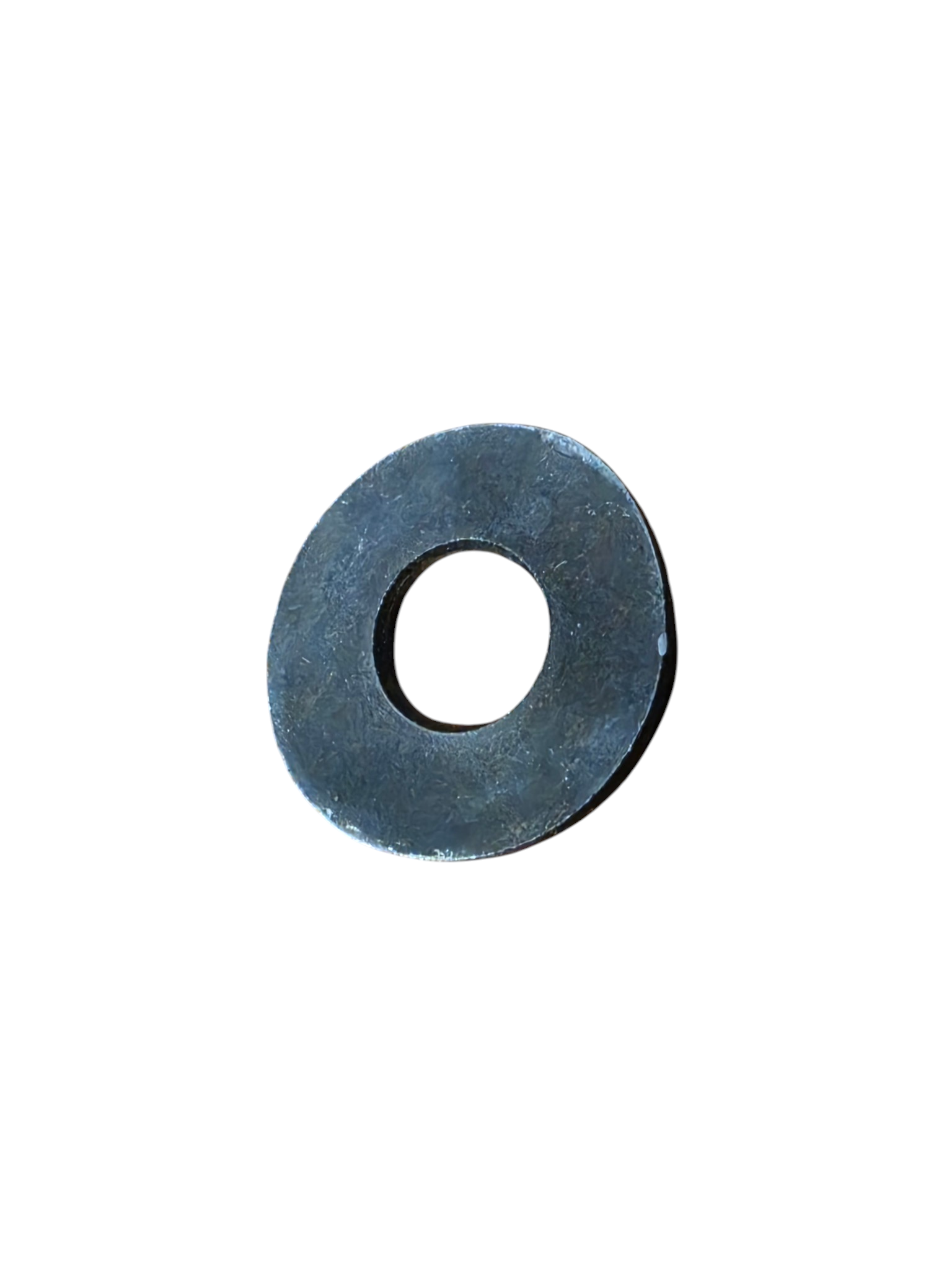

 | 313565 | 39 | M10 CURVED WASHER | $8.99 | ||
| 206320 | 40 | M10 X 65MM SCREW | $4.49 | |||
 | 224606 | 41 | M4 X 25MM SCREW | $0.99 | ||
 | 014174 | 42 | M8 SPLIT WASHER | $1.99 | ||
 | 186070 | 43 | REED SWITCH/WIRE | $28.99 | ||
 | 139703 | 44 | SMALL BEARING | $33.49 | ||
 | 281150 | 46 | IDLER SCREW | $4.49 | ||
 | 195562 | 47 | M4 X 16MM SCREW | $1.99 | ||
 | 148710 | 48 | M10 LOCKNUT | $2.49 | ||
| 228191 | 49 | M6 X 30MM BUTTON SCREW | $2.49 | |||
 | 012142 | 51 | M6 LOCKNUT | $0.99 | ||
| 223088 | 52 | M6 X 38MM BOLT, NOTE: | $5.49 | |||
| 332784 | 53 | HANDLEBAR | $106.49 | |||
 | 248349 | 54 | CRANK PVT CAP WSHR | $6.49 | ||
| 209112 | 55 | M4 X 5MM SCREW | $0.99 | |||
 | 332788 | 56 | CARRIAGE BUSHING | $5.49 | ||
 | 306282 | 57 | LARGE BUMPER | $4.99 | ||
| 193202 | 58 | M8 X 125MM BOLT | $16.99 | |||
| 333187 | 59 | SEAT HANDLE | $31.49 | |||
| 208938 | 61 | M10 X 60MM BOLT | $5.99 | |||
 | 363093 | 62 | IDLER | $116.49 | ||
| 332794 | 64 | RIGHT PEDAL CARRIAGE | $66.49 | |||
 | 281149 | 66 | BELT ADJUSTMENT SCREW | $6.49 | ||
| 332727 | 67 | PEDAL | $75.99 | |||
| 271688 | 68A | PULSE GRIP ASSY | $60.99 | |||
| 272391 | 68B | RIGHT PULSE GRIP WIRE | $31.99 | |||
| 272392 | 68C | LEFT PULSE GRIP WIRE | $17.49 | |||
| 126650 | 69 | BUMPER | $0.99 | |||
 | 332711 | 70 | PEDAL KNOB | $24.99 | ||
| 335037 | 71 | RIGHT PEDAL LEG | $126.49 | |||
| 332791 | 74 | LEFT UPPER BODY LEG | $122.49 | |||
| 333328 | 75 | RIGHT PEDAL LEG BRACKET | $54.49 | |||
| 333340 | 76 | LEFT PEDAL LEG BRACKET | $54.49 | |||
 | 291494 | 77 | CRANK ARM SCREW | $2.49 | ||
 | 153209 | 78 | CRANK CAP | $3.49 | ||
| 333325 | 79 | CONSOLE BRACKET | $56.49 | |||
 | 332271 | 80 | AXLE | $73.99 | ||
 | 204489 | 81 | CRANK ARM WAVE WASHER | $0.99 | ||
| 332701 | 82 | UPPER BODY ARM COVER | $14.49 | |||
| 252363 | 83 | M8 X 40MM BOLT | $4.49 | |||
 | 333182 | 85 | PEDAL BRACE | $28.49 | ||
| 332786 | 86 | SPACER | $1.49 | |||
| 195069 | 87 | M10 X 102MM BOLT | $6.99 | |||
| 335036 | 88 | RIGHT UPPER BODY ARM | $63.99 | |||
| 335035 | 89 | LEFT UPPER BODY ARM | $63.99 | |||
 | 186819 | 91 | #8X1/2″ WSHR HD SCREW | $0.99 | ||
 | 208320 | 92 | M4 X 10MM SCREW | $0.99 | ||
| 014073 | 93 | WASHER | $1.49 | |||
| 332792 | 94 | RIGHT UPPER BODY LEG | $122.49 | |||
| 335038 | 95 | LEFT PEDAL LEG | $126.49 | |||
| 119894 | # | 4MM HEX KEY | $2.49 | |||
| 266084 | # | DECAL, GENERAL WARNING | $14.49 | |||
| 348442 | # | STBLZR/PEDAL NOISE KIT | $20.49 | |||
| 132315 | # | WIRE TIE | $3.49 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 045021 | # | 6MM ALLEN WRENCH | $7.49 | |||
 | 045008 | # | 5MM HEX KEY | $2.49 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 |
