Nordictrack Gx4.0 Bike – NTEX03810.0 / NTEX038100
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
101 Parts Available for Nordictrack Gx4.0 Bike - NTEX03810.0 / NTEX038100 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 300870 | 4 | UPRIGHT | ||||
| 300811 | 5 | SHIELD COVER | ||||
| 300926 | 6 | Handlebar | $93.99 | |||
| 300810 | 8 | RIGHT HANDLEBAR COVER | $29.99 | |||
| 300809 | 9 | Left Handlebar Cover | $30.49 | |||
| 294134 | 10 | SEAT BRACKET | $81.99 | |||
| 294137 | 11 | SEAT CARRIAGE | $125.99 | |||
| 294162 | 12 | Pulse Bar | $98.49 | |||
| 300616 | 13 | Adjustable Backrest | $175.99 | |||
| 297239 | 14 | Backrest Cover | $83.49 | |||
| 300615 | 15 | SEAT | ||||
| 184148 | 16 | Part # 184148 | NLA | |||
| 296601 | 17 | RIGHT CRANK ARM | $97.49 | |||
| 184147 | 18 | Part # 184147 | NLA | |||
 | 296602 | 19 | LEFT CRANK ARM | $97.49 | ||
| 294159 | 20 | Crank | $98.49 | |||
| 300872 | 21 | Right Front Shield | $148.49 | |||
| 300871 | 22 | Left Front Shield | NLA | |||
| 294165 | 24 | Left Seat Shield | $109.49 | |||
| 282057 | 25 | WHEEL | $12.99 | |||
| 282036 | 26 | RIGHT STABILIZER CAP | $29.49 | |||
| 282035 | 27 | Left Stabilizer Cap | NLA | |||
| 282040 | 28 | Rear Stabilizer Cap | NLA | |||
| 283146 | 29 | LEVELING KNOB | $24.49 | |||
| 282054 | 30 | LEVELING FOOT | $30.49 | |||
 | 157600 | 31 | BUMPER | $1.99 | ||
| 280444 | 32 | SEAT POST KNOB | ||||
 | 263595 | 33 | BRAKE BLOCK | $9.49 | ||

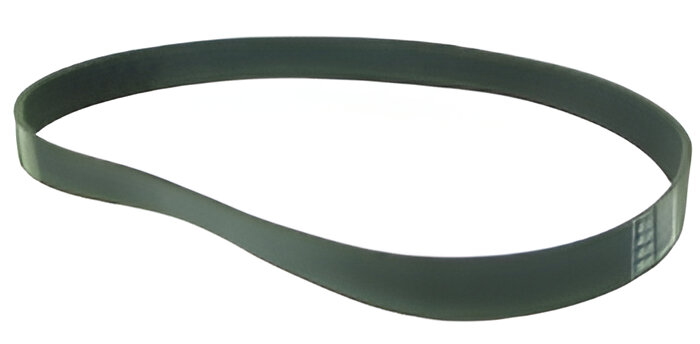

 | 286888 | 34 | Drive Belt | $101.49 | ||
| 267015 | 35 | SEAT LOCK | $44.99 | |||
| 292200 | 36 | SEAT HANDLE | $7.99 | |||
| 263592 | 37 | SEAT LOCK BRACKET | $7.99 | |||
| 263586 | 38 | ROLLER AXLE | $5.49 | |||
| 269300 | 39 | Upper Roller | NLA | |||
| 263587 | 40 | Lower Roller | NLA | |||
| 271688 | 41 | PULSE SENSOR | $60.99 | |||
| 121642 | 42 | HANDRAIL TUBE CAP | $1.49 | |||
 | 139703 | 43 | CRANK BEARING | $33.49 | ||
 | 143742 | 44 | LARGE SNAP RING | $3.99 | ||
 | 131090 | 45 | REED SWITCH CLIP | $0.99 | ||
| 164675 | 46 | REED SWITCH/WIRE | $29.99 | |||
 | 363093 | 47 | IDLER | $116.49 | ||
| 287337 | 48 | FLYWHEEL | $356.49 | |||
 | 284116 | 49 | FLYWHEEL AXLE | $19.99 | ||
| 279645 | 50 | MOTOR BRACKET | $12.99 | |||
 | 284576 | 51 | RESISTANCE MOTOR | $117.99 | ||
 | 241954 | 52 | RSISTANCE MOTOR DISK | $1.99 | ||
| 284578 | 55 | RESISTANCE ARM ASSEMBLY | $60.49 | |||
| 279644 | 56 | ARM LOCK | $1.49 | |||
| 284577 | 57 | C-Magnet Bracket | NLA | |||
| 255072 | 58 | PULLEY | $91.99 | |||
 | 153209 | 59 | SPINDLE COVER | $3.49 | ||
 | 237612 | 60 | M8 X 16MM SCREW | $1.49 | ||
| 014174 | 61 | M8 SPLIT WASHER | $1.99 | |||
| 252438 | 62 | M10 X 95MM BOLT | $19.99 | |||
| 299379 | 63 | M8 x 45mm Patch Screw | $12.49 | |||
 | 291494 | 64 | FLANGE SCREW | $2.49 | ||
| 286763 | 65 | M4 X 25MM SCREW | $2.99 | |||
 | 014033 | 66 | WASHER | $1.49 | ||
| 281534 | 67 | M6 x 70mm Bolt Set | NLA | |||
| 280422 | 68 | M6 X 60MM BOLT SET | $5.99 | |||
| 300788 | 69 | 1/4″ X 5/8″ SCREW | $1.49 | |||
| 235321 | 70 | SPRING WASHER | $2.49 | |||
| 280879 | 71 | HANDLEBAR PIVOT BUSHING | $3.99 | |||
| 280878 | 72 | UPRIGHT PIVOT BUSHING | $22.49 | |||
| 249928 | 73 | M8 X 20MM BTTN SCRW, NOTE | $1.99 | |||
 | 012042 | 74 | M8 LOCKNUT | $1.99 | ||
| 234286 | 75 | M6 X 8MM HEX SCREW | $0.99 | |||
| 276024 | 76 | MOTOR DISK MOUNTING SCREW | $1.49 | |||
 | 281150 | 77 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
 | 208163 | 78 | M6 X 20MM HEX SCREW | $1.99 | ||
| 281148 | 79 | M6 X 65MM HEX SCREW | $3.49 | |||
| 254769 | 80 | M6 NUT | $1.49 | |||
 | 168267 | 81 | FAN SCREW | $0.99 | ||
| 283304 | 82 | M5 X 7MM SCREW | $3.49 | |||
| 183633 | 83 | M5 WASHER | $1.99 | |||
 | 281149 | 84 | M10 X 50MM HEX SCREW | $6.49 | ||
 | 263599 | 85 | BRAKE PAD SPACER | $15.49 | ||
 | 256446 | 86 | M8 NUT | $0.99 | ||
| 133828 | 87 | Fastener | NLA | |||
 | 130659 | 88A | BELLY PAN SCREW | $0.99 | ||
| 314929 | 88B | M4 X 16MM SCREW | $0.99 | |||
| 244820 | 89 | Main Wire Harness | $67.49 | |||
| 215823 | 90 | AUDIO WIRE | $11.99 | |||
 | 255827 | 91 | Pulse Wire Frame | $17.89 | ||
| 295006 | 92 | SEAT PULSE WIRE | $73.99 | |||
| 195090 | 93 | M6 X 20MM CHAMFER SCREW | $0.99 | |||
 | 013162 | 94 | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
 | 013423 | 95 | LATCH PLATE SCREW | $0.99 | ||
| 243878 | 96 | M6 X 14MM SCREW | $6.49 | |||
| 246785 | 97 | M6 X 15MM BRIGHT SCREW | $3.49 | |||
 | 195562 | 98 | M4 X 16MM SCREW | $1.99 | ||
| 252794 | 99 | CONSOLE DOOR SCREW | $0.99 | |||
 | 154848 | 100 | HOOD SCREW/CONSOLE SCREW | $0.99 | ||
 | 286527 | 101 | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 300327 | 102 | M6 X 18MM WASHER | $0.99 | |||
 | 014018 | 103 | M6 SPLIT WASHER | $0.99 | ||
 | 248512 | 104 | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
| 246123 | 105 | 25MM SQUARE INNER CAP | $15.99 | |||
| 132315 | 106 | WIRE TIE | $3.49 | |||
 | 113842 | 107 | MAGNET | $1.49 |
