Nordictrack Gx 4.5 Bike – 21983.0 / 219830
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
86 Parts Available for Nordictrack Gx 4.5 Bike - 21983.0 / 219830 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 331195 | 4 | UPRIGHT | $118.99 | |||
| 330790 | 5 | SHIELD COVER | $93.99 | |||
| 332555 | 6 | Handlebar | $104.99 | |||
| 331193 | 7 | Fitness Equipment Console | NLA | |||
| 332393 | 8 | RIGHT HANDLEBAR COVER | $30.99 | |||
| 332392 | 9 | Left Handlebar Cover | NLA | |||
| 294134 | 10 | SEAT BRACKET | $81.99 | |||
| 294137 | 11 | SEAT CARRIAGE | $125.99 | |||
| 294162 | 12 | Pulse Bar | $98.49 | |||
| 330783 | 13 | Adjustable Backrest | $195.49 | |||
| 297239 | 14 | Backrest Cover | $83.49 | |||
| 330784 | 15 | SEAT | $132.49 | |||
| 184148 | 16 | Part # 184148 | NLA | |||
| 322862 | 17 | RIGHT CRANK ARM | $80.99 | |||
| 184147 | 18 | Part # 184147 | NLA | |||
 | 322861 | 19 | LEFT CRANK ARM | $80.99 | ||
| 294159 | 20 | Crank | $98.49 | |||
| 331199 | 21 | Right Front Shield | $165.99 | |||
| 331198 | 22 | Left Front Shield | $165.99 | |||
| 331203 | 24 | Left Seat Shield | $107.49 | |||
| 332044 | 26 | RIGHT STABILIZER CAP | $24.99 | |||
| 332043 | 27 | Left Stabilizer Cap | $25.49 | |||
| 334759 | 28 | REAR STABILIZER CAP | $26.99 | |||
 | 113842 | 29 | MAGNET | $1.49 | ||
 | 153280 | 30 | BASE FOOT | $14.49 | ||
 | 157600 | 31 | BUMPER | $1.99 | ||
| 246123 | 32 | 25MM SQUARE INNER CAP | $15.99 | |||
 | 263595 | 33 | BRAKE BLOCK | $9.49 | ||
 | 144335 | 34 | DRIVE BELT | $89.99 | ||
| 267015 | 35 | SEAT LOCK | $44.99 | |||
| 292200 | 36 | SEAT HANDLE | $7.99 | |||
| 323471 | 37 | SEAT LEVER BRACKET | $7.49 | |||
| 263586 | 38 | ROLLER AXLE | $5.49 | |||
| 269300 | 39 | Upper Roller | NLA | |||
| 263587 | 40 | Lower Roller | NLA | |||
| 271688 | 41 | PULSE SENSOR | $60.99 | |||
 | 186477 | 42 | HANDLEBAR ENDCAP | $4.49 | ||
 | 139703 | 43 | CRANK BEARING | $33.49 | ||
 | 143742 | 44 | LARGE SNAP RING | $3.99 | ||
 | 131090 | 45 | REED SWITCH CLIP | $0.99 | ||
| 164675 | 46 | REED SWITCH/WIRE | $29.99 | |||
 | 363093 | 47 | IDLER | $116.49 | ||
| 321860 | 48A | Eddy Mechanism | NLA | |||

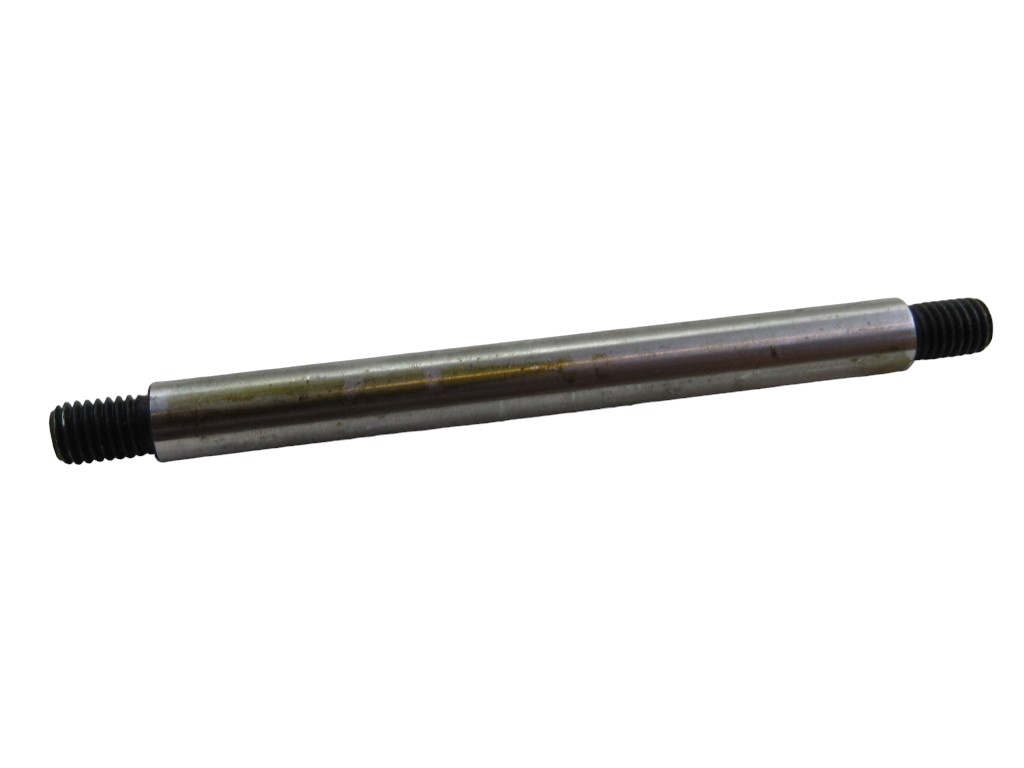

 | 324966 | 48B | EDDY MECH AXLE | $21.99 | ||
 | 337717 | 49 | Power Adapter | $28.99 | ||
 | 014018 | 50 | M6 SPLIT WASHER | $0.99 | ||
 | 193223 | 51 | RESISTANCE MOTOR | $99.99 | ||
| 300327 | 52 | M6 X 18MM WASHER | $0.99 | |||
 | 286527 | 53A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 314929 | 53B | M4 X 16MM SCREW | $0.99 | |||
 | 154848 | 54 | HOOD SCREW/CONSOLE SCREW | $0.99 | ||
 | 195562 | 56 | M4 X 16MM SCREW | $1.99 | ||
| 247332 | 57 | M6 x 16mm Screw | NLA | |||
| 255072 | 58 | PULLEY | $91.99 | |||
 | 153209 | 59 | SPINDLE COVER | $3.49 | ||
 | 237612 | 60 | M8 X 16MM SCREW | $1.49 | ||
| 014174 | 61 | M8 SPLIT WASHER | $1.99 | |||
| 252438 | 62 | M10 X 95MM BOLT | $19.99 | |||
| 269837 | 63 | M8 X 44mm Patch Screw | NLA | |||
 | 291494 | 64 | FLANGE SCREW | $2.49 | ||
| 286763 | 65 | M4 X 25MM SCREW | $2.99 | |||
 | 014033 | 66 | WASHER | $1.49 | ||
| 243878 | 67 | M6 X 14MM SCREW | $6.49 | |||
 | 013423 | 68 | LATCH PLATE SCREW | $0.99 | ||
| 300788 | 69 | 1/4″ X 5/8″ SCREW | $1.49 | |||
 | 013162 | 70 | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
| 195090 | 71 | M6 X 20MM CHAMFER SCREW | $0.99 | |||
| 295006 | 72 | SEAT PULSE WIRE | $73.99 | |||
| 249928 | 73 | M8 X 20MM BTTN SCRW, NOTE | $1.99 | |||
 | 012042 | 74 | M8 LOCKNUT | $1.99 | ||
 | 255827 | 75 | Pulse Wire Frame | $17.89 | ||
| 322064 | 76 | Main Wire | $87.49 | |||
 | 281150 | 77 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
 | 208163 | 78 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 130659 | 79 | BELLY PAN SCREW | $0.99 | ||
| 133828 | 80 | Fastener | NLA | |||
 | 168267 | 81 | FAN SCREW | $0.99 | ||
 | 256446 | 82 | M8 NUT | $0.99 | ||
 | 263599 | 83 | BRAKE PAD SPACER | $15.49 | ||
 | 281149 | 84 | M10 X 50MM HEX SCREW | $6.49 | ||
| 132315 | 85 | WIRE TIE | $3.49 | |||
| 322025 | 86 | SPACER | $0.99 | |||
| 336302 | 87 | Motor Bracket | $9.49 | |||
| 334755 | 88 | M6 x 20mm Screw | NLA | |||
| 292007 | 89 | Foam Grip | $26.99 | |||
| 251831 | 90 | M4 X 22MM SCREW | $1.99 |
