Reebok Stride Select Rl 7.0 Elliptical – RBEL16911.0 / RBEL169110
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
151 Parts Available for Reebok Stride Select Rl 7.0 Elliptical - RBEL16911.0 / RBEL169110 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 320453 | 6 | Right Upper Body Leg | $104.99 | |||
| 320452 | 7 | Left Upper Body Leg | $104.99 | |||
| 320454 | 8 | Right Upper Body Arm | $80.99 | |||
| 320455 | 9 | Left Upper Body Arm | $80.99 | |||
| 320457 | 10 | Right Handlebar | $62.99 | |||
| 320456 | 11 | Left Handlebar | $62.99 | |||
| 289865 | 16 | WHEEL CAP | $9.49 | |||
| 320474 | 24 | Front Upright Cover | $100.99 | |||
| 320473 | 25 | Rear Upright Cover | $105.99 | |||
| 291639 | 27 | TOP COVER | $49.49 | |||
| 289872 | 28 | PEDAL ARM CAP | NLA | Unavailable to order | ||
 | 286527 | 29A | SNAP MOUNT ONLY | $2.49 | ||
| 303479 | 29B | SNAP MOUNT SCREW | $3.99 | |||
| 320469 | 30 | Magnet Cover | $21.99 | |||
| 279656 | 31 | PEDAL ARM MAGNET | NLA | Unavailable to order | ||
 | 286547 | 32 | PEDAL ARM ROLLER | $59.99 | ||
| 290474 | 34A | PULSE SENSOR | $80.99 | |||
| 244142 | 35 | HANDGRIP | $68.49 | |||
 | 289864 | 36 | WHEEL | $30.49 | ||
| 289866 | 37 | STABILIZER CAP | $63.49 | |||
 | 308037 | 38 | DRIVE BELT | $71.99 | ||
| 287161 | 39 | CRANK ARM | NLA | Unavailable to order | ||
| 250210 | 40 | HAIRPIN COTTER PIN | $1.99 | |||
 | 237631 | 41 | LARGE LEVELING FOOT | $34.99 | ||
| 320459 | 43 | Right Link Arm | $68.49 | |||
| 247036 | 44 | LIFT BRACKET | $6.99 | |||
| 246935 | 45 | LIFT BUSHING | $16.49 | |||
 | 289867 | 46 | PEDAL ARM SLEEVE | $18.99 | ||
 | 233710 | 47 | INNER BUSHING | $22.99 | ||
| 289399 | 48 | UPRIGHT AXLE | $80.99 | |||
| 272907 | 49 | Latch Bracket | $14.49 | |||
 | 293610 | 50 | Latch | NLA | Unavailable to order | |
 | 293160 | 54 | ARM/LEG BUSHING | $16.99 | ||
| 250957 | 55 | #8 X 5/8″ SCREW | $0.99 | |||
 | 287135 | 56 | SMALL AXLE COVER | $7.99 | ||
 | 293159 | 57 | UPRIGHT BUSHING | $9.49 | ||
 | 233194 | 58 | OUTER BUSHING | $20.99 | ||
 | 304180 | 59 | SNAP RING | $0.99 | ||
 | 290674 | 60 | WIRE HARNESS | $26.49 | ||
| 312441 | 61 | FLYWHEEL | $286.99 | |||
| 250941 | 62 | M6 X 50MM PATCH SCREW | NLA | Unavailable to order | ||
| 291374 | 63 | FRAME AXLE | $35.49 | |||
| 291373 | 64 | MAIN FRAME BUSHING | $17.99 | |||
| 285256 | 65 | LATCH BRACKET AXLE | $17.49 | |||
 | 247275 | 66 | LATCH BRACKET SPRING | $7.49 | ||
| 287167 | 67 | Latch Button | NLA | Unavailable to order | ||
| 284207 | 68 | BUTTON HOUSING | NLA | Unavailable to order | ||
 | 186070 | 69 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 70 | CLAMP | $0.99 | ||
| 228084 | 71 | CRANK HUB | $98.49 | |||
 | 287117 | 72 | CRANK | NLA | Unavailable to order | |
 | 283736 | 73 | CRANK SPACER | $27.49 | ||
| 255072 | 74 | LARGE PULLEY | $91.99 | |||
 | 113842 | 75 | MAGNET | $1.49 | ||

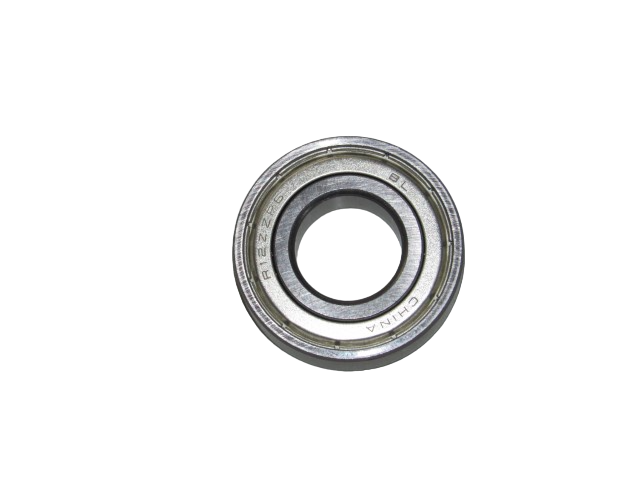

 | 139703 | 76 | SMALL BEARING / FOLDING FRAME BEARING | $33.49 | ||
 | 363093 | 77 | IDLER | $116.49 | ||
 | 241949 | 78 | RESISTANCE MOTOR | $112.99 | ||
 | 304734 | 79 | RESISTANCE ARM | $32.99 | ||
 | 241954 | 80 | RESISTANCE DISC | $1.99 | ||
 | 303952 | 81 | RESISTANCE BRACKET | $4.99 | ||
| 279645 | 82 | MOTOR BRACKET | $12.99 | |||
| 308028 | 83 | C-MAGNET | NLA | Unavailable to order | ||
 | 284116 | 84 | FLYWHEEL AXLE | $19.99 | ||
 | 281149 | 85 | DRIVE BELT ADJUST SCREW | $6.49 | ||
| 237611 | 86 | M8 X 25MM PATCH SCREW | $1.49 | |||

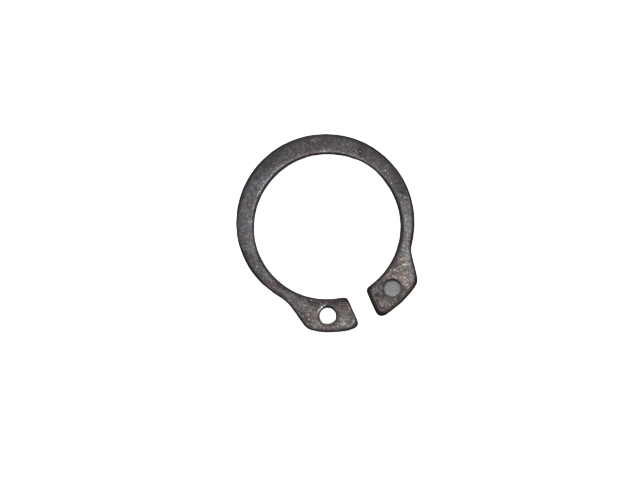

 | 143742 | 87 | SMALL SNAP RING | $3.99 | ||
| 281148 | 88 | C-MAGNET BRACKET BOLT | $3.49 | |||
 | 168267 | 89 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 283304 | 90 | M5 X 7MM SCREW | $3.49 | |||
 | 276024 | 91 | M3.5 X 12MM SCREW,NOTE | $1.49 | ||
| 254769 | 92 | M6 LOCKNUT | $1.49 | |||
| 289473 | 93 | LIFT ARM AXLE | $130.99 | |||
 | 256446 | 94 | M8 LOCKNUT | $0.99 | ||
 | 261150 | 95 | M8 X 23.5MM WASHER | $2.20 | ||
 | 014033 | 96 | IDLER WASHER | $1.49 | ||
 | 208163 | 97 | IDLER SCREW | $1.99 | ||
| 234286 | 98 | MOTOR BRACKET SCREW | $0.99 | |||

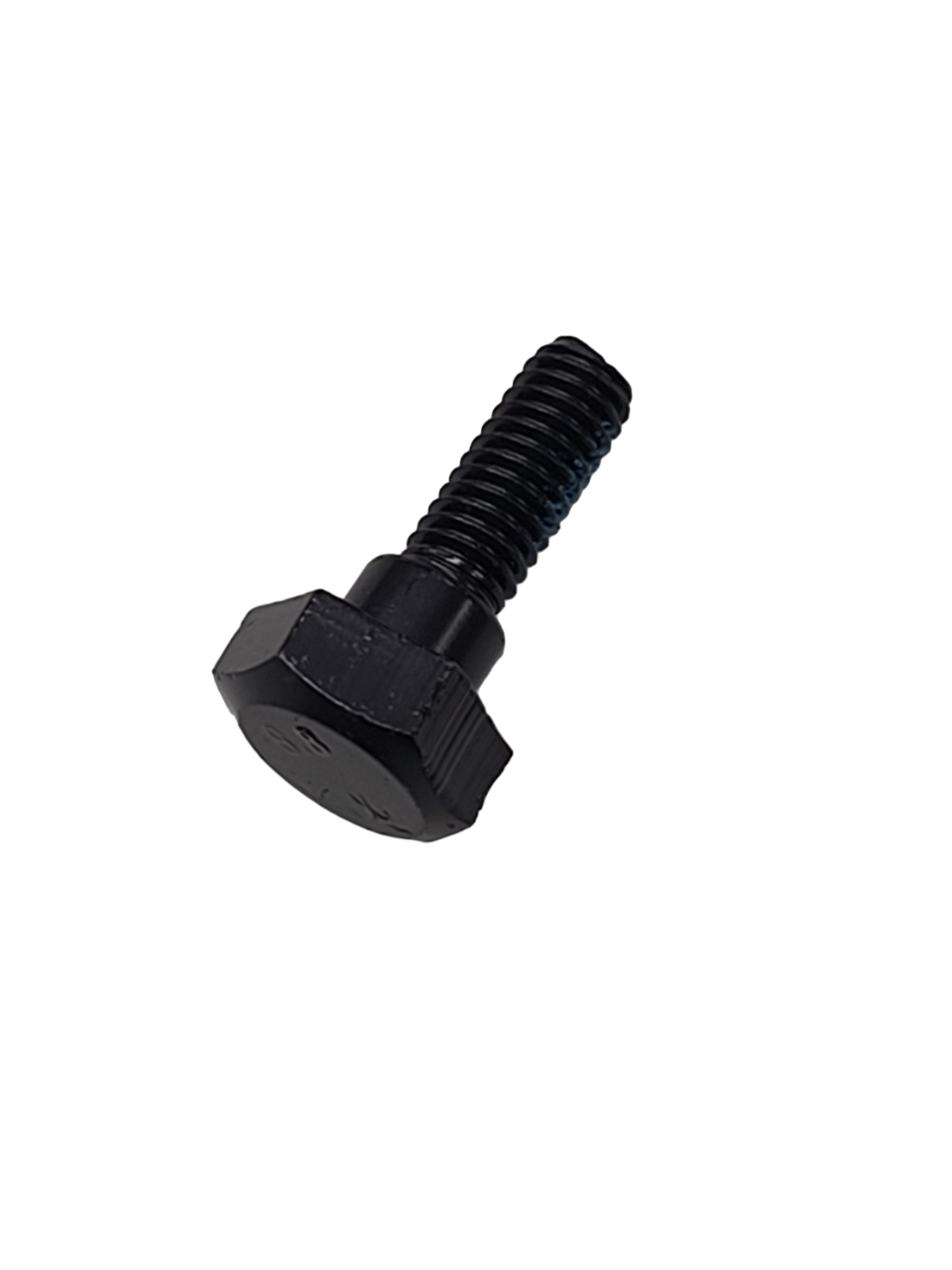

 | 281150 | 99 | IDLER PIVOT SCREW | $4.49 | ||
| 252438 | 100 | M10 X 95MM PATCH SCREW | $19.99 | |||
 | 243375 | 101 | SMALL SNAP RING | $2.49 | ||
 | 237612 | 102 | M8 X 16MM PATCH SCREW | $1.49 | ||
 | 014174 | 103 | M8 SPLIT WASHER | $1.99 | ||
 | 243374 | 104 | IDLER SNAP RING | $12.99 | ||
| 272391 | 105A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 105B | LEFT PULSE WIRE | $17.49 | |||
 | 013162 | 106A | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 195562 | 106B | M4 X 16MM SCREW | $1.99 | ||
| 250420 | 107 | M10 X 20MM SCREW | $2.99 | |||
| 140206 | 108 | M10 WASHER | $1.99 | |||
| 214070 | 109 | M8 X 16MM SCREW | $6.49 | |||
 | 197037 | 111 | M6X12MM LIFT MOTOR SCREW | $0.99 | ||
 | 322918 | 113 | CRANK AXLE COVER (244070) | $12.99 | ||
 | 286526 | 114 | LINK ARM AXLE | $27.49 | ||
 | 186726 | 115 | POWER SWITCH | $22.49 | ||
 | 313668 | 116 | STRAIN-RELIEF BUSHING | $9.49 | ||
 | 172638 | 117 | 6000ZZ BEARING | $23.49 | ||
 | 287202 | 118 | SMALL WAVE WASHER | $1.99 | ||
 | 342275 | 119 | POWER CORD | $49.99 | ||
| 307816 | 120 | Part # 307816 | NLA | Unavailable to order | ||
 | 236321 | 121 | M8 X 25MM SCREW | $4.49 | ||
 | 283582 | 122 | 3/8″ X 1″ FLANGE SCREW | $66.99 | ||
 | 125819 | 123 | STANDOFF | $3.99 | ||
| 300804 | 124 | CONTROLLER BRACKET | $29.99 | |||
| 209478 | 125 | TRANSFORMER | $71.49 | |||
 | 148710 | 126 | M10 LOCKNUT | $2.49 | ||
 | 013423 | 129 | GROUND SCREW | $0.99 | ||
| 290833 | 130 | RAMP | $188.49 | |||
| 289856 | 131 | Ramp Cover | NLA | Unavailable to order | ||
 | 291372 | 132 | HANDLEBAR LEG BUSHING | $17.99 | ||
| 291377 | 133 | RAMP AXLE | NLA | Unavailable to order | ||
| 300035 | 134 | LIFT MOTOR | NLA | Unavailable to order | ||
 | 287374 | 135 | MOTOR POWER WIRE | $24.99 | ||
| 286400 | 136 | RAMP ARM ROLLER | NLA | Unavailable to order | ||
| 290237 | 137 | LONG MOTOR AXLE | $11.49 | |||
| 246931 | 138 | BRACKET PIN | $8.49 | |||
| 194883 | 139 | LIFT AXLE WASHER | NLA | Unavailable to order | ||
| 247921 | 140 | MOTOR SPACER | $3.49 | |||
| 259772 | 141 | LIFT AXLE SCREW | $3.49 | |||
| 320458 | 144 | Left Link Arm | $68.49 | |||
| 290673 | 145 | MOTOR WIRE | $104.99 | |||
| 276123 | 146 | M4 X 12MM FLANGE SCREW | $1.99 | |||
| 285403 | 147 | Frame Wire Harness | NLA | Unavailable to order | ||
| 235634 | 148 | GROUND WIRE | $3.99 | |||
 | 251511 | 149 | M8 X 35MM SCREW | $3.49 | ||
 | 234732 | 150 | M8 X 37MM PTH SCRW,NOTE: | $4.49 | ||
 | 208817 | 152 | #8 X 5/8″ SCREW | $0.99 | ||
| 128263 | 153 | M4 X 42MM SCREW | $0.99 | |||
| 314615 | 154 | M4 X 8MM SCREW | $1.49 | |||
 | 289434 | 155 | SNAP RING | $1.99 | ||
| 213769 | 156 | #8 X 5/8″ PAN HEAD SCREW | $0.99 | |||
 | 150327 | 158 | M5 NUT | $1.99 | ||
| 183633 | 159 | M5 WASHER | $1.99 |
