Proform Style 4500 Treadmill – PATL50707.0 / PATL507070
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
112 Parts Available for Proform Style 4500 Treadmill - PATL50707.0 / PATL507070 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 244931 | 1 | M10 X 60MM PATCH BOLT | $15.49 | |||
 | 234235 | 4 | M4.2 X 16MM SCREW | $0.99 | ||
| 236808 | 5 | M8 STAR WASHER | $0.99 | |||
| 256839 | 6 | DECAL,WARNING,LATCH,ENG/CHINA | $4.49 | |||
| 236807 | 7 | M5 STAR WASHER | $0.99 | |||
| 128548 | 8 | M8 X 14MM BUTTON SCREW | $2.99 | |||
| 207213 | 9 | M10 STAR WASHER | $1.49 | |||
| 234226 | 10 | M4.2 X 19MM SCREW | $0.99 | |||
| 244123 | 11 | FRAME SPACER | $0.99 | |||
| 237809 | 13 | M6 X 58MM SCREW | $1.49 | |||
| 140206 | 14 | M10 FRAME PVT WASHER | $1.99 | |||
 | 208603 | 15 | KEY/CLIP | $19.99 | ||
 | 148710 | 16 | M10 LOCKNUT | $2.49 | ||
| 181248 | 17 | 6MM ALLEN WRENCH | $6.99 | |||
| 119894 | 18 | 4MM ALLEN WRENCH | $2.49 | |||
| 234283 | 19 | M8 X 30MM SCREW | $1.49 | |||
| 241732 | 20 | M4.2X19MM WASHER HD SCREW | $0.99 | |||
| 280016 | 22 | LEFT HANDRAIL | $71.49 | |||
| 247307 | 24 | Latch Pin Assembly | NLA | |||
| 234280 | 25 | M5.5 X 25MM SCREW | $0.99 | |||
| 241734 | 26 | M4.2 X 19MM TEK SCREW | $0.99 | |||
| 234274 | 27 | M8 X 35MM SCREW | $0.99 | |||
| 234284 | 28 | M4.2X13MM INDENTED SCREW | $0.99 | |||
 | 234285 | 29 | M6 X 70MM SCREW | $3.49 | ||
| 210767 | 30 | MOTOR BOLT | $3.99 | |||
| 250549 | 31 | M8 X 102MM BOLT | $5.49 | |||
 | 014033 | 32 | AXLE WASHER | $1.49 | ||
| 280013 | 33 | RIGHT HANDRAIL | $71.49 | |||
 | 234288 | 34 | M8 X 20MM BOLT | $1.49 | ||
| 206320 | 35 | M10 X 65MM SCREW | $4.49 | |||
| 258690 | 36 | M6 STAR WASHER | $0.99 | |||
| 250627 | 37 | POWER SWITCH | $16.49 | |||
| 234325 | 38 | M8.4 STAR WASHER | $1.49 | |||
| 248728 | 39 | WIRE HARNESS | $80.99 | |||
| 261038 | 40 | INCLINE MOTOR | $183.99 | |||
| 241305 | 41 | M4.2 X 13MM SCREW | $0.99 | |||
| 237534 | 42 | M4.2 STAR WASHER | $0.99 | |||
 | 012142 | 43 | M6 LOCKNUT | $0.99 | ||
| 144681 | 44 | M8 FLANGE NUT | $0.99 | |||

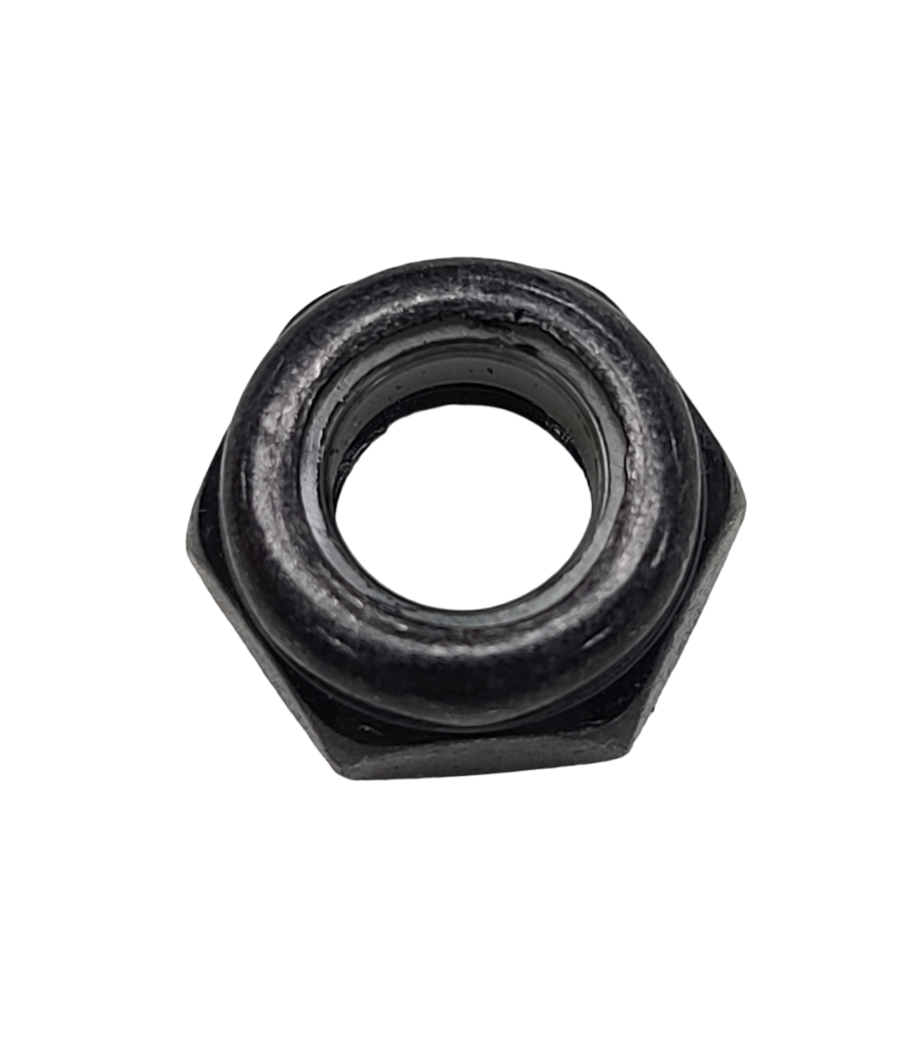

 | 256446 | 46 | M8 FLWL AXLE NUT | $0.99 | ||
 | 133333 | 47 | HOOD CLIP | $0.99 | ||
| 237342 | 48 | LATCH PIN BRACKET | NLA | |||
 | 227199 | 49 | GROMMET | $2.49 | ||
 | 138853 | 50 | BACKREST FASTENER | $0.99 | ||
 | 248571 | 55 | IDLER ROLLER | $166.49 | ||
| 249866 | 56 | MOTOR BELT | $19.99 | |||
| 240383 | 57 | ELECTRONICS BRACKET | $34.49 | |||
| 179767 | 58 | 3/8″ X 1 3/4″ BOLT | $61.49 | |||
| 236531 | 59 | MOTOR BRACKET | $26.49 | |||
 | 113842 | 62 | MAGNET | $1.49 | ||
| 155030 | 63 | BASE PAD | $1.99 | |||
| 236932 | 69 | WHEEL SPACER | $2.49 | |||
| 244269 | 70 | WHEEL | $6.99 | |||
| 297196 | 71 | DRIVE ROLLER/PULLEY | $144.99 | |||
| 119994 | 72 | 1.25″ SCREW | $2.99 | |||
| 200028 | 73 | ACCESS DOOR | $1.99 | |||
| 243708 | 74 | Left Rear Foot | NLA | |||
| 247147 | 75 | M5.5 X 30MM SCREW | $0.99 | |||
| 131221 | 77 | HANDRAIL CAP | $1.49 | |||
| 249633 | 79 | DRIVE MOTOR | $171.49 | |||
| 132315 | 80 | CABLE TIE CLAMP | $3.49 | |||
| 016057 | 81 | 8″ CABLE TIE | $2.99 | |||
 | 012149 | 82 | 3/8″ LOCKNUT | $0.99 | ||
 | 131090 | 83 | CLAMP | $0.99 | ||
 | 186819 | 84 | #8 X 1/2″ SCREW | $0.99 | ||
| 236948 | 85 | M5 X 16MM SCREW | $0.99 | |||
 | 250554 | 87 | CNTRLR,MC2100E,ARPS,INTL,PROG | NLA | ||
| 337662 | 88 | CONSOLE CROSSBAR | NLA | |||
 | 185207 | 89 | REED SWITCH/WIRE | $27.49 | ||
| 240866 | 90 | POWER CORD | $98.99 | |||
 | 119425 | 92 | 3/8″ NUT | $0.99 | ||
| 198640 | 93 | BELT GUIDE | $25.49 | |||
 | 045008 | 94 | 5MM ALLEN WRENCH | $2.49 | ||
| 104794 | 95 | CARRIAGE CAP | $1.99 | |||
| 228061 | 96 | GAS SPRING CLIP KIT | $3.49 | |||
| 243709 | 97 | REAR FOOT, RIGHT | $12.49 | |||
| 240079 | 98 | Gas Spring | NLA | |||
| 242387 | 99 | GROMMET,PWR CORD RCPTCL | $15.49 | |||
| 211313 | 100 | WIRE HARNESS LIFT MOTOR | $15.49 | |||
| 236884 | 101 | SPACER FRONT ROLLER BKT | $15.99 | |||
| 241356 | 102 | CAGE NUT | $2.99 | |||
| 252911 | 103 | CAUTION DECAL | $25.49 | |||
| 208057 | 104 | Part # 208057 | NLA | |||
 | 233464 | 105 | INCLINE MOTOR SPACER | $1.99 | ||
| 224346 | 106 | MOTOR ISOLATOR | $2.99 | |||
| 219527 | 107 | MOTOR BUSHING | $1.49 | |||
| 251430 | 108 | M10 LOCKNUT | $1.99 | |||
| 238292 | 109 | M4.2 X 10MM SCREW | $0.99 | |||
| 251429 | 110 | M4 X 12MM | $0.99 | |||
| 237952 | 111 | M4 LOCKNUT | $0.99 | |||
| 234279 | 112 | M4 X 10MM GROUND SCREW | $0.99 | |||
| 234930 | 113 | M5 WASHER | $0.99 | |||
| 237807 | 114 | Star Washer | $0.99 | |||
| 250472 | 115 | 8″GRN/YLLW WIRE | $12.99 |
