Proform Boston Marathon Tl Treadmill – PFTL30012.3 / PFTL300123
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
108 Parts Available for Proform Boston Marathon Tl Treadmill - PFTL30012.3 / PFTL300123 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013529 | 1 | #8 X 1 1/2″ SCREW, NOTE: | $0.99 | ||
| 277149 | 3A | 1/4″ X 1″ BOLT | $1.49 | |||
| 341826 | 3B | LEFT OUTSIDE COVER | $40.99 | |||
| 305779 | 4 | 3/8″ X 1″ SCREW | $3.49 | |||
 | 163045 | 5 | 3/8″ STAR WASHER | $0.99 | ||
| 013540 | 6 | M5 X 16MM FLAT HEAD SCREW | $0.99 | |||
| 100244 | 7 | SPEAKER SCREW | $0.99 | |||
 | 144985 | 8 | #8 X 5/8″ SCREW | $0.99 | ||
| 138438 | 9 | #8 X 1/2″ PEDAL SCREW | $0.99 | |||
 | 013322 | 10 | #8 X 3/4″ SCREW | $0.99 | ||
| 252752 | 11 | POWER CORD | $69.99 | |||
| 360917 | 12 | #8 X 1″ SCREW | $1.99 | |||
| 136728 | 13 | #8 X 7/16″ SCREW | $0.99 | |||
 | 013576 | 14 | #8 X 1/2″ SCREW | $0.99 | ||
| 354577 | 15 | RIGHT HANDRAIL | $269.49 | |||
 | 130659 | 17 | #8 X 3/4″ BLACK SCREW | $0.99 | ||
| 392481 | 18 | 3/8″ X 2 1/4″ BOLT | $5.49 | |||
 | 136176 | 19 | 3/8″ X 3″ Screw | NLA | ||
 | 013235 | 20A | 1/4″ X 1 1/2″ BOLT | $6.99 | ||
| 346488 | 20B | CROSSBAR | $119.49 | |||
| 013470 | 21 | SEAT POST MOUNTING BOLT | $1.49 | |||
| 013500 | 22 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
| 183824 | 24 | #8 X 3/8″ SCREW | $0.99 | |||
 | 295758 | 25 | 5/16″ MOTOR SCREW | $3.49 | ||
 | 121204 | 27 | #8 X 1 1/4″ SCREW | $0.99 | ||
 | 195683 | 28 | 3/8″ X 2 1/2″ BOLT | $16.49 | ||
 | 013300 | 29 | #8 X 3/4″ TEK SCREW | $0.99 | ||
| GZ1042-02 | 30 | 3/4″ X 1/2″ SCREW | $59.49 | |||
| 014157 | 31 | #8 STAR WASHER | $0.99 | |||
| 014064 | 32 | 1/4″ STAR WASHER | $0.99 | |||
 | 152478 | 34 | 5/16″ FLAT WASHER | $0.99 | ||
 | 014132 | 35 | 3/8″ WASHER | $0.99 | ||
 | 012090 | 36 | 1/4″ NUT | $0.99 | ||
 | 119425 | 37 | 3/8″ JAM NUT | $0.99 | ||
 | 100427 | 39 | 5/16″ NUT | $0.99 | ||
 | 133333 | 40 | CLIP | $0.99 | ||
 | 215822 | 42 | CONSOLE GROUND WIRE | $5.99 | ||
| 195476 | 43 | MAGNET | $16.49 | |||
| 342341 | 44 | Part # 342341 | NLA | |||
| 342310 | 45 | WALKING PLATFORM | $147.49 | |||

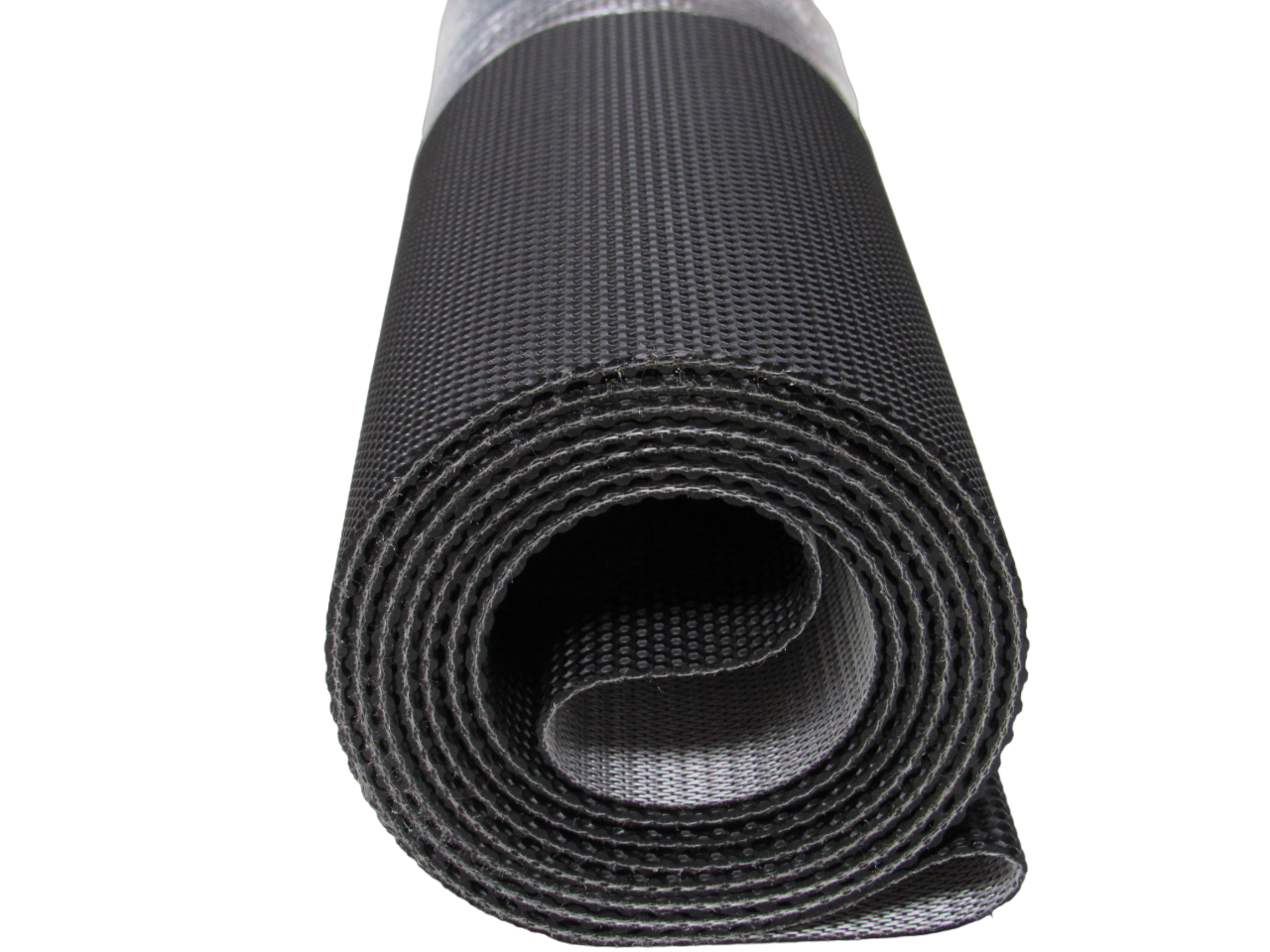

| 342311 | 46 | WALKING BELT | $182.49 | |||
| 359017 | 47 | Part # 359017 | NLA | |||
| 342299 | 48 | Part # 342299 | NLA | |||
| 342298 | 49 | RIGHT FOOT RAIL COVER | $76.49 | |||
| 359018 | 50 | RIGHT FOOT RAIL | $135.49 | |||
 | 198639 | 51 | BELT GUIDE | $5.99 | ||
| 338270 | 52 | IDLER ROLLER | $160.99 | |||
| 357305 | 53 | BELLY PAN COVER | $30.99 | |||
 | 173169 | 54 | POWER CORD GROMMET | $0.99 | ||
 | 186726 | 55 | POWER SWITCH | $22.49 | ||
| 357308 | 57 | BELLY PAN | $72.49 | |||
| 320308 | 58 | REAR COVER | $14.49 | |||
| 355844 | 59 | RIGHT REAR COVER | $42.99 | |||
| 355845 | 60 | LEFT REAR COVER | $42.99 | |||
| 019173 | 61A | BUMPON, HOOD | $2.99 | |||
| 355855 | 61B | FRONT ENDCAP | $155.99 | |||
| 252433 | 62 | CAUTION DECAL | $0.99 | |||
| 342297 | 63 | FRONT ENDCAP COVER | $69.49 | |||
| 330116 | 65 | TRAY | $158.99 | |||
| 359019 | 66 | LEFT FRAME COVER | $66.99 | |||
 | 320295 | 67 | CUSHION CAP | $0.99 | ||
 | 319487 | 68 | SPRING | $13.99 | ||
 | 324707 | 69 | CUSHION | $8.49 | ||
| 391420 | 70 | RESISTOR | $90.49 | |||
 | 298474 | 71 | RUBBER CUSHION | $1.99 | ||
| 348505 | 73 | FRAME COVER | $67.49 | |||
| 329731 | 74 | KEY/CLIP | $85.99 | |||
| 341828 | 75 | RIGHT INSIDE COVER | $28.49 | |||
| 341825 | 76 | RIGHT OUTSIDE COVER | $28.49 | |||
| 359020 | 77 | Part # 359020 | NLA | |||
| 341829 | 78 | LEFT INSIDE COVER | $40.99 | |||
| 240351 | 79 | CABLE TIE | $0.99 | |||
| 329460 | 80A | FRAME AXLE | $14.49 | |||
| 306635 | 80B | PLASTIC SPACER | $3.49 | |||
| 350480 | 81 | AXLE BUSHING | $32.49 | |||
| 348895 | 82 | CNTRLR,PFC BOARD,ARPS,W/RI | NLA | |||
| 132315 | 84 | WIRE TIE | $3.49 | |||
| 329375 | 85 | Ebony Electronic Mounting Bracket | NLA | |||
| 338273 | 86 | Part # 338273 | NLA | |||
| 330118 | 87 | DRIVE MOTOR | $312.99 | |||
| 330114 | 88 | DRIVE MOTOR BELT | $70.49 | |||
 | 165798 | 89 | REED SWITCH | $19.49 | ||
 | 131090 | 90 | CLAMP | $0.99 | ||
| 341844 | 91 | REAR CAP | $9.49 | |||
| 329740 | 93 | WARNING DECAL | $25.99 | |||
| 195129 | 94 | TORSION BAR BUSHING | $24.99 | |||
| 187855 | 95 | FRONT WHEEL | $6.49 | |||
| 330631 | 96 | INCLINE MOTOR TOP COVER | $28.99 | |||
| CC1006 | 97 | INCLINE BUSHING | $11.49 | |||
| 356783 | 98 | INCLINE MOTOR | $225.49 | |||
| 330632 | 99 | INCLINE MOTOR BOTTOM CVR | $26.99 | |||
| 336955 | 100 | Part # 336955 | NLA | |||
 | 129004 | 101 | ROUND GROMMET | $1.99 | ||
| 337485 | 102 | INCLINE FRAME | $200.99 | |||
| 337479 | 103 | INCLINE LINKAGE | $27.49 | |||
| 342768 | 104 | Part # 342768 | NLA | |||
| 329636 | 105 | PIVOT BRACKET | $27.99 | |||
 | 307032 | 106 | BASE PAD | $3.99 | ||
 | 282411 | 107 | TRAY FAN | $119.99 | ||
| 329759 | 108 | LEFT FAN COVER | $54.99 | |||
| 329760 | 110 | RIGHT FAN COVER | $54.99 | |||
| 353571 | 112 | LEFT HANDRAIL | $269.49 |
