Proform Ze5 Rear Drive Elliptical – PFEL15910.0 / PFEL159100
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
121 Parts Available for Proform Ze5 Rear Drive Elliptical - PFEL15910.0 / PFEL159100 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 298595 | 4 | REAR STABILIZER | $120.49 | |||
| 300252 | 5 | UPRIGHT | $192.99 | |||
| 298586 | 6 | RIGHT UPPER BODY LEG | $122.49 | Unavailable to order | ||
| 298585 | 7 | LEFT UPPER BODY LEG | $122.49 | |||
| 298587 | 8 | RIGHT UPPER BODY ARM | $85.49 | |||
| 298588 | 9 | LEFT UPPER BODY ARM | $69.99 | |||
| 298590 | 10 | RIGHT HANDLEBAR | $60.49 | |||
| 298589 | 11 | LEFT HANDLEBAR | $60.49 | |||
| 314787 | 12 | RIGHT PEDAL ARM | $179.49 | |||
| 299479 | 14 | RIGHT PEDAL | $107.49 | |||
| 299480 | 15 | LEFT PEDAL | $107.49 | |||
| 299973 | 16 | Disc for Fitness Equipment | $126.49 | |||
| 299975 | 17 | Disc Cover | $33.49 | |||
| 298622 | 18 | RIGHT SHIELD | $130.99 | |||
| 300254 | 19 | Left Shield | $141.99 | |||
| 300253 | 20 | TOP SHIELD | $88.99 | |||
| 298609 | 21 | RIGHT FRAME COVER | $63.49 | |||
| 298608 | 22 | LEFT FRAME COVER | $63.49 | |||
| 298603 | 24 | REAR UPRIGHT COVER | $70.99 | |||
| 302148 | 25 | Front Upright Cover | $60.49 | |||
| 285213 | 26 | WATER BOTTLE HOLDER | $27.49 | |||
| 298607 | 27 | INNER LEG COVER | $15.99 | |||
| 298606 | 28 | OUTER LEG COVER | $13.49 | |||
| 298615 | 29 | RIGHT REAR LEG COVER | Contact for Pricing | |||
| 298612 | 30 | Right Front Leg Cover | Contact for Pricing | |||
| 298613 | 31 | LEFT REAR LEG COVER | $19.99 | |||
| 298611 | 32 | LEFT FRONT LEG COVER | $27.99 | |||
 | 244263 | 34A | PULSE SENSOR HANDLE | $60.99 | ||
| 272391 | 34B | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 34C | LEFT PULSE WIRE | $17.49 | |||
| 244142 | 35 | HANDGRIP | $68.49 | |||
 | 148803 | 36 | WHEEL | $24.99 | ||
 | 130656 | 37 | STABILIZER ENDCAP | $19.99 | ||

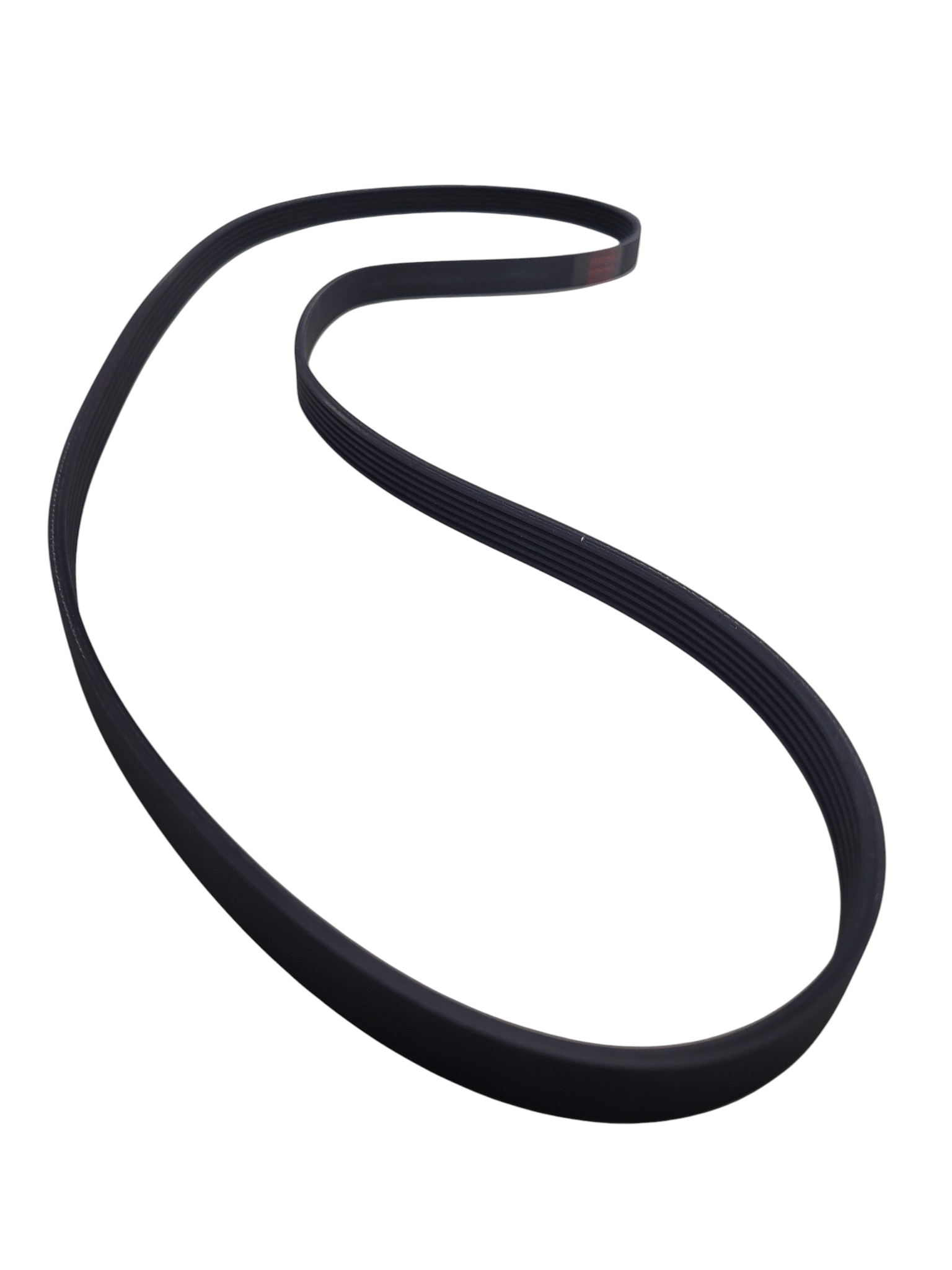

 | 286229 | 38 | DRIVE BELT | $29.99 | ||
| 300522 | 39 | CRANK ARM | $147.49 | |||
| 228983 | 40 | M8 SHOULDER SCREW | $9.49 | |||
 | 237631 | 41 | LEVELING FOOT | $34.99 | ||
| 291628 | 42 | LATCH BRACKET | $24.99 | |||
| 299983 | 43 | ADJUSTMENT BRACKET | $120.49 | |||
| 299992 | 44 | Adjustment Pin | $61.49 | |||
| 299977 | 45 | Adjustment Knob | $25.49 | |||
 | 246373 | 46 | PEDAL ARM SLEEVE | $17.99 | ||
 | 229400 | 47 | CRANK BUSHING | $70.49 | Unavailable to order | |
| 247257 | 48 | Upright Axle | NLA | Unavailable to order | ||
| 311112 | 50 | Latch | $28.49 | |||
| 223621 | 53 | SPRING | $15.99 | |||
 | 293160 | 54 | ARM/LEG BUSHING | $16.99 | ||
| 247264 | 55 | Leg Spacer | Contact for Pricing | |||
| 264131 | 56 | Axle Cover | $6.49 | Unavailable to order | ||
 | 293159 | 57 | UPRIGHT BUSHING | $17.49 | ||
 | 291372 | 58 | RAMP BUSHING | $17.99 | ||
| 215823 | 59 | AUDIO WIRE | $11.99 | |||
| 285305 | 60 | WIRE HARNESS | $85.49 | |||
| 286251 | 61 | FLYWHEEL | $377.49 | |||
| 250957 | 62 | M4 X 16MM FLAT HEAD SCREW | $0.99 | |||
| 244157 | 63 | Pivot Axle | $15.49 | |||
| 291373 | 64 | MAIN FRAME BUSHING | $17.99 | |||
| 285256 | 65 | LATCH BRACKET AXLE | $17.49 | |||
 | 247275 | 66 | LATCH BRACKET SPRING | $7.49 | ||
| 300077 | 67 | LATCH BUTTON | $12.99 | |||
| 284207 | 68 | BUTTON HOUSING | NLA | Unavailable to order | ||
 | 186070 | 69 | REED SWITCH | $28.99 | ||
 | 131090 | 70 | REED SWITCH CLAMP | $0.99 | ||
| 228084 | 71 | CRANK HUB | $98.49 | |||
| 285209 | 72 | CRANK | $91.99 | |||
| 285219 | 73 | CRANK SPACER | $24.99 | |||
| 255072 | 74 | PULLEY | $91.99 | |||
 | 113842 | 75 | MAGNET | $1.49 | ||
 | 139703 | 76 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
 | 363093 | 77 | IDLER | $116.49 | ||
 | 284576 | 78 | RESISTANCE MOTOR | $117.99 | ||
 | 304734 | 79 | RESISTANCE ARM | $32.99 | ||
 | 241954 | 80 | RESISTANCE DISC | $1.99 | ||
| 279644 | 81 | ADJUSTMENT LOCK | $1.49 | |||
| 279645 | 82 | MOTOR BRACKET | $12.99 | |||
| 284577 | 83 | C-Magnet Bracket | NLA | Unavailable to order | ||
 | 284116 | 84 | FLYWHEEL AXLE | $19.99 | ||
 | 281149 | 85 | M10 X 50MM HEX SCREW | $6.49 | ||
| 237611 | 86 | M8 X 25MM SHOULDER SCREW | $1.49 | |||
 | 143742 | 87 | SNAP RING | $3.99 | ||
| 281148 | 88 | C-MAGNET BRACKET BOLT | $3.49 | |||
 | 168267 | 89 | FAN SCREW | $0.99 | ||
| 283304 | 90 | M5 X 7MM SCREW | $3.49 | |||
 | 276024 | 91 | REED SWITCH SCREW | $1.49 | ||
 | 012142 | 92 | M6 LOCKNUT | $0.99 | ||
 | 013162 | 93A | WIRE CLAMP SCREW | $0.99 | ||
 | 144985 | 93B | M4 X 15MM SCREW | $0.99 | ||
 | 256446 | 94 | M8 LOCKNUT | $0.99 | ||
 | 013423 | 95 | 1/2″ SCREW | $0.99 | ||
 | 014033 | 96 | M6 WASHER | $1.49 | ||
 | 208163 | 97 | M6 X 20MM HEX SCREW | $1.99 | ||
| 234286 | 98 | MOTOR BRACKET SCREW | $0.99 | |||
 | 281150 | 99 | IDLER SCREW | $4.49 | ||
| 240819 | 100 | M10 X 80MM BOLT | $14.99 | |||
| 240351 | 101 | WIRE TIE | $0.99 | |||
 | 237612 | 102 | M8 X 16MM BUTTON SCREW | $1.49 | ||
 | 014174 | 103 | M8 SPLIT WASHER | $1.99 | ||
| 208938 | 104 | M10 X 60MM BUTTON BOLT | $5.99 | |||
 | 148710 | 105 | M10 LOCKNUT | $2.49 | ||
| 299813 | 106 | Right Gel Pad | $61.99 | |||
 | 208581 | 107 | M10 X 25MM SCREW | $5.49 | ||
| 216385 | 108 | M10 WASHER | $1.99 | |||
| 214070 | 109 | M8 IDLER BOLT | $6.49 | |||
 | 261150 | 110 | M8 X 25MM WASHER | $2.20 | ||
 | 262341 | 111 | M6 X 12MM SCREW | $3.49 | ||
| 183633 | 112 | M5 WASHER | $1.99 | |||
| 299976 | 113 | Adjustment Bracket Cover | $18.49 | |||
| 298762 | 114 | PEDAL PLATE | $30.49 | |||
| 299812 | 115 | Left Gel Pad | $80.99 | |||
| 299979 | 116 | MOUNTING BLOCK | $91.99 | |||
| 013540 | 117 | M4 X 16MM FLAT HEAD SCREW | $0.99 | |||
 | 287202 | 118 | WAVE WASHER | $1.99 | ||
 | 204489 | 119 | 3/4″ WAVE WASHER | $0.99 | ||
 | 286527 | 120A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 120B | SNAP MOUNT SCREW | $3.99 | |||
| 299981 | 121 | Adjustment Pad | $6.99 | |||
| 272630 | 122 | 3/8″ X 1/2″ FLANGE SCREW | $3.99 | |||
| 252795 | 123 | M10 LOCK WASHER | $0.99 | |||
| 128263 | 124 | LONG CONSOLE SCREW | $0.99 | |||
| 290823 | 125 | M4 X 42MM FLAT HEAD SCREW | $0.99 | |||
 | 250868 | 126 | M8 WASHER | $3.49 |
