Proform Ze3 Elliptical – PFEL03009.1 / PFEL030091
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
96 Parts Available for Proform Ze3 Elliptical - PFEL03009.1 / PFEL030091 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 281550 | 4 | Fitness Equipment Console | NLA | Unavailable to order | |
| 280935 | 5 | ACCESSORY TRAY | $27.49 | |||
 | 241954 | 7 | RESISTANCE DISC | $1.99 | ||
| 283886 | 8 | Left Upper Body Arm | $108.99 | |||
| 283887 | 9 | RIGHT UPPER BODY ARM | $112.99 | |||
| 230444 | 10 | FOAM GRIP | NLA | Unavailable to order | ||
| 246303 | 11 | 1 1/4″ ROUND ENDCAP | $0.99 | |||
| 283856 | 12 | LEFT PEDAL | $120.99 | |||
| 283858 | 13 | RIGHT PEDAL | NLA | Unavailable to order | ||
| 283888 | 14 | Left Pedal Arm | $156.49 | |||
| 283661 | 15 | Pedal Bracket | $58.99 | |||
| 280933 | 16 | FRONT UPRIGHT COVER | NLA | Unavailable to order | ||
 | 256295 | 17 | HANDLEBAR BUSHING (138574) | $4.99 | ||
| 305957 | 18 | Disc Cover | $113.49 | |||
 | 280931 | 19 | Pivot Cover A | NLA | Unavailable to order | |
| 280936 | 20 | Front Leg Cover | NLA | Unavailable to order | ||
| 280937 | 21 | REAR LEG COVER | NLA | Unavailable to order | ||
| 280932 | 22 | Pivot Cover B | NLA | Unavailable to order | ||

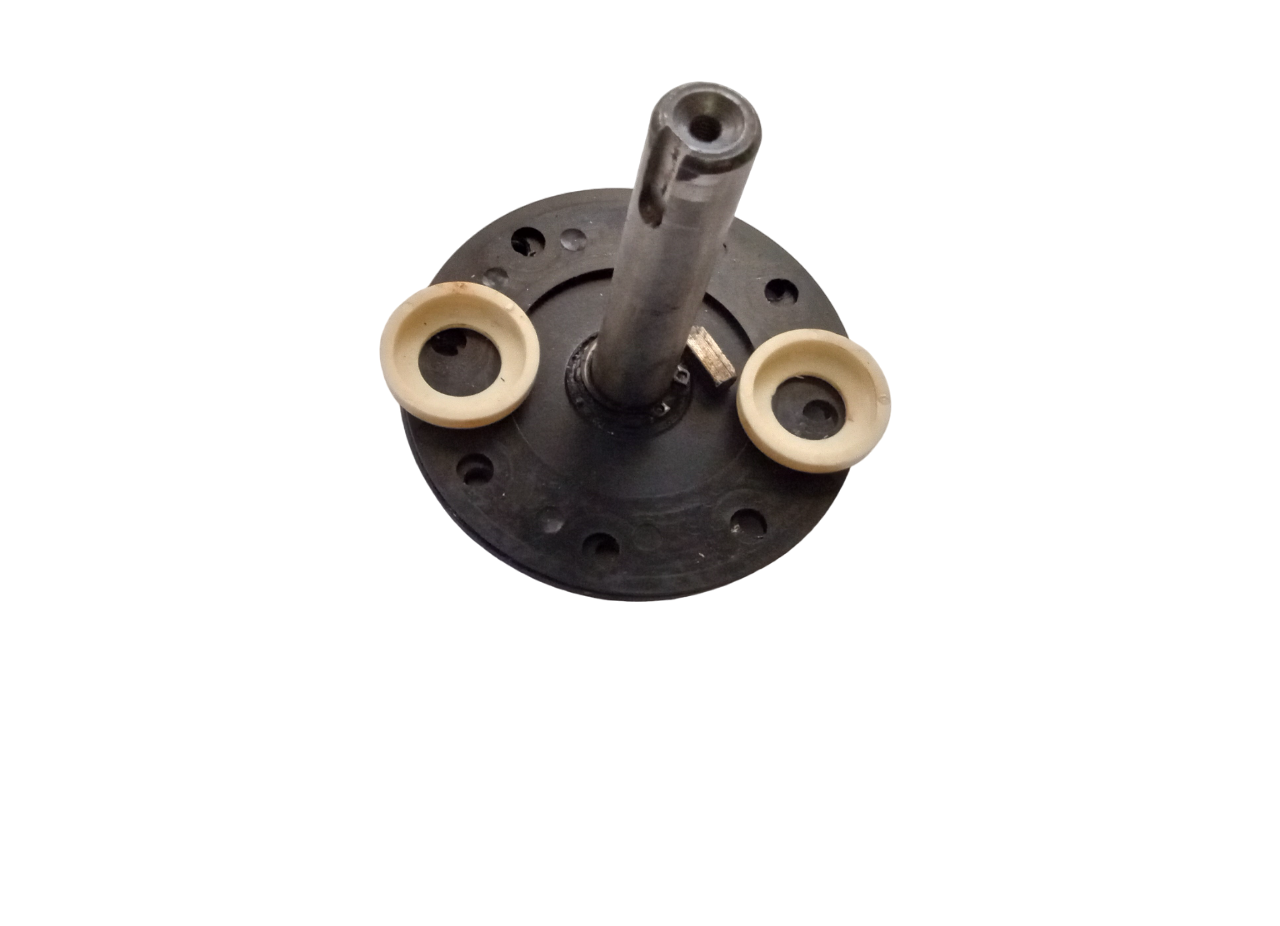

 | 345904 | 24 | CRANK | $61.49 | Unavailable to order | |
| 305946 | 25 | RIGHT CRANK ARM | NLA | Unavailable to order | ||
| 305955 | 27 | RIGHT/LEFT PEDAL DISK | $84.99 | |||
| 272391 | 28A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 28B | LEFT PULSE WIRE | $17.49 | |||
 | 018030 | 29 | MEDIUM ROLLER | $19.49 | ||
 | 280950 | 30 | PEDAL ARM CAP | NLA | Unavailable to order | |
| 281023 | 31 | SHOULDER BOLT | $17.99 | |||
 | 283133 | 32 | CONSOLE COVER | $27.99 | ||
 | 261150 | 33 | M8 X 23.5MM WASHER | $2.20 | ||
 | 303952 | 34 | RESISTANCE BRACKET | $4.99 | ||
| 183633 | 35 | M5 WASHER | $1.99 | |||
 | 243374 | 36 | IDLER SNAP RING | $12.99 | ||
| 280929 | 37 | TOP SHIELD COVER | $25.49 | |||
 | 139703 | 38 | SMALL BEARING / FOLDING FRAME BEARING | $33.49 | ||
| 283862 | 39 | Handlebar | NLA | Unavailable to order | ||
 | 143742 | 40 | SMALL SNAP RING | $3.99 | ||
 | 113842 | 41 | MAGNET | $1.49 | ||
| 281473 | 42 | Wire Harness | NLA | Unavailable to order | ||
 | 014033 | 43 | IDLER WASHER | $1.49 | ||
| 283883 | 44 | Left Shield | $159.99 | |||
| 283884 | 45 | RIGHT SHIELD | Unavailable to order | |||
 | 306492 | 46 | DRIVE BELT | $67.49 | ||
| 280953 | 47 | LEVELING FOOT | $24.49 | |||
| 278591 | 48 | Stabilizer Cap | NLA | Unavailable to order | ||
| 283889 | 49 | RIGHT PEDAL ARM | Unavailable to order | |||
 | 280951 | 50 | WHEEL | $24.49 | ||
| 312441 | 51 | FLYWHEEL | $286.99 | |||
 | 363093 | 52 | IDLER | $116.49 | ||
| 308028 | 53 | C-MAGNET | NLA | Unavailable to order | ||
 | 308036 | 54 | RESISTANCE MOTOR | $117.99 | ||
| 279645 | 55 | MOTOR BRACKET | $12.99 | |||
 | 304734 | 56 | RESISTANCE ARM | $32.99 | ||
 | 131090 | 57 | CLAMP | $0.99 | ||
 | 186070 | 58 | REED SWITCH/WIRE | $28.99 | ||
| 283891 | 59 | Rear Shield Cover | $66.99 | |||
| 281559 | 60 | KEY | $2.49 | |||
| 281558 | 61 | RT CRANK ARM NUT | $3.49 | |||
 | 199493 | 62 | M6 X 16MM TAPRD BTN SCREW | $4.62 | ||
 | 251978 | 63 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
 | 284116 | 64 | FLYWHEEL AXLE | $19.99 | ||
| 281148 | 65 | C-MAGNET BRACKET BOLT | $3.49 | |||
 | 281150 | 66 | IDLER PIVOT SCREW | $4.49 | ||
| 252110 | 67 | M6 x 9mm Screw | NLA | Unavailable to order | ||
| 281557 | 68 | CRANK ARM SCREW | NLA | Unavailable to order | ||
 | 168267 | 69 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 302750 | 70 | Rear Stabilizer | $122.49 | |||
| 234286 | 71 | MOTOR BRACKET SCREW | $0.99 | |||
 | 281149 | 72 | DRIVE BELT ADJUST SCREW | $6.49 | ||
| 283868 | 73 | Front Stabilizer | $98.49 | |||
| 254769 | 74 | M6 LOCKNUT | $1.49 | |||
| 383565 | 75 | M10 X 48MM PATCH SCREW | NLA | Unavailable to order | ||
| 153770 | 76 | M8 X 45MM BUTTON SCREW | $14.49 | |||
 | 256446 | 77 | M8 LOCKNUT | $0.99 | ||
 | 177034 | 78 | M10 SPLIT WASHER | $1.49 | ||
| 248334 | 79 | M10 X 19MM PATCH SCREW | $5.49 | |||
 | 223168 | 80 | CAM SCREW | $5.99 | ||
| 310434 | 81 | M8 X 12MM SCREW | $2.49 | |||
| 242965 | 82 | M10 x 85mm Screw | NLA | Unavailable to order | ||
| 283304 | 83 | M5 X 7MM SCREW | $3.49 | |||
| 340823 | 84 | #10 X 16MM SCREW | NLA | Unavailable to order | ||
 | 247329 | 85 | M8 X 18MM BOLT | $2.99 | ||
| 277369 | 86 | PULLEY | $174.49 | |||
 | 276024 | 87 | M3.5 X 12MM SCREW,NOTE | $1.49 | ||
 | 208163 | 88 | IDLER SCREW | $1.99 | ||
 | 275248 | 89 | M4 X 48MM SCREW | $0.99 | ||
 | 013423 | 90 | GROUND SCREW | $0.99 | ||
 | 150327 | 91 | M5 NUT | $1.99 | ||
 | 013162 | 92A | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 208817 | 92B | #8 X 5/8″ SCREW | $0.99 | ||
| 284963 | 93A | LT PULSE GRIP ASSY W/WIRE | $68.49 | |||
| 284964 | 93B | RT PULSE GRIP ASSY W/WIRE | $68.49 | |||
 | 172638 | 94 | 6000ZZ BEARING | $23.49 | ||
| 215823 | 95 | AUDIO WIRE | $11.99 | |||
| 305942 | 96 | LEFT CRANK ARM | $123.49 | |||
| 305948 | 97 | CRANK ARM SPACER | $16.99 | |||
 | 204488 | 98 | M8X12MM CRANK PULLY SCREW | $3.49 | ||
 | 223089 | 99 | M8 X 15MM SCREW | $6.99 |
