Proform Endurance 720 E Elliptical – PFEL57914.4 / PFEL579144

Pro-Form

Proform Endurance 720 E Elliptical – PFEL57914.4 / PFEL579144

Brand:

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here


156 Parts Available for Proform Endurance 720 E Elliptical - PFEL57914.4 / PFEL579144 ↓

ImagePart #Diagram #TitlePriceDetails
3762343ARAMP $192.99
3172733BTRACK FOAM TAPE $13.49
3762354AUPRIGHT $204.99
3312424BGROMMET $6.49
M4 X 19MM SCREW1948785M4 X 20MM SCREW $2.99
3287736FRONT STABILIZER $137.49
3628597AFitness Equipment ConsoleContact for Pricing
3628607BCONSOLE REPROG MODULE $203.49
3713208ROLLER GUIDE $43.49
3628559RIGHT PEDAL PLATE $143.49
37623610RAMP COVER $146.49
32049611AINCLINE MOTOR $156.49
30275411BLIFT MOTOR WIRE HARNESS $27.49
33125912INCLINE MOTOR ARM $72.49
33126013RAMP ARMContact for Pricing
SMALL ROLLER32033614RAMP ROLLER $8.49
36286215Rear Stabilizer Cover $159.49
TRACK37131416TRACK $39.99
LARGE FRAME BUSHING32033517LARGE FRAME BUSHING $16.99
33832518CRANK $102.99
27736919PULLEY $174.49
CRANK ARM33985520CRANK ARM $150.99
M4 X 10MM SCREW20832021M4 X 10MM SCREW $0.99
36309322IDLER $116.49
33257924M10 X 95MM BOLT $14.99
19322325ARESISTANCE MOTOR $99.99
32473725BRESISTANCE MTR WIRE HRNS $30.49
19597526M10 X 42MM BUTTON BOLT $12.49
PLASTIC STAND-OFF12581927STANDOFF $3.99
36289828AEDDY MECHANISM $319.99
RESISTANCE CABLE32167828BRESISTANCE CABLE $46.49
32877530STABILIZER CAP $19.99
31698131ACONTROLLER W/STANDOFFS $124.99
4" GREEN WIRE, F/RING14271131B4″ GREEN WIRE, F/RING $2.49
32064331C26″ WHITE WIRE, M/F $34.99
POWER SWITCH26451132APOWER SWITCH $32.99
32064432B30″ BLUE WIRE, F/F $25.49
LEVELING FOOT24628533LEVELING FOOT $10.99
WHEEL14880334WHEEL $24.99
31683735PIVOT AXLE $74.49
14342636UPRIGHT BUSHING $8.99
33581837ACCESSORY TRAY $46.49
18607038REED SWITCH/WIRE $28.99
13109039CLAMP $0.99
FRAME BEARING29580440FRAME BEARING $66.99
EDDY MECH SNAP RING36290541MECHANISM SNAP RING $1.49
33832042SLEEVE $4.99
11384243MAGNET $1.49
36283644LEFT PEDAL ARM $172.49
38003345LEFT ROLLER ARM $285.99
36594846LEFT UPPER BODY LEG $146.49
33105947LEFT UPPER BODY ARM $102.99
25021048HAIRPIN COTTER PIN $1.99
36287049ALEFT PEDAL $138.49
34984649BLeft/Right Pedal InsertContact for Pricing

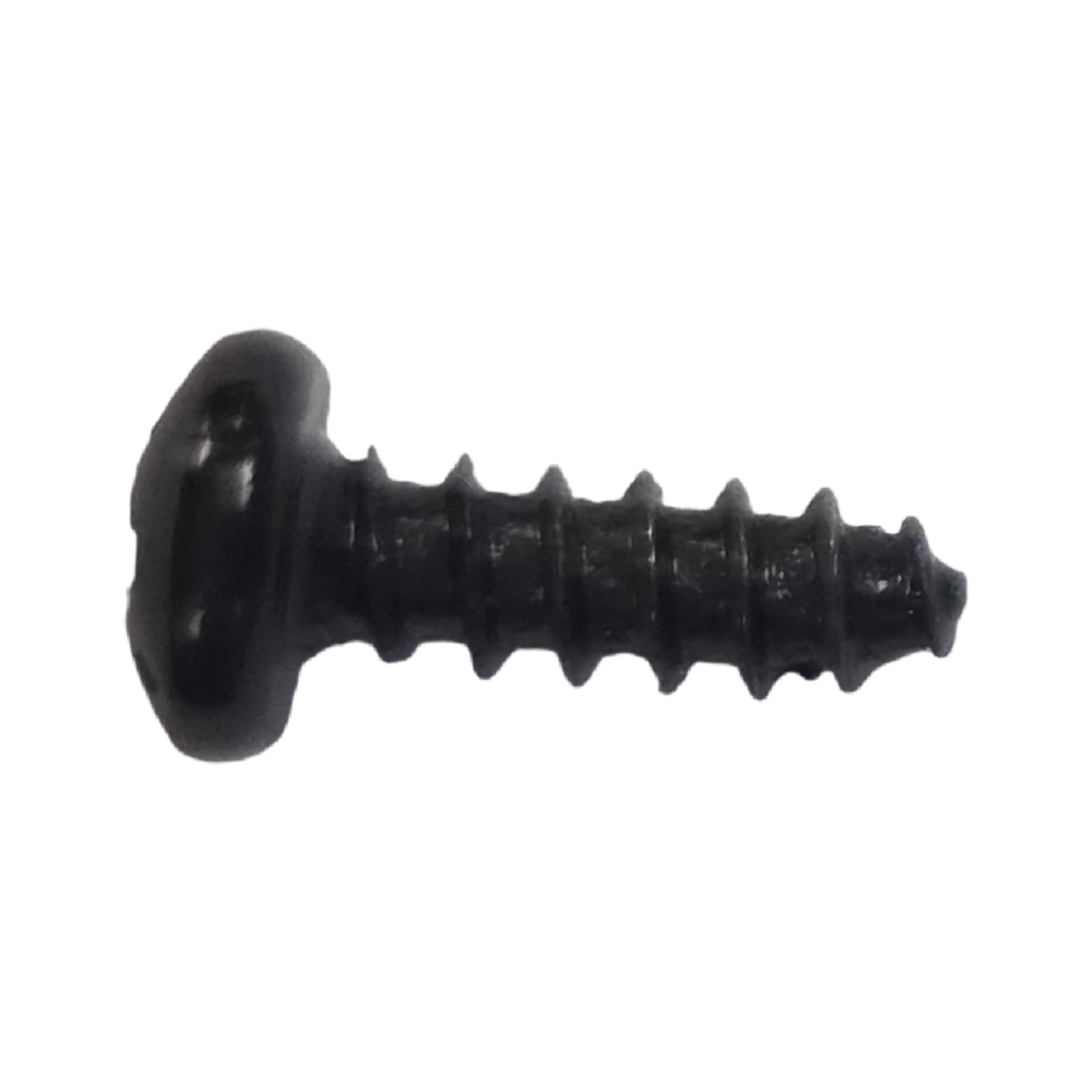

M4 X 12MM SCREW37315049CPEDAL INSERT M4X12 SCRW $0.99
27590750AM10 LOCKNUT $4.49
M10 NUT14871050BM10 LOCKNUT $2.49
34077351ROLLER $99.99
36286952ARIGHT PEDAL $138.49
33796653LARGE AXLE COVER $5.49
16MM WAVE WASHER2872025416MM WAVE WASHER $1.99
SMALL AXLE COVER37997855SMALL AXLE COVER $3.49
ROLLER ARM BUSHING30852356ROLLER ARM BUSHING $19.99
29072957LARGE ARM BEARING $43.49
36284258RIGHT PEDAL ARM $267.49
38002059RIGHT ROLLER ARM $176.49
36594760RIGHT UPPER BODY LEG $146.49
33106161RIGHT UPPER BODY ARM $102.99
31646762ALEFT GRIP $107.99
31646862BRIGHT GRIP $80.99
32444463APULSE SENSOR (LEFT OR RIGHT) $59.99
27239163BRIGHT SENSOR WIRE $31.99
27239263CLEFT SENSOR WIRE $17.49
PEDAL ARM AXLE31683564PEDAL ARM AXLE $43.49
33581265RIGHT ARM FRONT COVER $68.49
33581366RIGHT ARM REAR COVER $54.99
33581067LEFT ARM FRONT COVER $68.49
33581168LEFT ARM REAR COVER $54.99
RIGHT LEG OUTER COVER33583769RIGHT LEG OUTER COVER $43.99
LT UPR BODY LEG OUTER CVR33583470LEFT LEG OUTER COVER $43.99
31668371DISC $99.99
33583572LEFT LEG INNER COVER $43.99
36286573LEFT SHIELD $171.49
36286674RIGHT SHIELD $171.49
36286475SHIELD COVER $129.99
36331976LEFT PEDAL ARM SIDE CAP $17.49
31684177AXLE SPACER $17.99
38662978KEY $9.49
33583079FRONT CONSOLE COVER $25.49
33582980REAR CONSOLE COVER $30.49
33581781REAR UPRIGHT COVER $78.99
M8X13MM,PULLEY CRANK SCRW19103282M8 X 16MM SCREW $1.99
33583683RIGHT LEG INNER COVER $43.99
23827884ALIFT ARM WASHER $1.49
24834284BM10 WASHER $1.99
M4 X 14MM SCREW31066485M4 X 14MM SCREW $2.99
31099986M10 X 58MM BOLT $8.49
36332087RIGHT PEDAL ARM SIDE CAP $10.99
M6 X 20MM HEX SCREW20816388IDLER SHOULDER SCREW $1.99
28115089M6 X 20MM SHLDR SCRW,NOTE $4.49
M6 CRANK ARM WASHER34014090M6 X 26MM WASHER $1.49
28114991M10 X 50MM HEX SCREW $6.49
24833492M10 X 20MM SCREW $5.49
M4 X 12MM FLANGE SCREW16826793M4 X 12.7MM BRIGHT SCREW $0.99
23532294M5 LARGE WASHER $2.49
M8 X 19MM SCRW, NOTE: OM20632195AM8 X 19MM SCREW $3.49
22308995BM8X15MM ROLLER SCREW $6.99
M8 X 38MM BOLT23473296M8 X 38MM BOLT $4.49
M8 PVT CAP WASHER24834997AM8 CRANK PVT CAP WASHER $6.49
M8 WASHER22381297BM8 WASHER, NOTE $1.99
22411398M8 WASHER $2.49
M10 X 25MM SCREW23228999M10 X 25MM SCREW $28.49
LEG BEARING231284100LEG BEARING $31.99
BELLYPAN SCREW013162101A1/2″ CONSOLE SCREW $0.99
M4 X 16MM SCREW195562101BM4 X 16MM SCREW $1.99
M8 NYLON LOCKNUT012042102AM8 NYLON LOCKNUT $1.99
256446102BM8 JAM LOCKNUT $0.99
M6 X 12MM SCREW262341103M6 X 12MM SCREW, WT RACK $3.49
M10 X 122MM SCREW328293104M10 X 122MM SCREW $18.99
252795105M10 SPLIT WASHER $0.99
286527106AFOOT RAIL SNAP $2.49
303479106BSCREW, COVER MOUNT $3.99
275248107M4 X 48MM SCREW $0.99
242105108M6 X 13MM SCREW $1.99
208938109M10 X 60MM BOLT $5.99
MAIN WIRE362904110MAIN WIRE $69.99
#8 X 12MM SCREW130853111SMALL SCREW, #8 X 1/2″ $0.99
POWER CORD GROMMET313668112GROMMET $9.49
175643113DRIVE BELT $49.99
M4 X 42MM SCREW322839114M4 X 40MM SCREW $1.49
300804115CONTROLLER BRACKET $29.99
362776116DISC RING $107.49
FRONT UPRIGHT COVER335816117FRONT UPRIGHT COVER $73.99
347920118Shield Cover CapContact for Pricing
POWER CORD342275119POWER CORD $49.99
316836120RAMP AXLE $54.99
FRAME BUSHING237616121FRAME BUSHING $4.99
320499122CLEVIS PIN $10.99
306635123PLASTIC SPACER $3.49
M4 X 19MM, SELF-TAP SCRW313568124M4 X 19MM SELF-TAP SCRW $0.99
BASE PAD157600125BASE FOOT $1.99
M8 X 14MM SHOULDER SCREW347975126M8 X 14MM SHOULDER SCREW $10.99
369548127TABLET HOLDER $139.99
362852128Left Pedal PlateContact for Pricing
362871129LEFT PEDAL HANDLE $25.99
PEDAL PIN325993130PEDAL PIN $19.99
PEDAL SPRING321268131PEDAL SPRING $3.49
349611132PEDAL AXLE $27.49
M6 ACORN NUT194653133M6 ACORN NUT $1.99
362872134RIGHT PEDAL HANDLE $25.99
249933135M6 SMALL WASHER $0.99
M6 X 12MM SCREW, NOTE:197037136M6 X 12MM SCREW $0.99
M4 X 25MM SCREW224606138M4 X 25MM SCREW $0.99
379979139SMALL ARM BEARING $68.99
273032140SMALL LEVELING FOOT $17.99
