Proform Endurance 420 E Elliptical – PFEVEL49716.0 / PFEVEL497160
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
116 Parts Available for Proform Endurance 420 E Elliptical - PFEVEL49716.0 / PFEVEL497160 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 331242 | 4B | GROMMET | $6.49 | |||
 | 194878 | 5 | M4 X 19MM SCREW | $2.99 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 379411 | 7A | Fitness Equipment Console | $183.99 | |||
| 371542 | 7B | CNSL BATTERY DOOR | $15.49 | |||
| 203289 | 7C | #8 X 3/8″ SCREW: NOTE | $0.99 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 347975 | 9 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 379810 | 10 | TRACK COVER | $142.99 | |||
| 347920 | 11 | Shield Cover Cap | Contact for Pricing | |||
 | 335816 | 12 | FRONT UPRIGHT COVER | $73.99 | ||
| 362776 | 13 | DISC RING | $107.49 | |||
 | 322839 | 14 | M4 X 42MM SCREW | $1.49 | ||
| 379809 | 15 | Rear Stabilizer Cover | $90.49 | |||
 | 371314 | 16A | TRACK | $39.99 | ||
| 317273 | 16B | TRACK FOAM TAPE | $13.49 | |||
 | 175643 | 17 | DRIVE BELT | $49.99 | ||
| 338325 | 18 | CRANK | $102.99 | |||
| 277369 | 19 | PULLEY | $174.49 | |||
 | 339855 | 20 | CRANK ARM | $150.99 | ||
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22A | IDLER | $116.49 | ||
 | 014033 | 22B | M6 WASHER | $1.49 | ||
 | 386630 | 24 | SMALL LEVELING FOOT | $19.99 | ||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 275907 | 26A | M10 CRANK ARM LOCKNUT | $4.49 | ||
 | 148710 | 26B | M10 LOCKNUT | $2.49 | ||
 | 313568 | 27 | M4 X 19MM TEK SCREW | $0.99 | ||
 | 362822 | 28A | EDDY MECHANISM | $265.49 | ||
 | 321678 | 28B | RESISTANCE CABLE | $46.49 | ||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||
 | 184369 | 31 | M4X16MM TABLET HLDR SCREW | $0.99 | ||
| 235322 | 32 | M5 WASHER | $2.49 | |||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | WHEEL | $24.99 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | UPRIGHT BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||

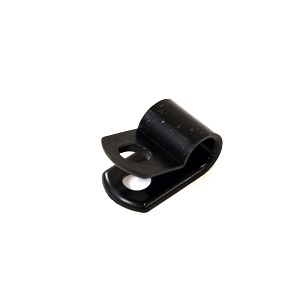

 | 131090 | 39 | CLAMP | $0.99 | ||
 | 295804 | 40 | FRAME BEARING | $66.99 | ||
 | 362905 | 41 | SMALL SNAP RING | $1.49 | ||
| 338320 | 42 | SLEEVE | $4.99 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 378496 | 44 | LEFT PEDAL ARM | $193.99 | |||
| 379975 | 45 | LEFT ROLLER ARM | $150.49 | |||
| 328929 | 46 | Left Upper Body Leg | Contact for Pricing | |||
| 328851 | 47 | LEFT UPPER BODY ARM | $65.49 | Unavailable to order | ||
| 370618 | 48 | WIRE HARNESS | $67.99 | |||
| 363022 | 49A | Left Pedal | $133.49 | |||
| 363184 | 49B | RIGHT PEDAL | $120.49 | |||
 | 379979 | 50 | SMALL ARM BEARING | $42.49 | ||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 348190 | 52 | PEDAL ARM ENDCAP | $6.49 | |||
 | 337966 | 53 | ROLLER ARM COVER | $5.49 | ||
 | 287202 | 54 | WAVE WASHER | $1.99 | ||
 | 379978 | 55 | SMALL AXLE COVER | $3.49 | ||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 378498 | 58 | RIGHT PEDAL ARM | $171.49 | |||
| 379970 | 59 | RIGHT ROLLER ARM | $150.49 | |||
| 361844 | 60 | RIGHT UPPER BODY LEG | $129.99 | |||
| 328849 | 61 | RIGHT UPPER BODY ARM | $65.49 | |||
 | 299478 | 62 | GRIP | $57.49 | ||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 372376 | 63B | Right Pulse Wire | NLA | Unavailable to order | ||
| 399152 | 63C | LEFT PULSE WIRE | $65.49 | |||
 | 316835 | 64 | PEDAL ARM AXLE | $43.49 | ||
| 335812 | 65 | RT UPPER BODY ARM FRT CVR | $68.49 | |||
| 335813 | 66 | RT UPPER BODY ARM RR CVR | $54.99 | |||
| 335810 | 67 | LT UPPER BODY ARM FRT CVR | $68.49 | |||
| 335811 | 68 | LT UPPER BODY ARM RR CVR | $54.99 | |||
 | 335837 | 69 | RIGHT LEG OUTER COVER | $43.99 | ||
 | 335834 | 70 | LEFT LEG OUTER COVER | $43.99 | ||
 | 316683 | 71 | DISC | $99.99 | ||
| 335835 | 72 | LEFT LEG INNER COVER | $43.99 | |||
| 335838 | 73 | LEFT SHIELD | $151.49 | |||
| 335839 | 74 | RIGHT SHIELD | $152.99 | |||
| 362864 | 75 | SHIELD COVER | $129.99 | |||
 | 337964 | 76 | LEFT PEDAL ARM SIDE CAP | $26.99 | ||
| 316841 | 77 | AXLE SPACER | $17.99 | |||
 | 386629 | 78 | KEY | $9.49 | ||
| 379408 | 79 | Front Console Cover | $27.49 | |||
| 379409 | 80 | Rear Console Cover | $25.99 | |||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 191032 | 82 | M8 X 16MM SCREW | $1.99 | ||
| 335836 | 83 | RIGHT LEG INNER COVER | $43.99 | |||
| 208938 | 84 | M10 X 60MM BUTTON BOLT | $5.99 | |||
 | 310664 | 85 | M4 SET SCREW | $2.99 | ||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
 | 337965 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | ||
 | 281150 | 88 | M6 X 20MM SHLDR SCRW,NOTE | $4.49 | ||
 | 208163 | 89 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 340140 | 90 | M6 WASHER | $1.49 | ||
 | 281149 | 91 | M10 X 50MM HEX SCREW | $6.49 | ||
 | 232289 | 92 | M10 X 25MM PATCH SCREW | $28.49 | ||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 311000 | 94 | M6 X 13MM SCREW | $60.49 | |||
 | 206321 | 95 | M8 X 19MM PATCH SCREW | $3.49 | ||
 | 234732 | 96 | M8 X 37MM PTH SCRW,NOTE: | $4.49 | ||
 | 248349 | 97A | M8 CRANK PVT WASHER | $6.49 | ||
 | 223812 | 97B | M8 X 28MM WASHER | $1.99 | ||
 | 224113 | 98 | M8 WASHER | $2.49 | ||
| 306635 | 99 | CRANK SPACER | $3.49 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | M4 X 13MM FLANGE SCREW | $0.99 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 256446 | 102A | M8 JAM NUT | $0.99 | ||
 | 012042 | 102B | M8 LOCKNUT | $1.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW | $3.49 | ||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | SNAP FASTENER | $2.49 | ||
| 303479 | 106B | COVER MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 |
