Proform 980 Cse Elliptical – PFEL99808.0 / PFEL998080
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
102 Parts Available for Proform 980 Cse Elliptical - PFEL99808.0 / PFEL998080 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 256432 | 5 | Shield Cover | $71.49 | |||
| 256431 | 6 | Upright Cover | $76.99 | |||
| 273008 | 7 | Ramp Cover | $82.49 | |||
 | 219825 | 8 | WHEEL | $24.99 | ||
 | 237631 | 9 | LEVELING FOOT | $34.99 | ||
| 256146 | 11 | PEDAL LEG TUBE | $29.49 | |||
| 241963 | 12A | IDLER | $62.49 | |||
 | 244245 | 12B | IDLER PULLEY | $35.49 | ||
| 255072 | 13 | PULLEY | $91.99 | |||
| 273044 | 14 | CRANK | $68.49 | |||

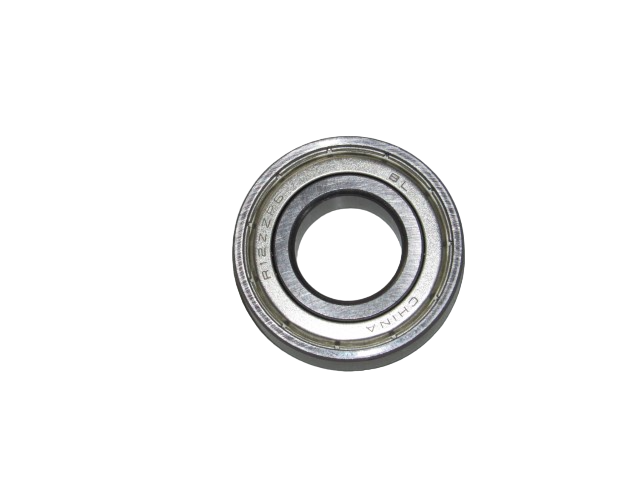

 | 139703 | 15 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
 | 241949 | 16 | RESISTANCE MOTOR | $112.99 | ||
| 273011 | 17 | Rear Stabilizer Cover | $92.99 | |||
 | 237616 | 19 | BRASS BUSHING | $4.99 | ||
 | 131090 | 20 | REED SWITCH CLIP | $0.99 | ||
 | 186070 | 21 | REED SWITCH/WIRE | $28.99 | ||
| 272998 | 22 | Left Handlebar | Contact for Pricing | |||
| 273004 | 24 | Left Pedal Leg | $109.99 | |||
| 272952 | 25 | Link Arm | $150.49 | |||
| 256437 | 26 | Pedal | $70.99 | |||
 | 286547 | 27 | WHEEL W/BRNGS | $59.99 | ||
| 256148 | 28 | CRANK ARM SPACER | $7.49 | |||
| 256151 | 29 | Roller Axle | Contact for Pricing | |||
| 272647 | 30 | LINK TUBE | NLA | Unavailable to order | ||
| 273043 | 31 | CRANK ARM | $108.49 | |||
| 234017 | 32 | KEY | $2.49 | |||
| 273009 | 33 | Left Shield | $151.49 | |||
| 272426 | 34 | UPPER BODY CAP | $7.49 | |||
| 257380 | 35 | Rear Handle Cover | $29.49 | |||
| 272997 | 36 | Right Handlebar | Contact for Pricing | |||
| 273007 | 37 | RIGHT UPPER BODY ARM | $78.99 | |||
| 273005 | 38 | RIGHT PEDAL LEG | $85.99 | |||
| 273039 | 39 | Right Pedal Bracket | Contact for Pricing | |||
| 273010 | 40 | RIGHT SHIELD | $136.49 | |||
| 256147 | 41 | PIVOT AXLE | $25.49 | |||
| 256152 | 42 | Crank Arm Spacer | NLA | Unavailable to order | ||
 | 201296 | 43 | BELT | $49.99 | ||
| 256150 | 44 | CONTROL GRIP | $33.49 | |||
| 256156 | 45 | LINK ARM ENDCAP | $2.49 | |||
| 253844 | 46 | Wire Harness | $64.99 | |||
| 256424 | 47 | Power Harness | $27.49 | |||
| 273038 | 48 | Left Pedal Bracket | Contact for Pricing | |||
| 273042 | 49 | Front Stabilizer | Contact for Pricing | |||
| 256155 | 50 | STABILIZER ENDCAP | $11.49 | |||
| 230991 | 51 | Transformer | $98.99 | |||
| 256460 | 52 | CONTROL BOARD | $110.99 | |||
| 224553 | 53 | CONTROL BOX | $15.49 | |||
| 224554 | 54 | CONTROL BOX COVER | $8.49 | |||
| 262955 | 55 | Ramp | $194.99 | |||
| 273111 | 56 | Lift Bracket | $94.49 | |||
| 262168 | 57 | LIFT MOTOR | $153.49 | |||
| 178810 | 58 | TUBE BRACE | $3.49 | |||
| 249943 | 60 | PIVOT PIN | $7.99 | |||
| 250210 | 61 | 1/2″ HAIRPIN COTTER PIN | $1.99 | |||
| 256713 | 62 | Roller Spacer | NLA | Unavailable to order | ||
| 256409 | 63 | Ramp Axle | $25.99 | |||
| 249969 | 64 | PULSE GRIP,NOTE: SET OF 2 | $57.49 | |||
| 257377 | 65 | Cover Plate | $23.49 | |||
| 260974 | 66 | Front Ramp Cover | $101.99 | |||
| 256441 | 67 | Rear Ramp Cover | $19.49 | |||
 | 109231 | 68 | RECEPTACLE | $18.49 | ||
 | 256815 | 69 | V-CLIP | $0.99 | ||
 | 133333 | 70 | HOOD CLIP | $0.99 | ||
| 252110 | 71 | M6 x 9mm Screw | Contact for Pricing | |||
| 272328 | 72 | M10 x 59mm Hex Screw | $14.99 | |||

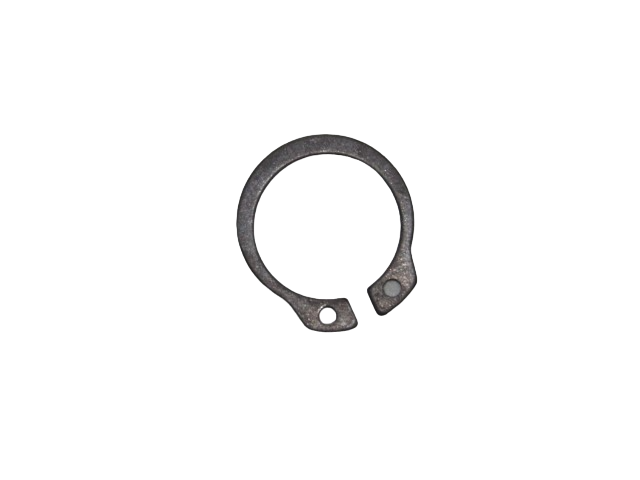

 | 143742 | 73 | LARGE SNAP RING | $3.99 | ||
| 208532 | 74 | 1/8 X 2″ SCREW | $0.99 | |||
 | 237612 | 75 | M8 X 16MM SCREW | $1.49 | ||
| 227130 | 77 | M10 x 15mm Patch Screw | Contact for Pricing | |||
| 212044 | 78 | M10 X 120MM BUTTON BOLT | $22.99 | |||
| 223086 | 79 | M10X1.5X50MM BTN HD BOLT | $4.49 | |||
 | 256446 | 80B | MOTOR BRACKET NUT | $0.99 | ||
 | 262341 | 81 | M6 X 12MM SCREW | $3.49 | ||
| 261944 | 82 | M8 X 50MM SCREW | $6.99 | |||
 | 198000 | 83 | M8 WASHER | $0.99 | ||
 | 208583 | 84 | M10 X 58MM BUTON SCREW | $5.99 | ||
 | 206321 | 85 | M8 X 19MM PATCH SCREW | $3.49 | ||
 | 013322 | 86 | #8 X 3/4″ SCREW | $0.99 | ||
| 256425 | 87 | Lift Motor Wire | $22.99 | |||
 | 179481 | 88 | Power Cord | $24.99 | ||
| 233736 | 89 | M8 X 55MM BUTTON SCREW | $8.99 | |||
 | 195562 | 90 | M4 X 16MM SCREW | $1.99 | ||
 | 208320 | 91 | M4 X 10MM SCREW | $0.99 | ||
 | 013576 | 92 | 1/2″ SCREW | $0.99 | ||
 | 243375 | 93 | E CLIP | $2.49 | ||
| 259065 | 94 | M4 X 16MM SCREW | $0.99 | |||
| 128263 | 95 | SIDESHIELD SCREW | $0.99 | |||
 | 012042 | 96 | NUT | $1.99 | ||
 | 013162 | 97 | REED SWITCH SCREW | $0.99 | ||
| 130286 | 98 | M10 WASHER | $11.49 | |||
| 256144 | 99 | Pivot Bushing | NLA | Unavailable to order | ||
| 014061 | 100 | M10 WASHER | $3.99 | |||
| 248334 | 101 | M10 X 20MM PATCH SCREW | $5.49 | |||
| 133759 | 102 | M10 X 90MM BOLT | $22.49 | |||
 | 148710 | 103A | NUT, M10 LOCK | $2.49 | ||
| 277554 | 104 | #8 X 5/16″ Screw | NLA | Unavailable to order | ||
 | 275907 | 105 | M10 CRANK NUT,NOTE: | $4.49 | ||
| 277535 | 106 | M8 x 78mm Patch Screw | $7.49 | |||
| 272949 | 107 | Pedal Insert | NLA | Unavailable to order | ||
 | 012142 | 109 | M6 LOCK NUT | $0.99 | ||
| 144079 | 110 | 6″ GREEN/YELLOW WIRE, F/R | $4.49 | |||
| 244833 | 112 | 30″WIRE HARNESS | $12.49 | Unavailable to order |
