PROFORM 14.0 CE ELLIPTICAL – PFEL18010.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
152 Parts Available for PROFORM 14.0 CE ELLIPTICAL - PFEL18010.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 299477 | 3 | FRONT STABILIZER | $115.99 | |||
| 287110 | 4 | REAR STABILIZER | $132.49 | |||
| 299996 | 5 | UPRIGHT | $187.99 | |||
| 289393 | 6 | RIGHT UPPER BODY LEG | $106.99 | |||
| 299468 | 9 | LEFT UPPER BODY ARM | $76.49 | |||
| 299474 | 10 | RIGHT HANDLEBAR | $65.49 | |||
| 299471 | 11 | LEFT HANDLEBAR | $65.49 | |||
| 314631 | 13 | LEFT PEDAL ARM | $242.49 | |||
| 299479 | 14 | RIGHT PEDAL | $107.49 | |||
| 299480 | 15 | LEFT PEDAL | $107.49 | |||
| 299487 | 16 | WHEEL CAP | $7.99 | |||
| 299426 | 17 | DISC | $153.49 | |||
| 299483 | 18 | RIGHT SHIELD | $130.99 | |||
| 300000 | 20 | ACCESS COVER | $113.99 | |||
| 298316 | 24 | FRONT UPRIGHT COVER | $127.99 | |||
| 298315 | 25 | REAR UPRIGHT COVER | $121.49 | |||
| 289971 | 26 | ACCESSORY TRAY | $23.99 | |||
| 299486 | 27 | TOP COVER | $26.49 | |||
 | 286527 | 29A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 29B | COVER MOUNT SCREW | $3.99 | |||
| 293439 | 30 | MAGNET COVER | $20.99 | |||
 | 286547 | 32 | PEDAL ARM ROLLER | $59.99 | ||
| 299995 | 33 | CONSOLE | $338.49 | |||
 | 299478 | 35 | GRIP | $57.49 | ||
 | 289864 | 36 | WHEEL | $30.49 | ||
 | 308043 | 38 | DRIVE BELT | $61.49 | ||
| 289884 | 39 | CRANK ARM | $134.49 | |||
| 250210 | 40 | HAIRPIN COTTER PIN | $1.99 | |||
 | 237631 | 41 | LEVELING FOOT | $34.99 | ||
| 289374 | 43 | RIGHT LINK ARM | $66.49 | |||
| 247036 | 44 | LIFT BRACKET | $6.99 | |||
| 246935 | 45 | LIFT AXLE BUSHING | $16.49 | |||
 | 289867 | 46 | PEDAL ARM SLEEVE | $16.99 | ||
 | 233710 | 47 | INNER SLEEVE BUSHING | $22.99 | ||
| 289399 | 48 | UPRIGHT AXLE | $80.99 | |||
 | 293160 | 54 | ARM/LEG BUSHING | $16.99 | ||
| 250957 | 55 | #8X5/8″ FLAT HEAD SCREW | $0.99 | |||
 | 287135 | 56 | SMALL AXLE COVER | $7.99 | ||
 | 293159 | 57 | UPRIGHT BUSHING | $9.49 | ||
 | 233194 | 58 | OUTER SLEEVE BUSHING | $20.99 | ||
| 215823 | 59 | AUDIO WIRE | $11.99 | |||
| 312441 | 61 | FLYWHEEL | $286.99 | |||
| 291374 | 63 | FRAME AXLE | $35.49 | |||
| 291373 | 64 | MAIN FRAME BUSHING | $17.99 | |||
| 285256 | 65 | LATCH BRACKET AXLE | $17.49 | |||
 | 247275 | 66 | LATCH BRACKET SPRING | $7.49 | ||
 | 186070 | 69 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 70 | REED SWITCH CLIP | $0.99 | ||
| 228084 | 71 | CRANK HUB | $98.49 | |||
 | 283736 | 73 | CRANK SPACER | $27.49 | ||
| 277369 | 74 | PULLEY | $174.49 | |||
 | 113842 | 75 | MAGNET | $1.49 | ||
 | 139703 | 76 | CRANK BEARING | $33.49 | ||
 | 363093 | 77 | IDLER | $116.49 | ||
 | 308036 | 78 | RESISTANCE MOTOR | $117.99 | ||
 | 304734 | 79 | RESISTANCE ROD | $43.49 | ||
 | 241954 | 80 | RSISTANCE MOTOR DISK | $1.99 | ||
 | 303952 | 81 | HANDLE BRACKET | $4.99 | ||
| 279645 | 82 | MOTOR BRACKET | $12.99 | |||
 | 284116 | 84 | FLYWHEEL AXLE | $19.99 | ||
 | 281149 | 85 | M10 X 50MM HEX SCREW | $6.49 | ||
| 237611 | 86 | M8 X 28MM SCREW | $1.49 | |||
 | 143742 | 87 | LARGE SNAP RING | $3.99 | ||
| 281148 | 88 | M6 X 65MM HEX SCREW | $3.49 | |||
 | 168267 | 89 | FAN SCREW | $0.99 | ||
| 283304 | 90 | M5 X 7MM SCREW | $3.49 | |||
| 276024 | 91 | MOTOR DISK MOUNTING SCREW | $1.49 | |||
| 254769 | 92 | M6 NUT | $1.49 | |||
| 289473 | 93 | LIFT ARM AXLE | $130.99 | |||
 | 256446 | 94 | M8 NUT | $0.99 | ||
 | 261150 | 95 | M8 WASHER | $2.20 | ||
 | 014033 | 96 | WASHER | $1.49 | ||
 | 208163 | 97 | M6 X 20MM HEX SCREW | $1.99 | ||
| 234286 | 98 | M6 X 8MM HEX SCREW | $0.99 | |||
 | 281150 | 99 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
| 252438 | 100 | M10 X 95MM BOLT | $19.99 | |||
 | 243375 | 101A | SMALL PEDAL ARM SNAP RING | $2.49 | ||

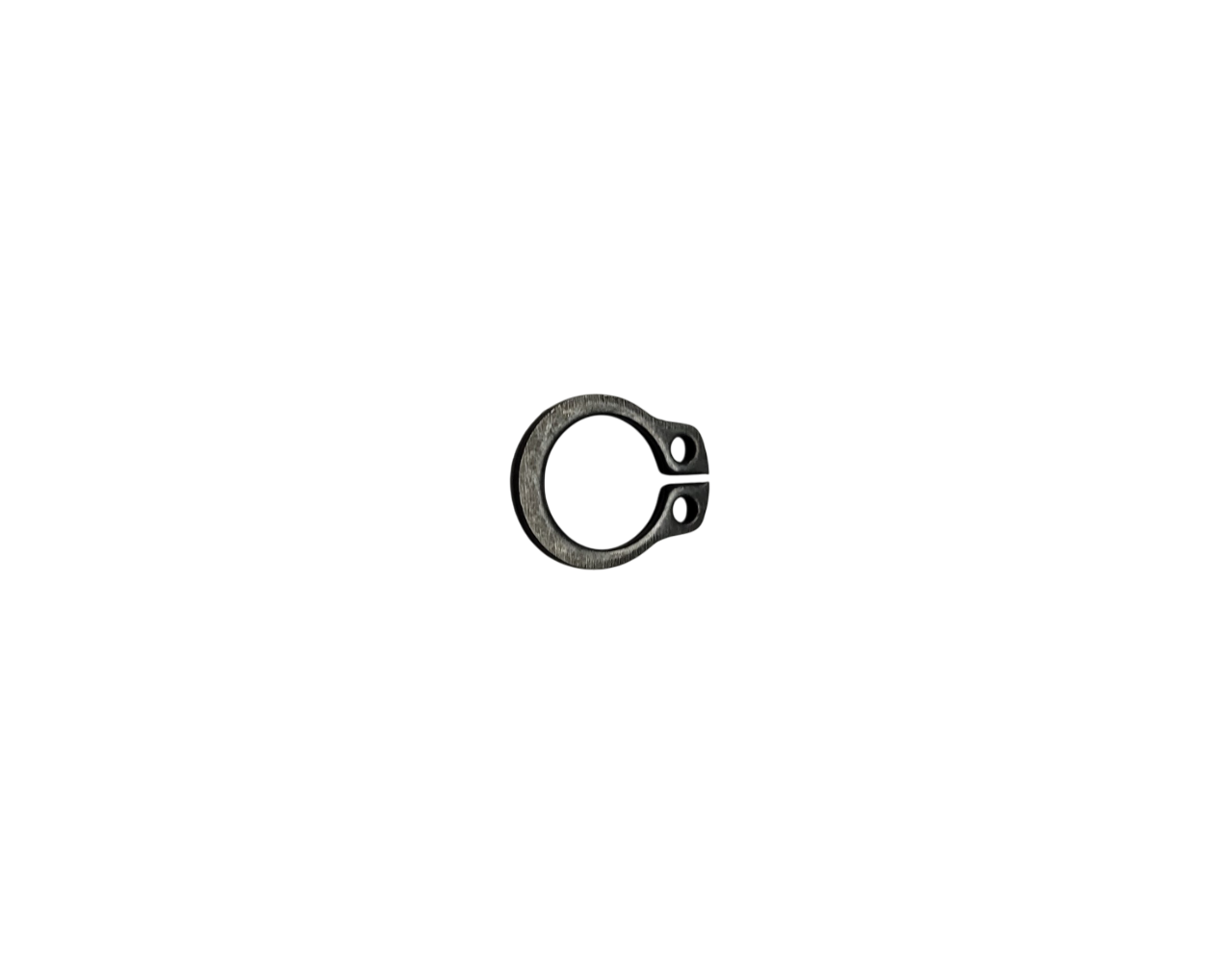

 | 304180 | 101B | SNAP RING | $0.99 | ||
 | 237612 | 102 | M8 X 16MM SCREW | $1.49 | ||
| 014174 | 103 | M8 SPLIT WASHER | $1.99 | |||
 | 243374 | 104 | IDLER SNAP RING | $12.99 | ||
| 272391 | 105A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 105B | LEFT PULSE WIRE | $17.49 | |||
 | 013162 | 106A | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
| 213769 | 106B | #8 X 5/8″ PAN HEAD SCREW | $0.99 | |||
| 250420 | 107 | M10 X 19MM BUTTON BOLT | $2.99 | |||
| 140206 | 108 | M10 FLAT WASHER | $1.99 | |||
| 214070 | 109 | RAIL BOLT, SEE #72 | $6.49 | |||
| 197037 | 111 | M6 X 12MM SCREW | $0.99 | |||
 | 286660 | 113 | LARGE AXLE COVER | $4.99 | ||
 | 286526 | 114 | LINK ARM AXLE | $27.49 | ||
 | 186726 | 115 | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
 | 313668 | 116 | POWER CORD GROMMET | $9.49 | ||
 | 172638 | 117 | FLYWHEEL BEARING | $23.49 | ||
 | 287202 | 118 | 16MM WAVE WASHER | $1.99 | ||
 | 342275 | 119 | POWER CORD | $49.99 | ||
| 256460 | 120 | CONTROL BOARD | $110.99 | |||
 | 236321 | 121 | M8 X 25MM SCREW | $4.49 | ||
 | 283582 | 122 | CRANK SCREW | $66.99 | ||
| 224554 | 123 | CONTROL BOX COVER | $8.49 | |||
| 224553 | 124 | CONTROL BOX | $15.49 | |||
| 209478 | 125 | TRANSFORMER | $71.49 | |||
 | 148710 | 126 | M10 LOCKNUT | $2.49 | ||
 | 013423 | 129 | LATCH PLATE SCREW | $0.99 | ||
| 290833 | 130 | RAMP | $188.49 | |||
 | 291372 | 132 | RAMP BUSHING | $17.99 | ||
 | 287374 | 135 | LIFT MOTOR WIRE | $24.99 | ||
| 290237 | 137 | LONG MOTOR AXLE | $11.49 | |||
| 246931 | 138 | SHORT MOTOR AXLE | $8.49 | |||
| 247921 | 140 | MOTOR SPACER | $3.49 | |||
| 259772 | 141 | LIFT AXLE SCREW | $3.49 | |||
| 289476 | 142 | LEFT LIFT ARM | $72.49 | |||
| 289478 | 143 | RIGHT LIFT ARM | $72.49 | |||
| 290673 | 145 | MOTOR POWER WIRE | $104.99 | |||
| 013509 | 146 | #6 X 3/8″ SCREW, NOTE: | $0.99 | |||
| 235634 | 148 | 10″ GREEN WIRE,F/R | $3.99 | |||
 | 251511 | 149 | M8 X 35MM SCREW | $3.49 | ||
 | 234732 | 150 | M8 X 38MM BOLT | $4.49 | ||
| 298519 | 151 | RIGHT PEDAL INSERT | $53.49 | |||
| 208817 | 152 | M4.2 X 13MM PAN HD SCREW | $0.99 | |||
| 128263 | 153 | LONG CONSOLE SCREW | $0.99 | |||
| 314615 | 154 | M4 X 8MM SCREW | $1.49 | |||
 | 289434 | 155 | MEDIUM SNAP RING | $1.99 | ||
| 195576 | 156 | M4 X 19MM SCREW | $0.99 | |||
| 298762 | 157 | PEDAL INSERT, WHITE | $30.49 | |||
| 298518 | 158 | LEFT PEDAL INSERT | $83.49 | |||
 | 150327 | 159 | M5 NUT | $1.99 | ||
| 183633 | 160 | M5 WASHER | $1.99 | |||
| 297315 | # | Caution Decal | $0.99 | |||
| 166909 | # | DECAL, SITE WARNING | $2.49 | |||
| 307851 | # | CNSL REPROGRAMMING MODULE | $177.49 | |||
| 299799 | # | DECAL, RT RAMP ANGLE | $35.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 299798 | # | DECAL, LT RAMP ANGLE | $35.49 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 258870 | # | DECAL, GENERAL WARNING | $3.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 137825 | # | 10″ BLUE WIRE, 2 F | $4.49 | |||
 | 129004 | # | UPRIGHT GROMMET | $1.99 | ||
| EXIF12 | # | IFIT WIFI ACCESSORY KIT | NLA | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 246448 | # | PAD, RUBBER W/ADHESIVE | $6.99 | |||
| 240351 | # | 50# WIRE CLAMP | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 116926 | # | RELEASABLE TIE | $0.99 | |||
 | 104838 | # | LUBE, GREASE | $8.49 | ||
| 322784 | # | USER’S MANUAL, FCA | $12.49 | |||
| 107771 | # | 8″ WHITE WIRE, M/F | $4.49 | |||
| 313988 | # | USER’S MANUAL | $15.49 | |||
| 240809 | # | Push Button Decal | $4.99 |
