Nordictrack T 6.7C Treadmill V13 – 25023.3 / 250233
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
103 Parts Available for Nordictrack T 6.7C Treadmill V13 - 25023.3 / 250233 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 144985 | 1 | #8 X 5/8″ SCREW | $0.99 | ||
 | 183246 | 4 | 1/4″ X 1/2″ SCREW | $1.49 | ||
 | 014088 | 5 | #10 STAR WASHER | $1.49 | ||
| 374137 | 6 | BASE | $185.99 | |||
 | 341768 | 7 | 3/8″ X 2 1/4″ SCREW | $8.99 | ||
 | 264255 | 8 | 5/16″ X 3/4″ BOLT | $1.99 | ||
| 013549 | 9 | #10 X 1 1/4″ SCREW | $0.99 | |||
 | 186819 | 10 | #8 X 1/2″ WSHR HD SCREW | $0.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 146427 | 12 | #8 X 1″ FOOT SCREW | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
| 372094 | 14 | 9/32″ FRAME/LIFT BSHG | $4.99 | |||
 | 364027 | 15 | IDLER ROLLER SCREW | $2.99 | ||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 381122 | 17 | 3/8″ X 1 3/4″ BOLT | $2.99 | ||
| 377835 | 18 | Console Frame | $49.49 | |||
| 136728 | 19 | SCREW | $0.99 | |||
 | 295756 | 20 | MOTOR BOLT | $0.99 | ||
| 315068 | 21 | 3/8″ PIN | $7.99 | |||
| 372033 | 22 | 3/8″ X 1 1/8″ BOLT | $5.49 | |||
| 014157 | 24 | #8 STAR WASHER | $0.99 | |||
 | 349213 | 25 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 388201 | 26 | STORAGE LATCH | $133.49 | ||
| 377595 | 27 | RIGHT TRAY | $26.99 | |||
 | 174797 | 28 | UPRIGHT BOLT | $4.49 | ||
| 179767 | 29 | 3/8″ X 1 3/4″ BOLT | $61.49 | |||
 | 152478 | 30 | 5/16″ FLAT WASHER | $0.99 | ||
| 377590 | 31 | PULSE CROSSBAR | $112.99 | |||
 | 114078 | 32 | INCLN MOTOR SPACER | $2.49 | ||
 | 119425 | 33 | 3/8″ NUT | $0.99 | ||
 | 100427 | 34 | 5/16″ NUT | $0.99 | ||
 | 121576 | 35 | REAR ENDCAP NUT | $2.49 | ||
| 377594 | 36 | LEFT TRAY | $29.49 | |||
 | 291486 | 37 | #8 X 5/8″ SCREW | $0.99 | ||
 | 372591 | 38 | WHEEL | $7.49 | ||
| 379621 | 39 | ISOLATOR | $67.49 | |||
 | 348118 | 40 | REAR FOOT | $27.99 | ||
 | 347756 | 41 | LATCH CROSSBAR | $54.49 | ||
| 389738 | 42 | LEFT FOOT RAIL | $105.49 | |||
| 305284 | 43 | Latch Warning Decal | NLA | |||
| 350123 | 44 | WALKING PLATFORM | $214.99 | |||
 | 392489 | 45 | WALKING BELT | $119.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
 | 393579 | 47 | RIGHT REAR FOOT | $26.49 | ||
| 240351 | 48 | WIRE TIE | $0.99 | |||
| 399308 | 49 | DRIVE ROLLER/PULLEY | $154.49 | |||
| 372702 | 50 | LEFT INNER BASE COVER | $47.49 | |||
| 372701 | 51 | RIGHT INNER BASE COVER | $47.49 | |||
 | 372092 | 52 | 3/8″ PLASTIC BUSHING | $4.99 | ||
| 265234 | 53 | 1/4″ X 1 1/2″ SCREW | $1.99 | |||
| 399289 | 54 | Drive Motor (399289) | NLA | |||
| 399309 | 55 | MOTOR BELT | $38.99 | |||
 | 393577 | 57 | LEFT REAR FOOT | $25.99 | ||
 | 215822 | 58 | PULSE GROUND WIRE | $5.99 | ||
 | 298474 | 59 | PLATFORM GROMMET | $1.99 | ||
| 389739 | 60 | RIGHT FOOT RAIL | $105.49 | |||

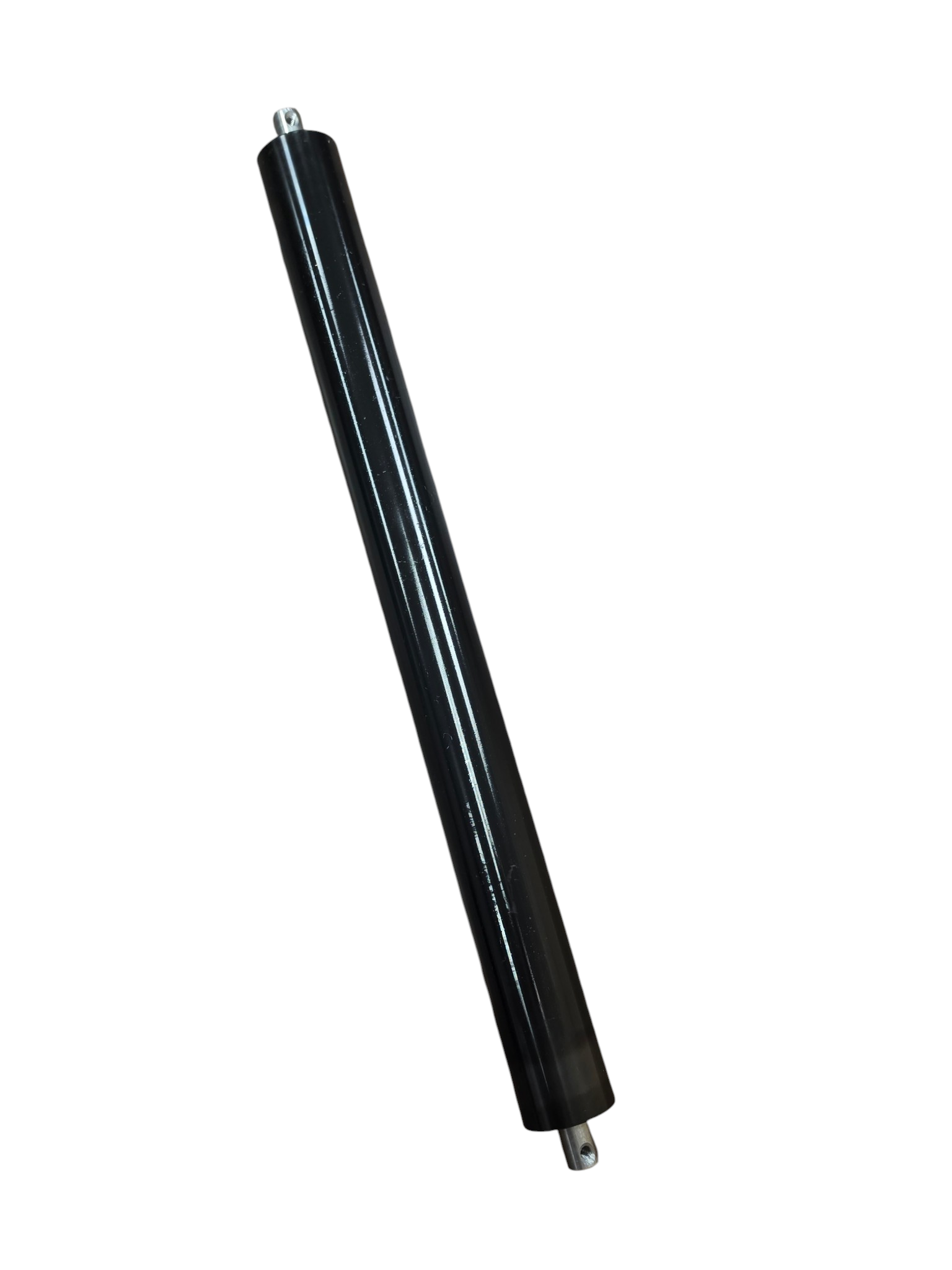

| 311588 | 61 | IDLER ROLLER | $114.99 | |||
 | 181980 | 62 | 3/8″ X 1 3/4″ SCREW | $3.49 | ||
 | 181979 | 63 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
| 377592 | 64 | Console Base | $109.49 | |||
| 349574 | 65 | MOTOR HOOD | $159.99 | |||
| 382998 | 66 | Hood Accent | $43.99 | |||
| 372093 | 67 | INCLINE FRAME SPACER | $4.99 | |||
 | 133333 | 68 | #8 HOOD CLIP | $0.99 | ||
 | 315689 | 69 | INCLINE MOTOR | $161.49 | ||
| 372381 | 70 | INCLINE FRAME | $139.49 | |||
| 343447 | 71 | FRAME SPACER | $6.49 | |||
| 398080 | 72 | Fitness Equipment Controller | $196.99 | |||
| 365328 | 73 | CONTROLLER PLATE | $15.49 | |||
 | 102973 | 74 | 3/8″ WASHER | $0.99 | ||
 | 186726 | 75 | POWER SWITCH | $22.49 | ||
 | 031229 | 76 | POWER CORD | $39.99 | ||
 | 227199 | 77 | GROMMET | $2.49 | ||
| 347853 | 78 | BELLY PAN | $120.98 | |||
| 349105 | 79 | HANDRAIL GRIP | $53.99 | |||
| 387565 | 80 | Fitness Equipment Console | $320.99 | |||
 | 349102 | 81 | UPRIGHT WIRE | $47.99 | ||
 | 372704 | 82 | LEFT BASE COVER | $51.49 | ||
 | 372703 | 83 | RIGHT BASE COVER | $26.99 | ||
| 377022 | 84 | Handrail | $56.99 | |||
| 315047 | 85 | CONTROLLER PLATE | $2.49 | |||
| 132315 | 86 | WIRE TIE | $3.49 | |||
| 348511 | 87 | HANDRAIL CAP | $26.49 | |||
 | 347877 | 88 | KEY | $22.99 | ||
| 377014 | 89 | Left Upright | $127.49 | |||
| 377017 | 90 | RIGHT UPRIGHT | $112.99 | |||
| 252433 | 91 | BASE LEG DECAL | $0.99 | |||
| 243797 | 92 | CONSOLE CLAMP | $0.99 | |||
 | 013576 | 93 | WEIGHT RACK SCREW | $0.99 | ||
 | 173169 | 94 | GROMMET | $0.99 | ||
| 264385 | 95 | M4 WASHER | $1.49 | |||
| 398979 | 96 | DRIVE MOTOR BRACKET | $97.99 | |||
 | 256446 | 97 | M8 NUT | $0.99 | ||
| 250549 | 98 | M8 X 102MM BOLT | $5.49 | |||
 | 234288 | 99 | M8 X 20MM BOLT | $1.49 | ||
| 234325 | 100 | M8 STAR WASHER | $1.49 | |||
 | 012105 | 101 | M8 FLANGE NUT | $3.49 | ||
| 211260 | TS10 | 12″ WIRE HARNESS | $12.99 | |||
| 198085 | TS3 | 12″ RED WIRE, M/F | $5.49 | |||
| 163253 | TS4 | 10″ BLACK WIRE, M/F | $4.99 | |||
| 198081 | TS5 | 6″ BLUE WIRE,M/F | $3.99 | |||
| 126146 | TS6 | 4″ BLUE WIRE, 2F | $3.49 | |||
 | 102634 | TS7 | 8″ GREEN WIRE, F/R | $3.49 |
