Nordictrack Elite 12.5 Elliptical – NTEVEL13014.1 / NTEVEL130141
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
149 Parts Available for Nordictrack Elite 12.5 Elliptical - NTEVEL13014.1 / NTEVEL130141 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 351008 | 3B | 1 1/4″ X 27.5 FOAM TAPE | $22.49 | |||
| 371462 | 3C | 3/4″ FOAM TAPE | $1.99 | |||
| 351312 | 4 | UPRIGHT | $285.49 | |||
| 350867 | 5 | REAR STABILIZER | $64.99 | |||
| 350835 | 6 | RIGHT FRONT STABILIZER | $70.49 | |||
| 356754 | 7A | CNSL,ELNT13014,ARPS | $382.49 | |||
| 356883 | 7B | MODULE,RE-PROG,ARPS,356794 | Contact for Pricing | |||
 | 350885 | 8 | FRONT STABILIZER COVER | $85.49 | ||
| 350833 | 9 | LEFT FRONT STABILIZER | $70.49 | |||
| 350882 | 10 | RAMP COVER | $61.99 | |||
| 365468 | 11 | TRACK | $67.49 | |||
| 351323 | 12 | LEFT ROLLER ARM | $193.49 | |||
| 371626 | 13 | MTR,LIFT,ARPS | $168.99 | |||
 | 351002 | 14 | LEFT PEDAL | $92.49 | ||
 | 316981 | 15 | CONTROLLER W/STANDOFFS | $124.99 | ||
| 250627 | 16 | POWER SWITCH | $16.49 | |||
| 242387 | 17 | RECEPTACLE | $15.49 | |||
 | 350829 | 18 | CRANK | $162.99 | ||
| 356073 | 19 | PULLEY | $181.49 | |||
| 350790 | 20 | CRANK ARM | $177.99 | |||
| 350966 | 21 | PEDAL ARM CAP | $5.99 | |||
| 351325 | 22 | IDLER | $101.49 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
| 356516 | 26 | LOWER SADDLE BRACKET | $116.99 | |||
| 350929 | 27 | LIFT FRAME BUSHING | $39.49 | |||
| 364321 | 28A | EDDY MECHANISM | $403.99 | |||
| 356546 | 28B | RESISTANCE CABLE | $67.49 | |||
| 351320 | 29 | Left Pedal Handle | Contact for Pricing | |||
 | 350041 | 30 | MEDIUM BUSHING | $49.99 | ||
| 346262 | 31 | LIFT FRAME AXLE | $30.99 | |||
| 281865 | 33 | SMALL SNAP RING | $3.49 | |||
 | 148803 | 34 | WHEEL | $24.99 | ||
| 356056 | 35 | BOLT SET | $26.49 | |||
| 350796 | 36 | RIGHT UPPER BODY LEG | $151.49 | |||
 | 350874 | 37 | ACCESSORY TRAY | $78.99 | Unavailable to order | |
 | 186070 | 38 | REED SWITCH/WIRE | $28.99 | ||
 | 282277 | 39 | CLAMP | $3.49 | ||
| 251313 | 40 | BEARING | $53.49 | |||
| 350956 | 41 | RIGHT UPPER GRIP | $62.99 | |||
| 350830 | 42 | MEDIUM CRANK SPACER | $2.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 350786 | 44 | LEFT PEDAL ARM | $175.49 | |||
| 351324 | 45 | RIGHT ROLLER ARM | $193.49 | |||
| 350794 | 46 | LEFT UPPER BODY LEG | $151.49 | |||
| 350844 | 47 | LEFT UPPER BODY ARM | $112.49 | |||
| 350947 | 48 | LEFT UPPER GRIP | $62.99 | |||
 | 351003 | 49 | RIGHT PEDAL | $92.49 | ||
| 350955 | 50 | RIGHT LOWER GRIP | $60.99 | |||
| 329271 | 51 | LARGE ROLLER | $176.49 | |||
| 350946 | 52 | LEFT GRIP BOTTOM | $60.99 | |||
| 350958 | 53 | AXLE COVER | $15.49 | |||
 | 350960 | 54 | LEFT SADDLE BRACKET COVER | $64.99 | ||
| 350884 | 55 | DISC COVER | $62.99 | |||
| 351316 | 56 | SHIELD COVER | $67.49 | |||
 | 287322 | 57 | LIFT BRACKET BUSHING | $10.99 | ||
| 350788 | 58 | RIGHT PEDAL ARM | $175.49 | |||
| 350939 | 59 | LEFT UPPER SADDLE BRACKET | $65.49 | |||
| 350961 | 60 | RIGHT SADDLE BRACKET CVR | $64.99 | |||
| 350845 | 61 | RIGHT UPPER BODY ARM | $112.49 | |||
 | 332578 | 62 | FOOT | $13.99 | ||
 | 355981 | 63 | PULSE SENSOR | $59.49 | ||
 | 194878 | 64 | M4 X 20MM SCREW | $2.99 | ||
 | 350943 | 66 | LEFT OUTER LEG COVER | $34.99 | ||
| 350942 | 67 | LEFT INNER LEG COVER | $29.49 | |||
| 350953 | 68 | UPPER UPRIGHT COVER | $23.49 | |||
| 350952 | 69 | LOWER UPRIGHT COVER | $27.49 | |||
| 350913 | 70 | UPPER BODY LEG BUSHING | $32.49 | |||
| 351313 | 71 | Disc for Fitness Equipment | Contact for Pricing | |||
| 351314 | 73 | Left Shield | NLA | Unavailable to order | ||
| 351315 | 74 | RIGHT SHIELD | Unavailable to order | |||
| 351317 | 75 | REAR SHIELD | $110.99 | |||
| 351318 | 76 | FRAME COVER | $69.99 | |||
| 350959 | 77 | UPPER BODY ARM COVER | $67.49 | |||
| 351233 | 78 | KEY | $6.49 | |||
 | 194653 | 79 | M6 ACORN NUT | $1.99 | ||
 | 350875 | 80 | ACCESSORY TRAY BASE | $78.99 | ||
| 351235 | 81 | J-BOLT | $18.99 | |||

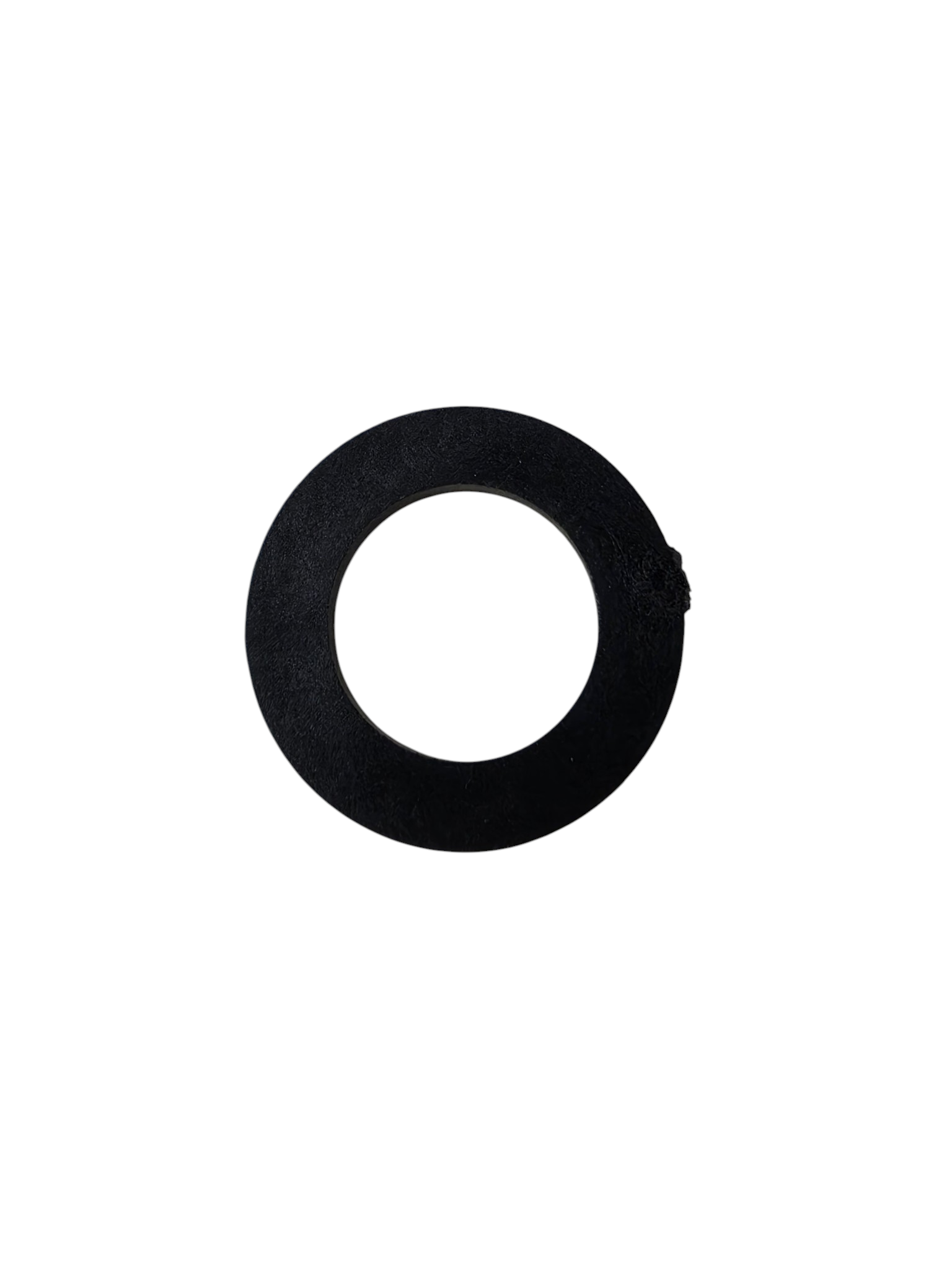

 | 351287 | 82 | PEDAL SPACER | $2.49 | ||
| 350846 | 83 | SMALL CRANK SPACER | $2.49 | |||
| 350949 | 84 | RIGHT PEDAL INSERT | $92.49 | |||
| 350948 | 85 | LEFT PEDAL INSERT | $92.49 | |||
 | 018030 | 86 | MEDIUM ROLLER | $19.49 | ||
 | 350854 | 87 | RIGHT PEDAL PLATE | $151.49 | ||
| 350852 | 88 | Left Pedal Plate | Contact for Pricing | |||
 | 328293 | 89 | M10 X 122MM SCREW | $18.99 | ||
| 350957 | 90 | FRAME CAP | $9.49 | |||
| 350954 | 91 | Ramp Cap | NLA | Unavailable to order | ||
 | 246285 | 92 | LEVELING FOOT | $10.99 | ||
| 167082 | 93 | LARGE SNAP RING | $0.99 | |||
 | 321268 | 94 | PEDAL SPRING | $3.49 | ||
 | 286527 | 95A | FOOT RAIL SNAP | $2.49 | ||
| 314017 | 95B | Mushroom Fastener Screw | NLA | Unavailable to order | ||
 | 289434 | 96 | 5/8″ SNAP RING | $1.99 | ||
| 346264 | 97 | ROLLER AXLE | $11.99 | |||
 | 133333 | 98 | #8 CLIP | $0.99 | ||
 | 380688 | 99 | M10 LOCKNUT | $1.99 | ||
| 350831 | 100 | LARGE CRANK SPACER | $18.49 | |||
 | 256446 | 102A | M8 JAM LOCKNUT | $0.99 | ||
 | 333350 | 102B | M8 NUT | $1.99 | ||
 | 325993 | 103 | PEDAL PIN | $19.99 | ||
 | 195562 | 104 | M4 X 16MM SCREW | $1.99 | ||
| 350921 | 105 | LIFT FRAME | $134.99 | |||
 | 320336 | 106 | RAMP ROLLER | $8.49 | ||
 | 125819 | 107 | STANDOFF | $3.99 | ||
| 352888 | 108 | Part # 352888 | Contact for Pricing | |||
| 171902 | 109A | Chest Pulse Transmitter | Contact for Pricing | |||
| 171904 | 109B | POLAR CHEST PULSE | $28.49 | |||
| 356807 | 110 | MAIN WIRE HARNESS | $74.49 | |||
| 351321 | 111 | RIGHT PEDAL HANDLE | $25.99 | |||
| 327046 | 112 | Power Cord Drawing | Contact for Pricing | |||
 | 353858 | 113 | DRIVE BELT | $59.99 | ||
| 356806 | 114 | WIRE,HRNS,15″,W/HT SHRINK | $20.99 | |||
| 361996 | 116 | RECEIVER | $87.49 | |||
| 328419 | 117 | M10 X 54MM BOLT | $9.49 | |||
 | 275907 | 118 | M10 LOCKNUT | $4.49 | ||
| 193108 | 119 | M8 WASHER | $7.99 | |||
 | 347975 | 120 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 350937 | 121 | RIGHT UPPER SADDLE BKT | $65.49 | |||
| 177325 | 122 | STOP PLATE | $1.99 | |||
| 300804 | 123 | CONTROLLER BRACKET | $29.99 | |||
 | 224606 | 124 | M4 X 25MM SCREW | $0.99 | ||
| 350944 | 125 | RIGHT INNER LEG COVER | $29.49 | |||
| 350945 | 126 | RIGHT OUTER LEG COVER | $23.49 | |||
| 301345 | 127 | BUMPER | $2.99 | |||
 | 346533 | 128 | M8 FLAT WASHER | $4.49 | ||
| 356253 | 129 | M10 LARGE WASHER | $2.99 | |||
 | 247329 | 130 | M8 X 18MM BOLT | $2.99 | ||
| 356255 | 131 | M8 FLAT HEAD SCREW | $2.49 | |||
 | 373258 | 132 | M10 X 20MM SCREW | $5.49 | ||
 | 268411 | 133 | 6MM WASHER | $0.99 | ||
| 350182 | 134 | M10 X 50MM BOLT | $9.49 | |||
 | 194885 | 135 | M10 X 40MM BOLT | $6.49 | ||
| 356254 | 136 | M10 WASHER | $0.99 | |||
 | 208320 | 137 | M4 X 10MM SCREW | $0.99 | ||
 | 197037 | 138 | M6 X 12MM SCREW | $0.99 | ||
| 355854 | 139 | M10 X 70MM SCREW | $11.99 | |||
| 208938 | 140 | M10 X 60MM BOLT | $5.99 | |||
| 014039 | 141 | M4 WASHER | $4.99 | |||
 | 223809 | 142 | M10 X 75MM SCREW | $15.49 | ||
 | 275977 | 143 | M10 X 45MM BOLT | $7.99 | ||
| 248334 | 144 | M10 X 20MM SCREW | $5.49 | |||
 | 362905 | 145 | MECHANISM SNAP RING | $1.49 | ||
| 144788 | 146 | M4 X 12MM SCREW | $2.99 | |||
| 224545 | 147 | M8 SMALL WASHER | $6.49 | |||
| 251831 | 149 | M4 X 22MM SCREW | $1.99 | |||
| 194903 | 150 | M12 NUT | $3.99 | |||
| 350042 | 151 | ROD END BEARING | $76.99 | |||
 | 353075 | 152 | NYLON BUSHING | $1.99 | ||
| 369805 | 153 | CENTER RAMP COVER | $56.49 |
